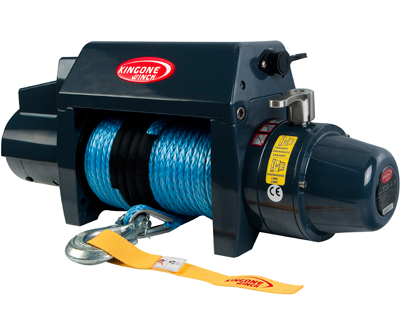

KingOne Winch – TDS-9.5i Synthetic Rope

Heavy duty series wound motor delivers superior torque output and faster line speed.
3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
Automatic,double cone brake.
Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
Installation ,operation and maintenance with ease.

Specification

Line pull:	4,309kgs/9,500lbs
Motor:	12V/5.0HP 24V/3.0HP
Gear Train:	Three stage
Gear Ratio:	173:01
Freespooling Clutch:	Rotating ring gear
Synthetic Rope Size:	Φ11/31″×100′(Φ9.0mm×30m)
Drum Size:	Φ2.5″×9″(Φ63.5mm×229mm)

Line pull

Layer of Synthetic Rope	Max Line Pull
1	9,500lbs/4,309kgs
2	7,800lbs/3,500kgs
3	6,550lbs/2,977kgs
4	5,700lbs/2,578kgs

LINE SPEED AND AMP DRAW(1st layer of Synthetic Rope on the drum)

Load	Line Speed	AMP Draw(12V)	AMP Draw(24V)
No Load	55.8FPM/17MPM	60	40
2,000lbs/907kgs	14.7FPM/4.5MPM	140	106
4,000lbs/1,814kgs	12.5FPM/3.8MPM	181	158
6,000lbs/2,722kgs	8.9FPM/2.7MPM	248	187
8,000lbs/3,650kgs	8.2FPM/2.5MPM	295	226
9,500lbs/4,309kgs	7.5FPM/2.3MPM	338	259

Standard accessoiries

Controller	TA-0906
Synthetic Rope With Hook
Hawse fairlead	TA-0921
Control Unit	TA-0902/12V	TA-0902/24V
Mounting Hardware
Handsaver Strap

Package

Winch weight :	34kgs/74.8lbs
Gross Weight :	36kgs/79.2lbs
Box Dimension :	647×198×410 mm(25.5″×7.8″×16.1″)

TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.

Gewicht	36 kg
Afmetingen	64,7 × 19,8 × 41 cm
Voltage	12V, 24V
