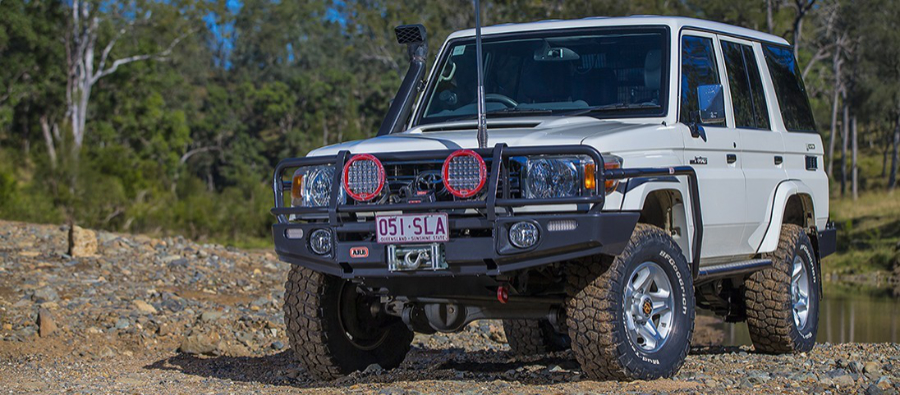

ARB Deluxe Bumper – Toyota LandCruiser 70 Series 2007-2023 – w/ fender flares – Suits ARB Fog Lights MKII – 47.6mm Tube
ARB’s deluxe bull bar selection is our most extensive, with bull bar and winch bar options available for most models.
Loaded with features aimed at making remote area travel safer, whilst providing a solid base on which to add other touring essentials such as driving lights, winches and CB antennas, no other bull bar offers the same degree of vehicle integration, protection and functionality.
Features you can expect to find throughout the deluxe bull bar range include all steel construction, split pan design to facilitate airflow, fully engineered mounting systems and the ARB pioneered multi-fold upswept and tapered wing design.
Product Features:

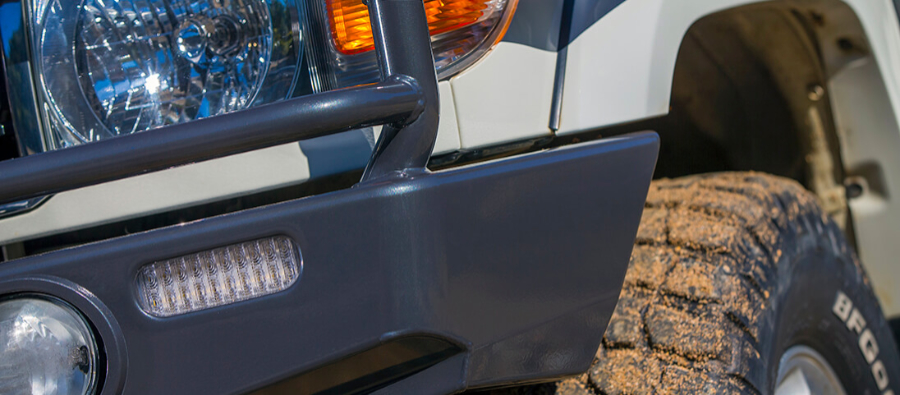

• Recessed indicators: For protection against branches and road debris.
• Recessed Fog light insert: For protection against branches and road debris, fog light is an optional extra.
• Steel uprights: The key to its strength, steel uprights attached to the mounting system provide maximum support and strike protection.
• Driving light provision: Securely mounting driving lights prevents problems such as excessive movement, a vibrating beam pattern, premature bulb failure and eventual fatiguing of the light bodies.
• Aerial brackets: The vast majority of ARB Deluxe bull bars incorporate two aerial brackets welded behind the top cross tube. Custom-fit, clamp-on brackets are also available for additional antenna mounting.
• Split pan design: Enhances the strength of the bar, while providing the radiator and engine with increased airflow.
• Wing design: The ARB design provides greater strength and maintains an optimum approach angle.
• Off road jacking points: Allows for the use of an off road jack for effective recovery.
• Mounting system: Specifically engineered to spread impact and winching loads evenly over the vehicle’s chassis. This ensures the bull bar functions properly in extreme conditions.
| Fitting Time (min) | 90 |
| Material | Steel |
| Colour | black |
| Surface | primed |
| Surface | Powder coated |
| Surface | Smooth |
| Product Feature | Bumper Replacement Bar |
| Product Feature | ADR & Air Bag compliant |
| Product Feature | With Fog light inserts |
| Product Feature | Spot Light mounting Tabs/Provision |
| Light Type | Indicator with Clearance – LED |
| Lens Type | Clear Lens |
| Lamp Type | LED |
| Bulb Colour | Orange |
| Specification | 2 Jack Points |
| Winch Compatible | YES |
| Warranty | 3 Years |
| CB Aerial Bracket | X 2 |
| Wings & Pans | 3.0 mm Thickness |
| Outer & Centre Tubes | 47.6 mm Diameter |
| Outer & Centre Tubes | 2.6 mm Thickness |
ARB Fog Lights MKII apart bij te bestellen
- 3500440 – ARB Fog Light Loom – For vehicles not fitted with Factory Fog Lights
- +
- 3500590 – ARB Fog Light Kit ( left and right hand lights)
LET OP!
- Deze bumpers passen niet op 70 Series met een af fabriek lier i.v.m. afwijkend chassis.
- Niet geschikt voor LC79 Single Cab 5 Star ANCAP MODEL voor dit model dient u art.nr.: 3412510 of 3412520 toe te passen.
- Optionele radiator beschermplaat verkrijgbaar:Â art.nr.: 3512170
