FRONT RUNNER – CHEVY COLORADO ROLL TOP 5.1′ (2015-CURRENT) SLIMLINE II LOAD BED RACK KIT

FRONT RUNNER – CHEVY COLORADO ROLL TOP 5.1′ (2015-CURRENT) SLIMLINE II LOAD BED RACK KIT

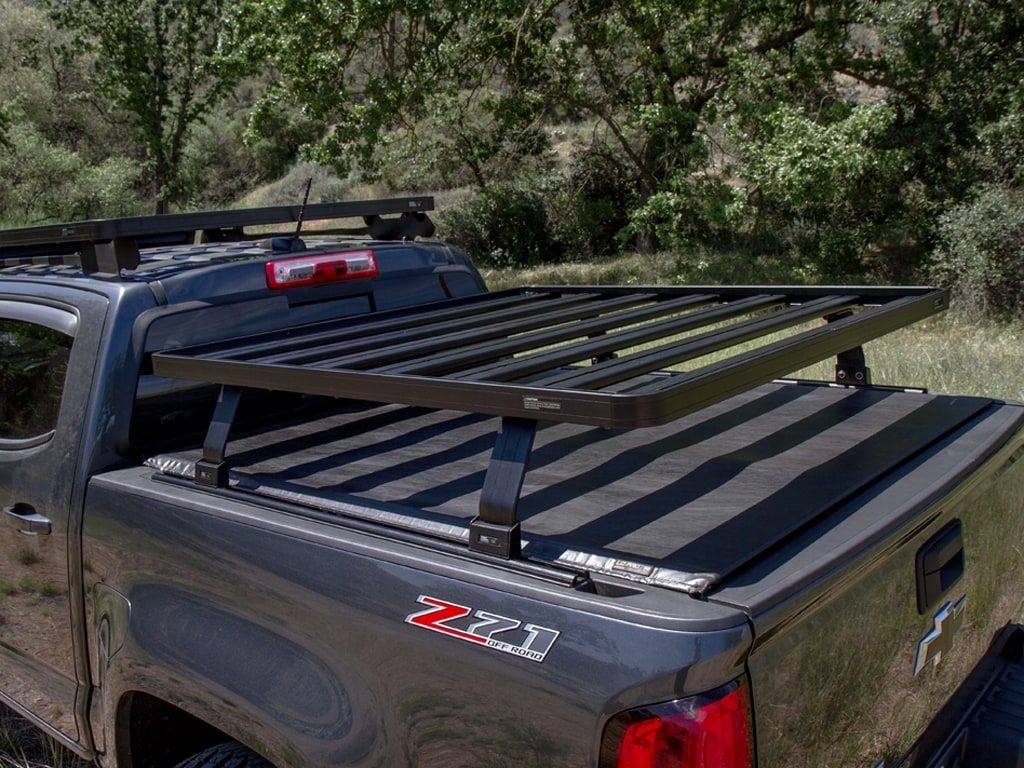

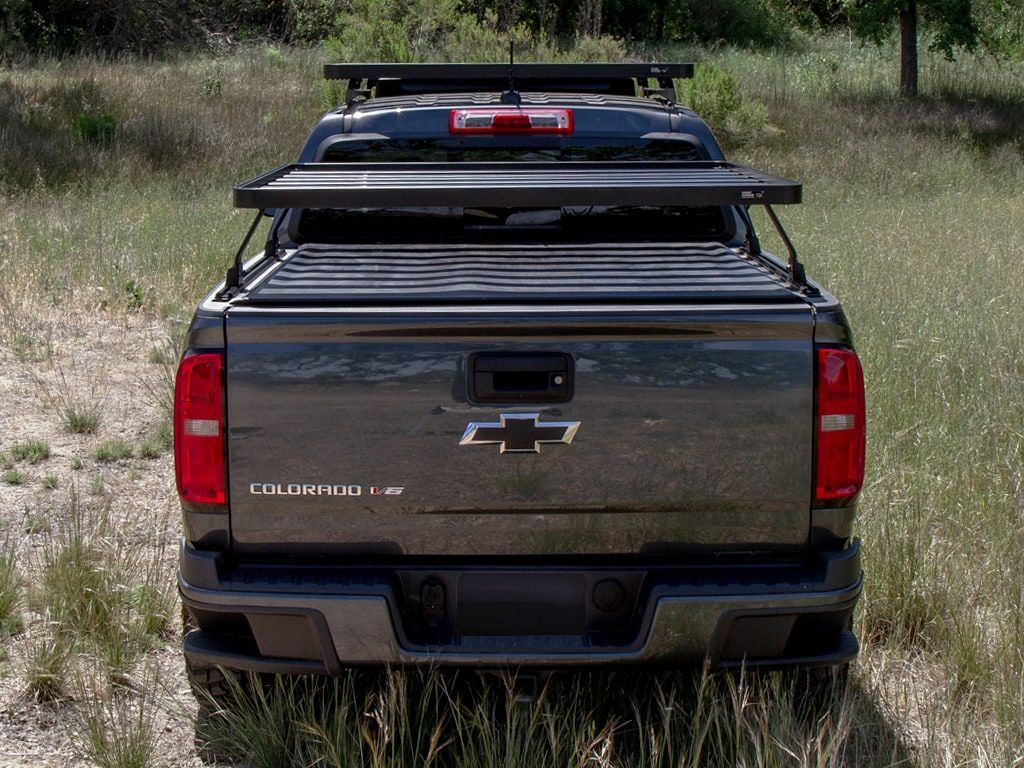

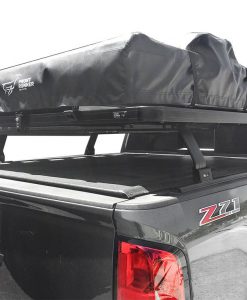

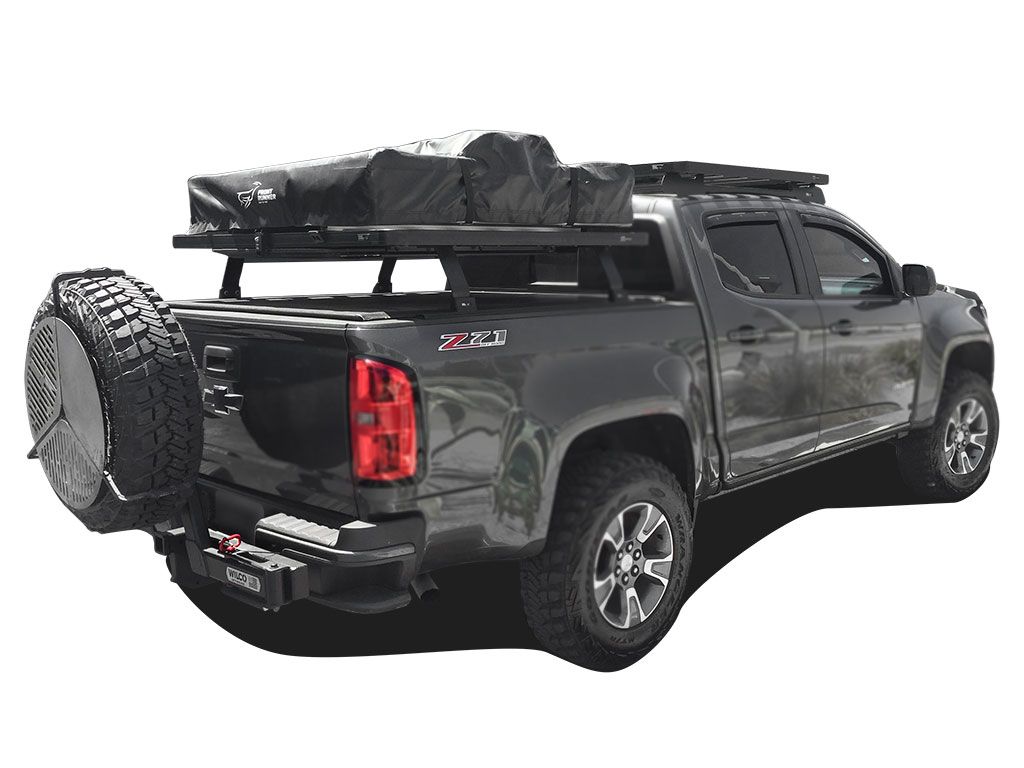

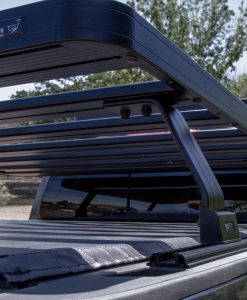

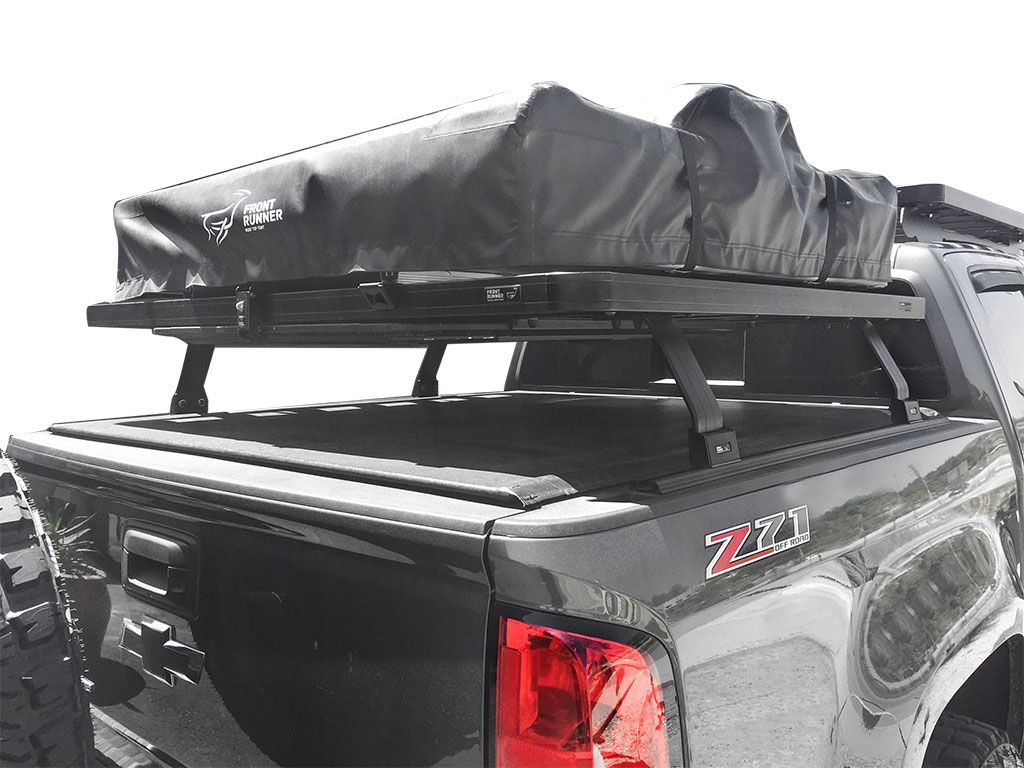

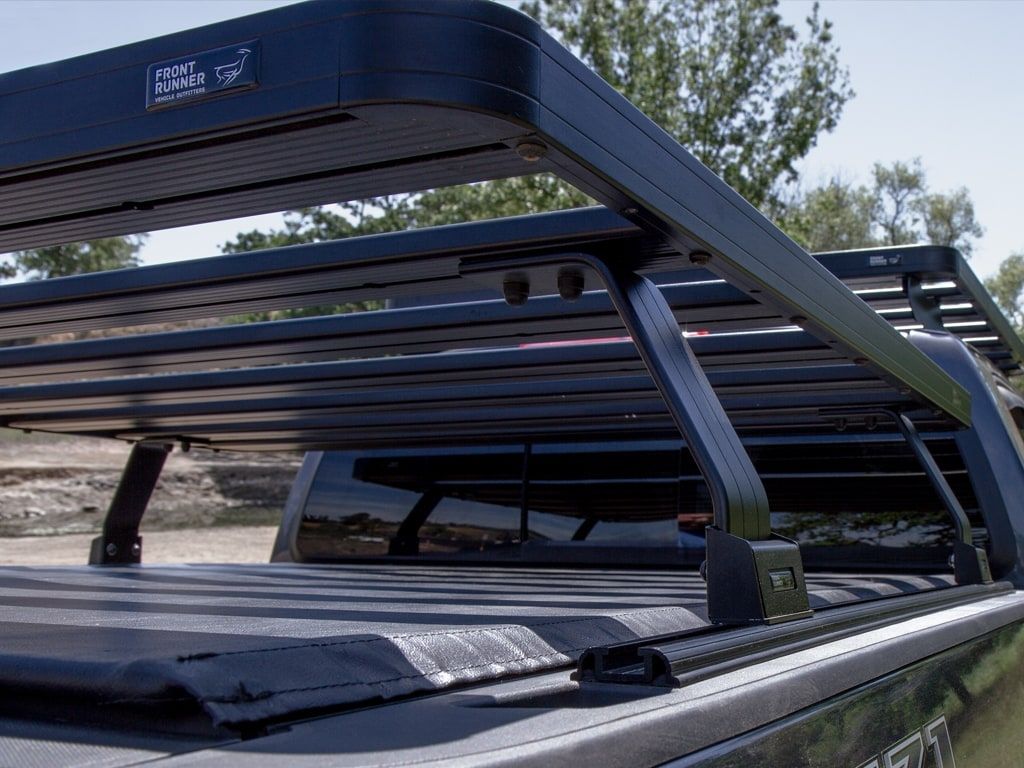

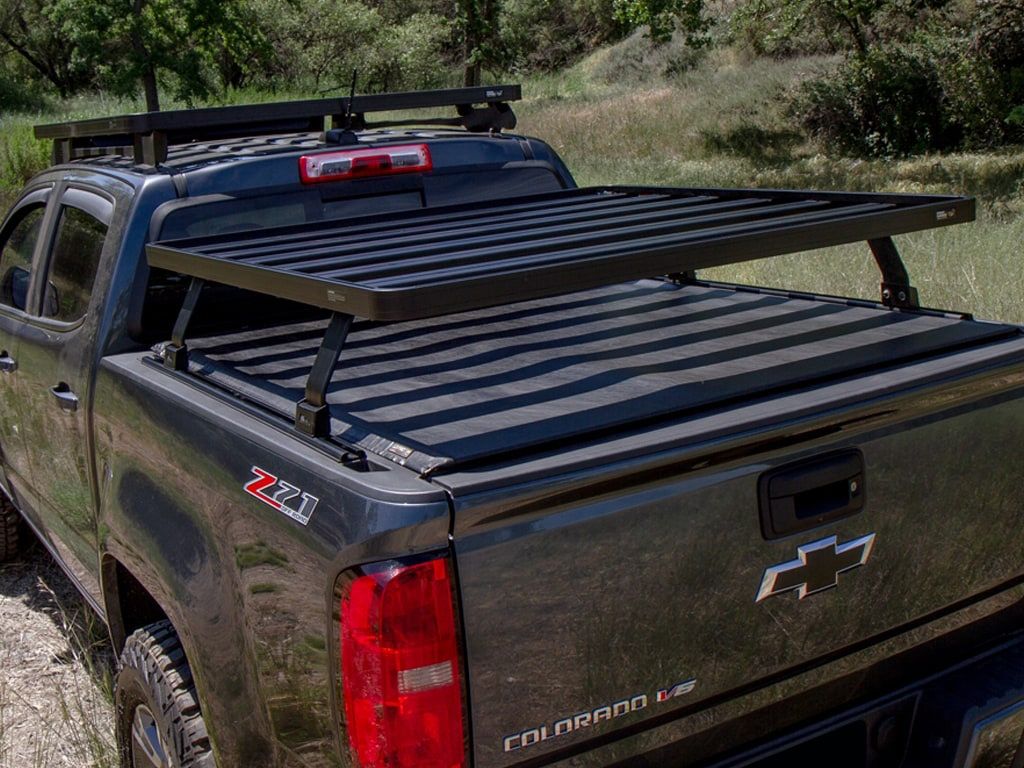

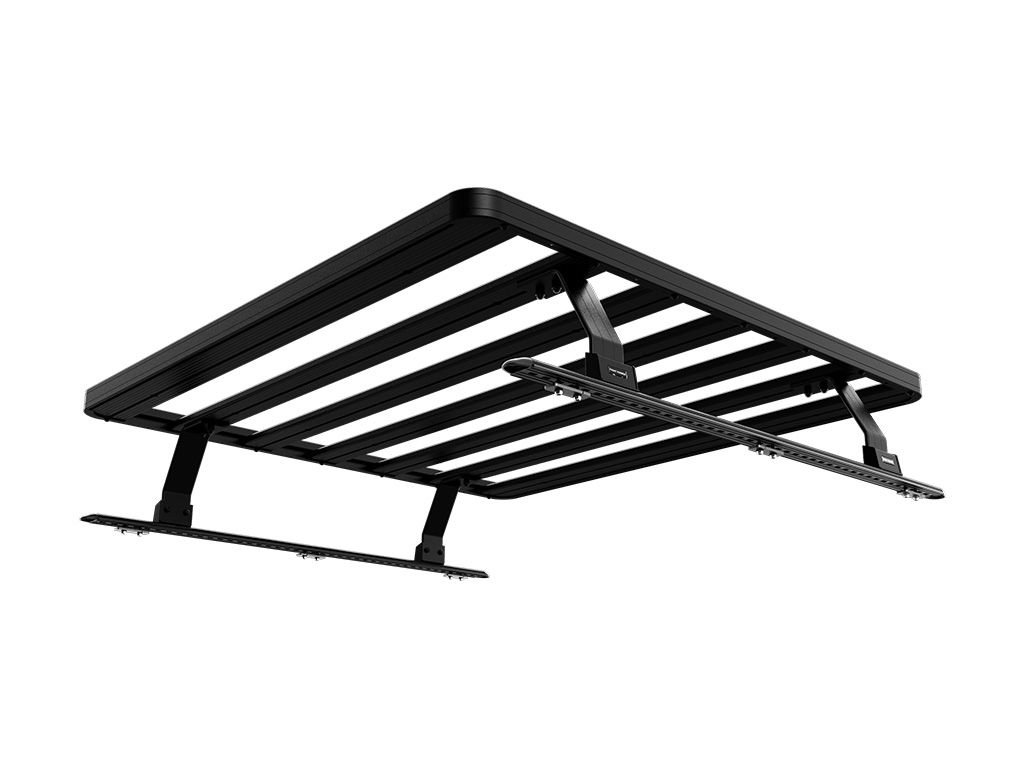

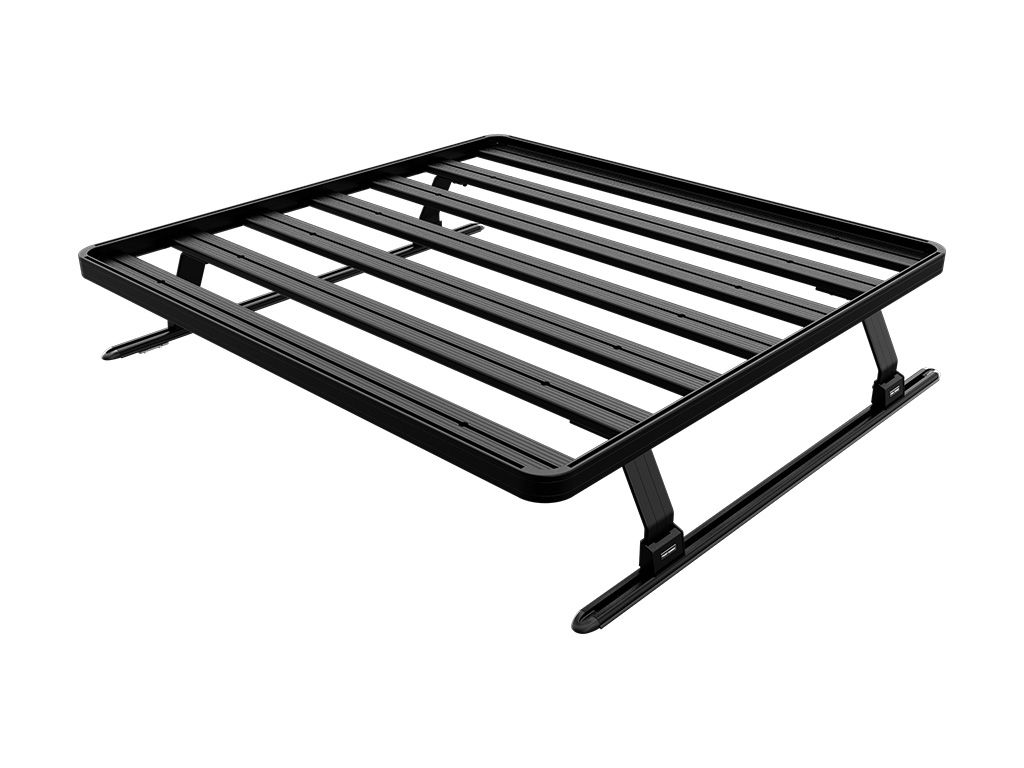

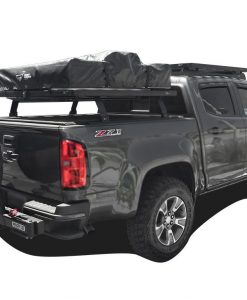

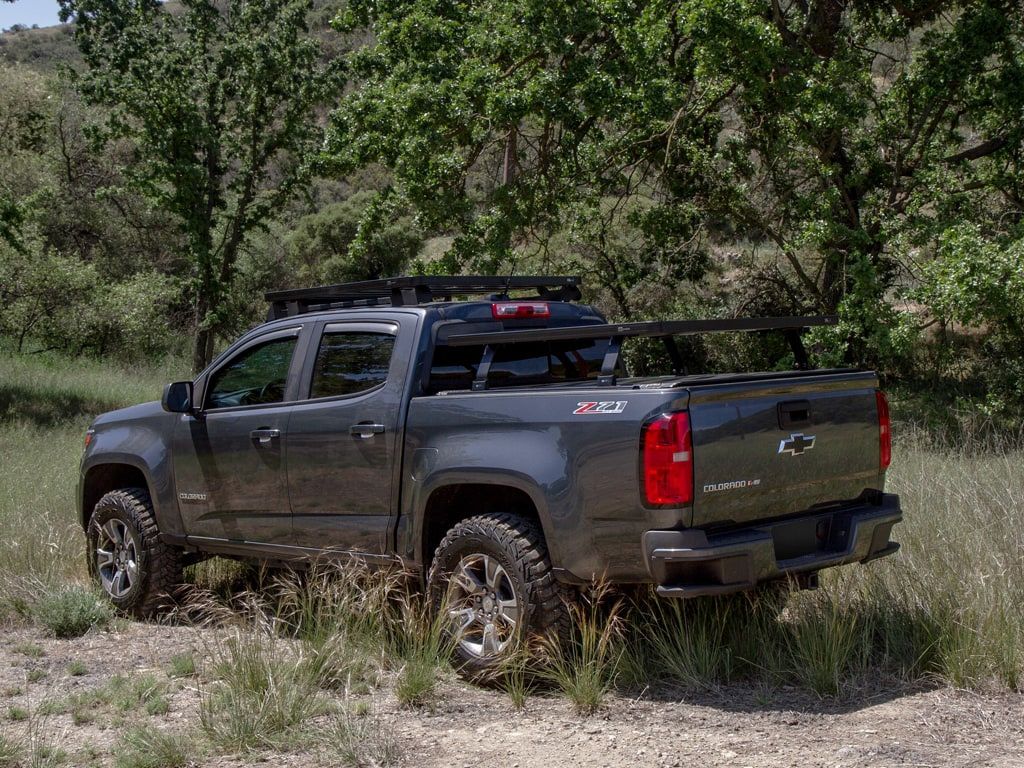

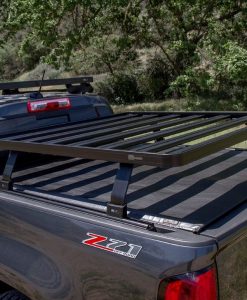

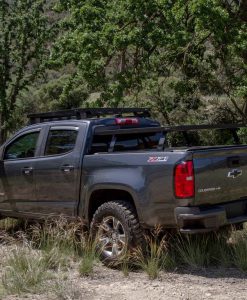

This kit creates a full-size rack that sits above your Chevrolet Colorado’s (2015-current) truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, 2 Pick-Up Truck Bed Universal Legs that fit into the Tracks, and 2 Pick-Up Roll Top Leg Mounts. Drilling is required for installation.

Info:

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

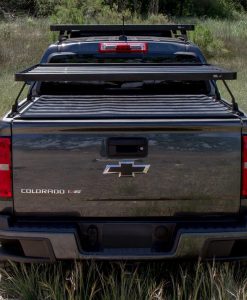

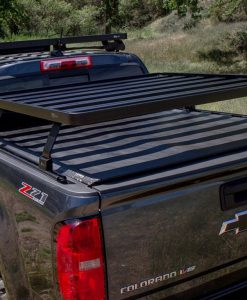

This Rack Kit creates a second level of storage for your load bed above the roll top of your Chevy Colorado.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

A load bed top ledge with a minimum surface area of 55mm wide and length of 1000mm – 1600mm is required to mount Front Runner tracks.
Dependent on the roll top used a minimum clearance of 20mm is required from the inner face of the leg base, to the roll top outer edge. This applies when the leg is fitted to a Front Runner Track or other Roll Top channel.

Specs:

Consisting of:

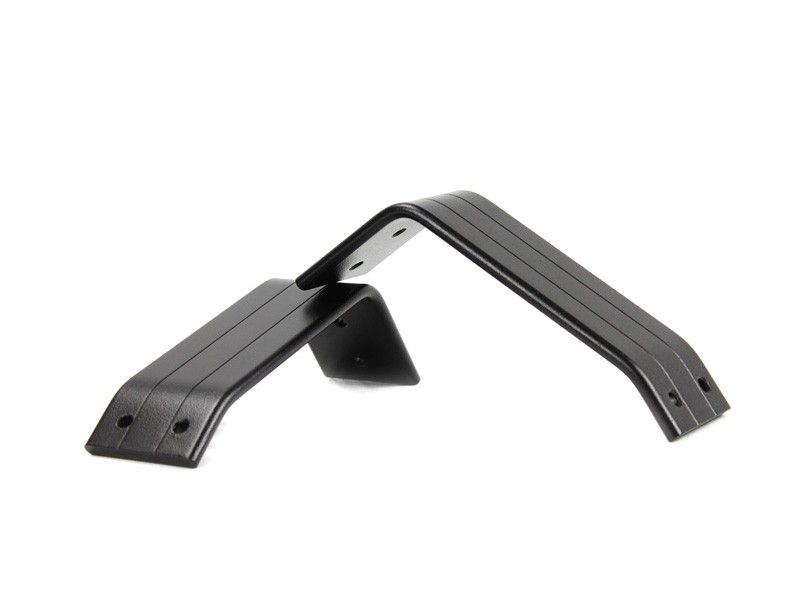

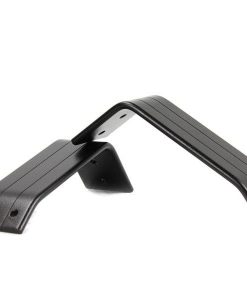

• 2 x LASS026 – Universal Load Bed Leg / Tall (Pair) – by Front Runner

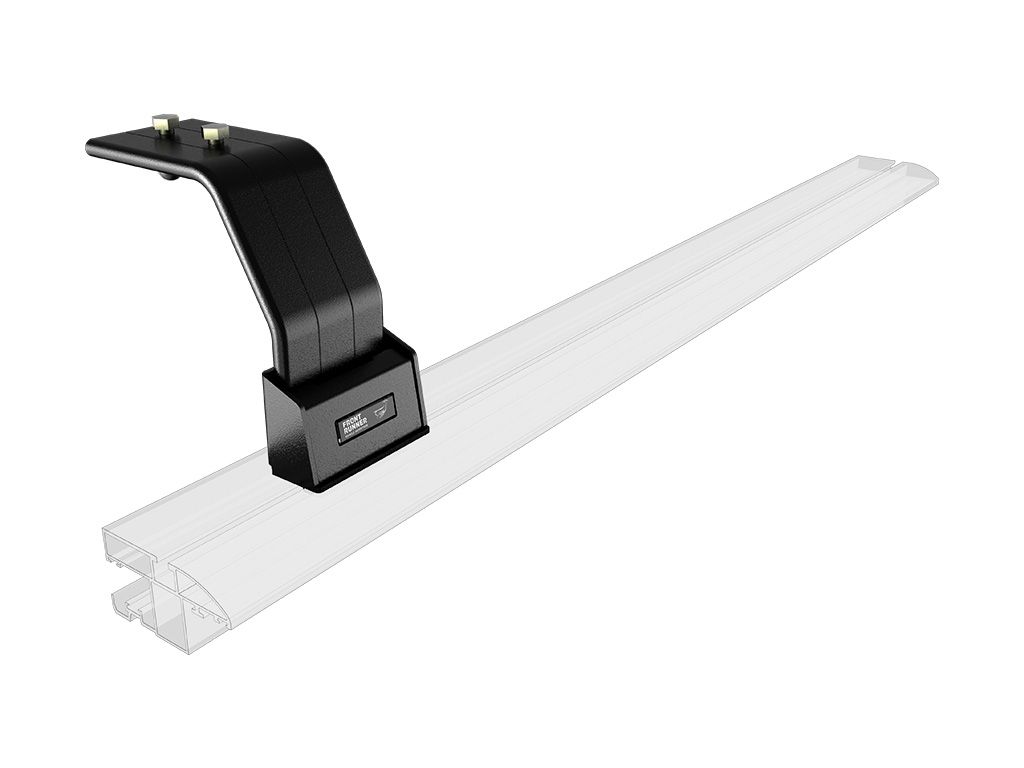

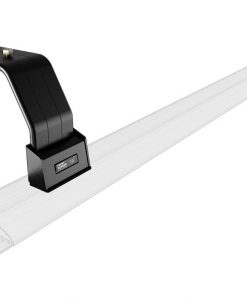

• 2 x LASS028 – Pick-Up Roll Top Leg Mount – by Front Runner
• 1 x RRAC902 – Load Bed Bolt Kit- Ford F150 2004-2014

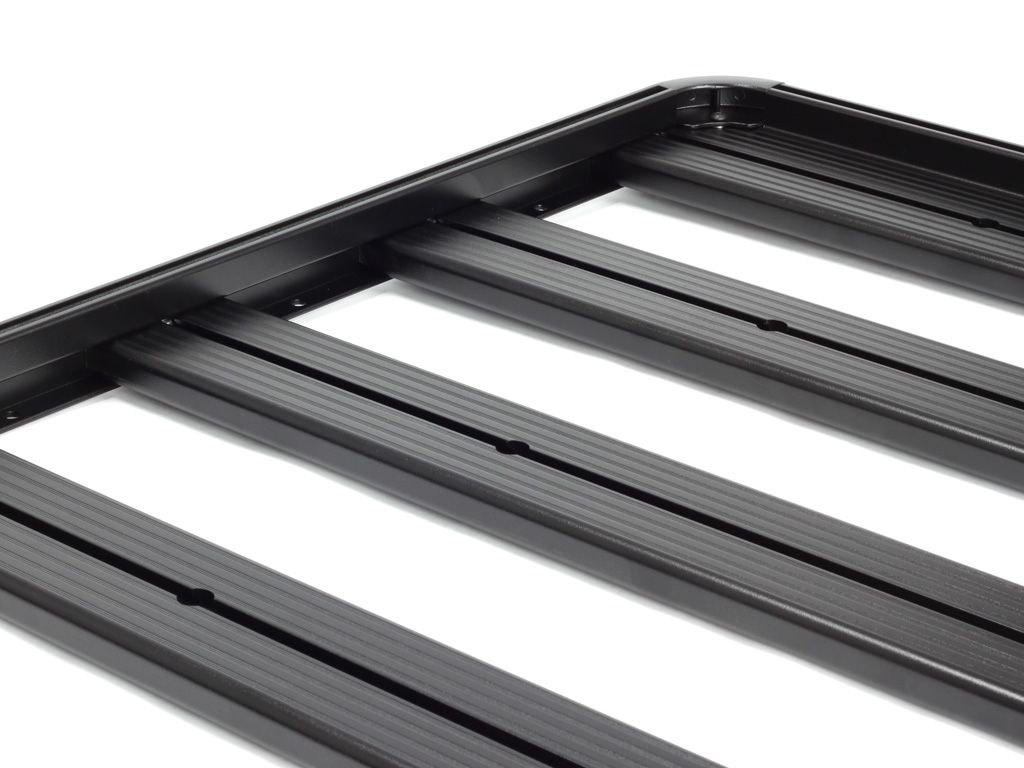

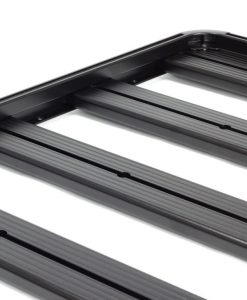

• 1 x RRSTJ07 – Slimline II Tray – 1425mm(W) X 1358mm(L) – by Front Runner

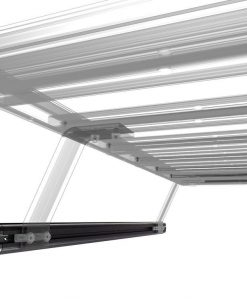

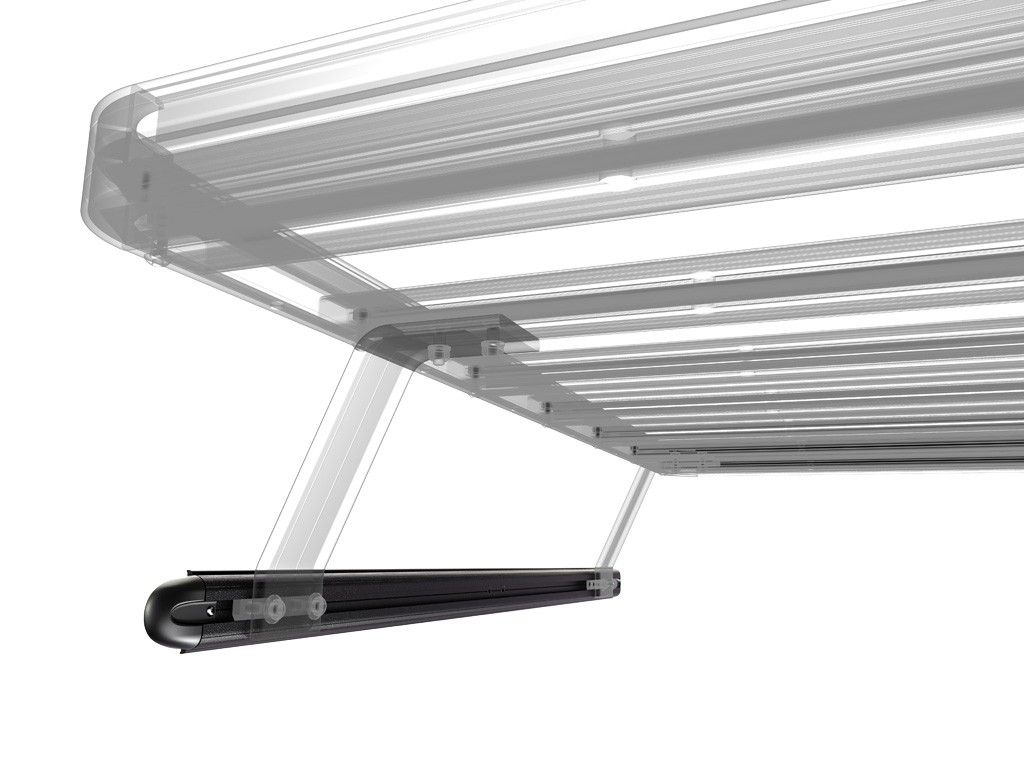

• 1 x TRBU002 – Pick-Up Load Bed Tracks / 1200mm(L) – by Front Runner

Material used:

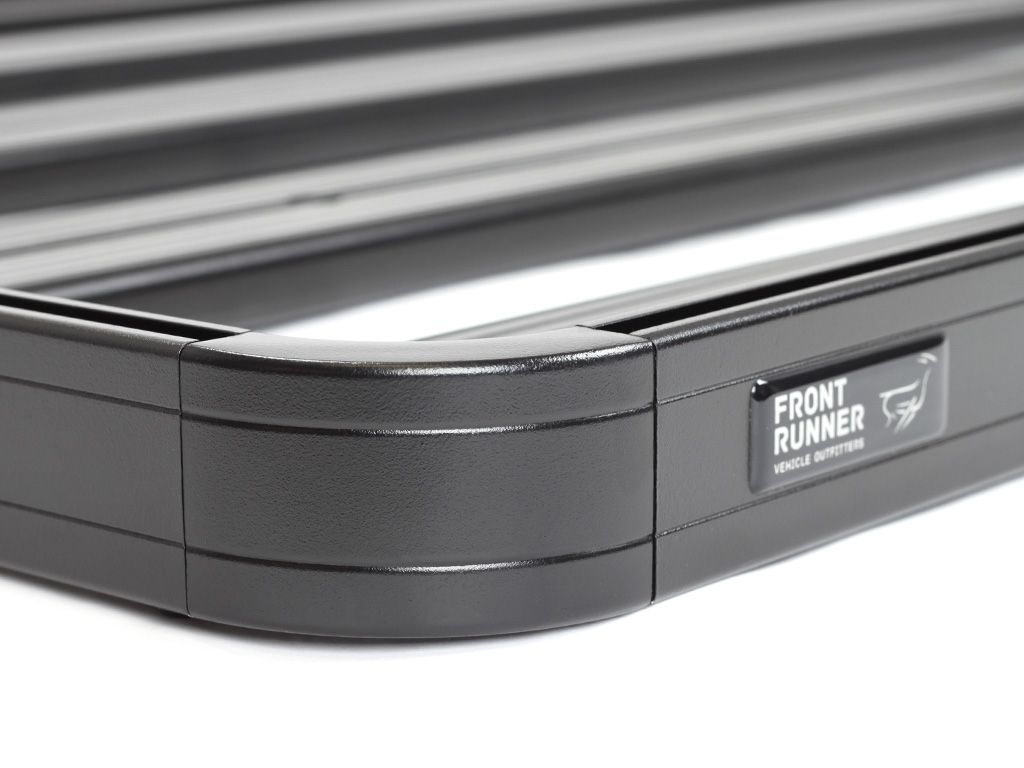

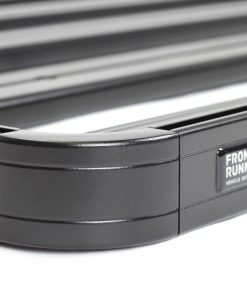

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 30kg (65lbs)

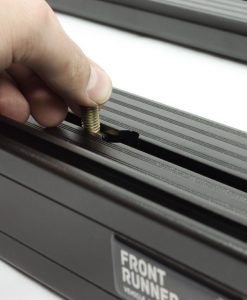

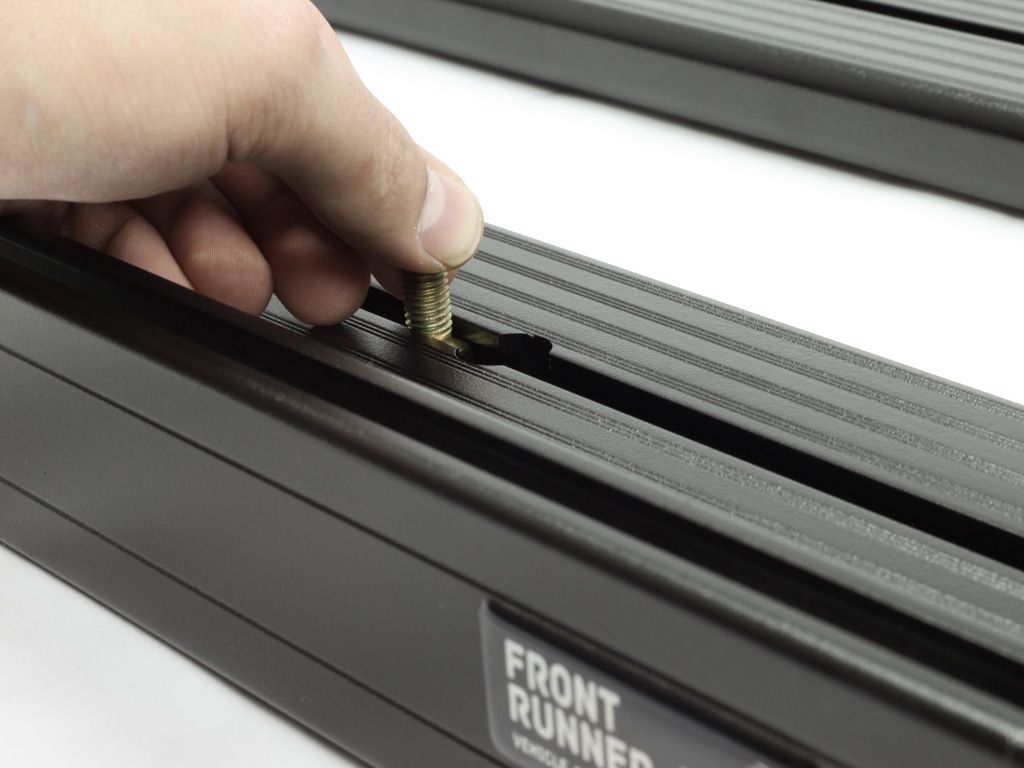

• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 455mm (18″)
• Length 1620mm (64″)
• Height 270mm (11″)

Shipping Weight:

• Weight 34.5kg (75.9lbs)
