Front Runner – FORD RANGER RETRAX XR 6″ (2019-2022) SLIMLINE II LOAD BED RACK KIT

Front Runner – FORD RANGER RETRAX XR 6″ (2019-2022) SLIMLINE II LOAD BED RACK KIT

Double up the loading space on your Ford Range with this Slimline II Load Bed Rack Kit. The Slimline II’s lightweight, modular construction gives you the freedom to customize your rig with over 55 accessories so you can haul all your adventure gear and toys. This particular kit installs into the existing ReTrax XR rails of your Ford Range.

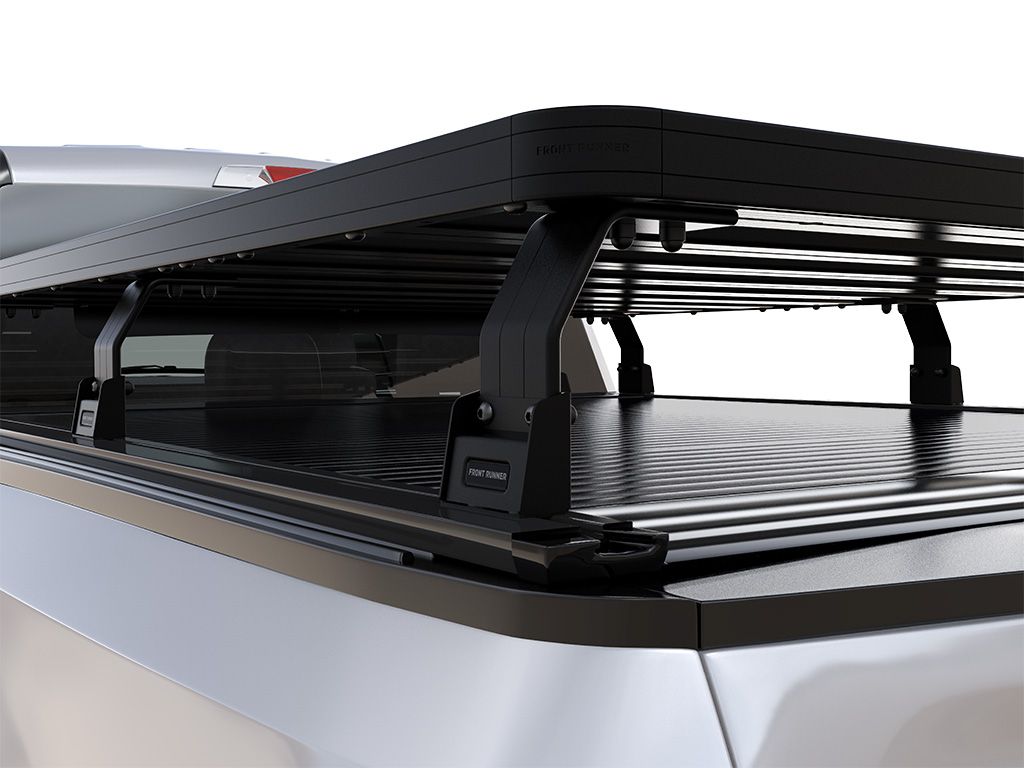

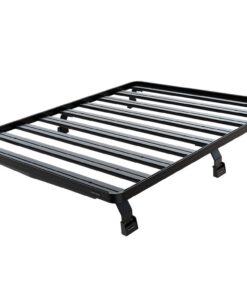

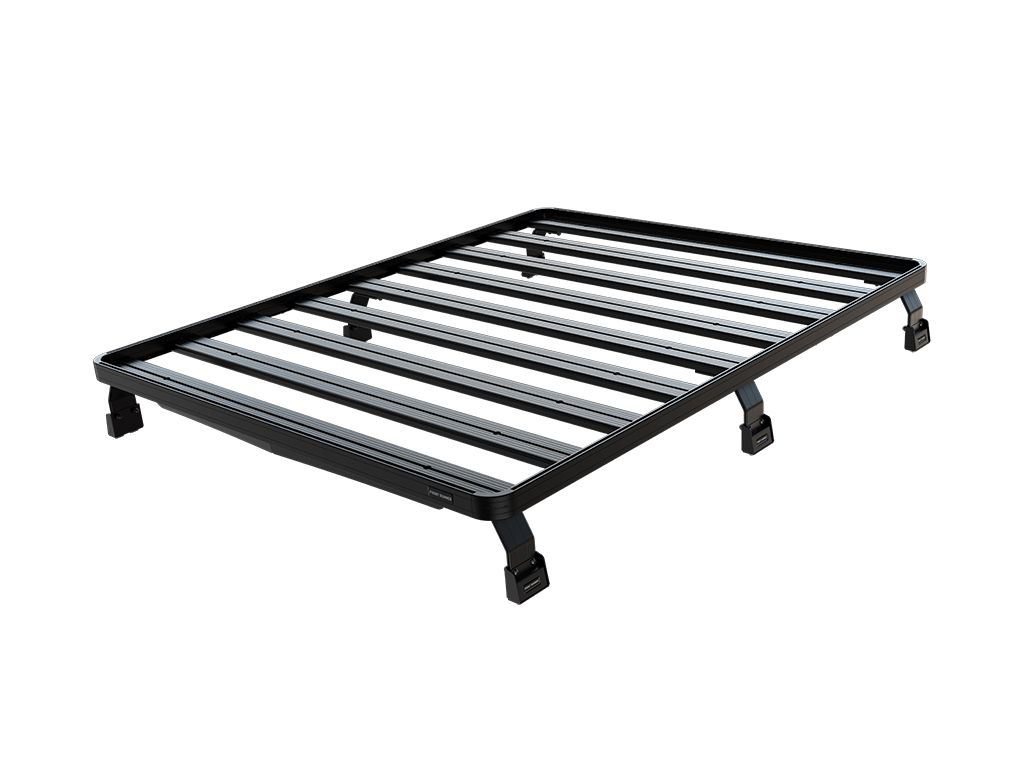

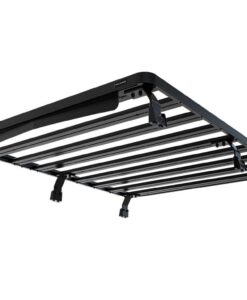

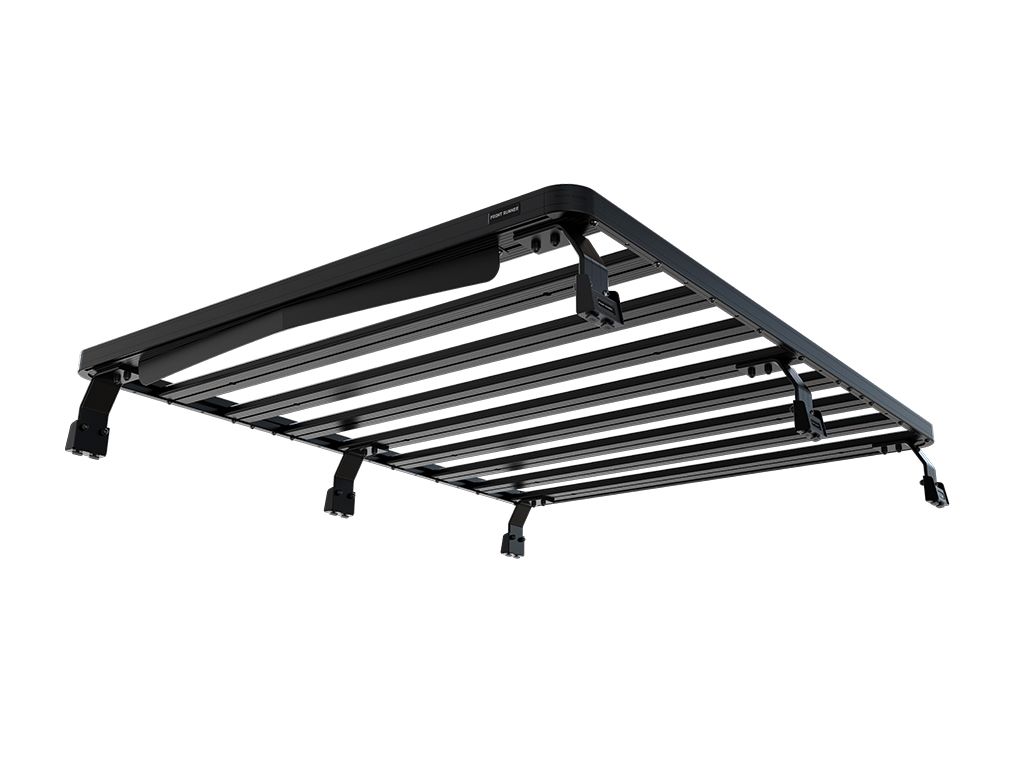

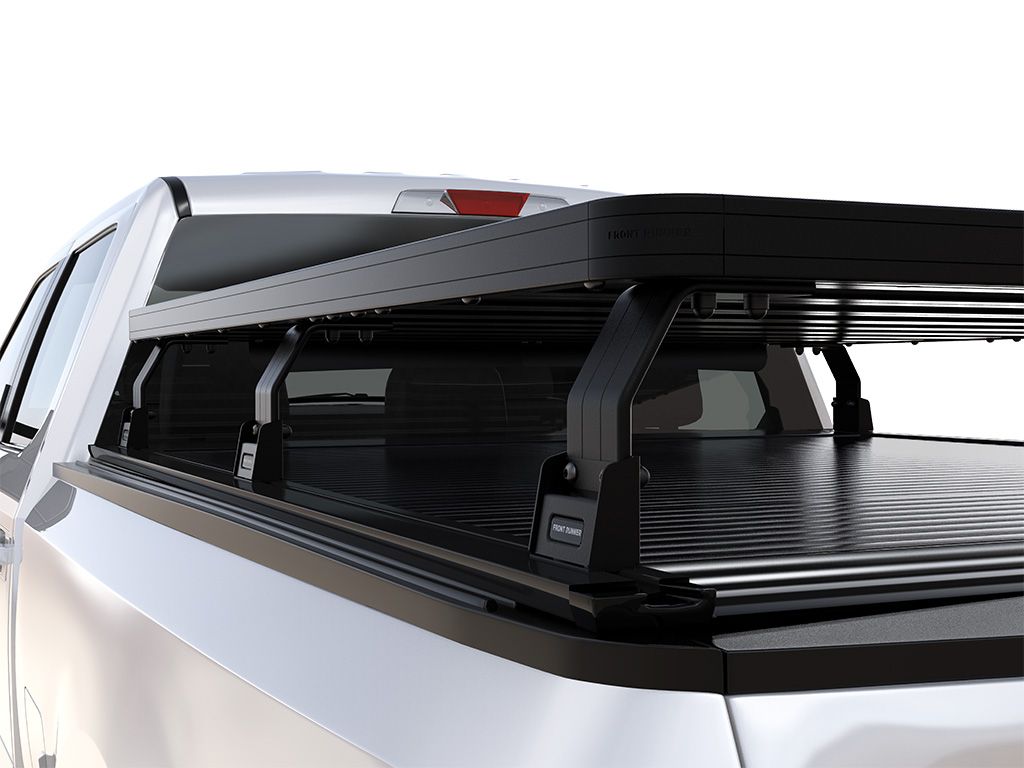

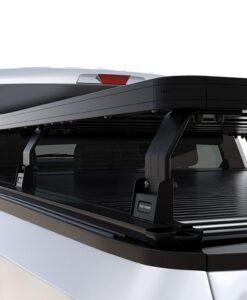

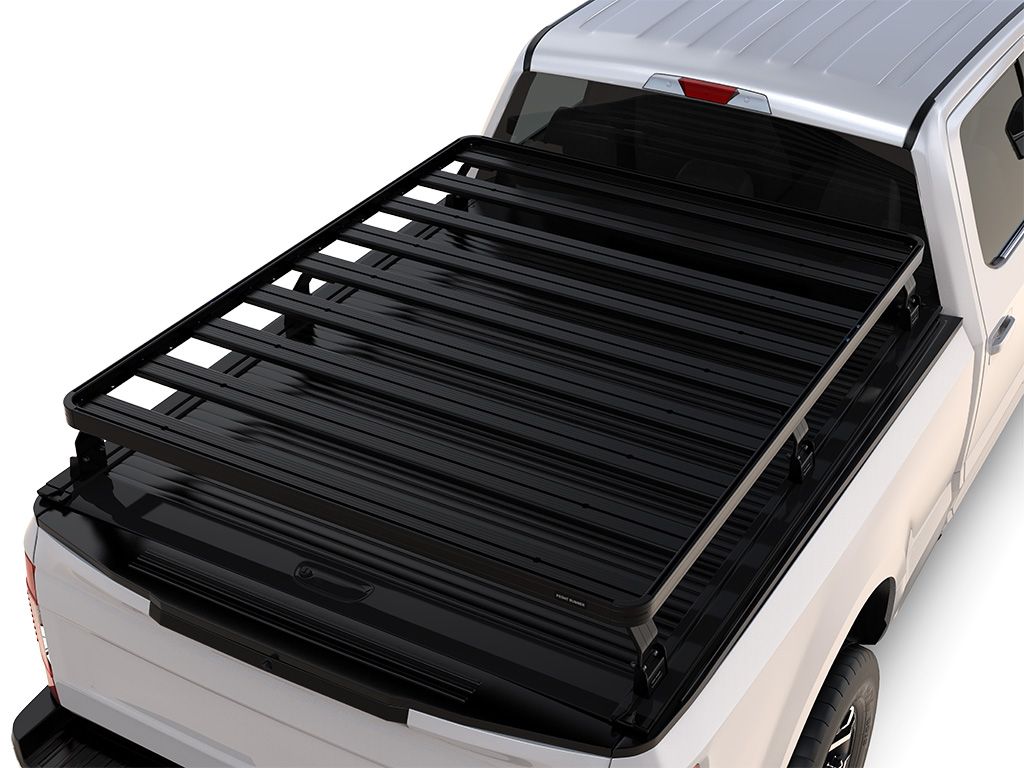

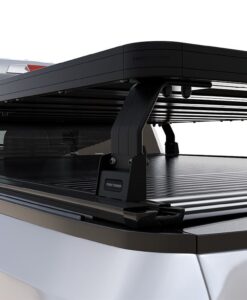

• This kit creates a full-size rack that sits above your Ford Ranger’s (w/ReTrax XR rails) load bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm) and 6 Pickup Truck Bed Universal Legs that fit into the existing ReTrax XR rails.
• All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
• All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: If your Roll Top extrusion has a 6mm (0.24″) to 7mm (0.28″) slot opening, you may need Track Mount Stud Plate for installation.

Consisting of:
3x LASS028 – Pick-Up Roll Top Leg Mount
1x RRSTJ09 – SLII Tray – 1425mm(W)X1762mm(L)

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Approximate Installed Weight: 29.4kg (64.82lbs)

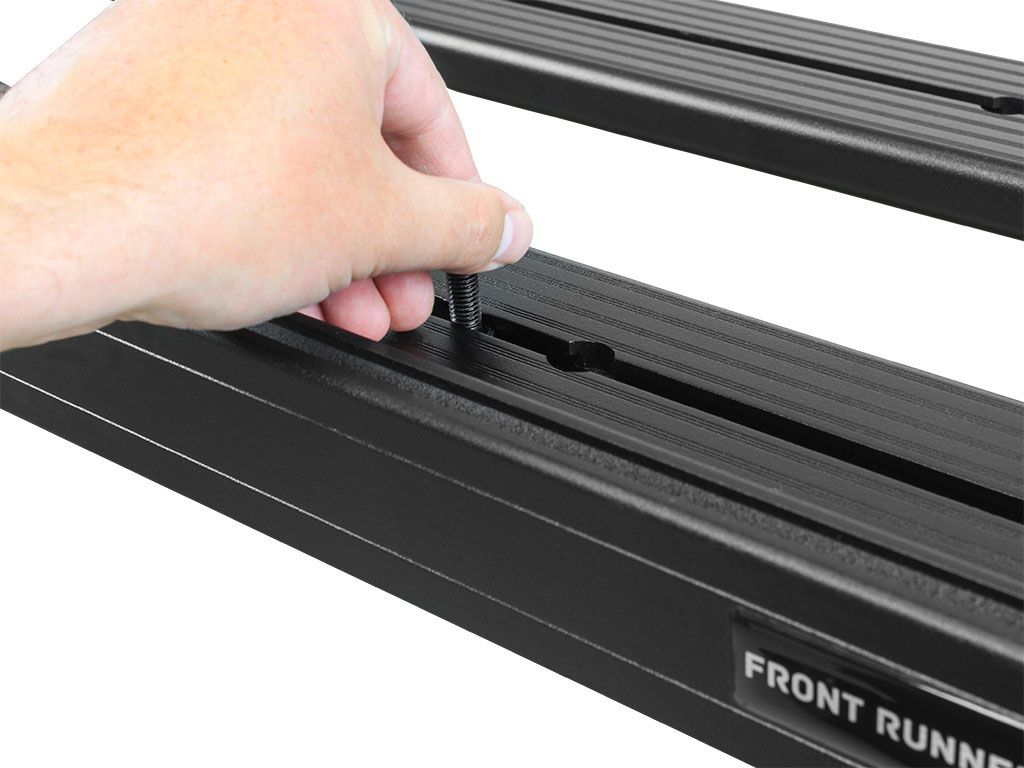

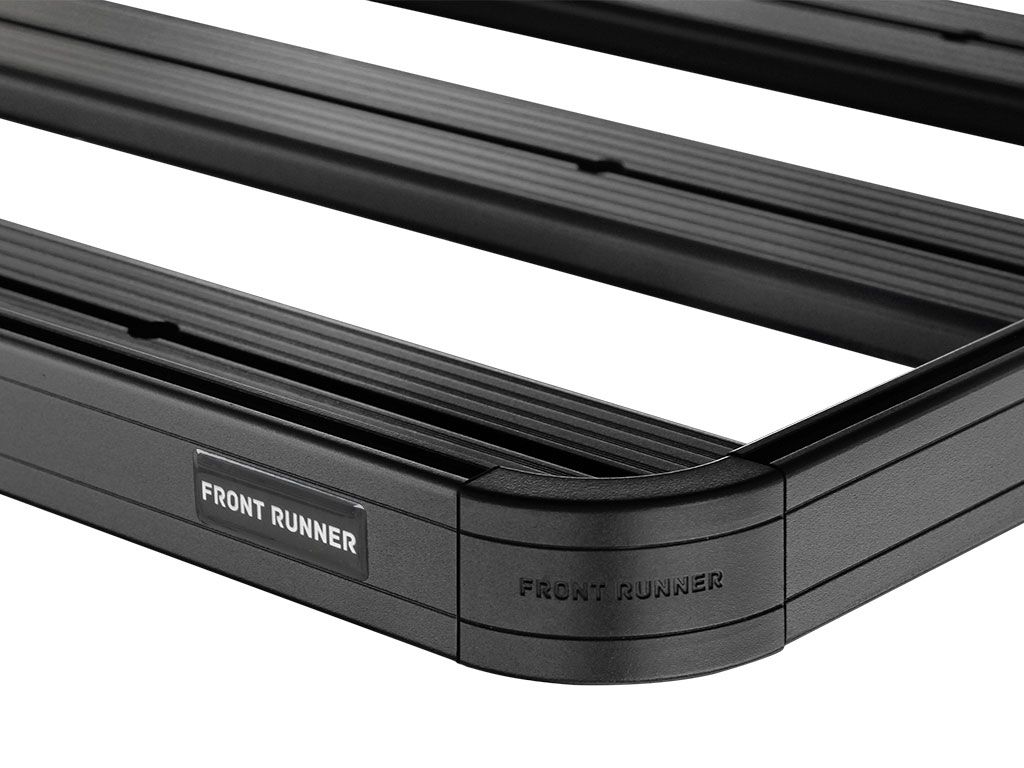

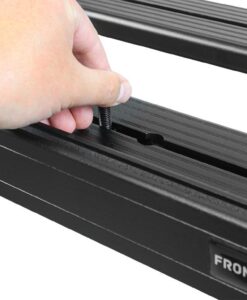

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17″)
Length: 1730mm (68″)
Height: 260mm (10″)

Shipping Weight:
Weight: 34kg (75lbs)

Photos are for illustrative purposes only
