FRONT RUNNER – GWM P500 (2024-Current) Roll Top Slimline II Load Bed Rack Kit

FRONT RUNNER – GWM P500 (2024-Current) Roll Top Slimline II Load Bed Rack Kit

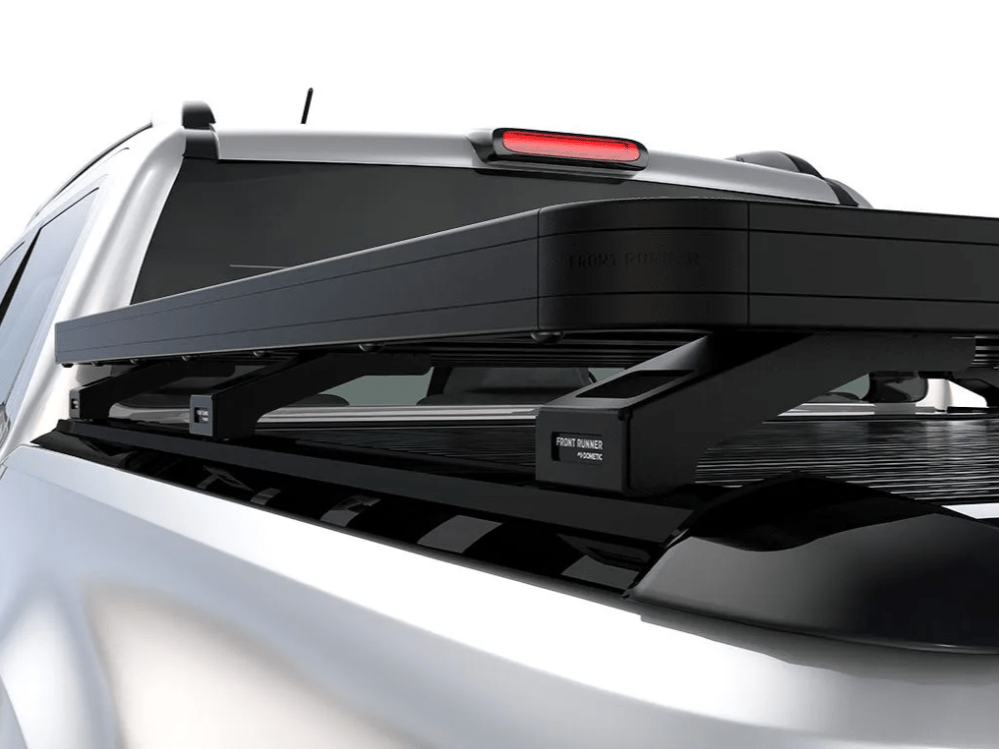

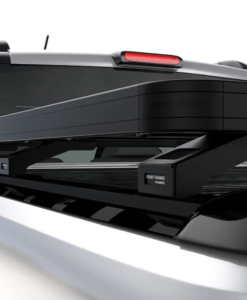

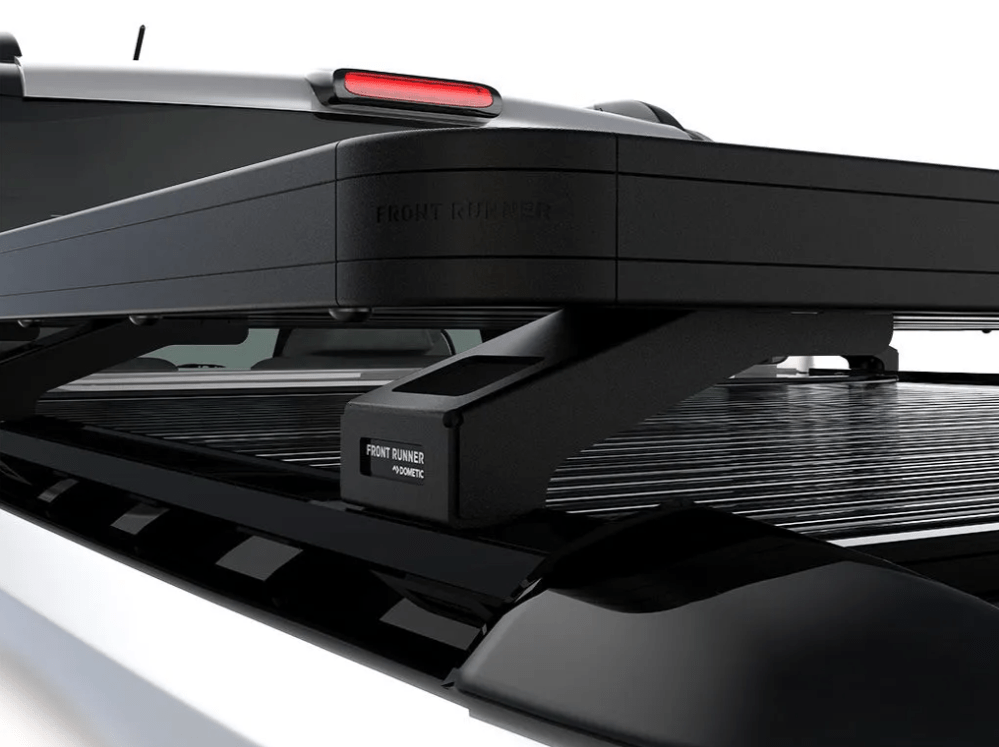

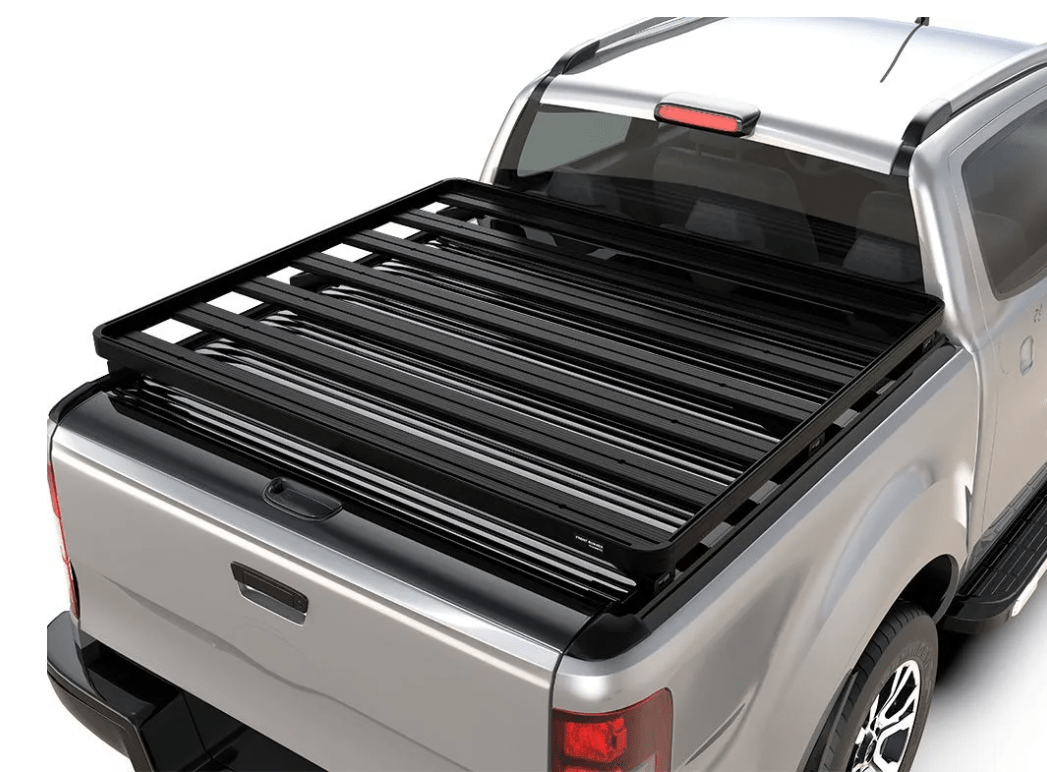

Create extra gear carrying space over the load bed of your GWM P500 with the lightweight Slimline II Load Bed Rack Kit. This modular and customizable rack solution is the perfect platform on which to safely carry your sports, camping and overlanding gear.

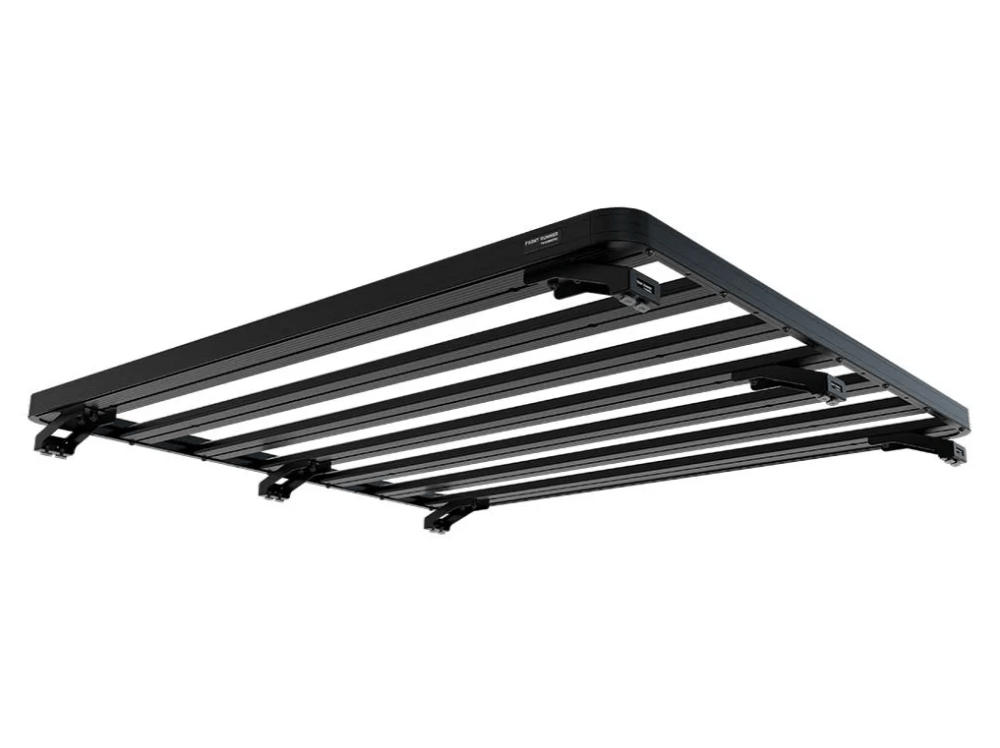

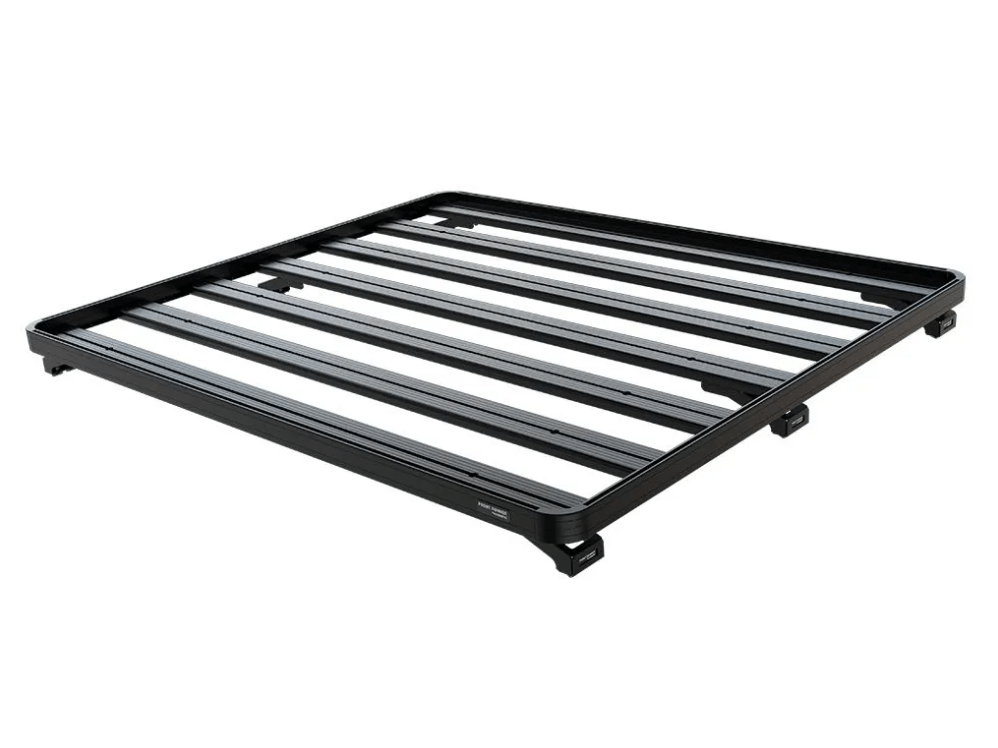

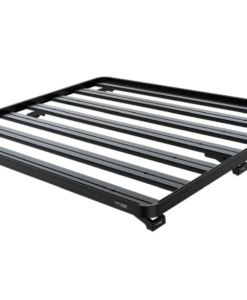

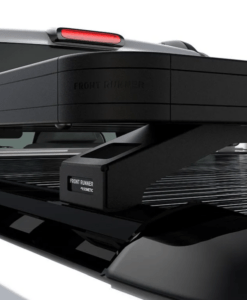

This 1358mm/53.5″ long, Slimline II cargo carrying load bed rack kit for the GWM P500 contains a Slimline II Tray, and 6 Feet. Installs easily into the existing factory/OEM bed tracks with no drilling required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specs

KRGP003T – GWM P500 (2024-Current) Roll Top Slimline II Load Bed Rack Kit

Consisting of:
3x FASS016 – Flat Feet (pair) / 65mm
3x RRAC962 – Track Mount Stud Plate
1x RRSTP07 – SLII Tray – 1575mm(W)X1358mm(L)

Material Used:

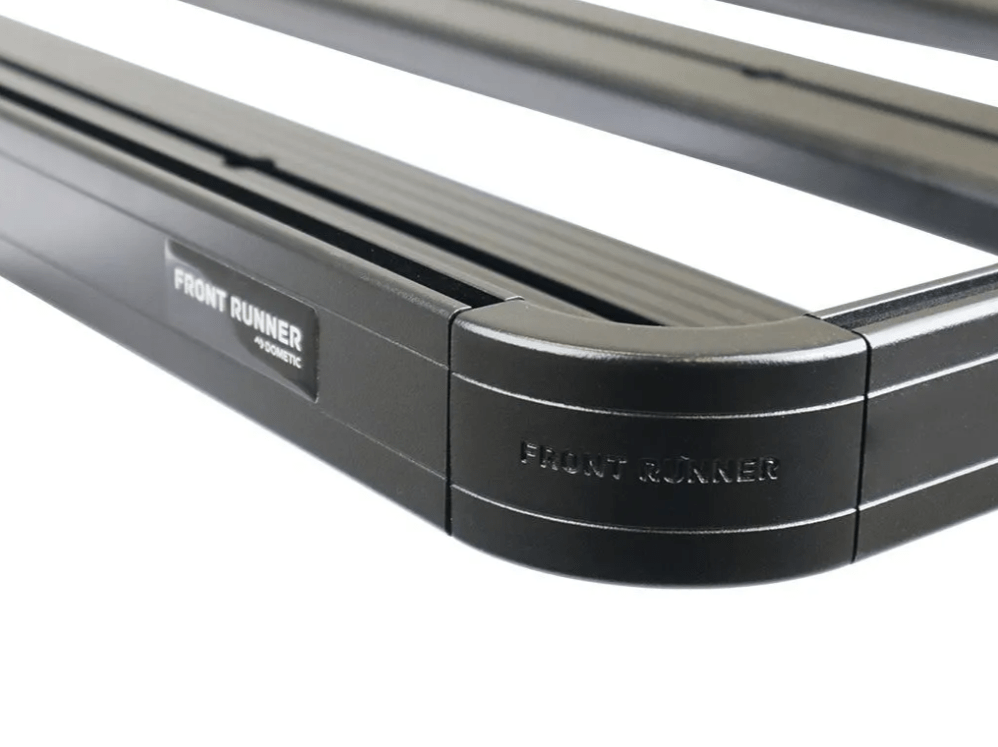

Black epoxy powder – coated T6 aluminium
High strength steel

Approximate Installed Weight: 31kg (68.34lbs)

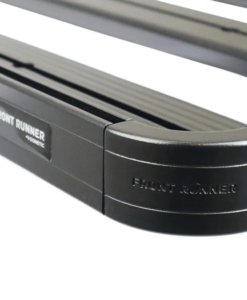

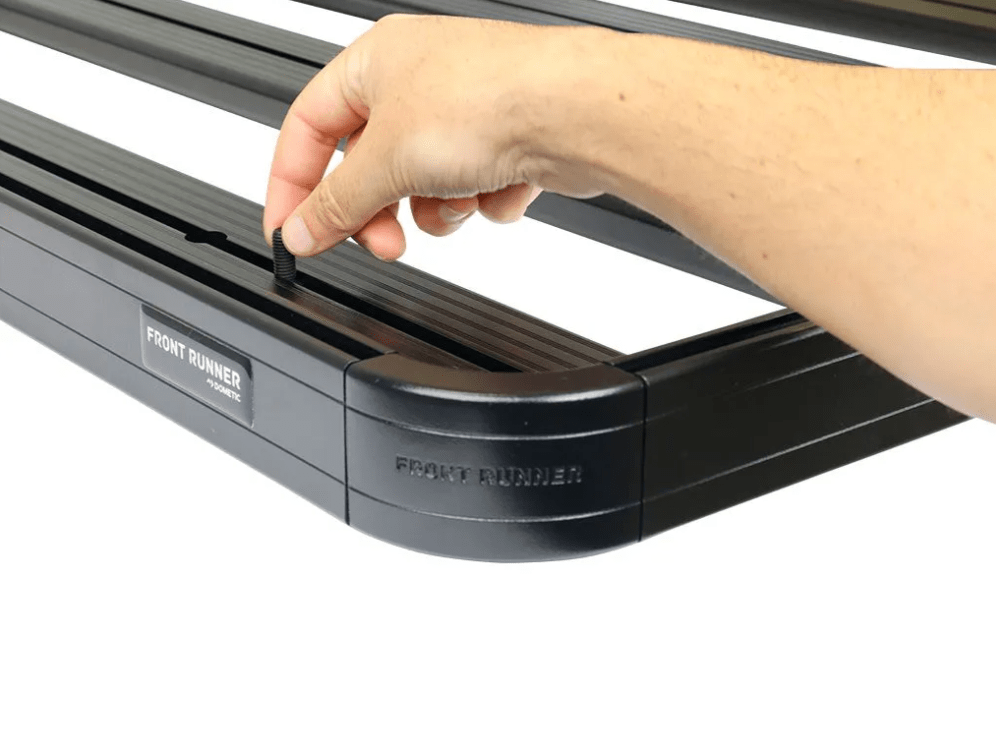

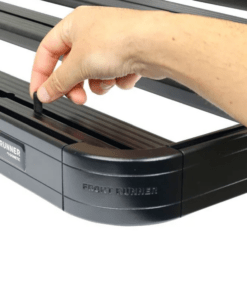

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17″)
Length: 1720mm (68″)
Height: 245mm (10″)

Shipping Weight:
Weight: 31kg (68lbs)
