Front Runner – ISUZU DMAX X-TERRAIN (2020-CURRENT) SLIMLINE II LOAD BED RACK KIT

Front Runner – ISUZU DMAX X-TERRAIN (2020-CURRENT) SLIMLINE II LOAD BED RACK KIT

Double up the loading space on your Isuzu DMax X-Terrain while safeguarding the contents of its load bed. This robust pick-up truck kit creates a full-size Slimline II rack that sits above your DMax’s load bed. The Slimline II’s lightweight, modular construction makes it highly versatile and allows you to customize your setup with over 55 accessories so you can haul all your adventure gear.

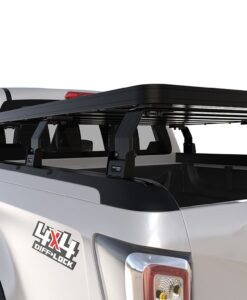

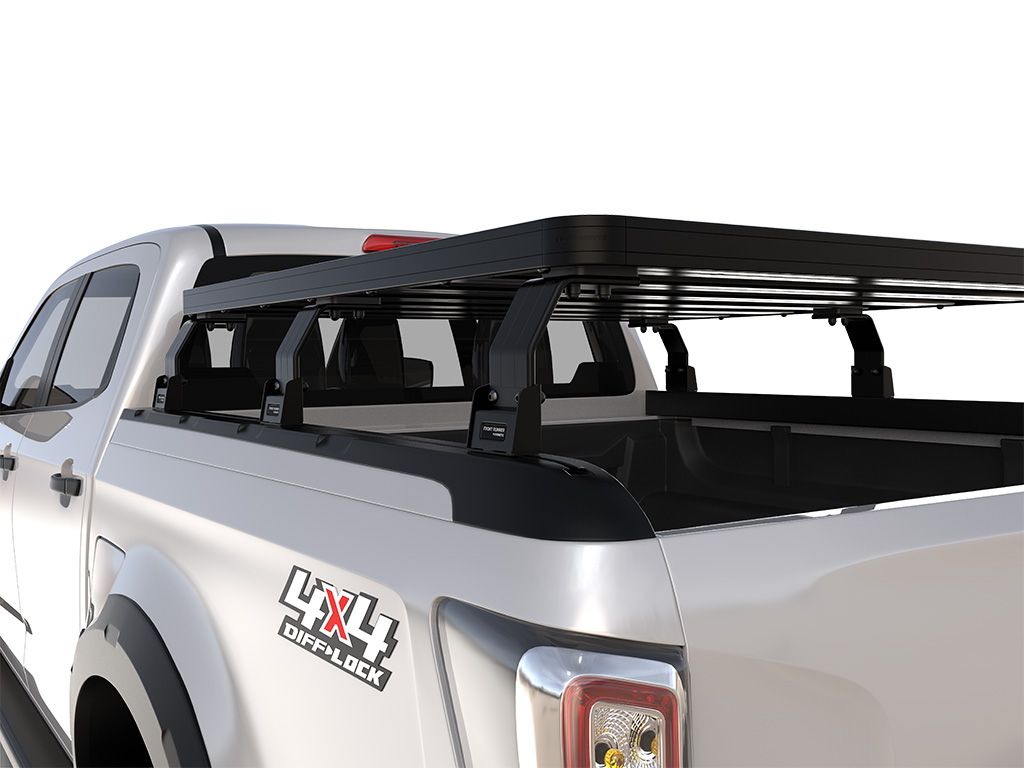

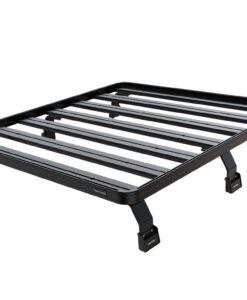

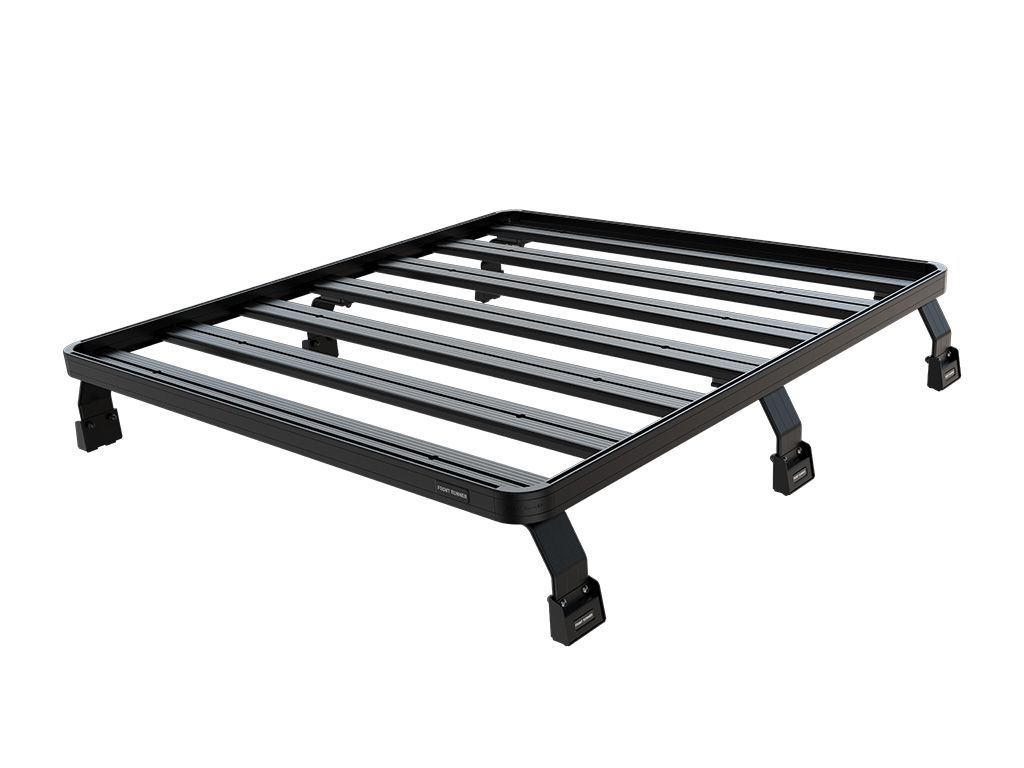

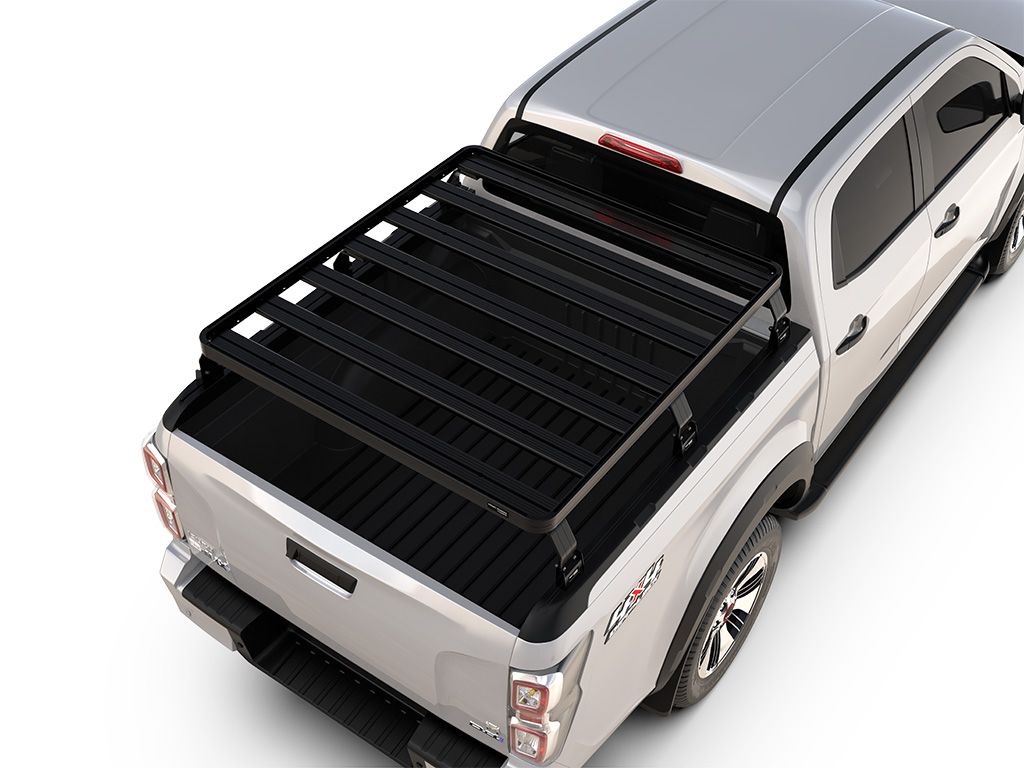

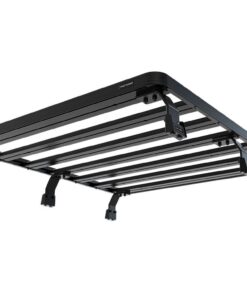

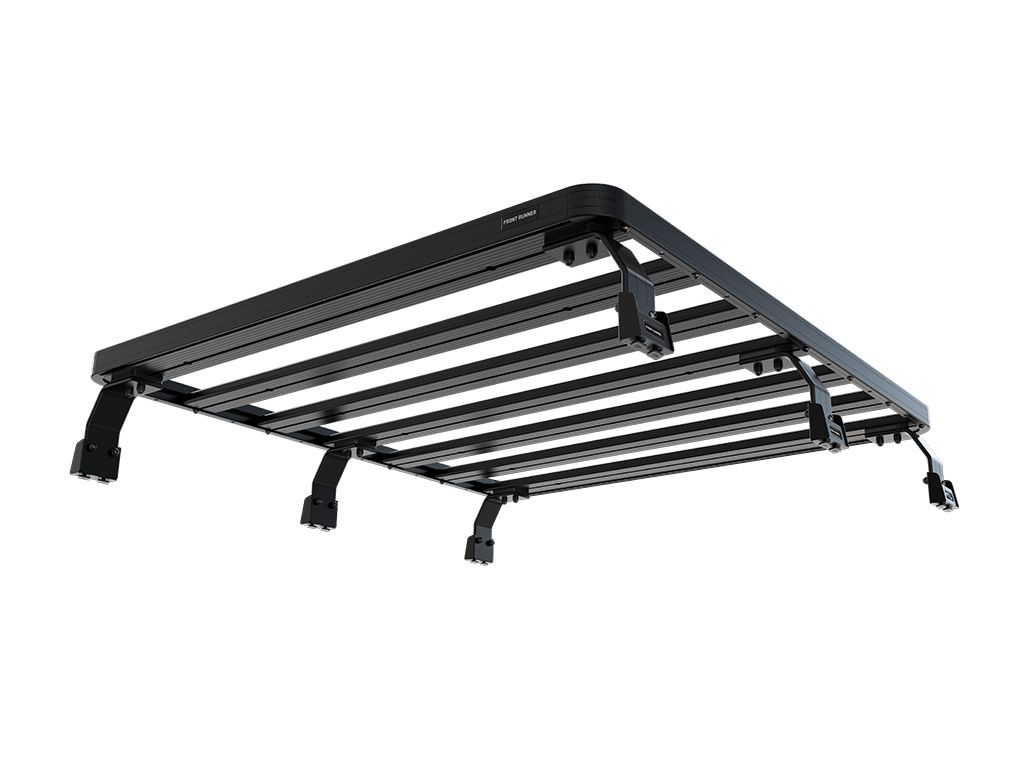

This kit creates a full-size rack that sits above your Isuzu DMax X-Terrain’s truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1255mm x 1358mm) and 6 Pickup Roll Top/Top Mount Legs that fit into the existing Tracks.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: If your Roll Top extrusion has a 6mm (0.24″) to 7mm (0.28″) slot opening, you may need Track Mount Stud Plate for installation.

Consisting of:

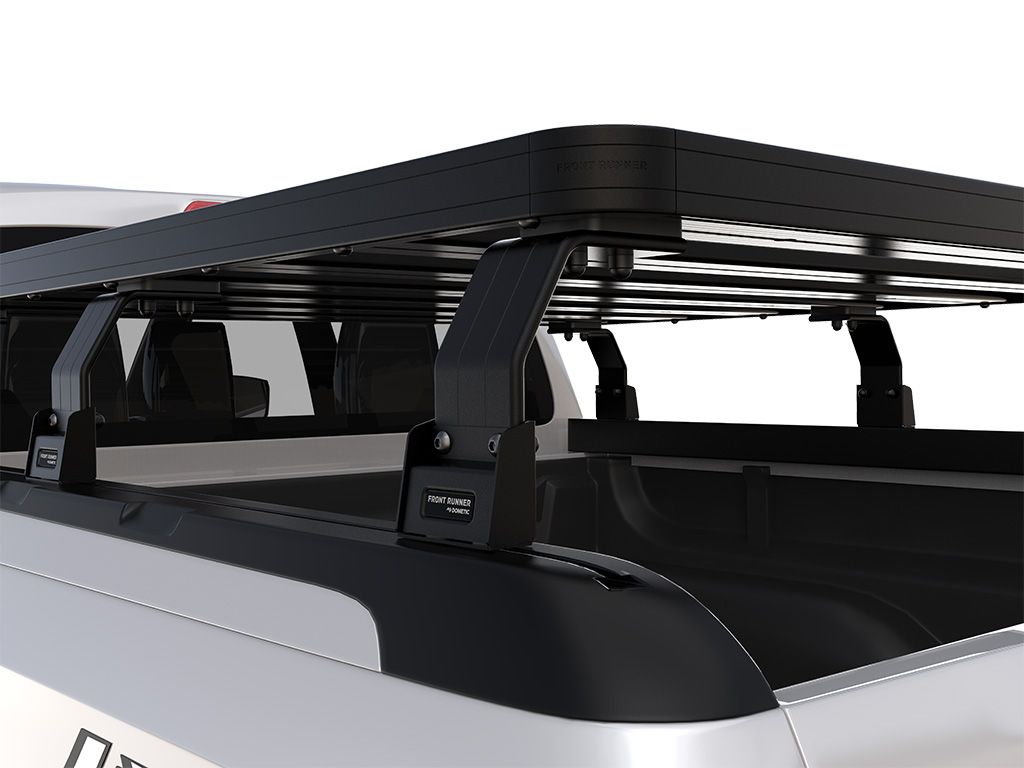

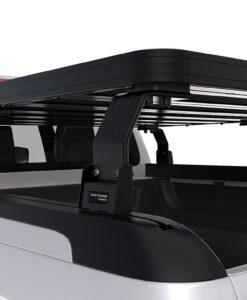

3x LASS028 – Pick-Up Roll Top Leg Mount
3x RRAC904 – Plastic Spacer for Rail Foot Base / 10mm (Pair)

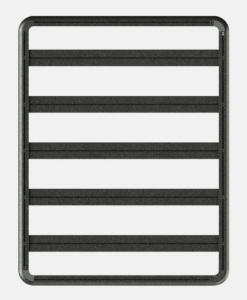

1x RRSTD07 – SLII Tray – 1255mm(W)X1358mm(L)

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Approximate Installed Weight: 25.28kg (55.73lbs)

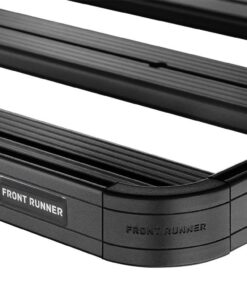

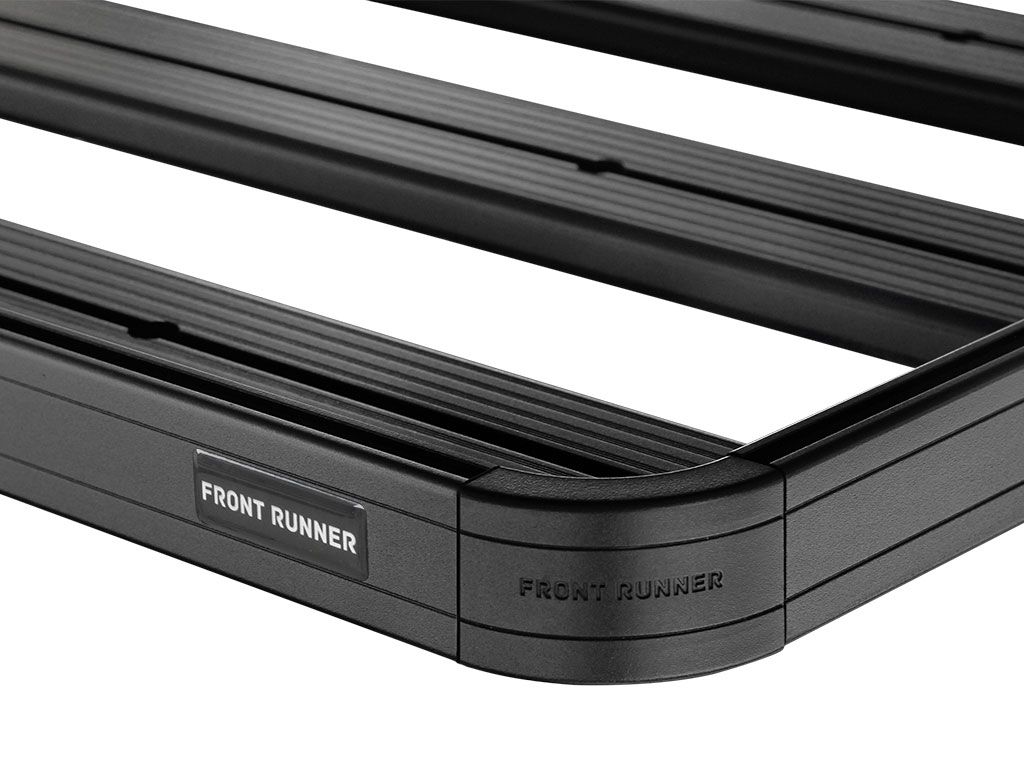

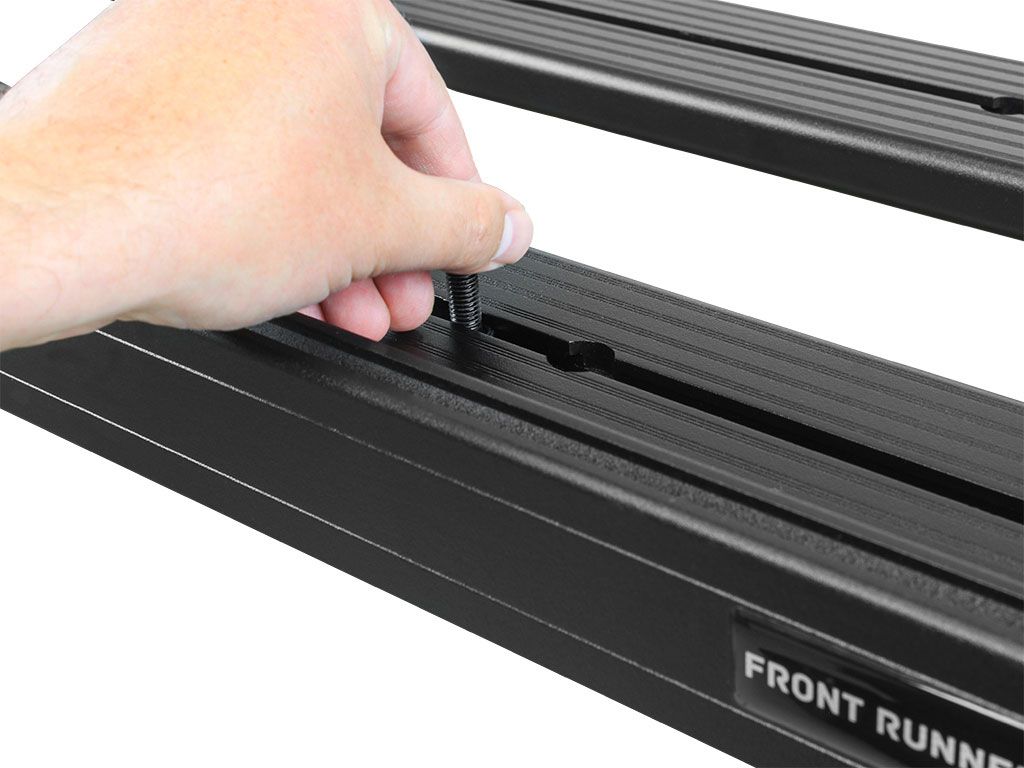

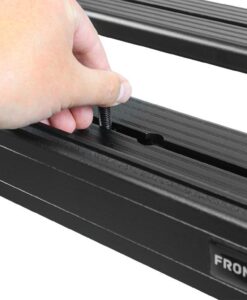

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17″)
Length: 1730mm (68″)
Height: 255mm (10″)

Shipping Weight:
Weight: 29kg (64lbs)
