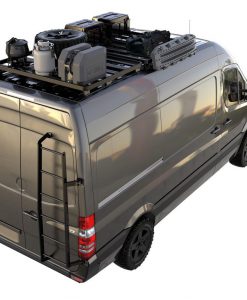

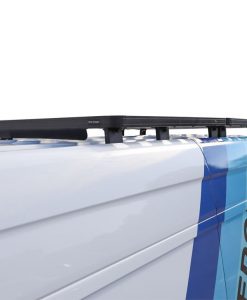

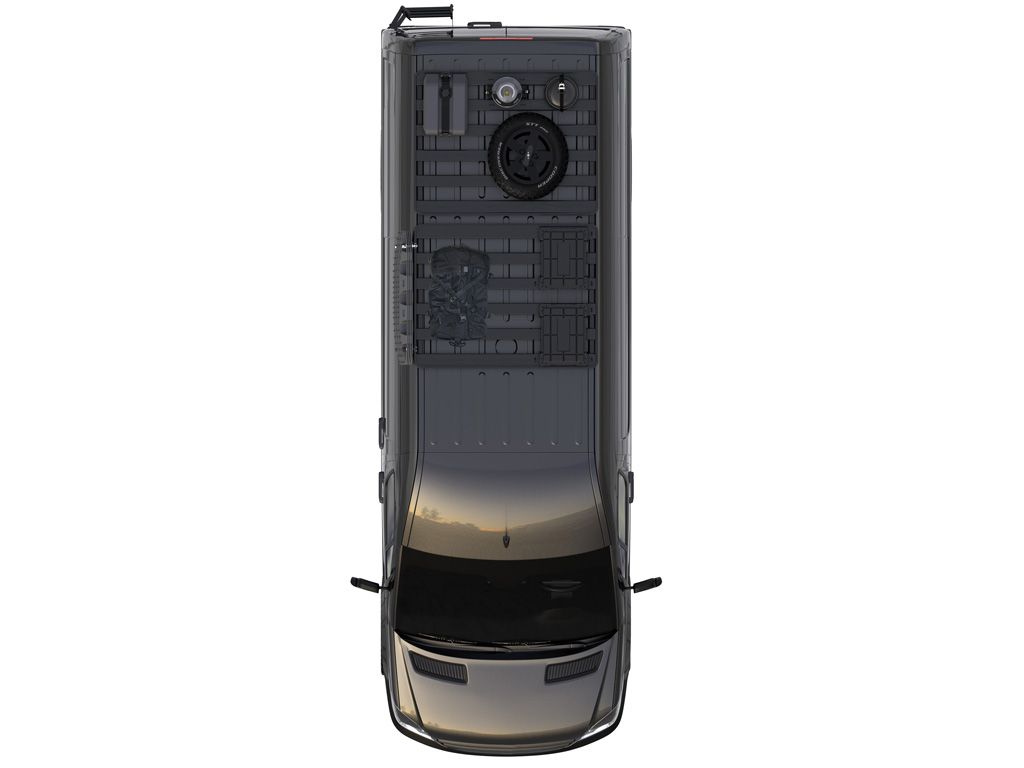

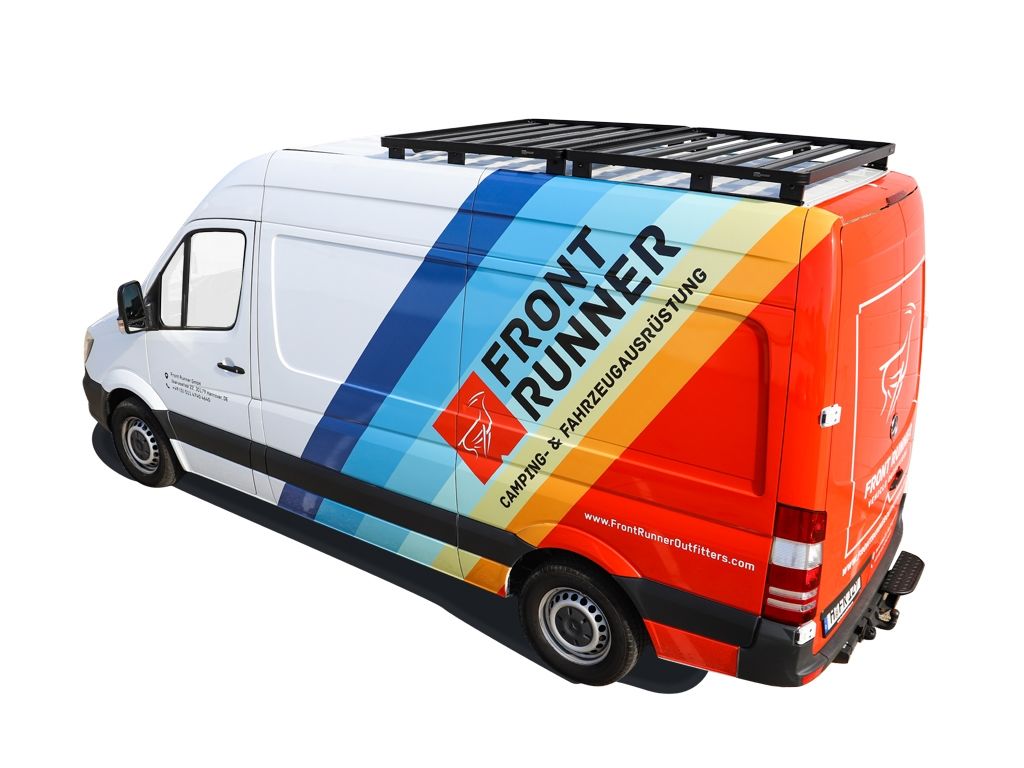

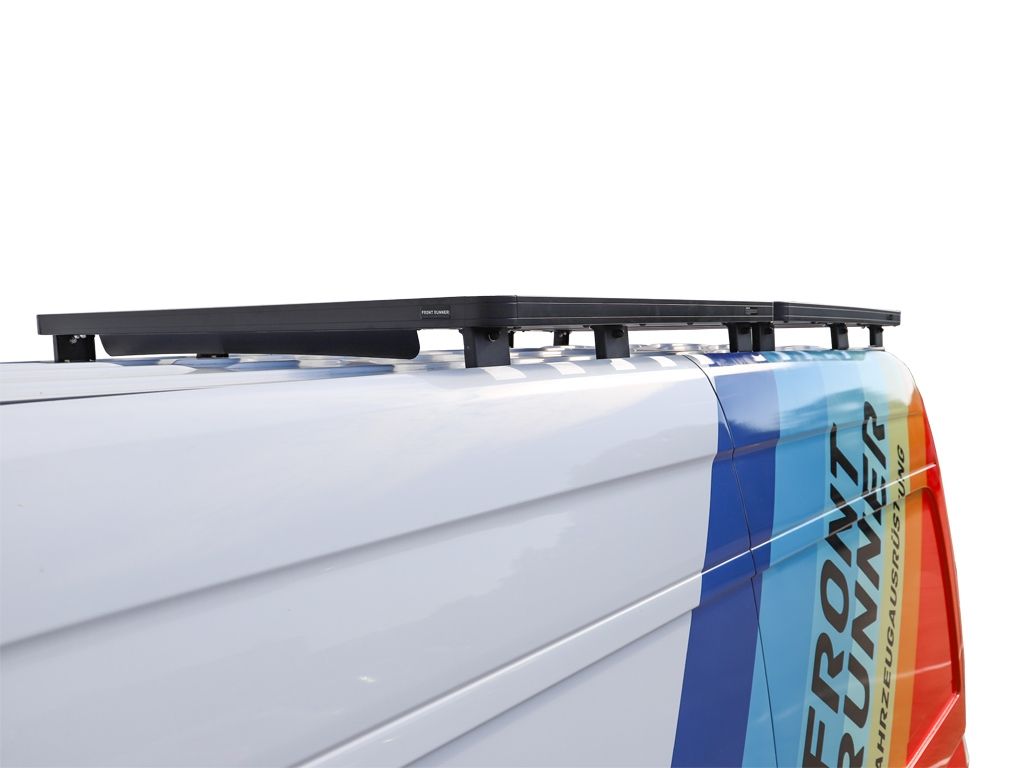

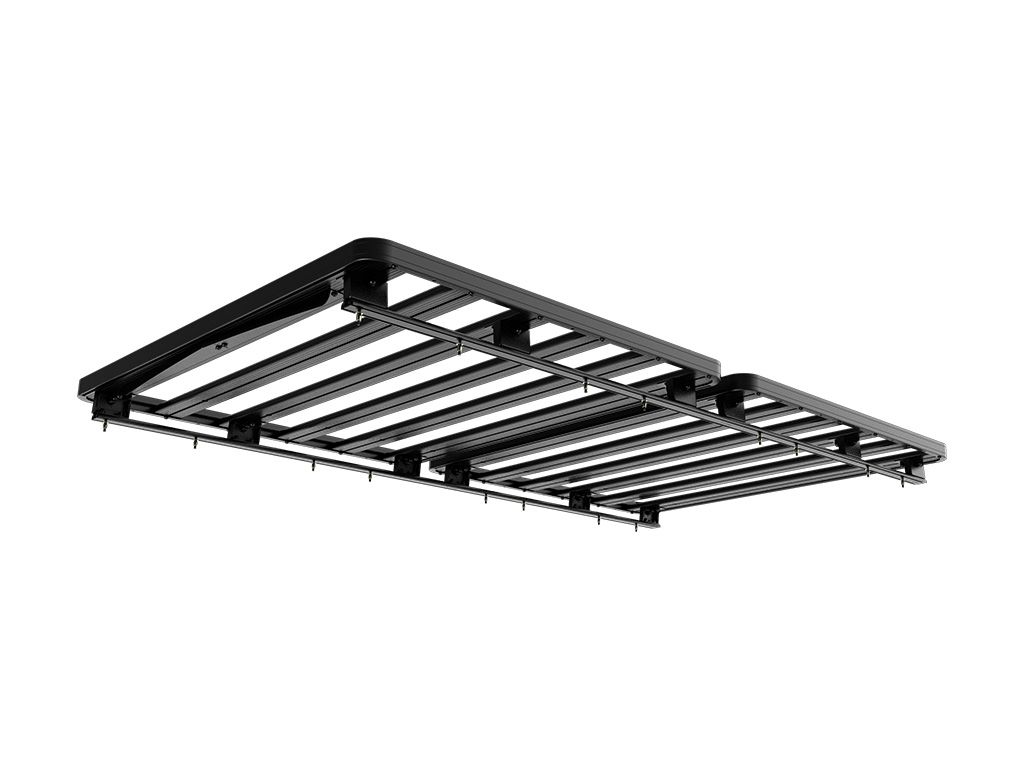

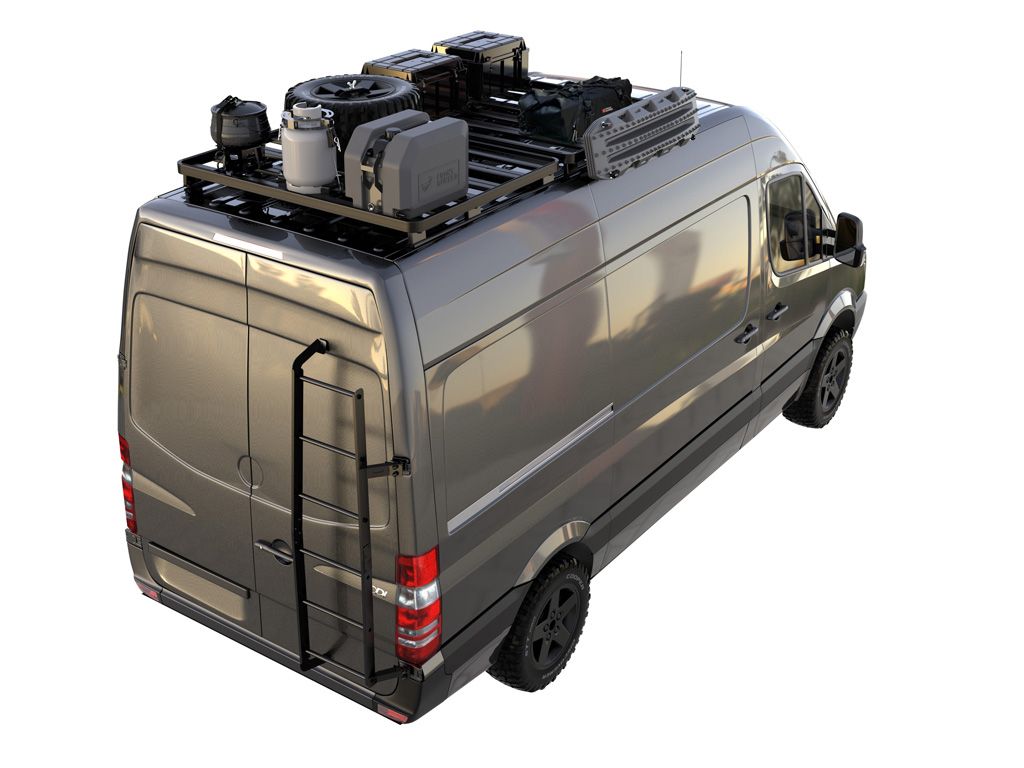

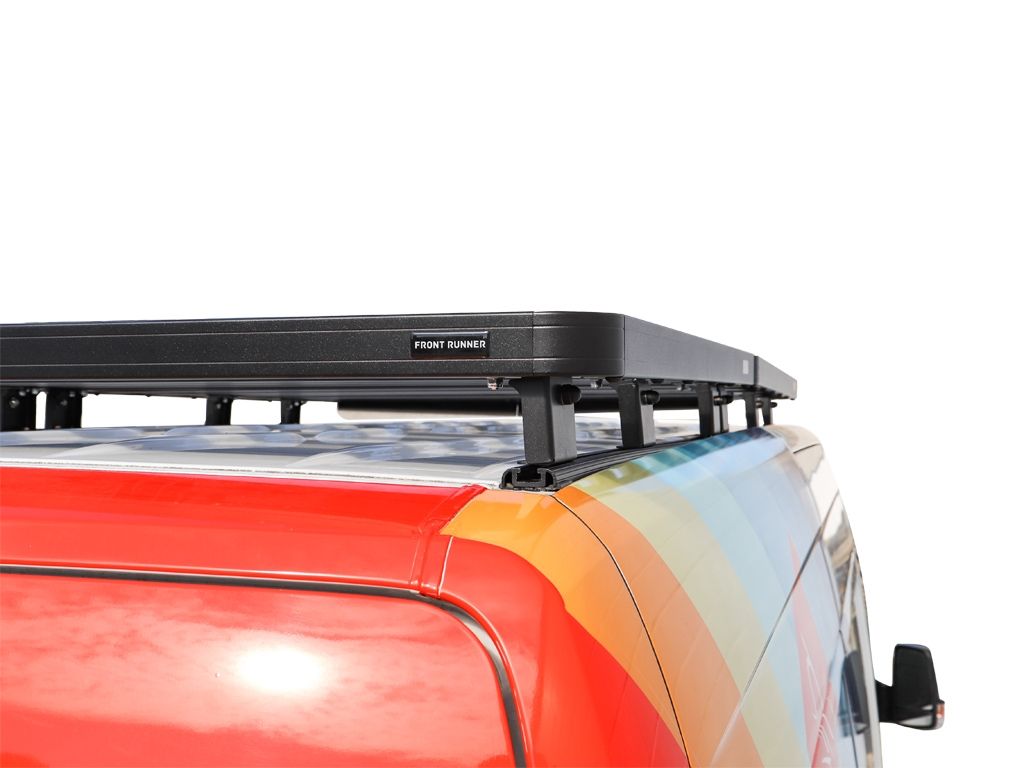

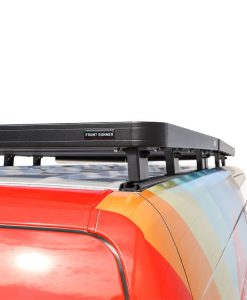

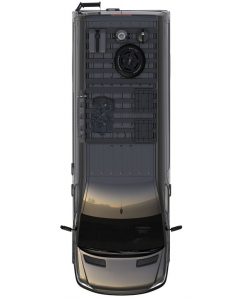

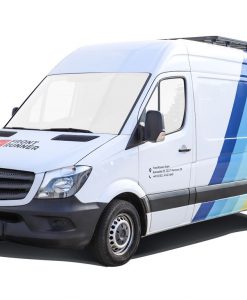

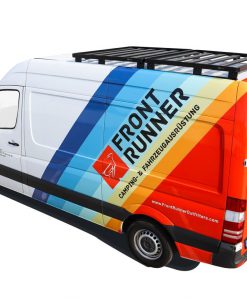

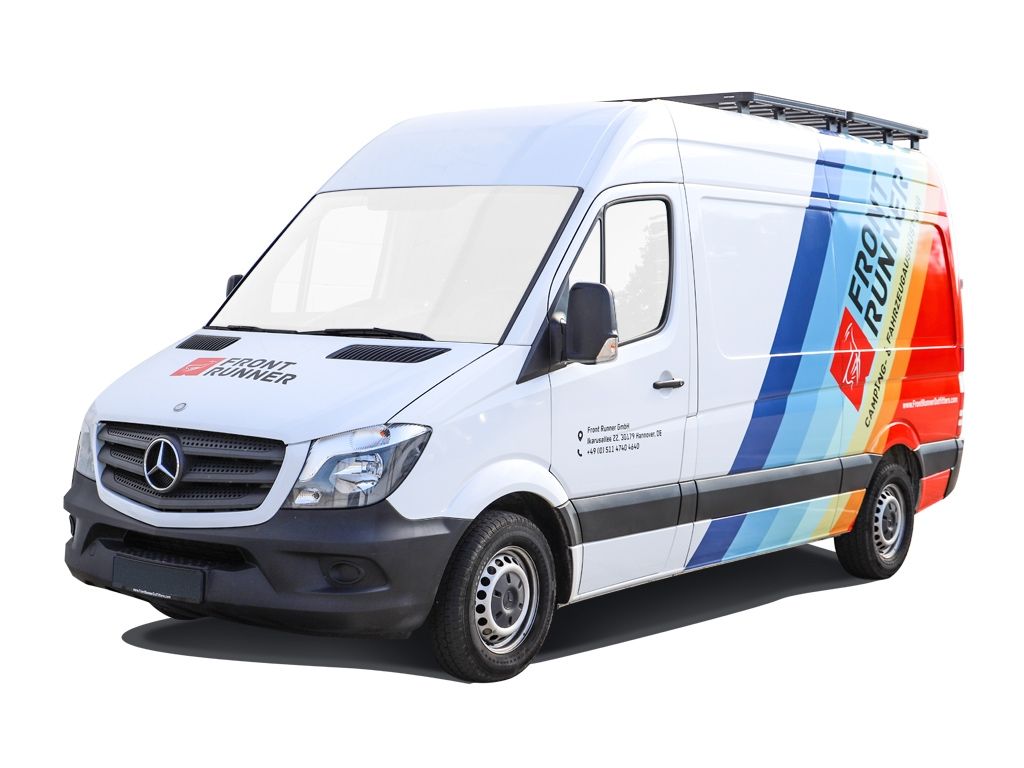

FRONT RUNNER – MERCEDES BENZ SPRINTER (2006-CURRENT) SLIMLINE II 1/2 ROOF RACK KIT

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

For further information on installation, please see the fitment instructions in the INSTALL tab.

Specs:

KRMS006T – Mercedes Benz Sprinter (2006-Current) Slimline II 1/2 Roof Rack Kit – by Front Runner

Consisting of:

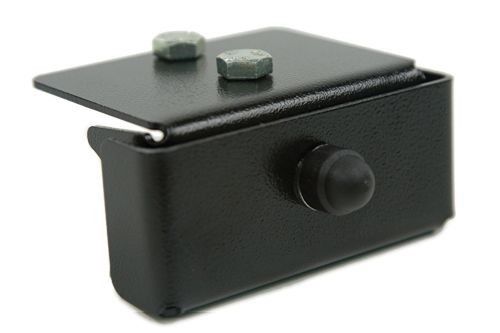

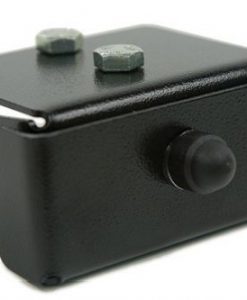

• 6 x FASS016 – Flat Feet (pair) / 65mm – by Front Runner

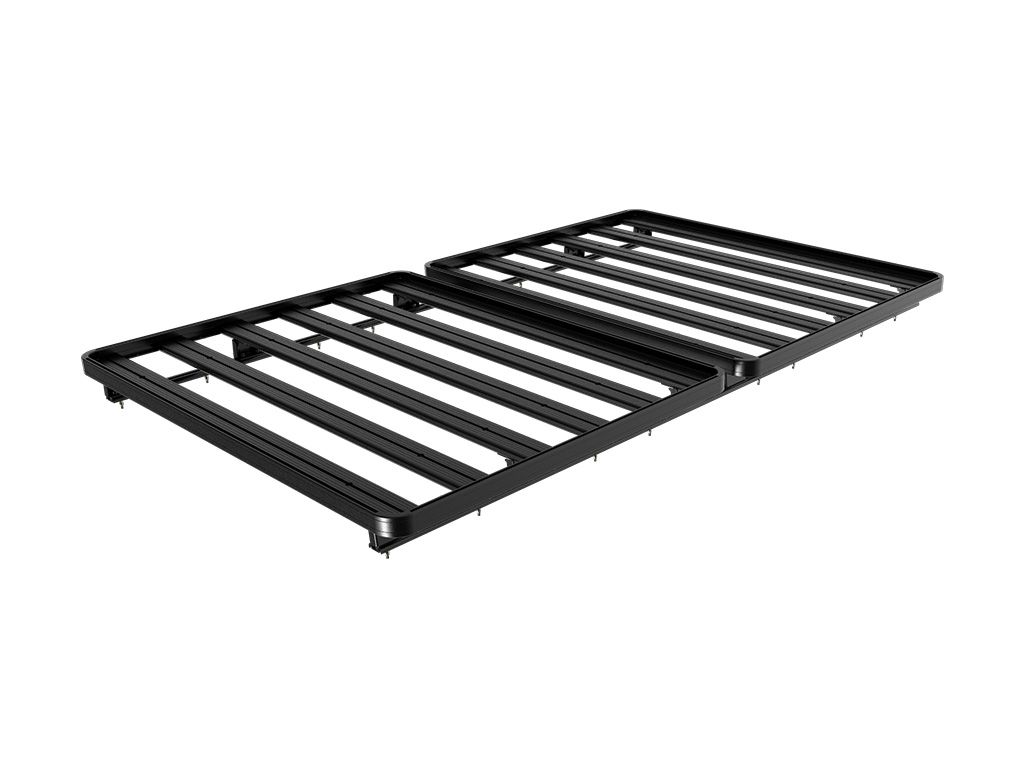

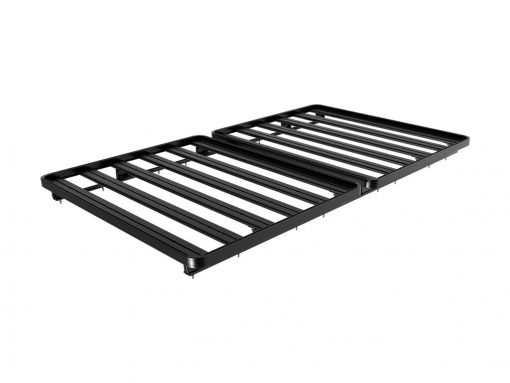

• 2 x RRSTM06 – Slimline II Tray – 1475mm(W) x 1156mm(L) – by Front Runner

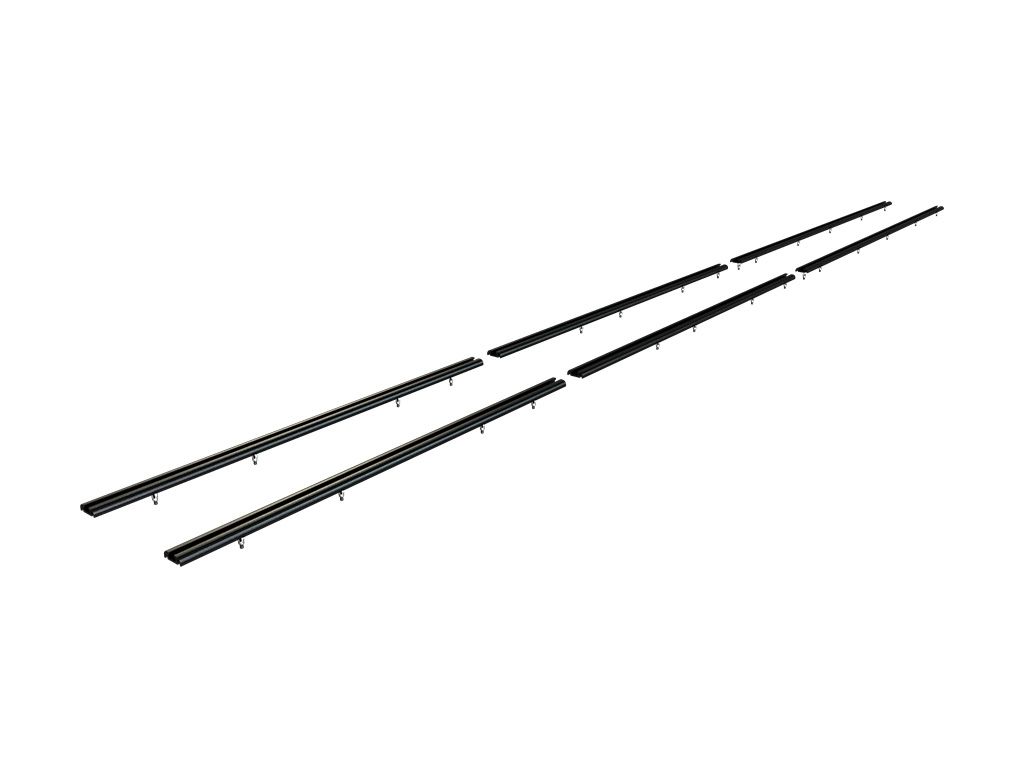

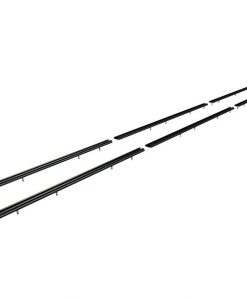

• 1 x TRMS001 – Mercedes Sprinter (2006-Current) Tracks / 3082mm-4098mm(L) – by Front Runner
• 1 x WDST009 – Wind Deflector 20mm Lip Wide Pair / 1345mm(W) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12Stainless Steel
• Approximate Installed Weight 54kg (119lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 455mm (18″)
• Length 1800mm (71″)
• Height 260mm (10″)

Shipping Weight:

• Weight 63.1kg (138.9lbs)
