FRONT RUNNER – TOYOTA LAND CRUISER 70 LOAD BAR KIT / GUTTER MOUNT

FRONT RUNNER – TOYOTA LAND CRUISER 70 LOAD BAR KIT / GUTTER MOUNT

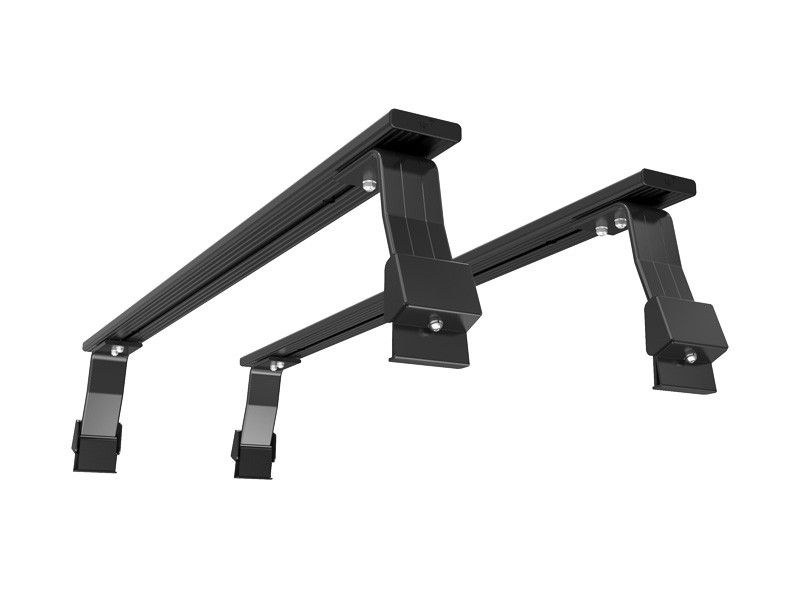

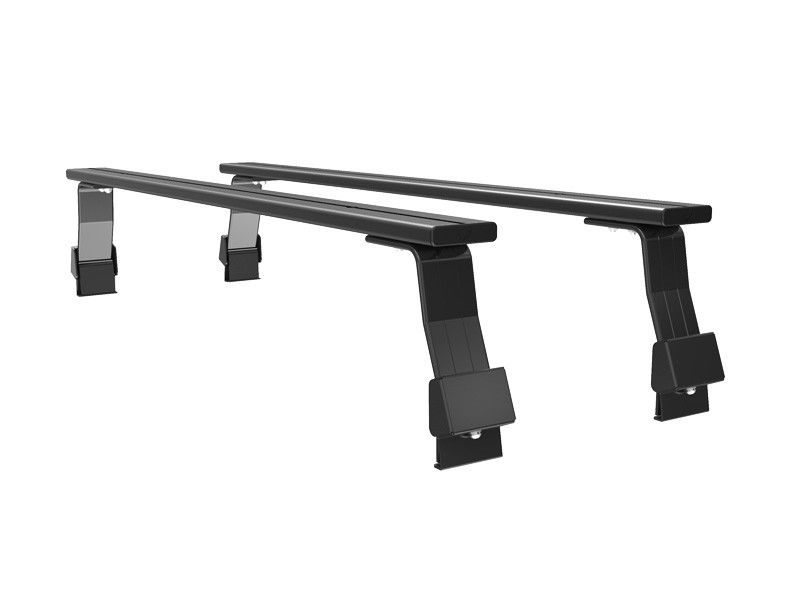

A set of Gutter Mounted Load Bars used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 155mm Gutter Mount legs, 2 1425mm Load Bars, 1 10mm Roof Load Bar Wind Deflector and fitting instructions – all the components necessary to mount the Front Runner Load Bars to a vehicle with gutters.

Info:

• You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.
• Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
• The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.
• Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
• The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
• The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.
• Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
• Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

Specs:

Consisting of:

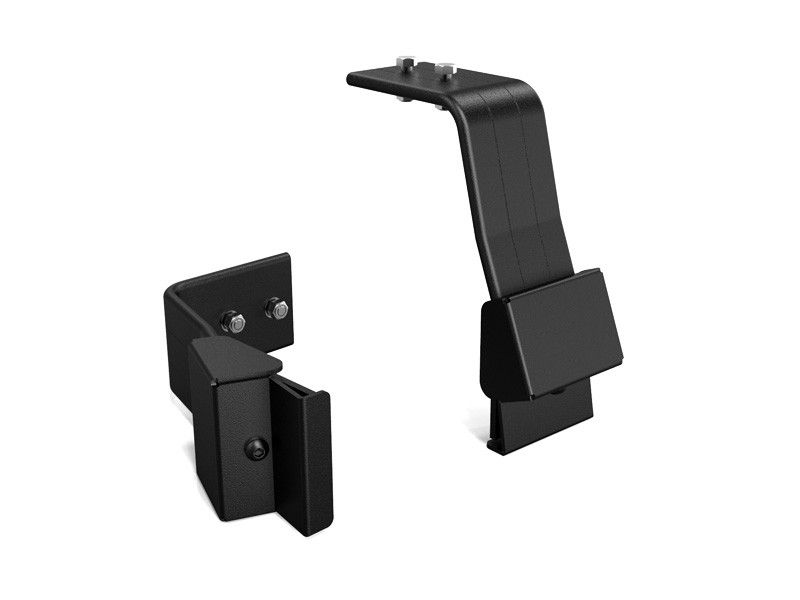

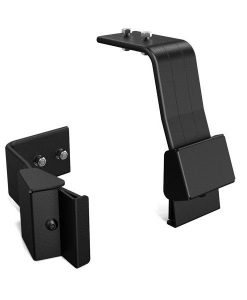

• 2 x LASS103 – No 3 Leg 155mm (Pair) – by Front Runner
• 1 x LBSK016 – Roof Load Bar Pair 1425mm(W) – by Front Runner
• 1 x WDLB001 – Load Bar Wind Deflector / 10mm – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 7kg (16lbs)
• The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8″) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 120mm (5″)
• Length 1555mm (61″)
• Height 175mm (7″)

Shipping Weight:

• Weight 8.7kg (19.2lbs)
