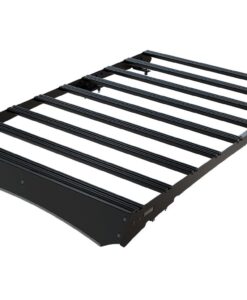

Front Runner – TOYOTA RAV4 (2019-CURRENT) SLIMSPORT ROOF RACK KIT

Front Runner – TOYOTA RAV4 (2019-CURRENT) SLIMSPORT ROOF RACK KIT

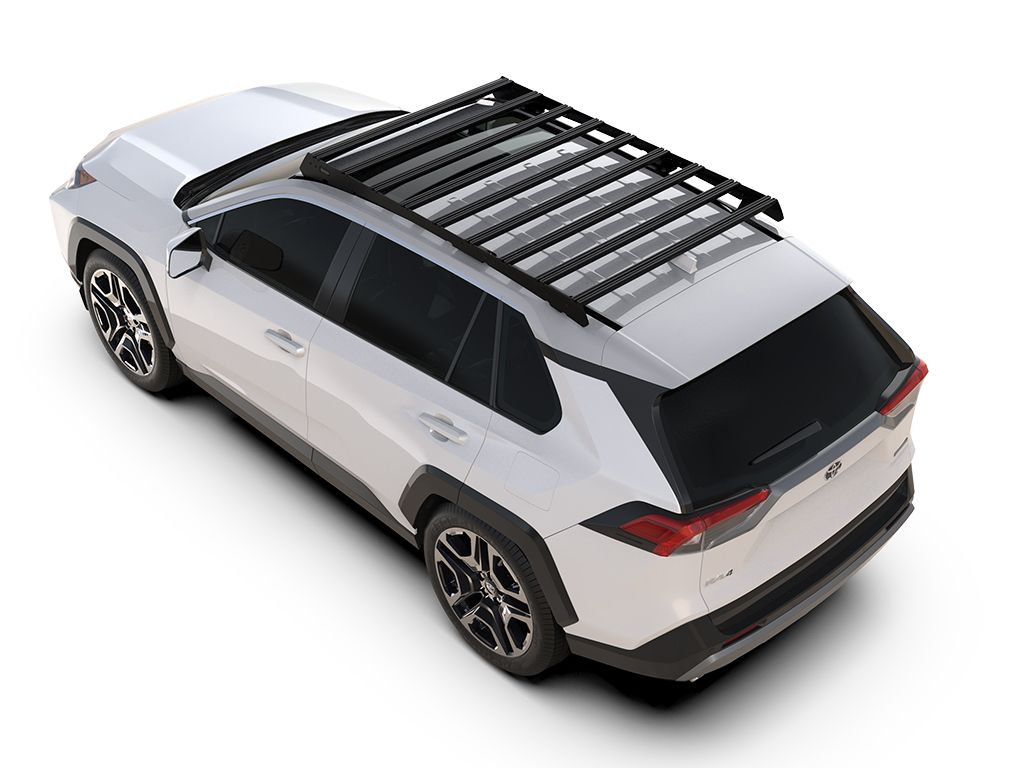

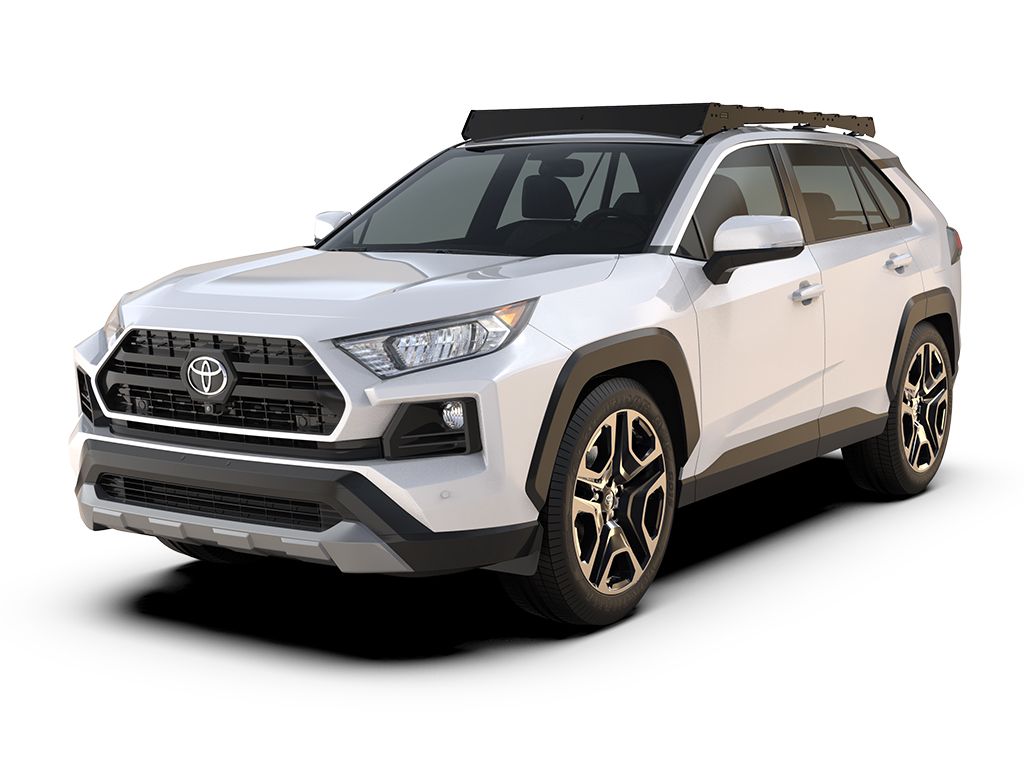

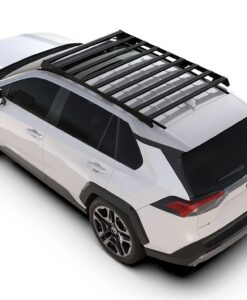

Gear up your Toyota Rav4 (2019-Current) for any adventure with the Slimsport Roof Rack Kit. The Slimsport was designed for activity-focused drivers that do not require an expedition-grade build. It has a low-profile and is compatible with over 55 Front Runner accessories.

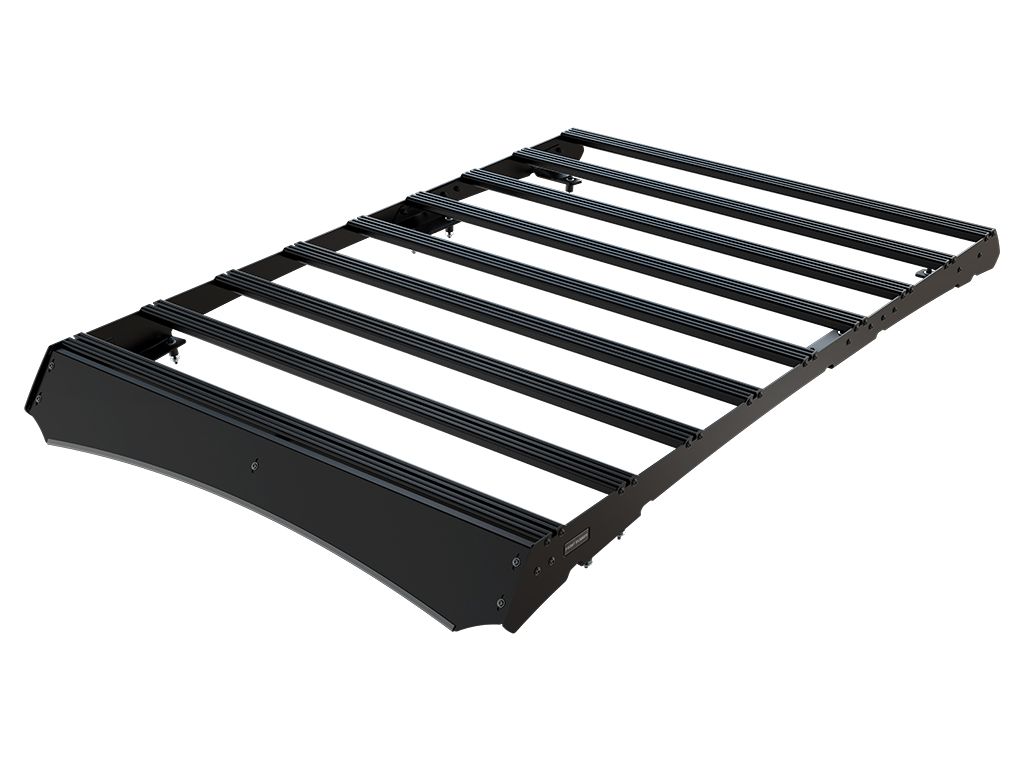

• • • This low-profile flat deck Slimsport rack has a load-carrying area of 1676mm (66″) x 1175mm (46.3″).

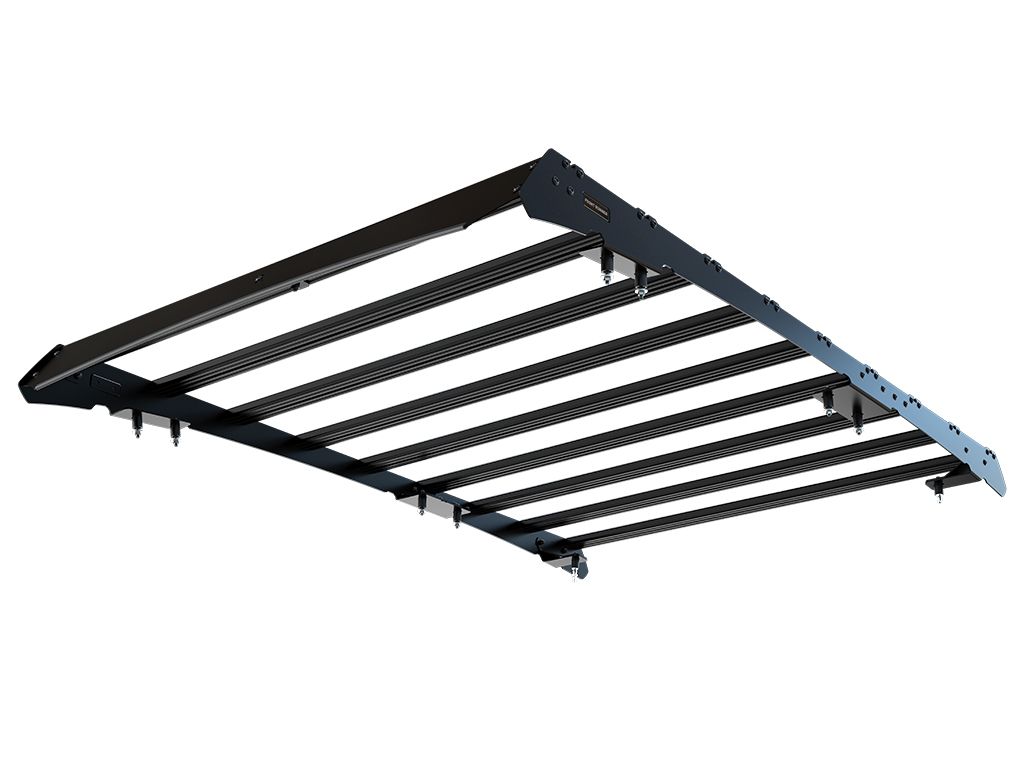

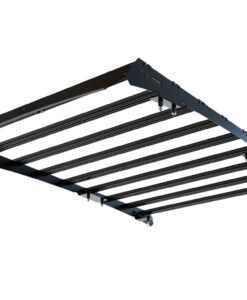

    • The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
    • The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
    • Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket Handle/Light Slimsport Rack Bracket.
    • Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small – by Front Runner for most Front Runner side mount accessories (sold separately).

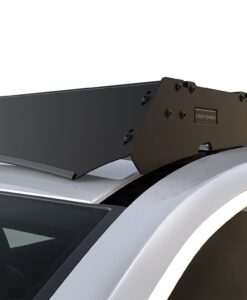

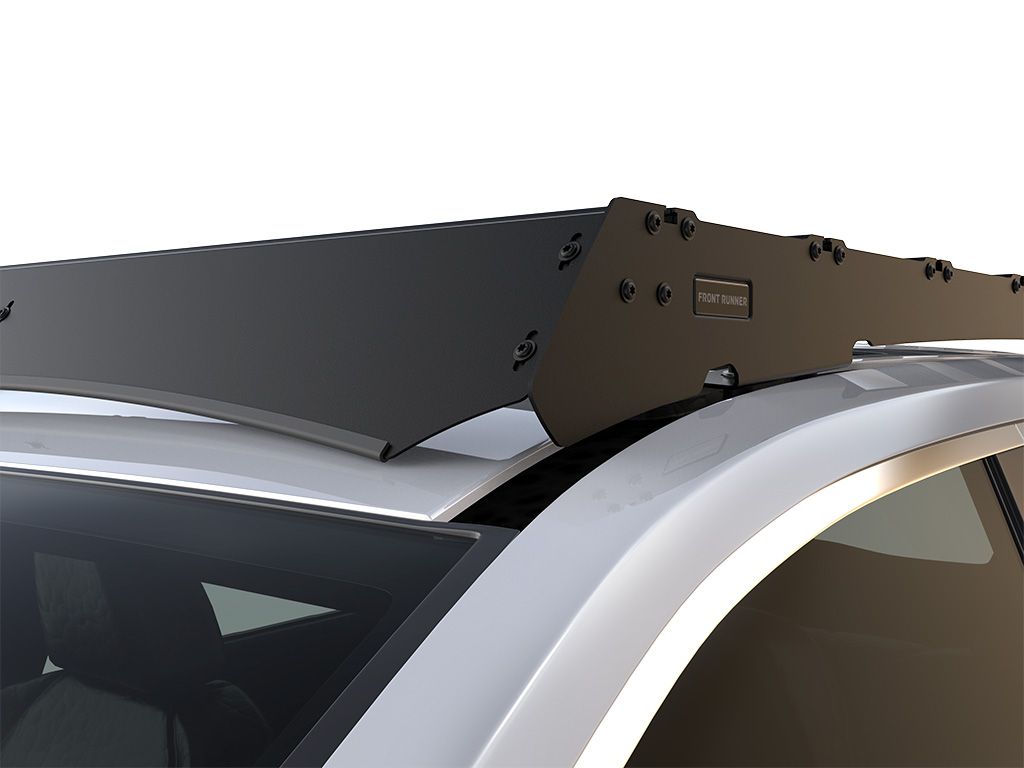

    • The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
    • Need a lightbar? The optional lightbar fairing Toyota Rav4 (2019-Current) Slimsport Rack 40″ Light Bar Wind Fairing (sold separately) has a 40″ cutout to allow use of 40″ LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount (sold separately), and allows full operation of the moon roof.
    • Fitment guide and all mounting hardware included.
    • 6″/T30 Torx Allen Key for Slimsport Rack is required for installation.
    • Note: Drilling required for installation.
    • Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
    All Front Runner Racks are backed by a Limited Lifetime Warranty*

    Note: Additional drilling is required for the RAV4 LE models.
    Note: The panoramic glass roof is not operational when this Rack Kit is installed. For panoramic glass roof the Toyota Rav4 (2019-Current) Slimline II Roof Rack Kit is suited, or Toyota Rav4 Adventure / TRD-Offroad (2019-Current) Slimline II Roof Rack Kit for adventure model.



Consisting of:
1 x Toyota Rav4 (2019-Current) Slimsport Roof Rack Kit
1 x RRAC238 – Toyota Rav4 (2019-Current) Slimsport Rack Wind Fairing
1 x RRAC971 – Protection strip
Installation Hardware
Fitting Instructions

Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel

Assembled Rack Dimensions: 1676mm (66″) L x 1175mm (46.3″) W x 135mm (5.3″) H

Approximate Installed Weight: 34.74kg (76.59lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4″-2.8″) to the highest point of your roof.

Shipping Dimensions:
Width: 330mm (13″)
Length: 1705mm (67″)
Height: 220mm (9″)

Shipping Weight:
Weight: 35kg (77lbs)
