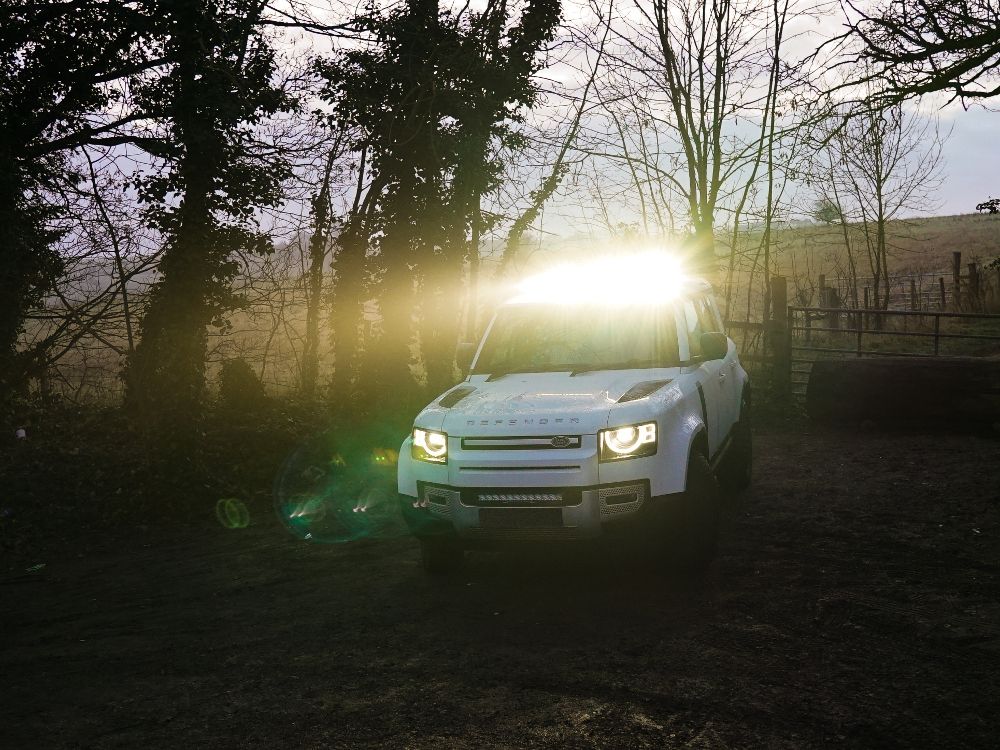

Lazer Lights – Land Rover Defender (2020+) Roof Kit
Prijsklasse: €949,95 tot €1.599,95
Lazer Lights – Land Rover Defender (2020+) Roof Kit

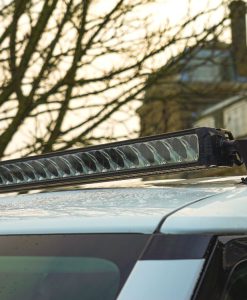

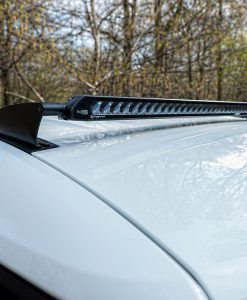

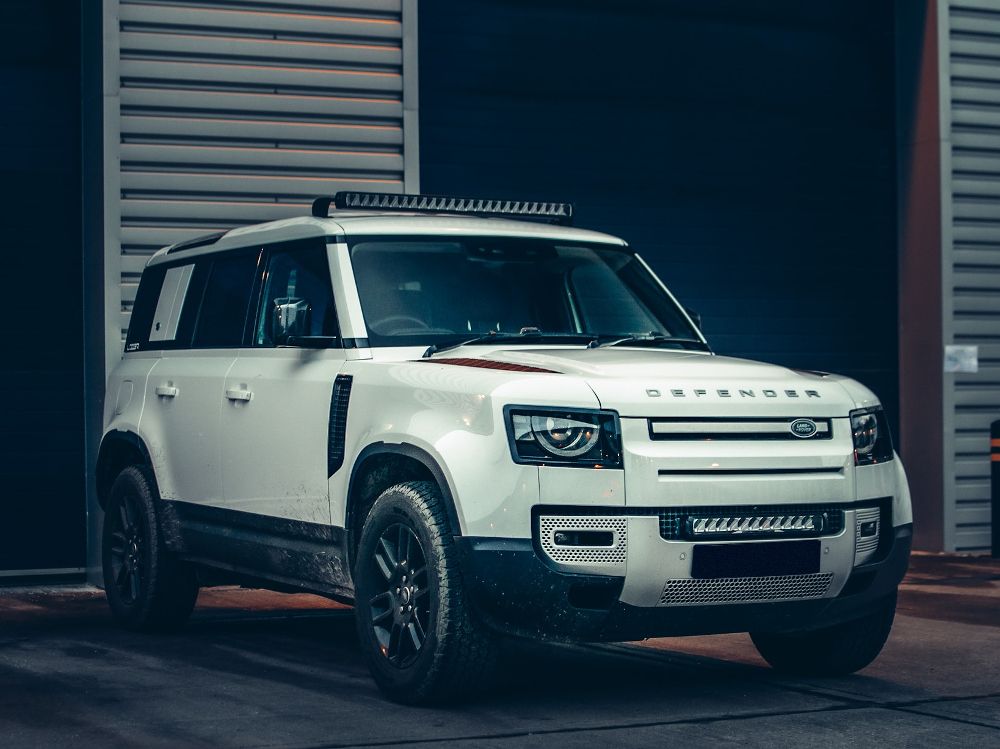

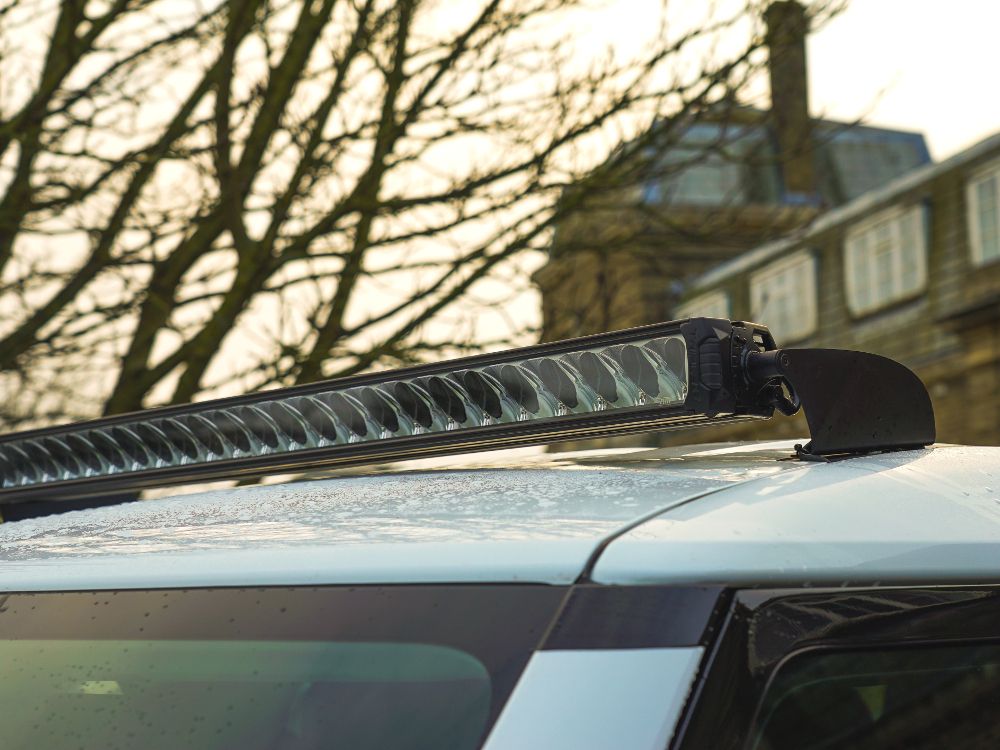

Specifically engineered for the Land Rover Defender (2020+), the Lazer Lamps Roof Mounting Kits, comprises stainless steel brackets that fix to the vehicle’s roof ditch where there is already factory drilled mounting holes and are optimised for either our Linear-42 or Triple-R 24 Elite off-road LED spotlights. Included with the mounting brackets is a length of cable for modifying the relevant Lazer wiring kit to enable connection of your LED light bar without the need to drill any bodywork, for a quick, simple, and tidy finished install.
Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20mm–80mm. To complete the mounting of different length light bars, spacers, of varying lengths, are provided to aid positioning.

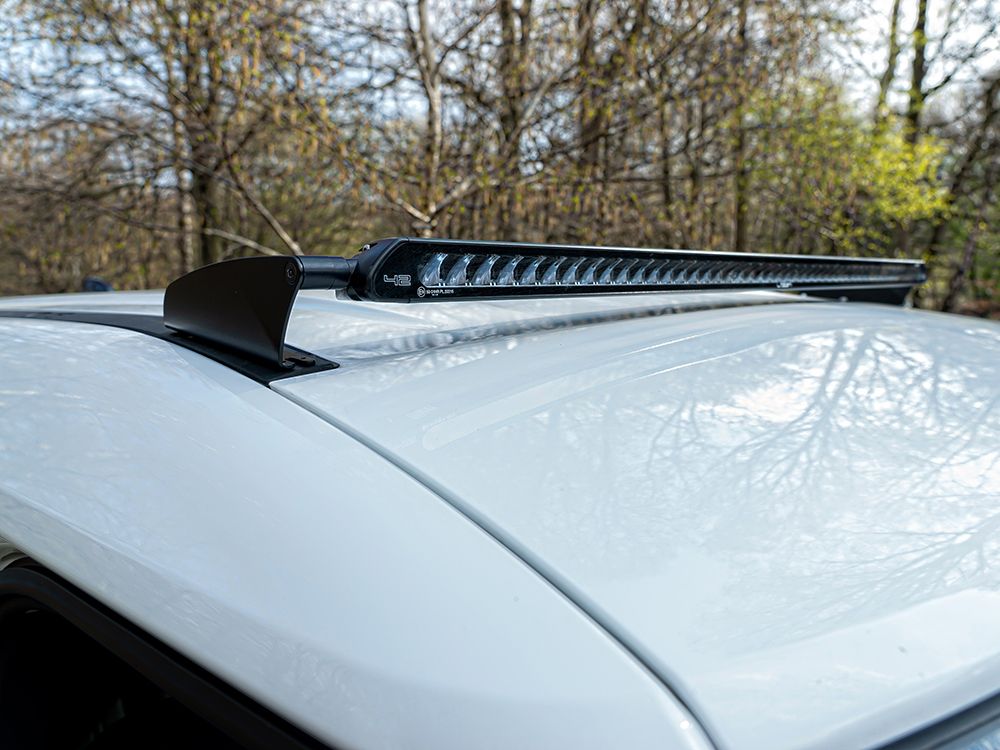

The installation of the brackets to your vehicle is completed using anti-theft fasteners fixed within the roof ditch location either side of the Defender’s roof. Additional wiring extension and heat-shrink butt connectors are also supplied to help facilitate running the cable from the engine bay, up through the ‘A’ pillar and roof gutter, for a clean and tidy install.
When mounting the ECE Reg112 approved Linear-42 to activate with the vehicle’s high beams, if the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances, it will be necessary to complete the electrical installation using a Lazer CAN Interface.
Please note the Roof Mounting Kits are not compatible with vehicles with panoramic sunroof.

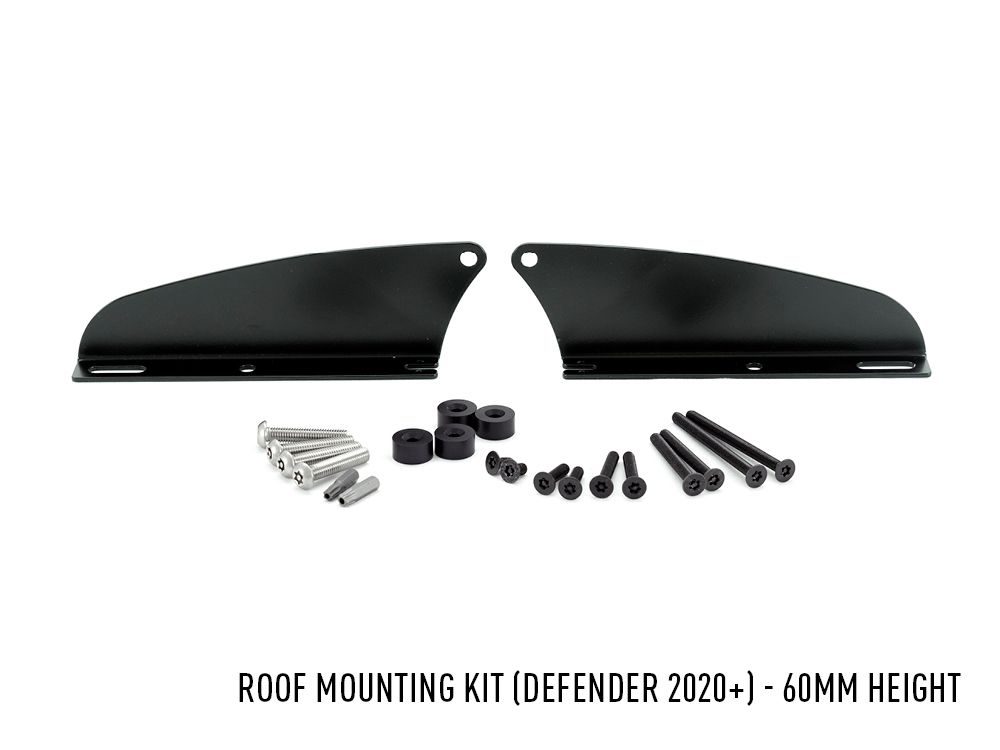

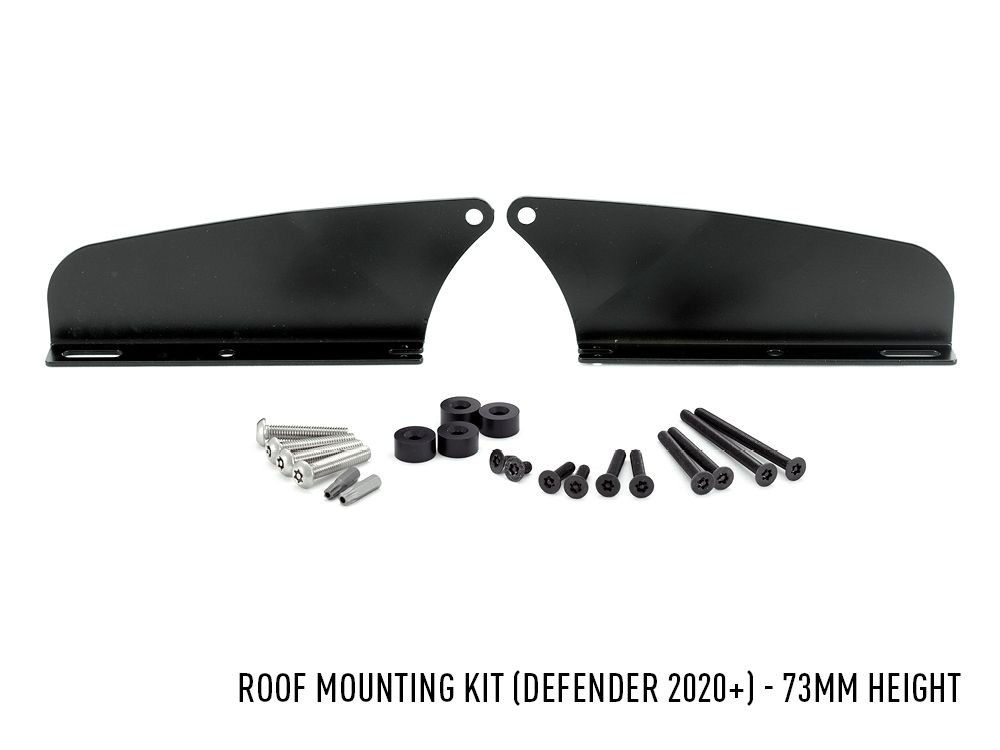

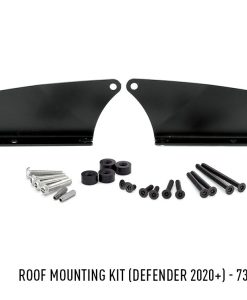

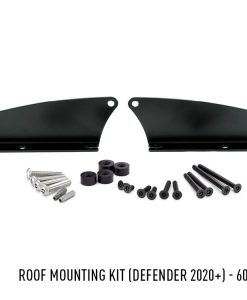

What’s included:
– 2x Stainless Steel Mounting Bracket (LH/RH)
–Â 1x Anti-theft Fastener Set (various sizes)
–Â 1x Spacer Set (various sizes)
– 4x M6 Anti-Theft Fasteners
– 4x M8 Roof Ditch Spacers
– 1x 50cm wiring extension
Complete one-stop solution for roof-mounting on Land Rover Defender (2020+)
Optimised for either Triple-R 24 Elite or Linear-42 LED driving lights
Completed without the need to drill bodywork
Mounting brackets made from 3mm A2 stainless steel
UV-stable, satin black powder coat
Includes assortment of A2 stainless steel fixings with countersunk head
Spacers facilitate positioning of different length LED light bars
M6 fasteners facilitate mounting brackets to the roof ditch on the vehicle
Manufactured in the UK
Specifications:
| Linear-42 | Triple-R 24 Elite (Gen2) | |
| Voltage Range | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 3 kg | 3.4kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 15750 Lm | 27060 Lm |
| Total Driver ‘FOV’ Flux †| 11214 Lm | 17833 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 42 | 24 |
| Power Consumption | 147 Watts | 270 Watts |
| Current Draw (at 14.4V) | 10.2 Amps | 18.75 Amps |
| Start-up Time * | 100ms | 100ms |
| CERTIFICATION | ||
| High Beam | ECE R112 | N/A |
| ECE Reference | 50 | N/A |

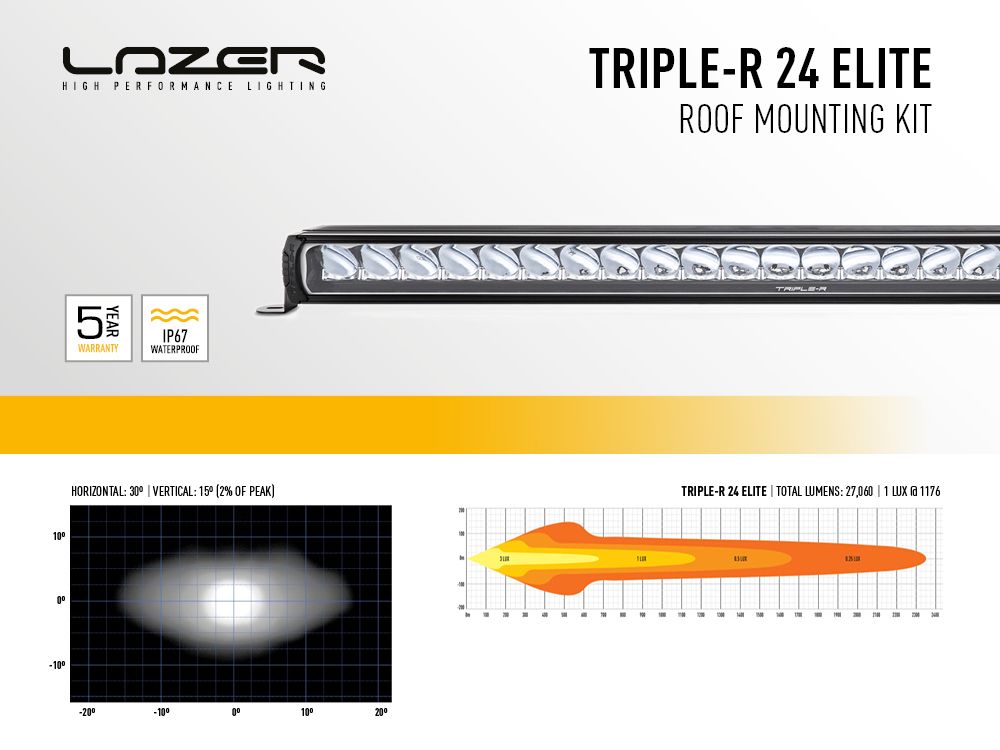

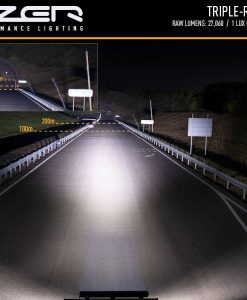

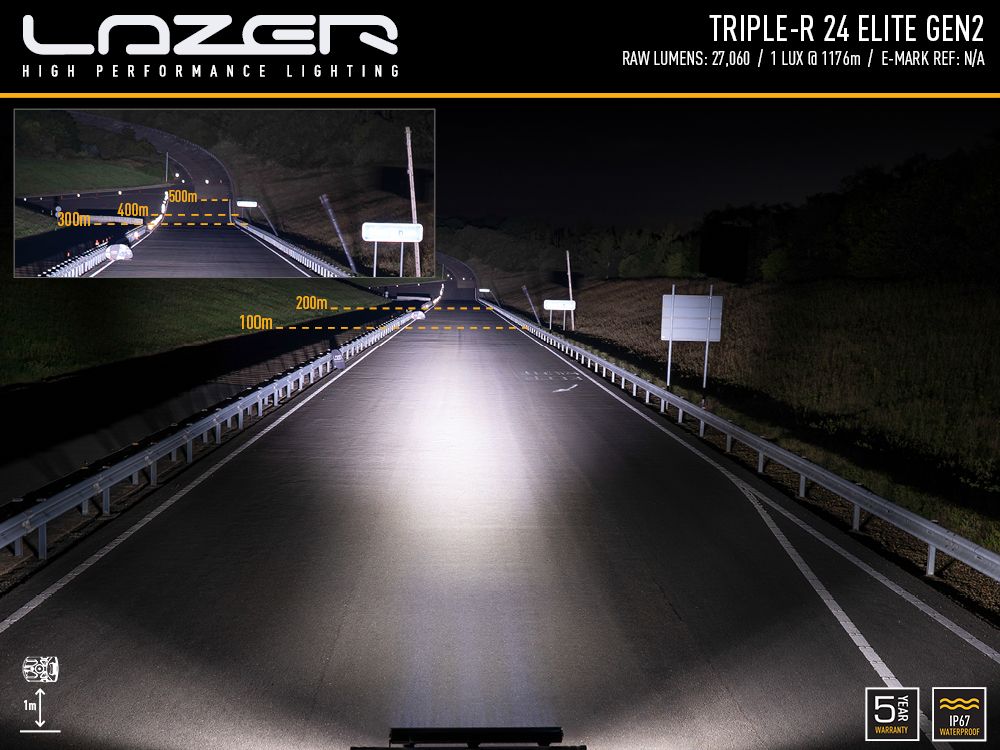

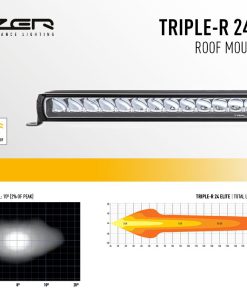

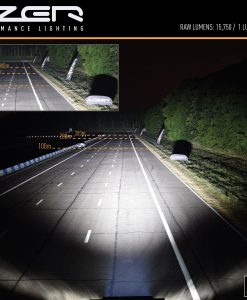

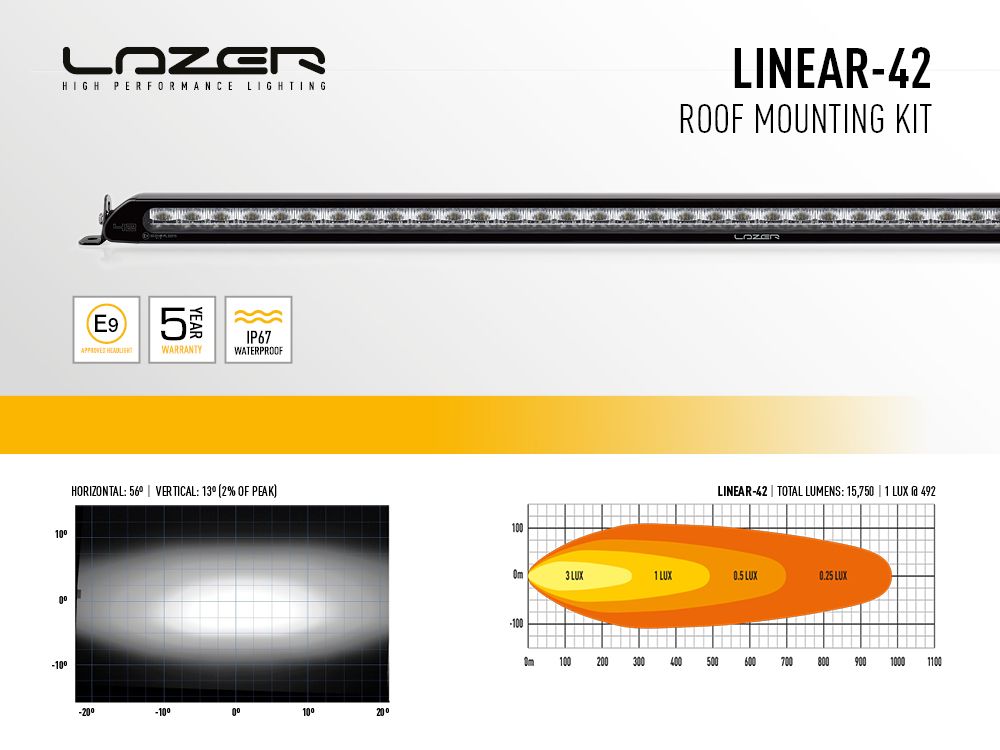

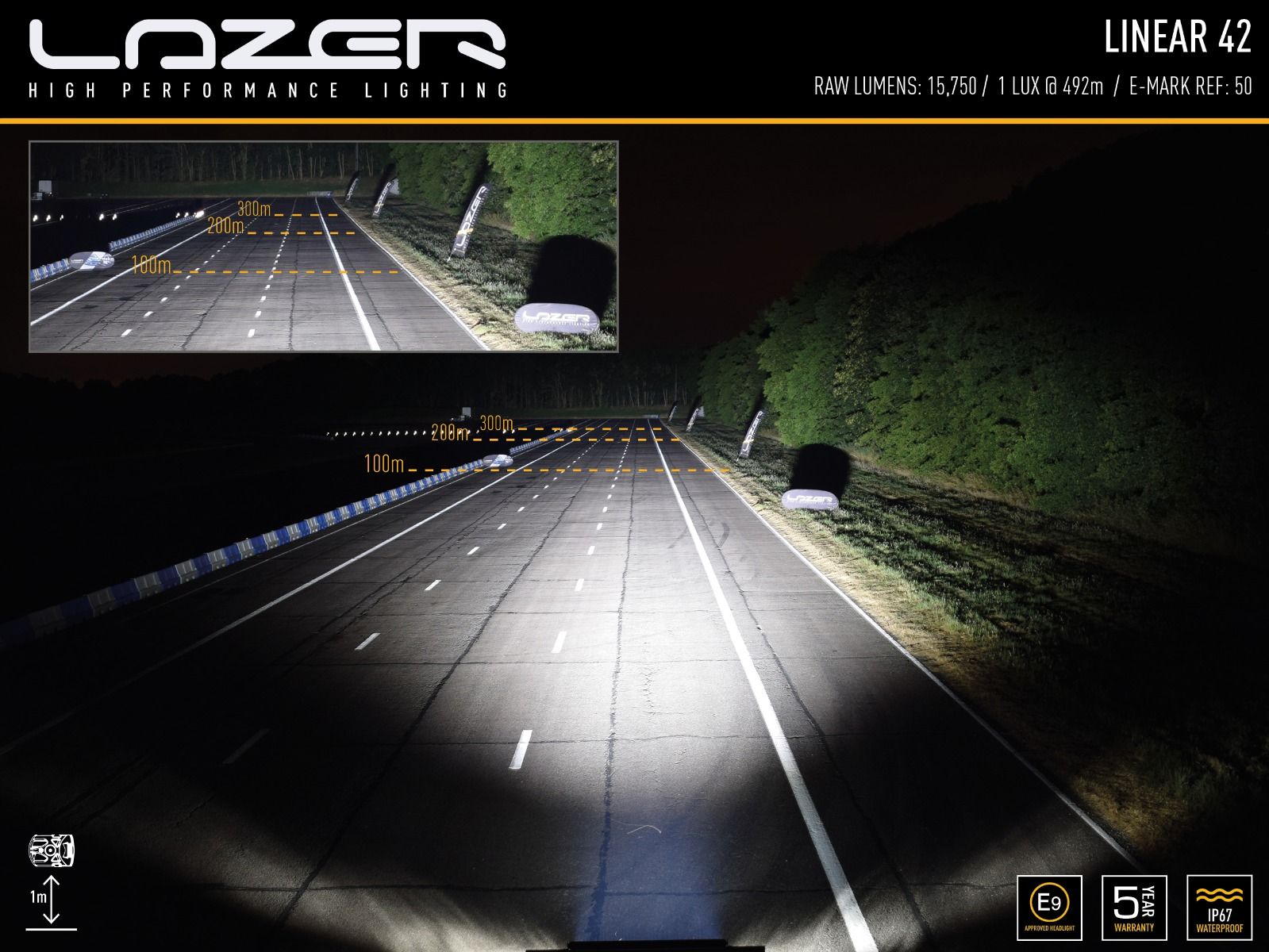

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 34 deg | 42 deg |
| 0.25 lx Line | 984 metres | 2352 metres |
| 0.5 lx Line | 696 metres | 1663 metres |
| 1 lx Line | 492 metres | 1176 metres |
| 3 lx Line | 284 metres | 679 metres |
| Soort | Lazer Linear-42 +kabelset, Lazer Linear-42 Elite + kabelset, Lazer Triple-R 24 Elite + kabelset |
|---|---|
| CanBus Interface | Geen CanBus Interface, Met Lazer CAN Interface, Met Lazer CAN Interface + Contactless Reader |
