Lazer Lights – Mercedes Sprinter (2018+) Grille Kit

Name: Lazer Lights - Mercedes Sprinter (2018+) Grille Kit
SKU: 68695
Availability: BackOrder

€714,95 – €1.119,95 incl. BTW

Soort

Canbus Interface

Wissen

Product code: N/B Categorieën: Lazer Integration Kits, Lazer Lights, Lazer Triple-R, Verlichting Tags: 2018, grille, integration, kit, Lazer, mercedes, sprinter, Triple-R 750, Triple-R 750 Elite

Lazer Lights – Mercedes Sprinter (2018+) Grille Kit

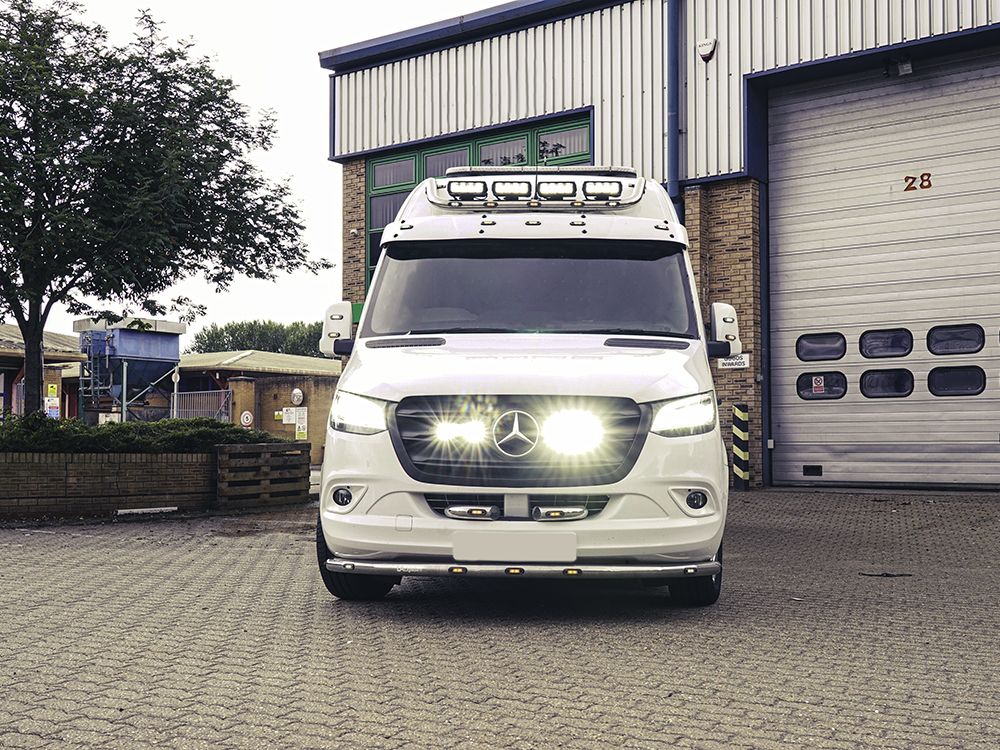

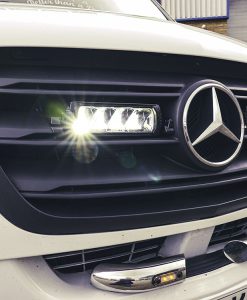

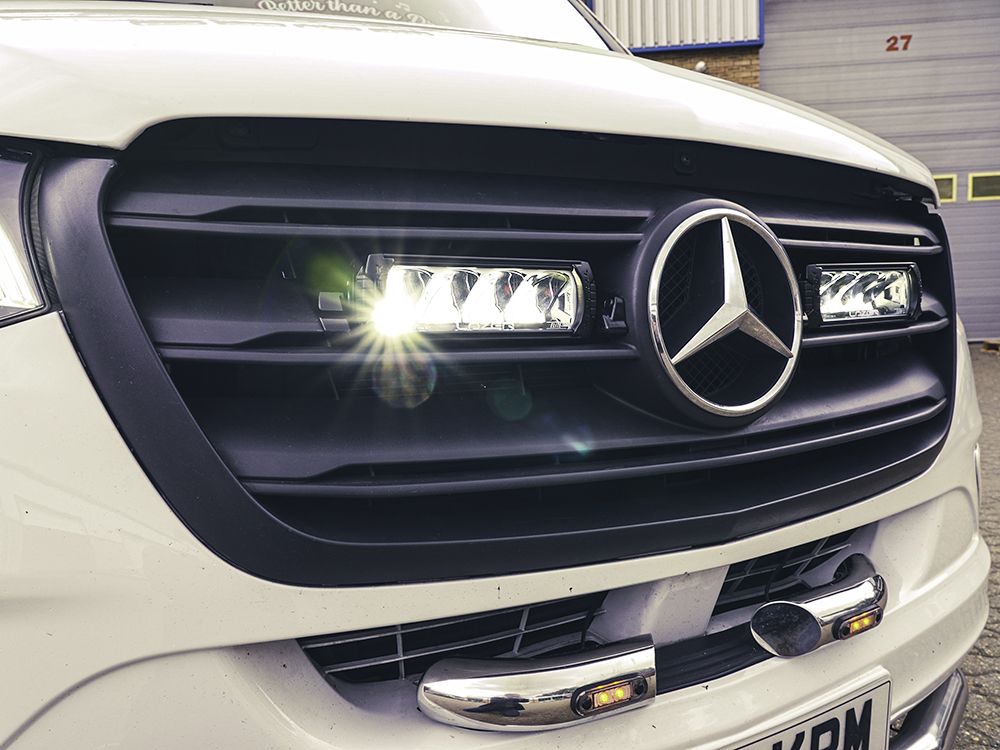

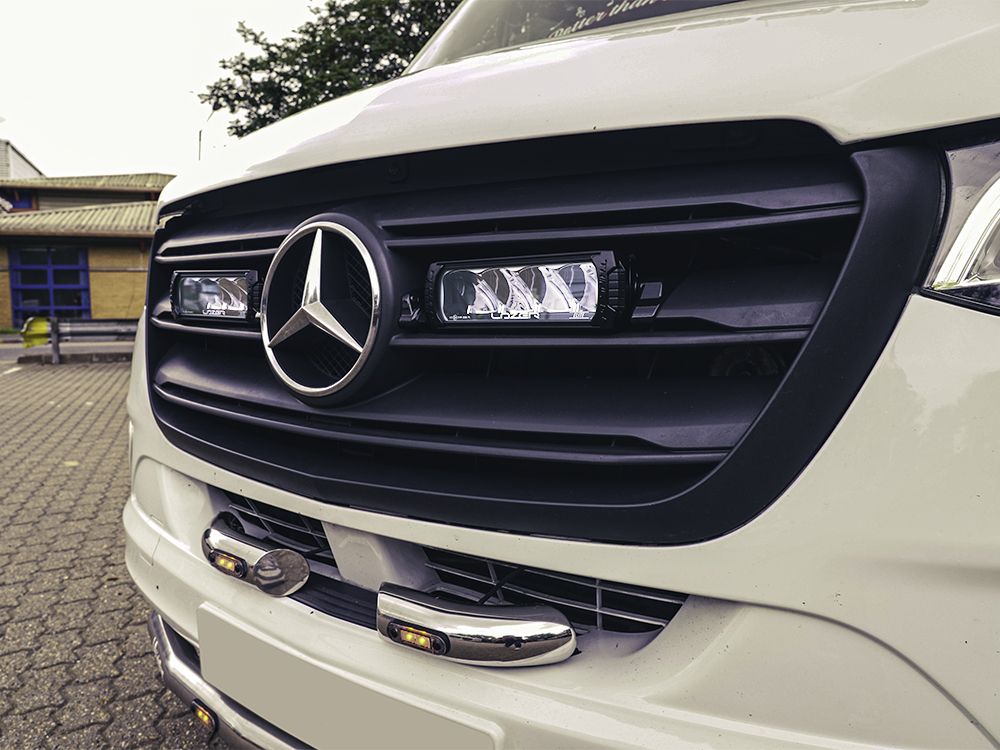

Whatever the job, whatever the destination, get there quicker, get there safer, get there in style with our bespoke grille integration kit, featuring a pair of our Triple-R 750 high performance LED spotlights, effortlessly set within the front grille of the Mercedes Sprinter.

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

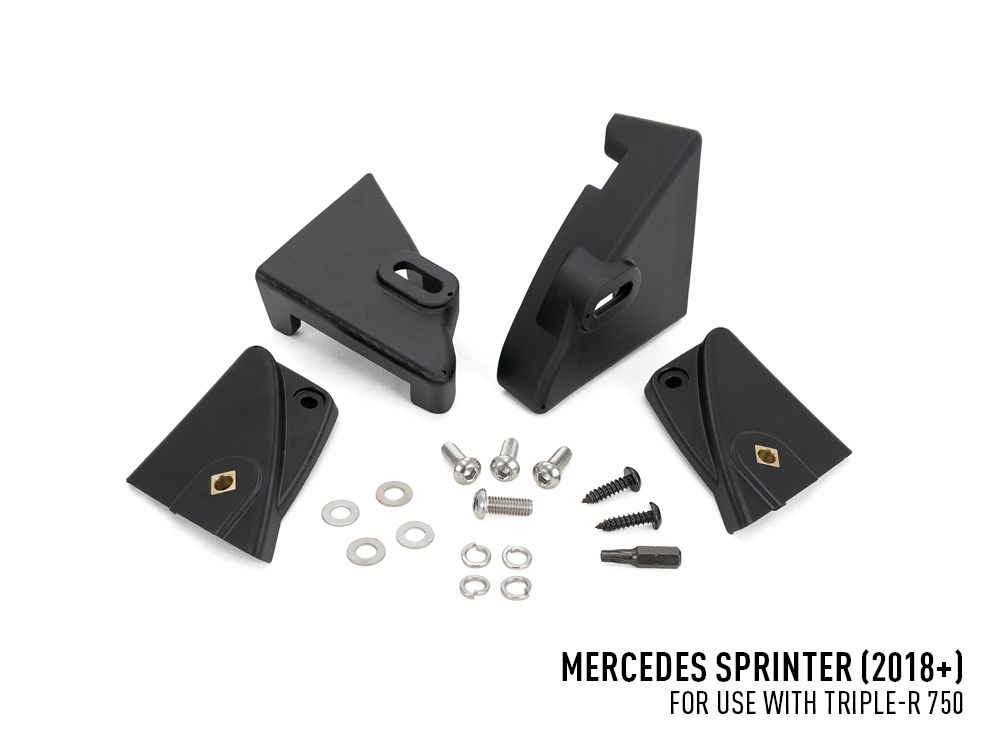

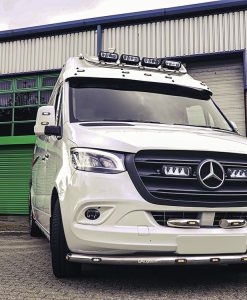

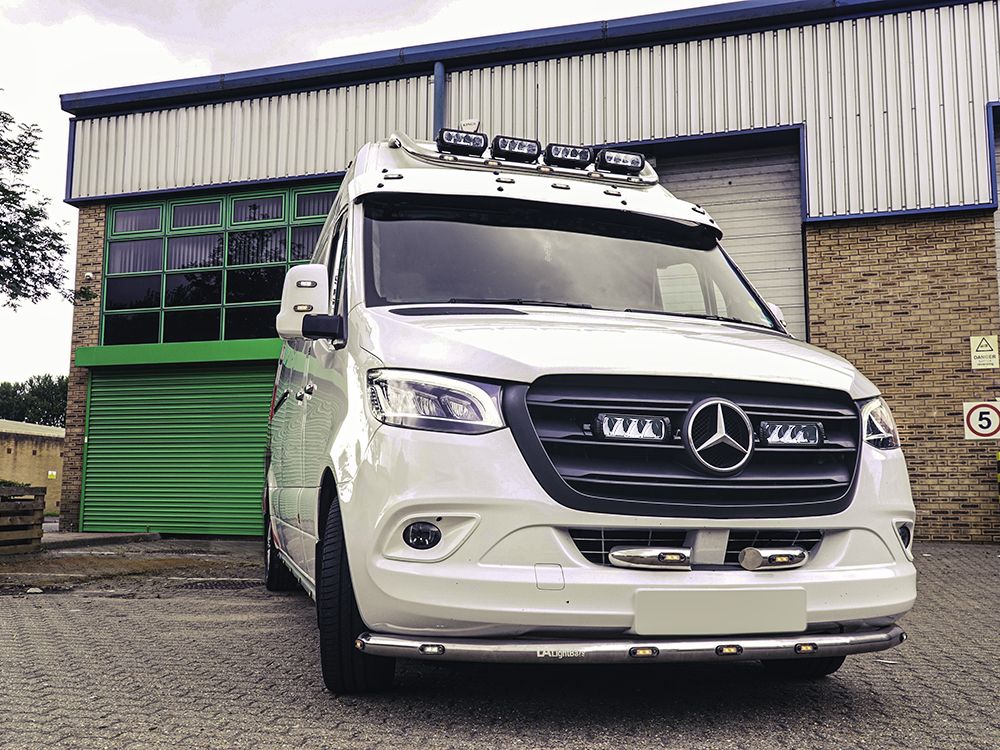

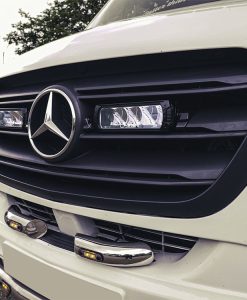

The Mercedes Sprinter kit, designed for MY18 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from a composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Bespoke vehicle integration kit for Lazer LED Spotlight installation

Custom fit for Mercedes Sprinter (2018+)

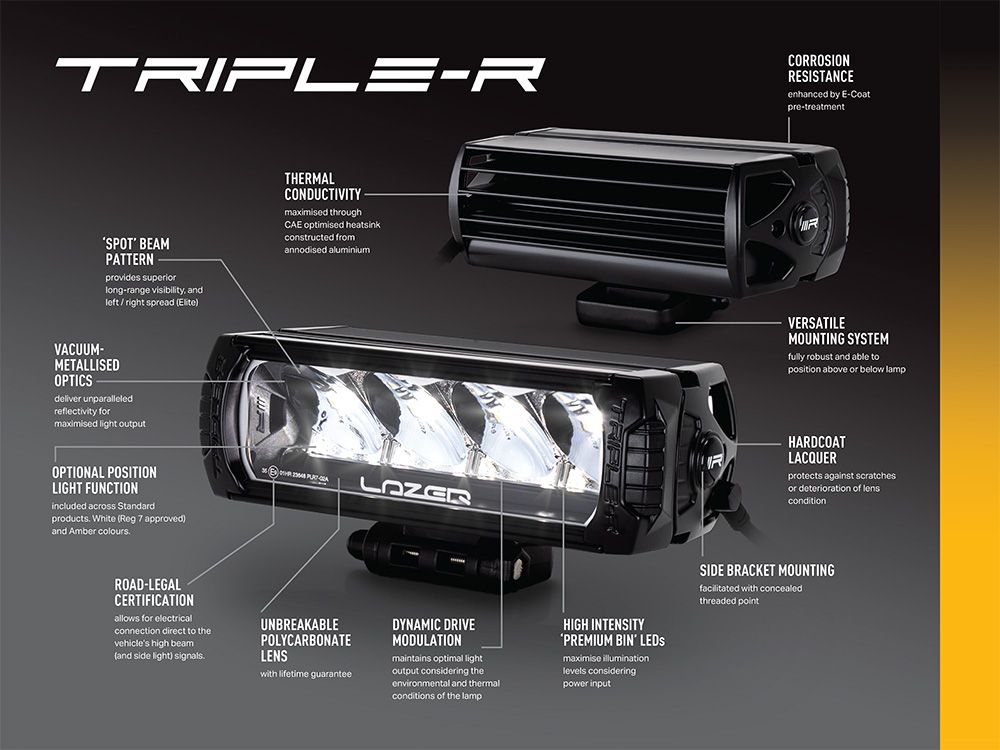

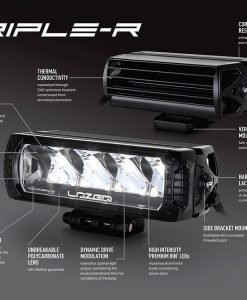

Designed for use with Triple-R 750 High Performance LED Spotlights

Added option for white or amber position/side light function (Standard model only)

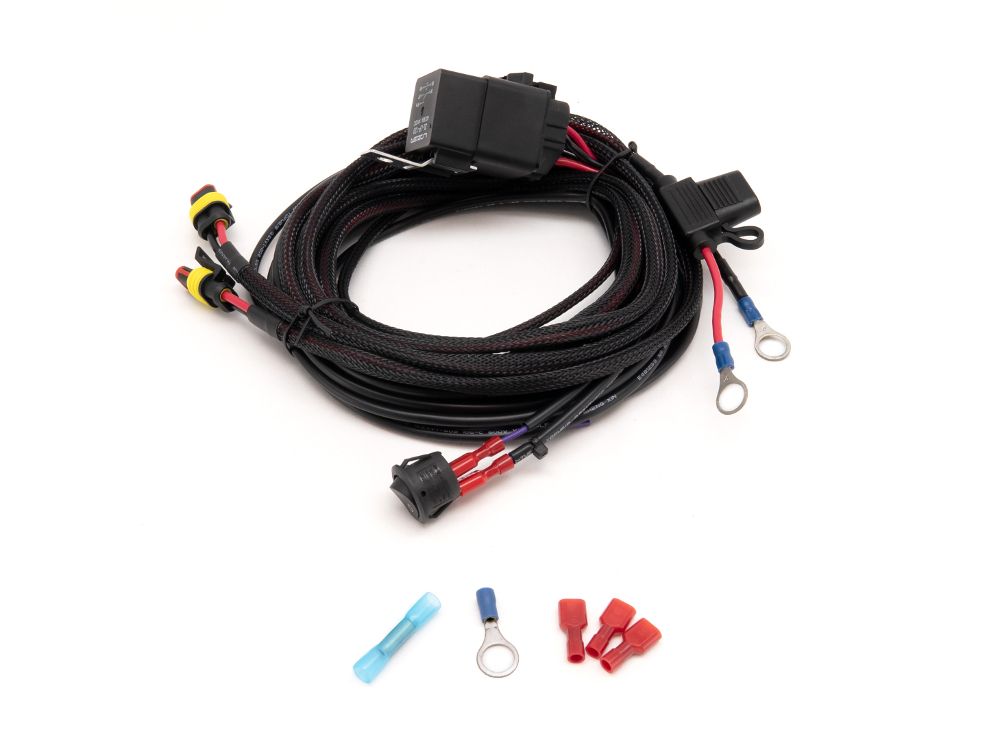

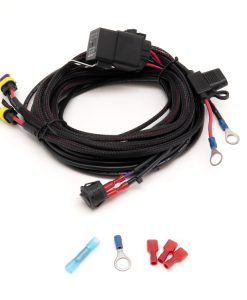

Kit also includes bespoke mounting brackets and two-lamp wiring kit

Brackets made from high strength, UV-stable, composite material

Installation completed with grille left in-situ on vehicle (cutting guides included)

Fully road-legal

5-year warranty

Made in Britain

Specifications:

Technical Specifications

	2x Triple-R 750 Elite (E-Boost Mode)	2x Triple-R 750
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs
Weight	2 kg	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	10136 Lm	9240 Lm
Total Driver ‘FOV’ Flux †	6680 Lm	5572 Lm
Colour Temperature	5000K	5000K
Number of High Output LEDs	2 x 4	2 x 4
Power Consumption	104 Watts	88 Watts
Current Draw (at 14.4V)	7.2 Amps	6.2 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112
ECE Reference	N/A (12.5 x2 – E-Mark Mode)	35 x2
Position Light (White only)	N/A	ECE R7

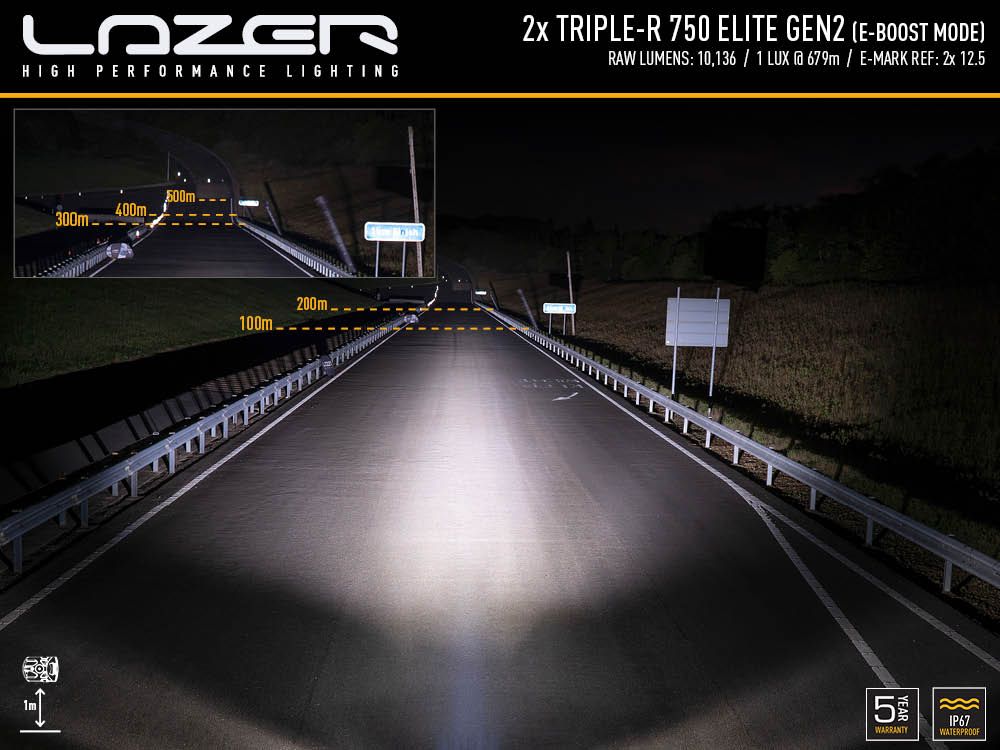

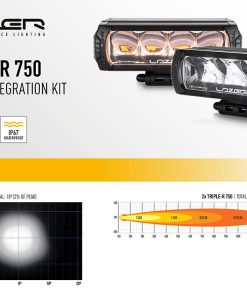

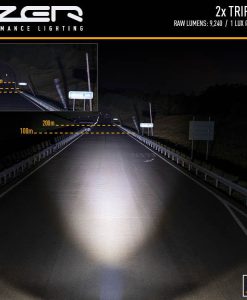

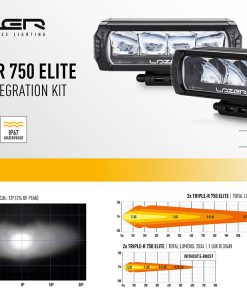

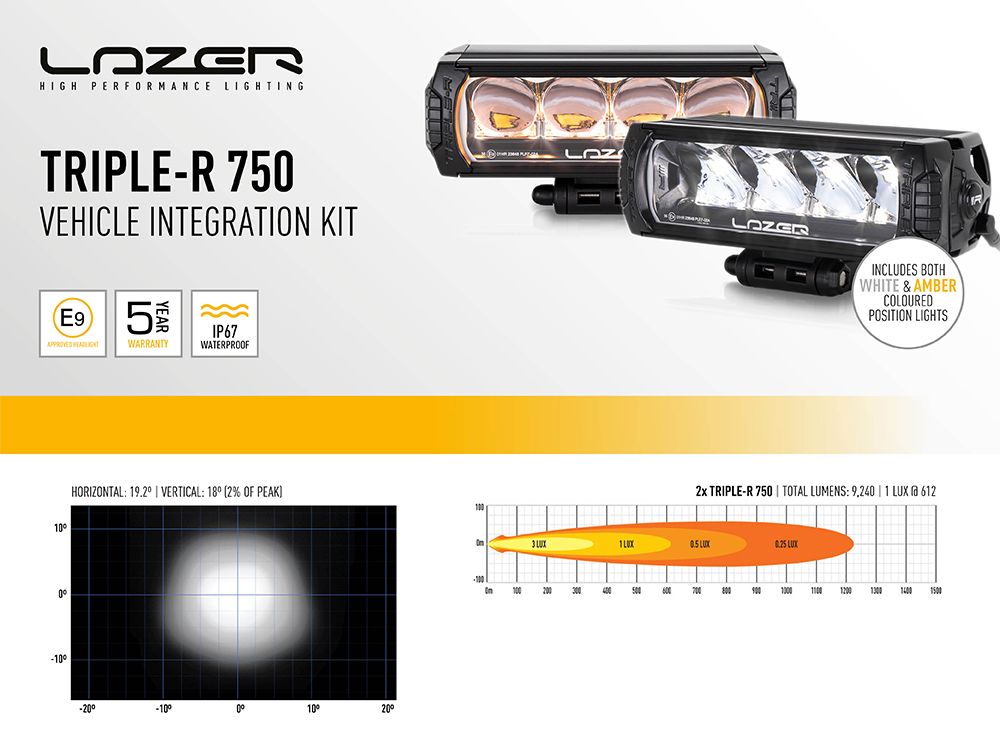

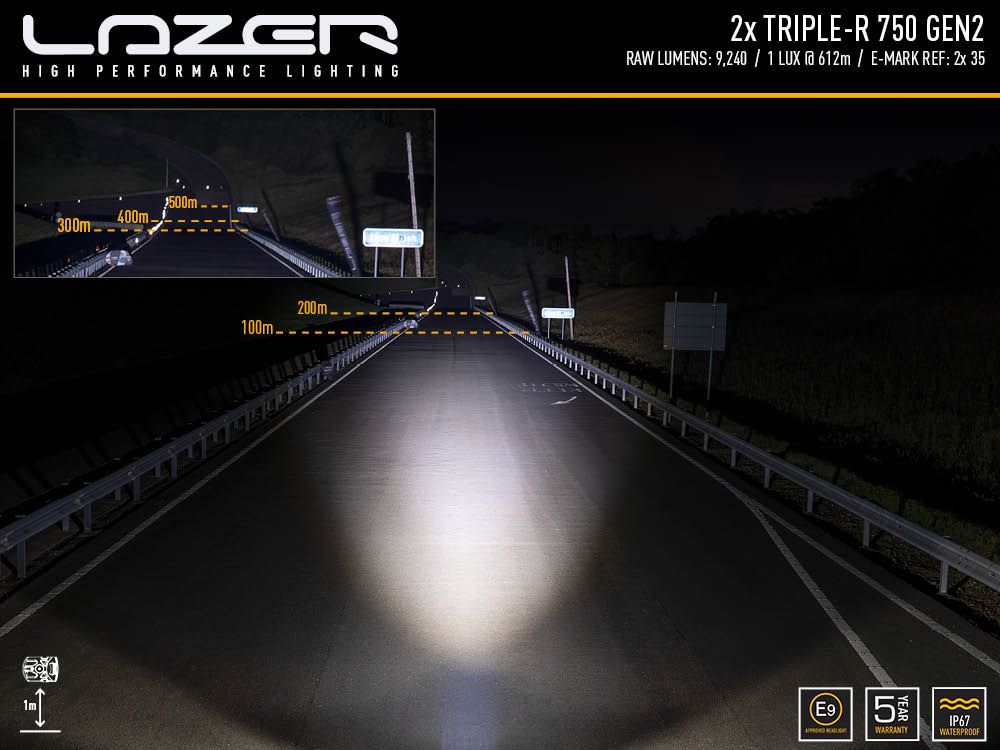

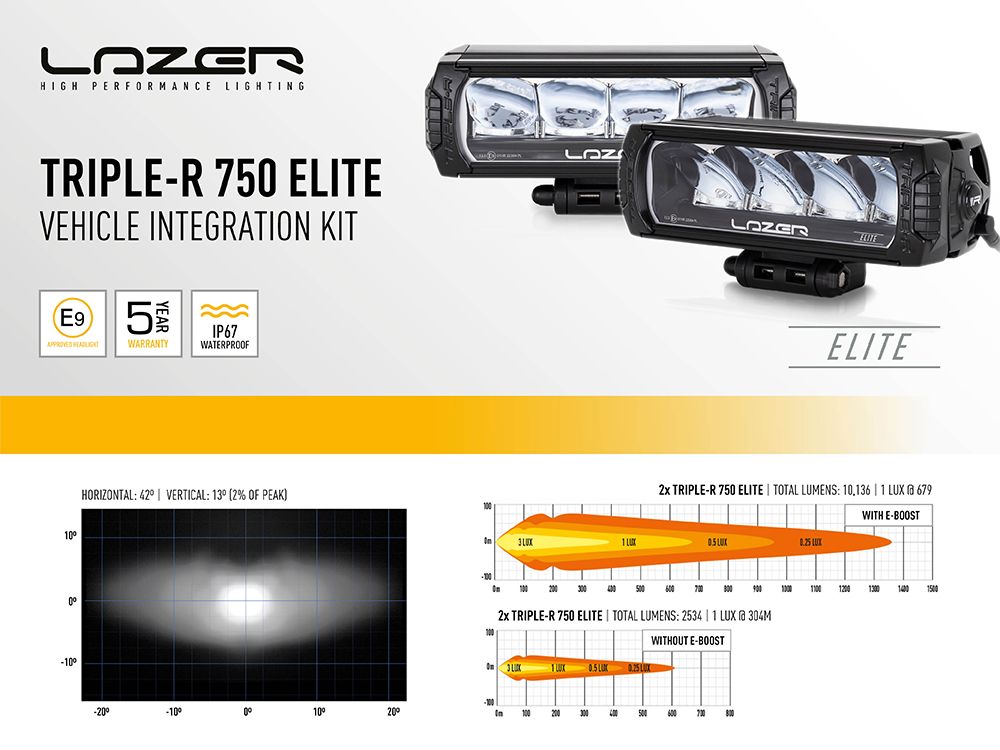

PHOTOMETRIC DATA
Horizontal Beam Angle	42°	19°
0.25 lx Line	1358m	1225m
0.5 lx Line	960m	866m
1 lx Line	679m	612m
3 lx Line	392m	354m

Soort	Lazer Triple-R 750 + kabelset, Lazer Triple-R 750 Elite + kabelset
Canbus Interface	Geen, Met Lazer CAN Interface, Met Lazer CAN Interface + Contactless Reader
