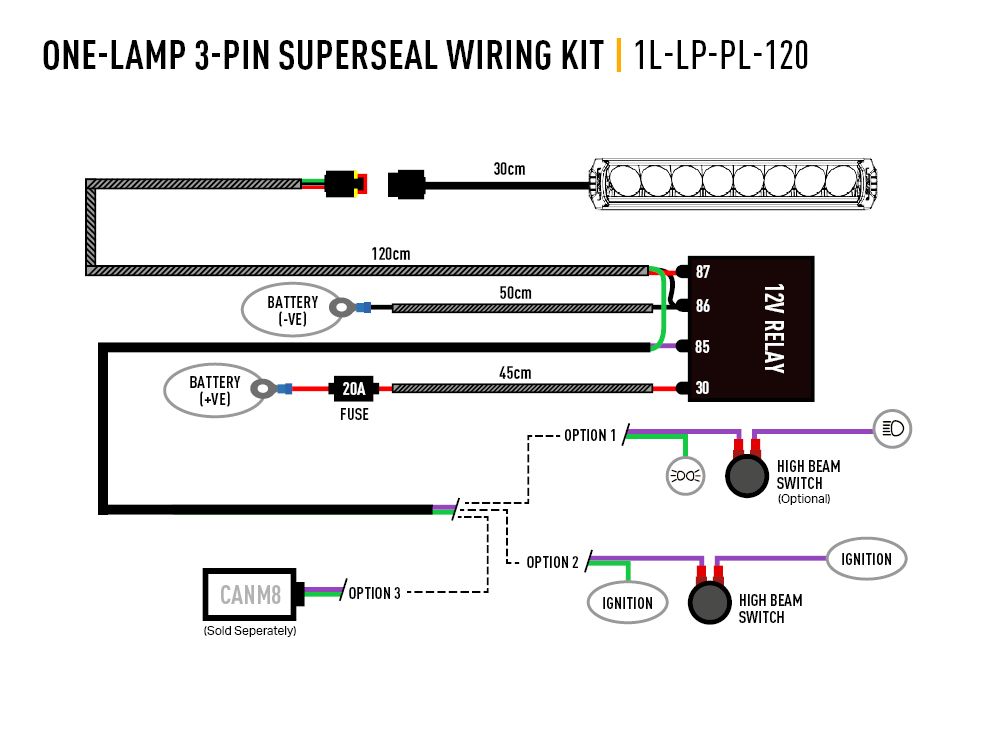

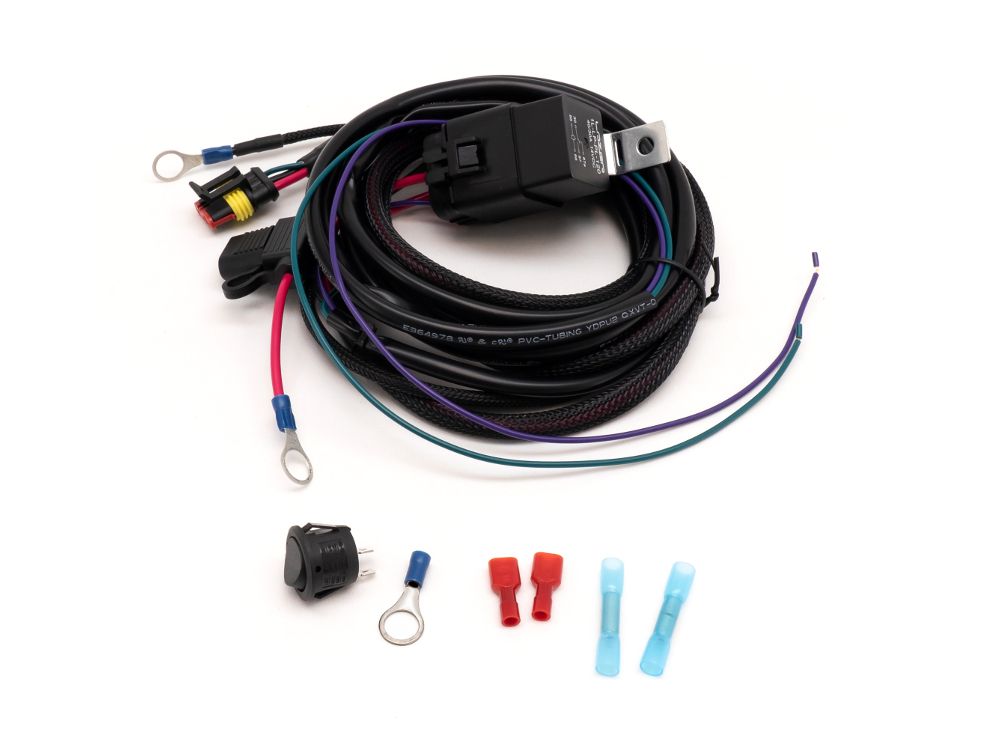

One-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 3-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 3m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:

• Triple-R 750 (Gen2)
• Triple-R 850 (Gen2)
• Triple-R 1000 (Gen2)
• Triple-R 1250 (Gen2)
• Linear-12 Elite (with Position Light)
• Linear-18 Elite (with Position Light)
• Sentinel 7” Elite
• Sentinel 9”
• Sentinel 9” Chrome
• Sentinel 9” Elite (with Position Light)

Product features:

One-Lamp Wiring Kit for Lazer Lamps LED High Performance Lights (see product text for compatibility)

1.2m cable length

Includes 12V relay and 20 amp fuse

Relay holder approved to IP53 when mounted in a vertical (upright) orientation

Superseal connections

Includes optional on/off switch for independent operation of high beam

Braided cable sections for added protection in engine bay
