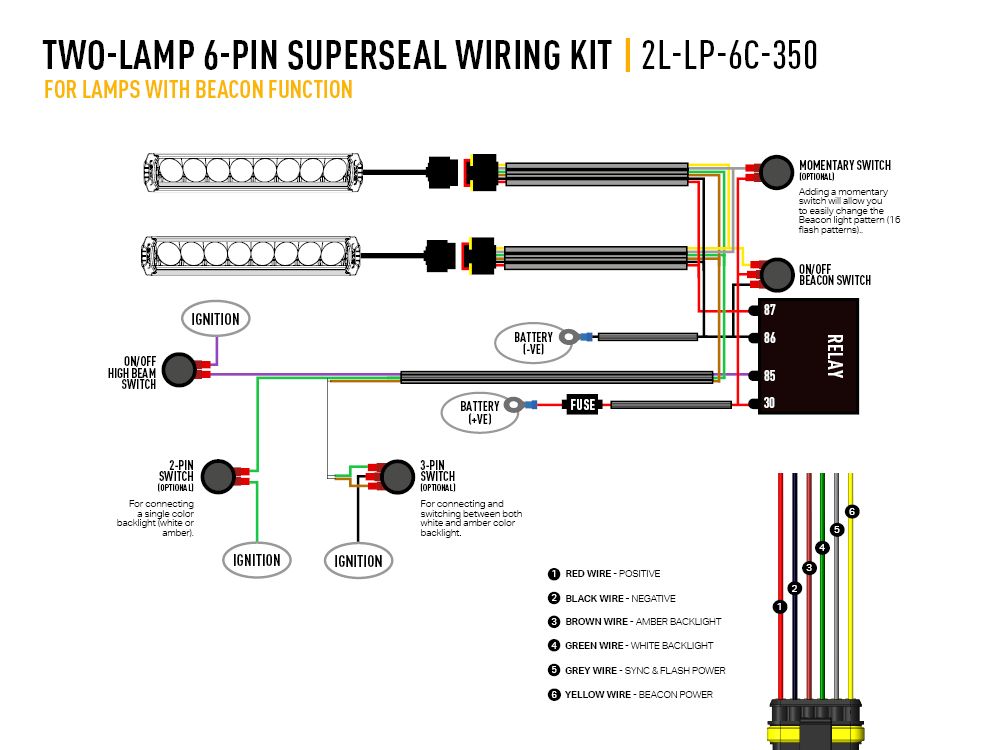

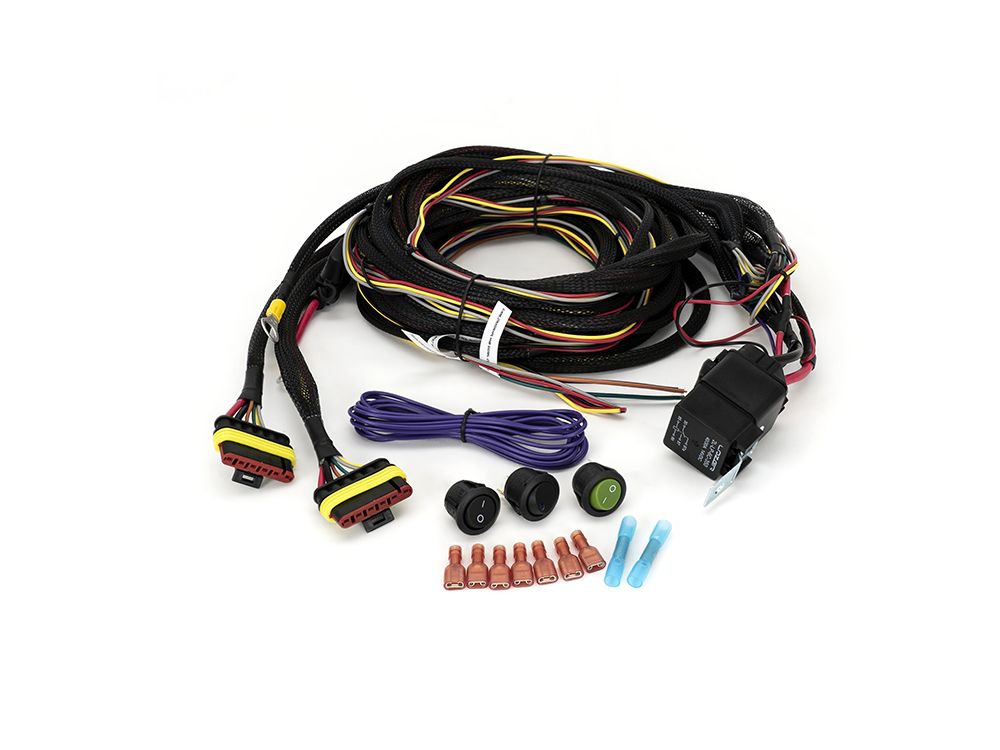

The ideal solution for wiring a pair of Lazer high performance LED spotlights, which also feature integrated Side/Position Light and Beacon function. The setup is quick, easy, and reliable with 6-pin superseal connections and no configuration procedures. The kit features a 12V relay (in waterproof housing), 30A fuse, a battery terminal at one end, and 3.5m of flex on lamp cables, and allows for the operation of Lazer products in parallel with the standard lighting on the vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring into your vehicle system.

Compatible with:

• Triple-R 1000 with Beacon (Gen2)

Product features:

Two-Lamp Wiring Kit for Lazer products with integrated Position Light and Beacon function

3.5m cable lengths

Includes 12V relay and 30 amp fuse

Superseal connections

High beam trigger wire allows for operation of lights in parallel with standard high beams

Conduit cable sections for added protection in engine bay
