Safari Snorkel – Jeep Cherokee KJ (02-07) 3.7L Petrol (LHD & RHD)
€567,07 incl. BTW
Safari Snorkel – Jeep Cherokee KJ (02-07) 3.7L Petrol (LHD & RHD)
The SS1130HF Jeep Cherokee/Liberty 4×4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of KJ 3.7L Petrol engines.
With the huge air flow demands of each engine in the Jeep KJ 3.7L Petrol Cherokee/Liberty, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Jeep Cherokee/Liberty design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body – but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream – thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Jeep Cherokee/Liberty 4×4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Jeep Cherokee/Liberty snorkel breezes through the toughest off-road conditions on the planet.
Safari Jeep Cherokee/Liberty 4×4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your KJ 3.7L Petrol engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Jeep Cherokee/Liberty 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel Jeep Cherokee/Liberty 4×4 Kit – Parts List
Jeep Cherokee/Liberty 4WD Snorkel for KJ 3.7L Petrol Models – Safari Automotive Jeep Cherokee/Liberty 4×4 Snorkel Part Number SS1130HF

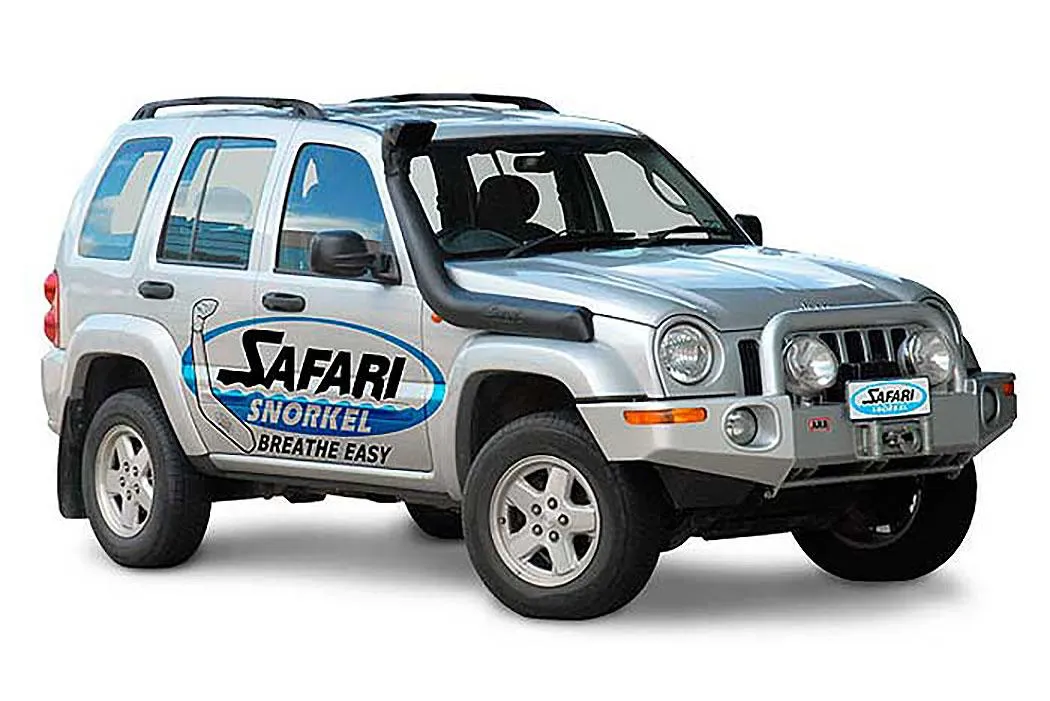

Actual model not shown.
| ITEM | PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
| 1 | 965-133-000 | BODY – SNORKEL (SS1130HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 965-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT – HEX – 6mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-958-550 | POP RIVET – 4.8mm x 18mm | 6 |
| 6 | 000-110 | INSERT – PLASTIC | 4 |
| 7 | 000-311-300 | SSTUD – S/S 8mm x 1.25 x 25mm O/L | 4 |
| 8 | 000-205-300 | WASHER – BODY – 8.5mm x 32mm – S/S | 4 |
| 9 | 965-024-000 | NUT – NYLOC – 8mm x 1.25mm – S/S | 6 |
| 10 | 965-025-200 | PLATE – AIR INTAKE CONNECTOR | 1 |
| 11 | 000-909 | CLAMP – HOSE – 80/100mm | 1 |
| 12 | 965-025-000 | PLATE – BLANK-OFF (AIR CLEANER INLET) | 1 |
| 13 | 000-951-550 | SCREW – S/T – 4.8mm x 16mm | 1 |
| 14 | 000-958-600 | POP RIVET – PLASTIC | 7 |
| 15 | 965-217-000 | TEMPLATE – ENGINE BAY | 1 |
| 16 | 965-217-200 | TEMPLATE – INNER FENDER | 1 |
| 17 | 965-017-000 | TEMPLATE – FENDER PANEL (FRONT) | 1 |
| 18 | 965-017-200 | TEMPLATE – FENDER PANEL (REAR) | 1 |
| 19 | 000-914/B | CLAMP – HOSE – SIZE 56 (BLACK) | 1 |
| Gewicht | 7 kg |
|---|
