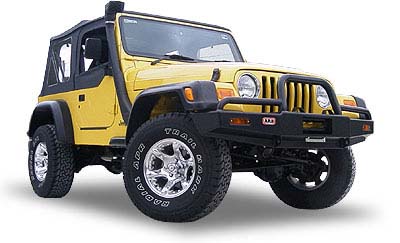

Safari Snorkel – Jeep Wrangler TJ (92-99) 4.0L Petrol
€457,38 incl. BTW
Safari Snorkel – Jeep Wrangler TJ (92-99) 4.0L Petrol
The SS1050HF Jeep Wrangler 4×4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of TJ 10/1992 – 10/1999 4.0L Petrol engines.
With the huge air flow demands of each engine in the Jeep TJ 10/1992 – 10/1999 4.0L Petrol Wrangler, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Jeep Wrangler design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body – but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream – thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Jeep Wrangler 4×4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Jeep Wrangler snorkel breezes through the toughest off-road conditions on the planet.
Safari Jeep Wrangler 4×4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your TJ 10/1992 – 10/1999 4.0L Petrol engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Jeep Wrangler 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel Jeep Wrangler 4×4 Kit – Parts List
Jeep Wrangler 4WD Snorkel for TJ 10/1992 – 10/1999 4.0L Petrol Models – Safari Automotive Jeep Wrangler 4×4 Snorkel Part Number SS1050HF
| ITEM | PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
| 1 | 955-133-000 | BODY – Snorkel | 1 |
| 2 | 000-135-050 | 3” AIR RAM ASSEMBLY | 1 |
| 3 | 955-032-000 | BRACKET – Upper Mounting | 1 |
| 4 | 000-002-100 | BOLT-HEX 6mm x 1.0mm x 14mm | 2 |
| 5 | 000-951 | SCREW -S/T 4.2mm x 13mm | 3 |
| 6 | 000-960 | BODY CLIP – PLASTIC | 3 |
| 7 | 000-110 | STUD – S/S 8mm x 1.25mm x 25mm O/L | 2 |
| 8 | 000-311 | WASHER -BODY 8mm x 30mm | 2 |
| 9 | 000-205 | NUT – NYLOC 8mm x 1.25mm | 2 |
| 10 | 000-906 | CLAMP – HOSE 50/70mm | 1 |
| 11 | 000-883-110 | HOSE – FLEXIBLE 63mm ID x 1100mm | 1 |
| 12 | 955-023-000 | ADAPTOR – AIR ENTRY | 1 |
| 13 | 955-025-000 | BLANK OFF PLATE – AIR ENTRY | 1 |
| 14 | 000-002 | BOLT – HEX 6mm x 1.0mm x16mm | 1 |
| 15 | 000-310 | WASHER – BODY 6mm x 16mm | 2 |
| 16 | 000-204 | NUT – NYLOC 6mm x 1.0 | 1 |
| 17 | 000-958 | POP RIVET 4mm x 12mm | 9 |
| 18 | 000-953-030 | RUBBER EDGING 300mm | 2 |
| 19 | 000-987-365 | CABLE TIE | 2 |
| 20 | 955-017-000 | TEMPLATE | 1 |
| 21 | 955-017-200 | TEMPLATE – AIR CLEANER | 1 |
| 22 | 000-918/B | HOSE CLAMP – SIZE 48 (BLACK) | 1 |
| Gewicht | 7 kg |
|---|
