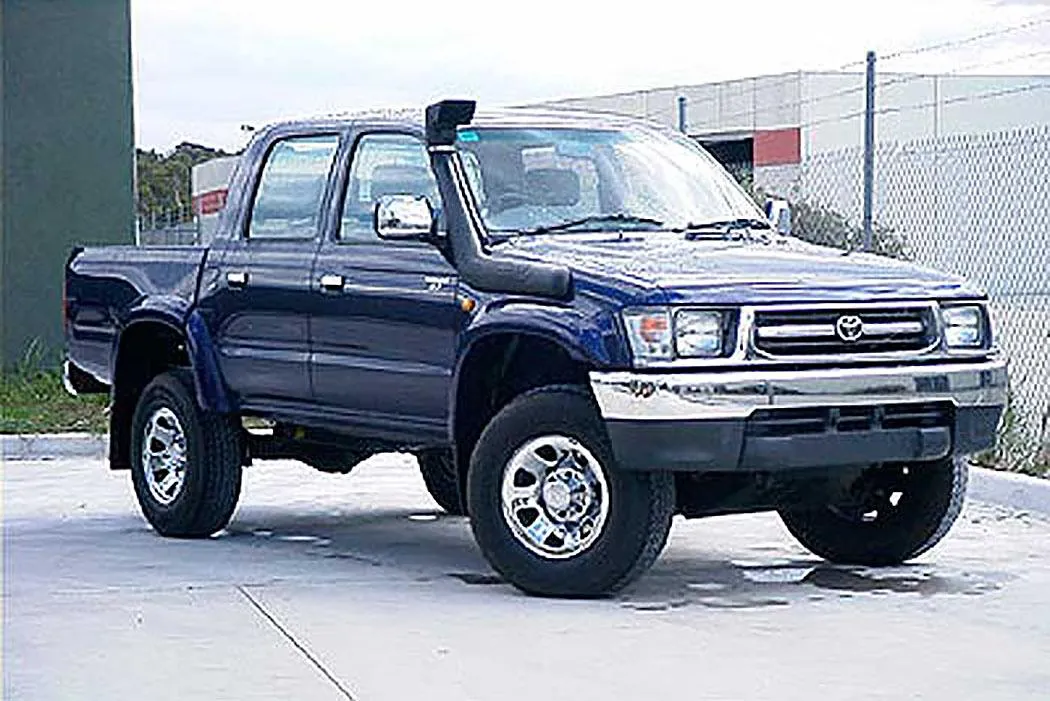

Safari Snorkel – Toyota Hilux 167 Series (97-05) 2.7L Petrol 3RZ-FE
€593,18 incl. BTW
Safari Snorkel – Toyota Hilux 167 Series (97-05) 2.7L Petrol 3RZ-FE
The SS135HF Safari Snorkel suitable for Toyota Hilux 167 Series 4×4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 12/1997 – 03/2005 2.7L Petrol 3RZ-FE engines.
With the huge air flow demands of each engine in the Toyota 12/1997 – 03/2005 2.7L Petrol 3RZ-FE Hilux 167 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body – but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream – thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Snorkel suitable for Toyota Hilux 167 Series 4×4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.
Safari Snorkel suitable for Toyota Hilux 167 Series 4×4 Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 12/1997 – 03/2005 2.7L Petrol 3RZ-FE engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Snorkel fitting guide suitable for Toyota Hilux 167 Series 4WD with an accurate template for assisting with installation.
Safari Snorkel suitable for Toyota Hilux 167 Series 4×4 Kit – Parts List
Safari Snorkel suitable for Toyota Hilux 167 Series 4×4 Snorkel Part Number SS135HF
| ITEM | PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
| 1 | 315-133-500R | BODY-SNORKEL | 1 |
| 2 | 000-135-650 | 3 1/2″ AIR RAM ASSEMBLY | 1 |
| 3 | 315-032-500 | BRACKET-UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT-HEX 6mm x 1.0mm x 14mm | 3 |
| 5 | 000-951 | SCREW – S/T 4.2mm x 13mm | 3 |
| 6 | 000-960 | BODY CLIP – PLASTIC | 3 |
| 7 | 315-024-500 | HOSE-AIR ENTRY | 1 |
| 8 | 000-110 | STUD – S/S 8mm x 1.25mm x 25mm O/L | 5 |
| 9 | 000-311-300 | WASHER-BODY 8mm x 30mm | 5 |
| 10 | 000-205-300 | NUT-NYLOC 8mm x 1.25mm | 5 |
| 11 | 000-908 | CLAMP-HOSE 70/90mm | 2 |
| 12 | 315-017-500 | TEMPLATE | 1 |
| 13 | 000-914/B | HOSE CLAMP-SIZE 56 (BLACK) | 1 |
| Gewicht | 7 kg |
|---|
