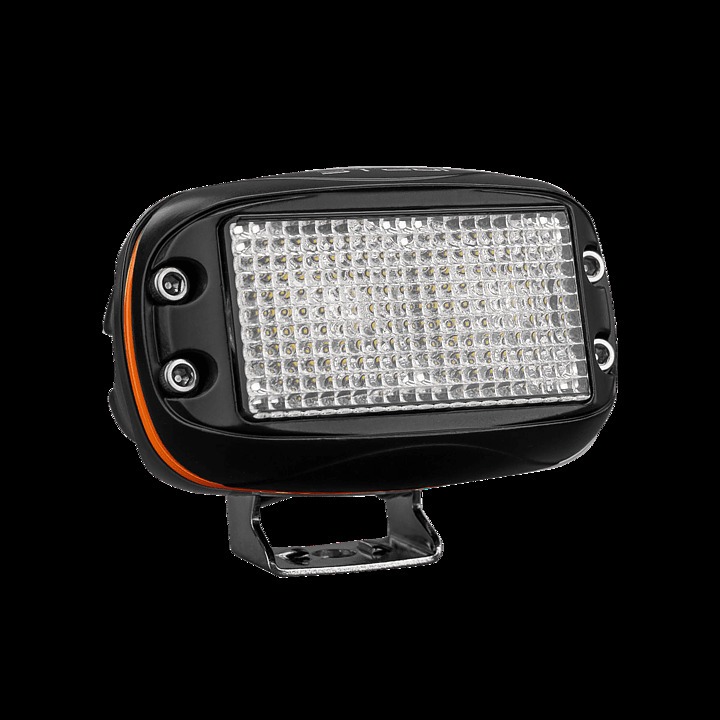

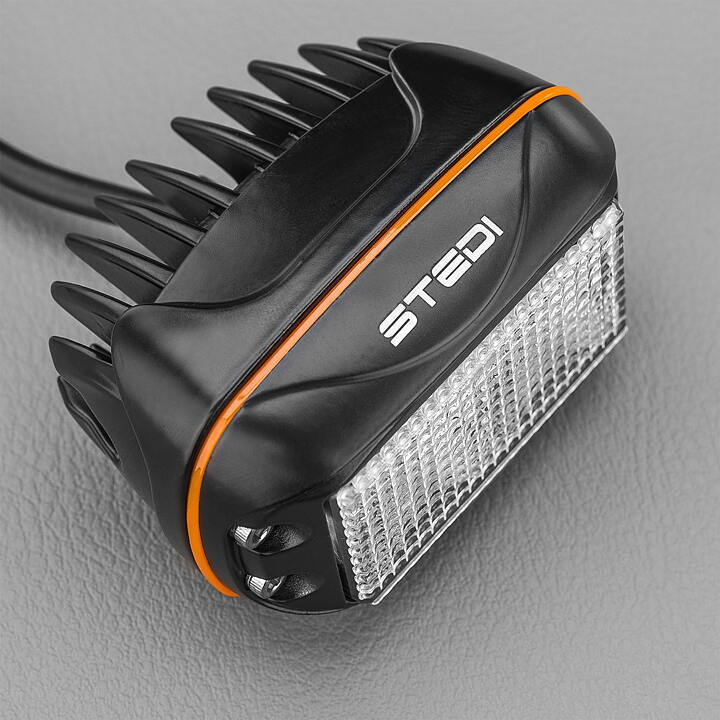

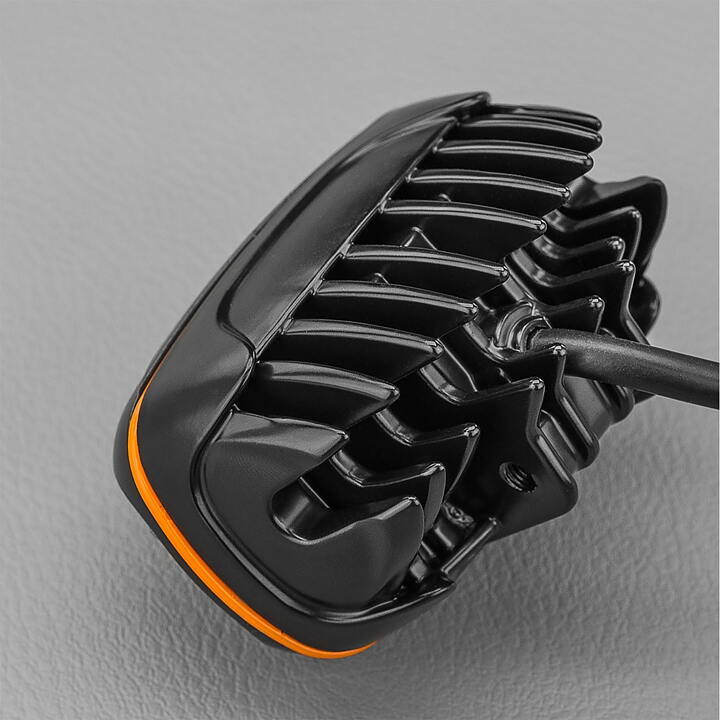

STEDI – 10W Mini V2 LED Light | Flood

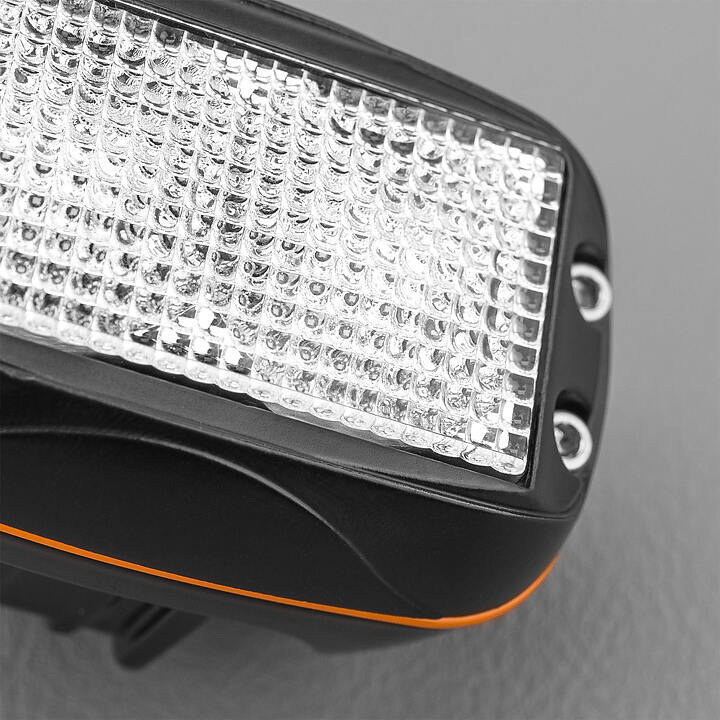

WITHOUT A SHADOW OF A DOUBT. Our 10w Mini LED Work Light packs a powerful punch for a small, 300g light, a big reason as to why it has become a fan favorite. We have taken the 10w Mini LED Work Light to the next level by incorporating a more secure set of fasteners into the lens. Without a shadow of a doubt, this new version has proven to be a solid and durable upgrade for your vehicle.

POWERFUL PERFORMANCE. Running a 2x5w Osram LEDs supplies more light than you would expect from a 300g light. With a 40 degree flood and a low current draw of 0.5a @ 13.8v, it really is no surprise that they are our best selling LED Work Light.

ENDLESS APPLICATION. The 10w Minis have an almost endless list of application and can be used from work/camping lights to bumper mounted reverse lights. The 2 styles of 10w Mini are easily mounted via the U-Bracket or Flush Face Plate depending on the intended location of the light.

The Nitty Gritty:

KEY FEATURES

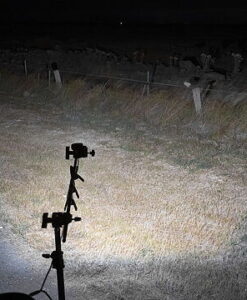

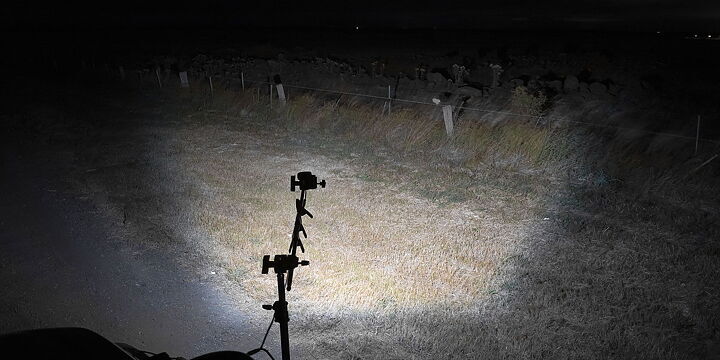

Flood Optics for a wide 40 degree spread pattern
12 Volt and 24v Compatible

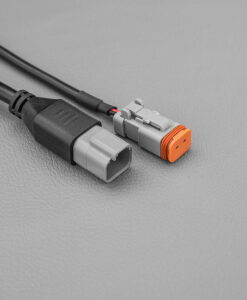

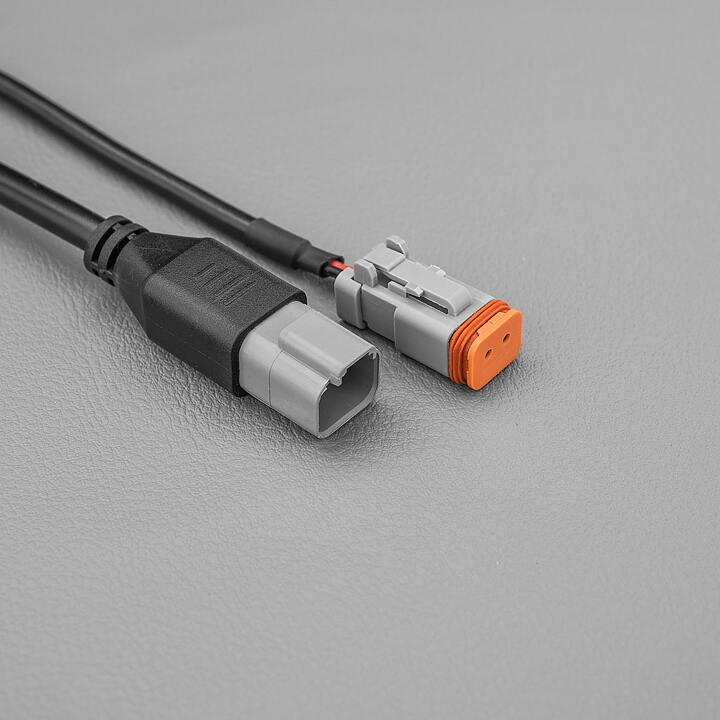

Waterproof Male & Female Deutsch connectors included
Stainless Steel Fittings

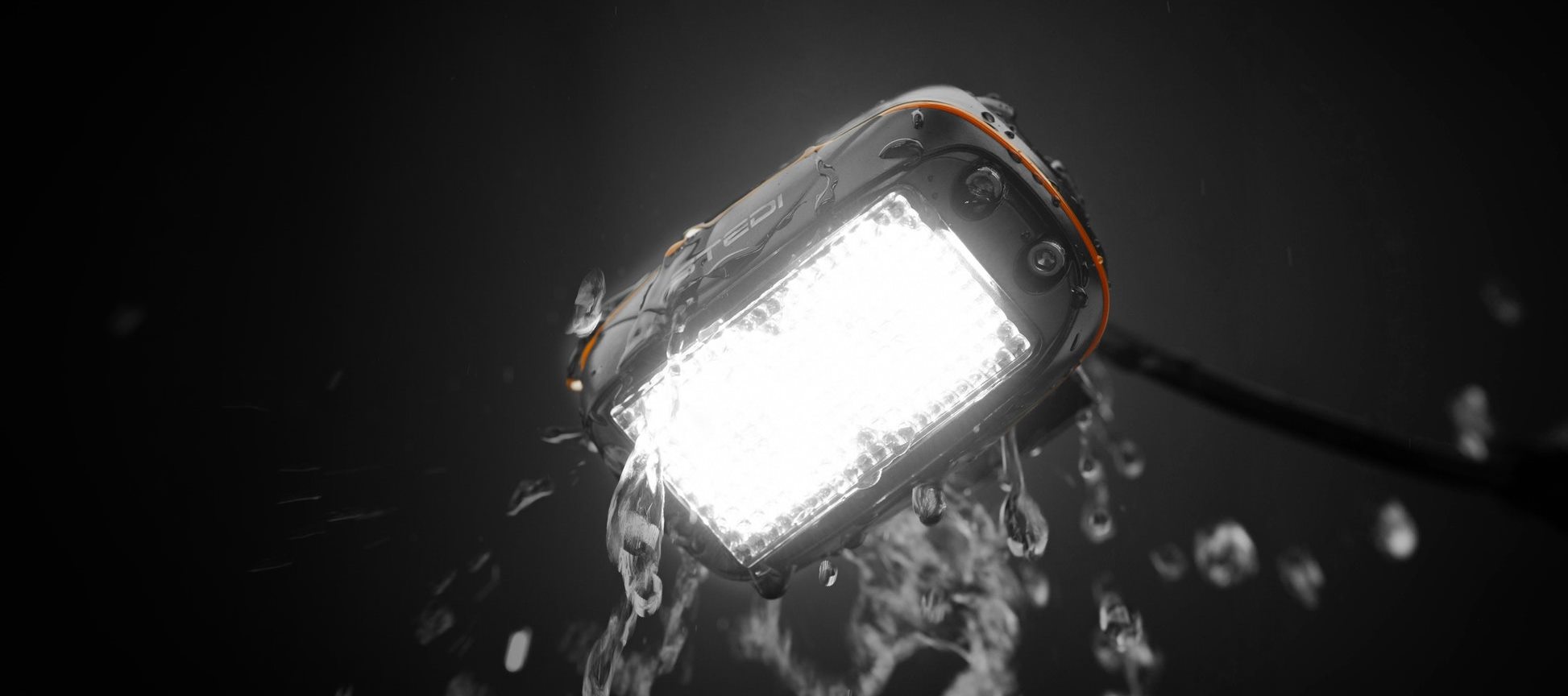

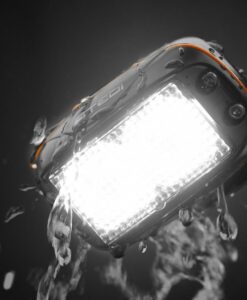

IP67 – Protected against immersion up to 1m in depth for no longer than 30 minutes at a time
OSRAM GmbH Emitters

Technical Specifications:

LED POWER: 10 WATTS
OPERATING VOLTAGE: 12v & 24v Compatible
LED CHIPS: 5W x 2 Osram LEDs
COLOUR TEMPERATURE: 5700K
RAW LUMENS: 1,000Lm
CURRENT DRAW: 0.5A @ 13.8V
BEAM: Flood Beam
WATERPROOF: IP67
DUSTPROOF & ANTI-VIBRATION: YES

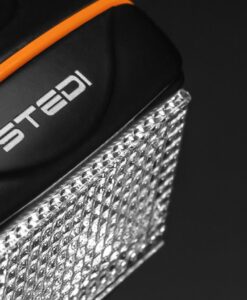

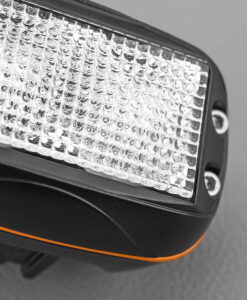

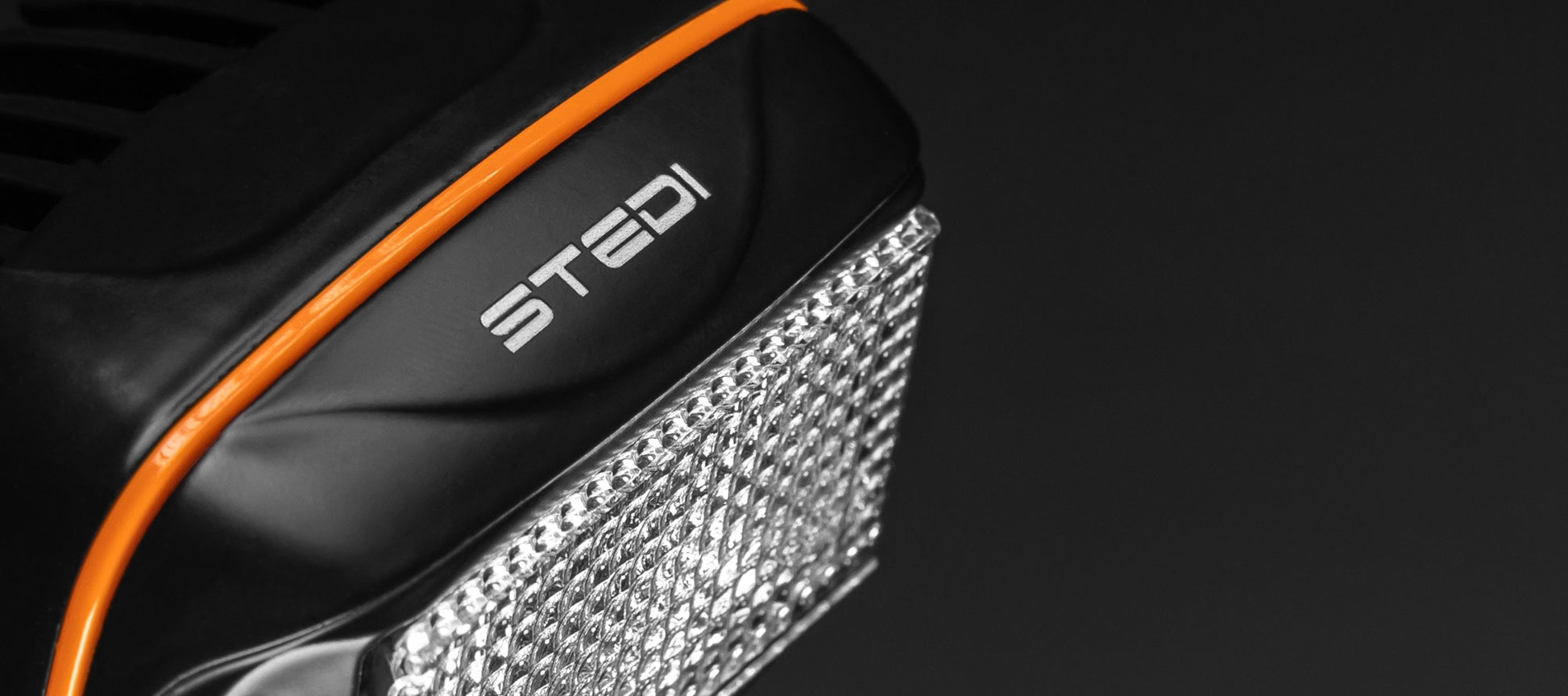

LENS: Optical PC

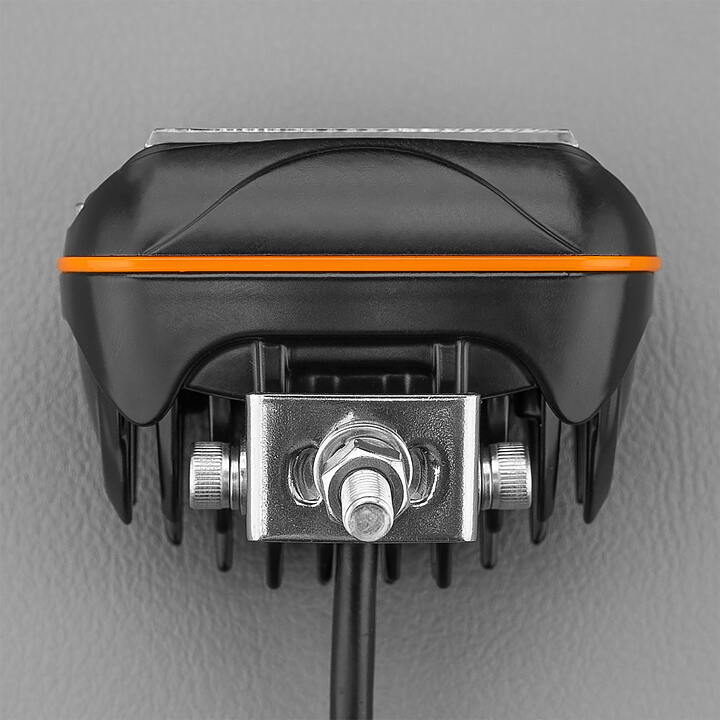

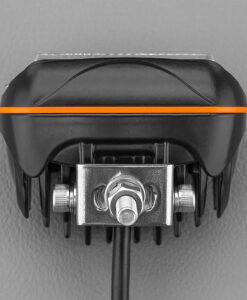

MOUNTING BRACKET: STAINLESS STEEL

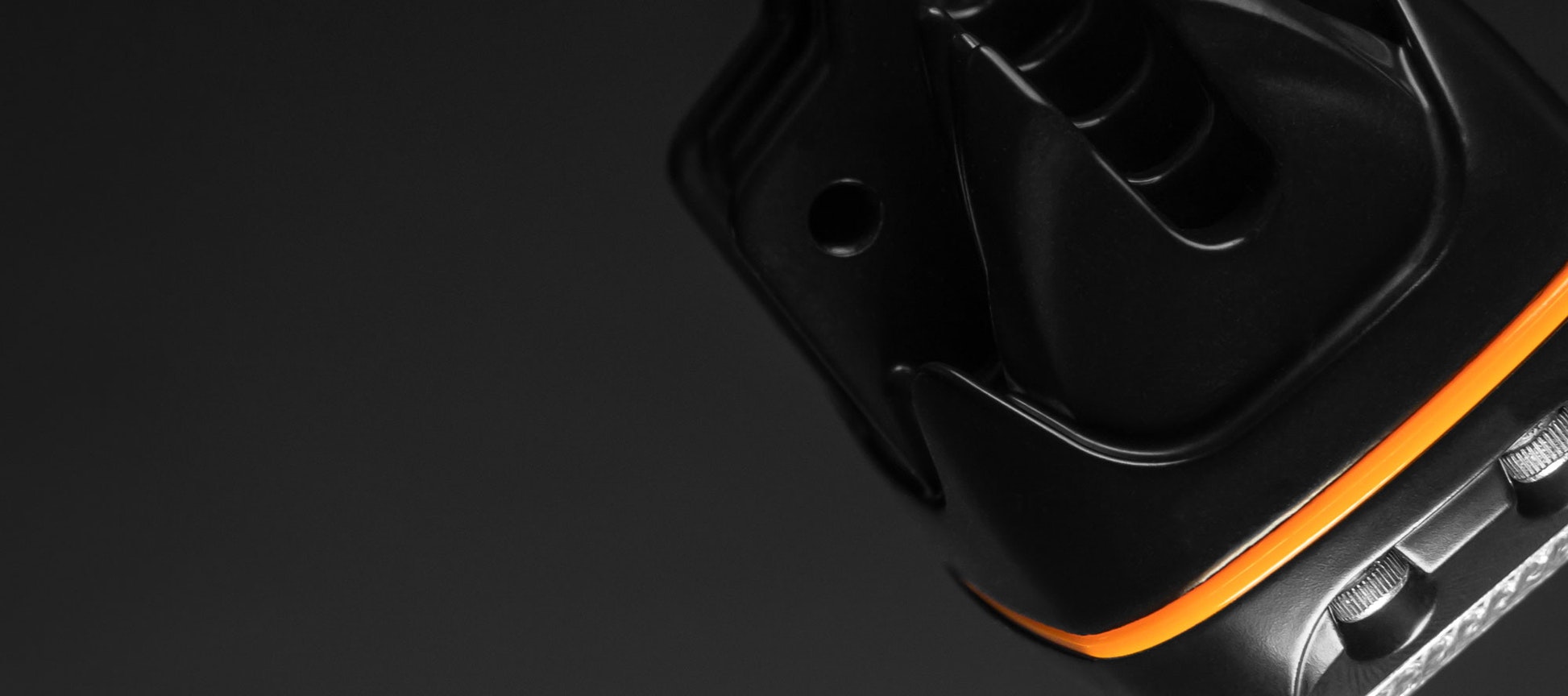

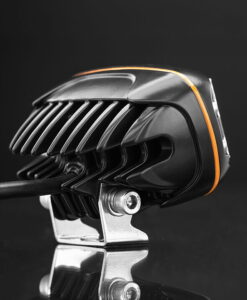

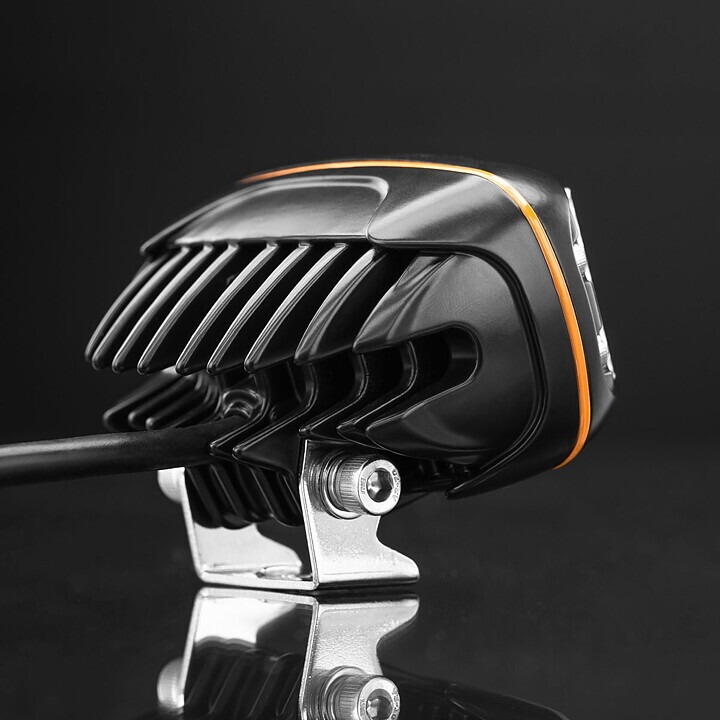

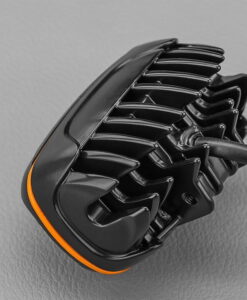

HOUSING MATERIAL: Cast Aluminum Housing
LIFE SPAN: 50,000+ HOURS

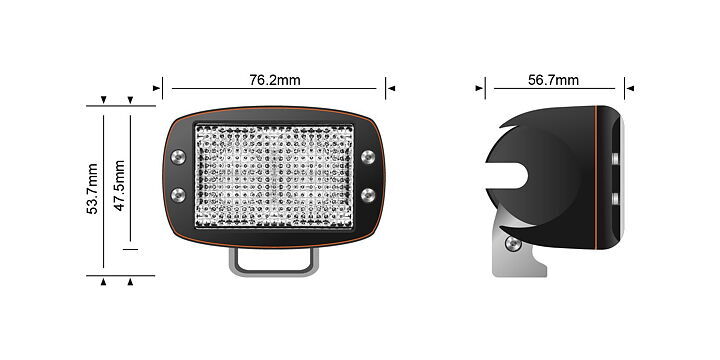

DIMENSIONS: (W) 77mm x (H) 48mm (D)55mm
CERTIFICATES: CE, RoHs & ECE
WEIGHT: 0.3kg

What’s Included:

1 x 10W Mini V2 LED Flood Light
2 x M6 Bolts
1 x Nylock Nut + 1 x Standard Nut
1 x Flat Washer + 1 x Lock Washer
Male & Female Deutsch Connectors
