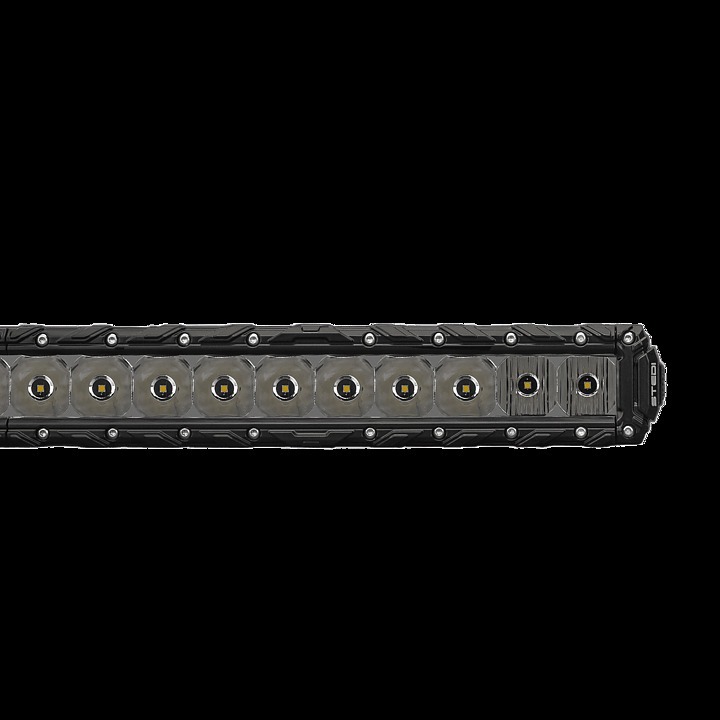

STEDI – ST3K 51.5″ Slim LED Light Bar

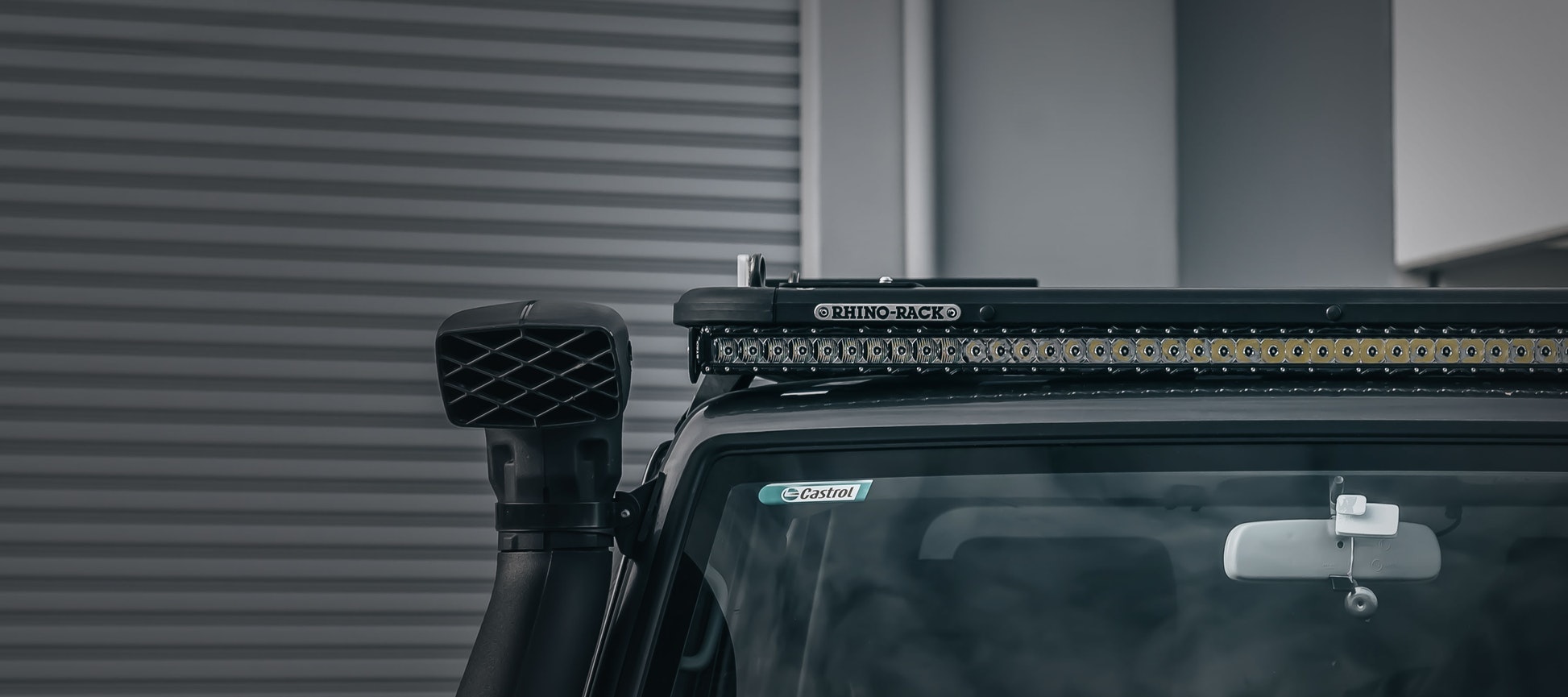

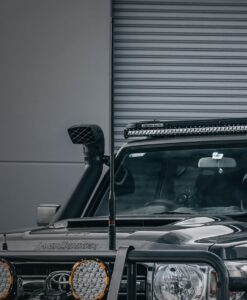

THE DEFINITION OF CALIBRE. Our STEDI ST3K LED Light Bar was designed to bring a large amount of light to a small amount of space. With its small profile of just 63mm total height with the side brackets attached, you will find the ST3K is able to be mounted in locations like your front bar and grill whilst maintaining the factory look of your vehicle.

TIMELESS DESIGN. The ST3K packs quite a powerful punch running off the same Pure Drive technology + LEDs as our popular Type-X and ST4K range. Ability to mount in tight spaces are its key trait as it can be mounted on your standard vehicle and prove to be a useful source of light whilst driving out bush with cars that don’t have the space to run some of our larger LED light bars.

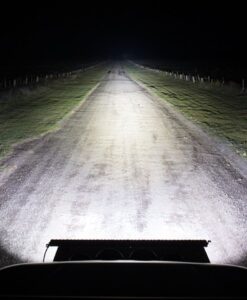

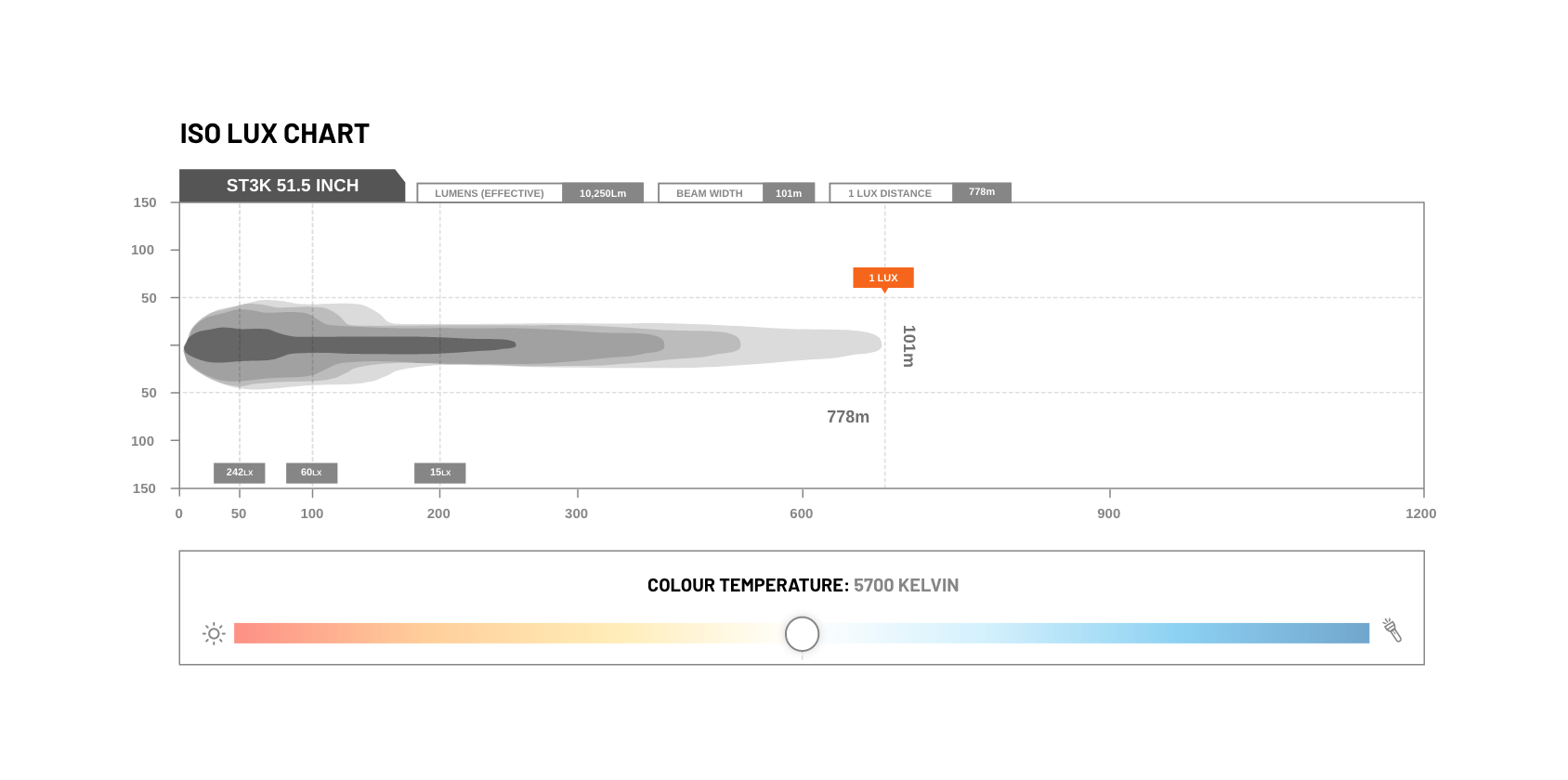

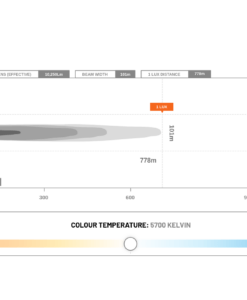

BRILLIANCE IS THE NAME OF THE GAME. The ST3K range easily comparable to the STEDI Type-X and ST4k range. With a strong penetrating beam of 493m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the ST3K is the perfect all-rounder!

The Nitty Gritty:

MARKET LEADING PERFORMANCE.

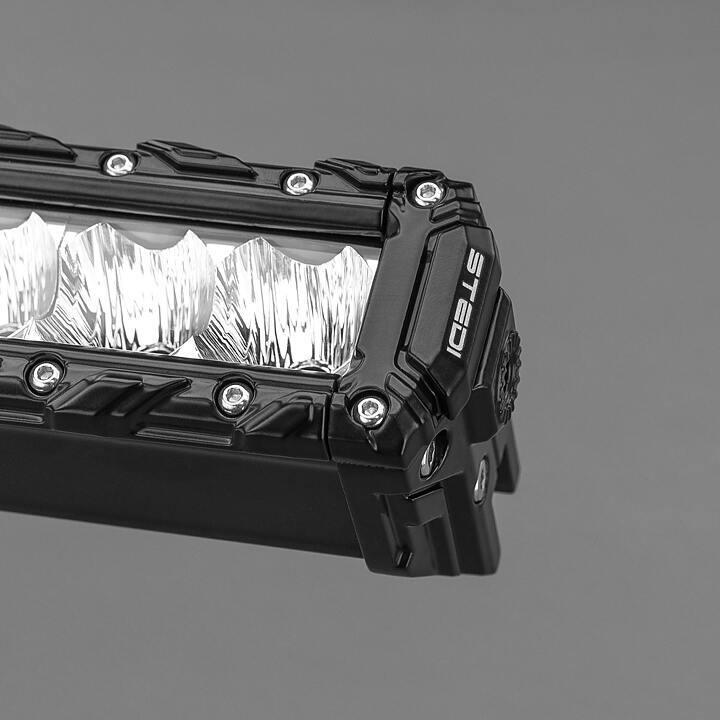

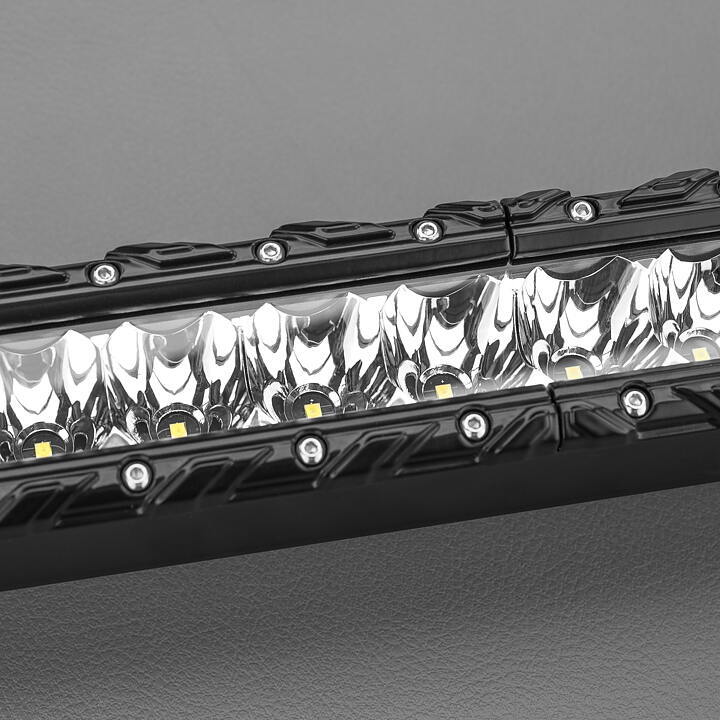

ST3K features OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

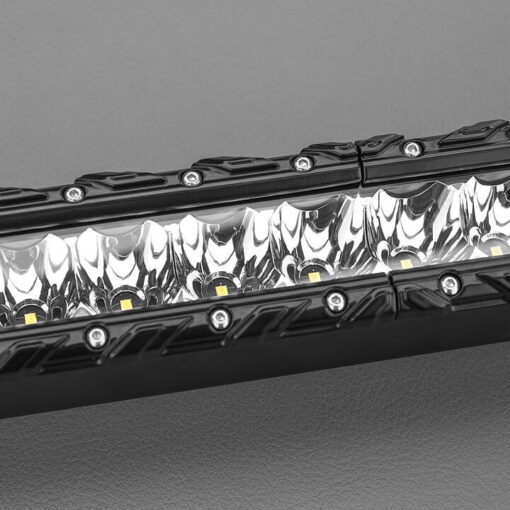

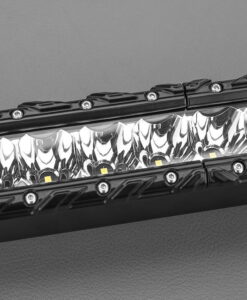

Flood + Spot + Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8°.
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Drive circuit design allow 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!

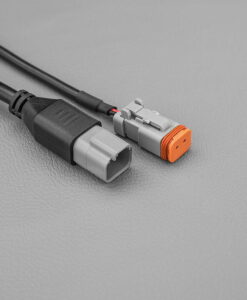

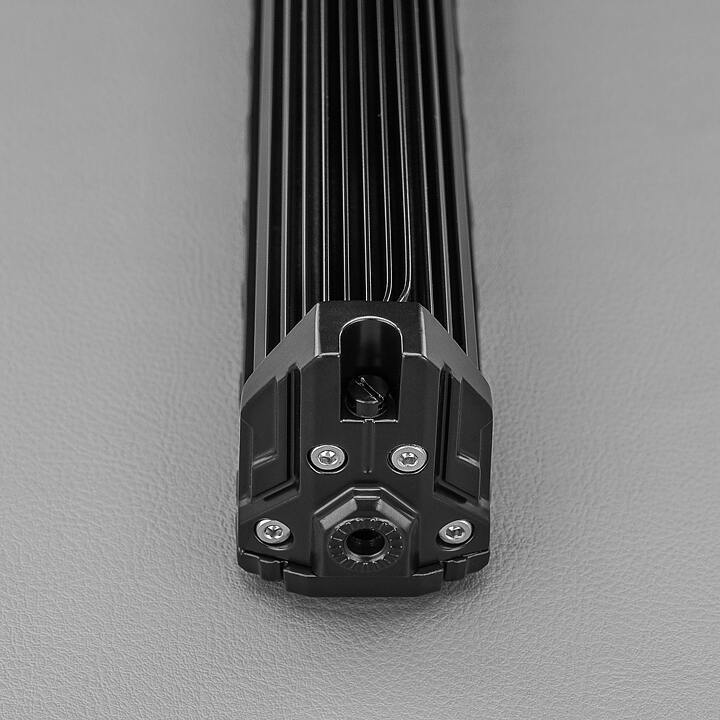

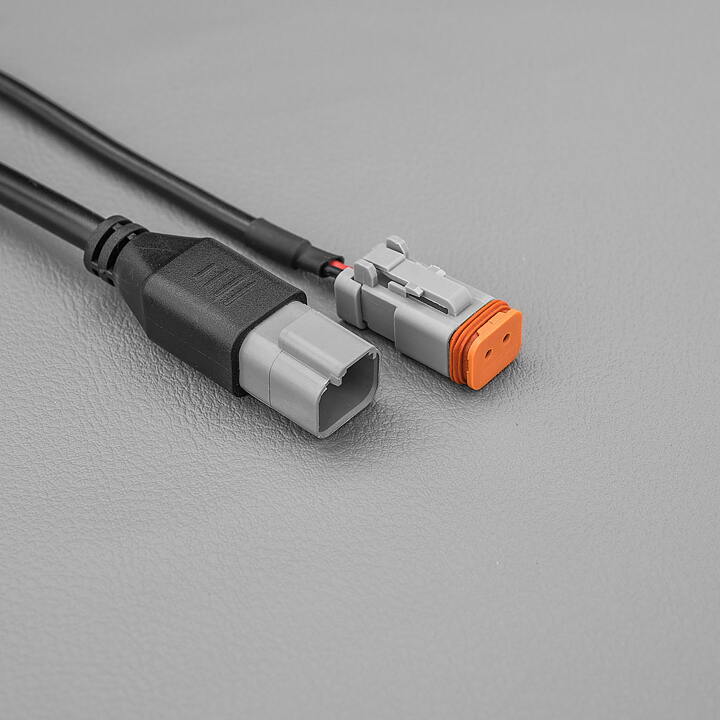

Environmentally sealed Deutsch ® DT-2 connector.
Protected against EMC and RFI.

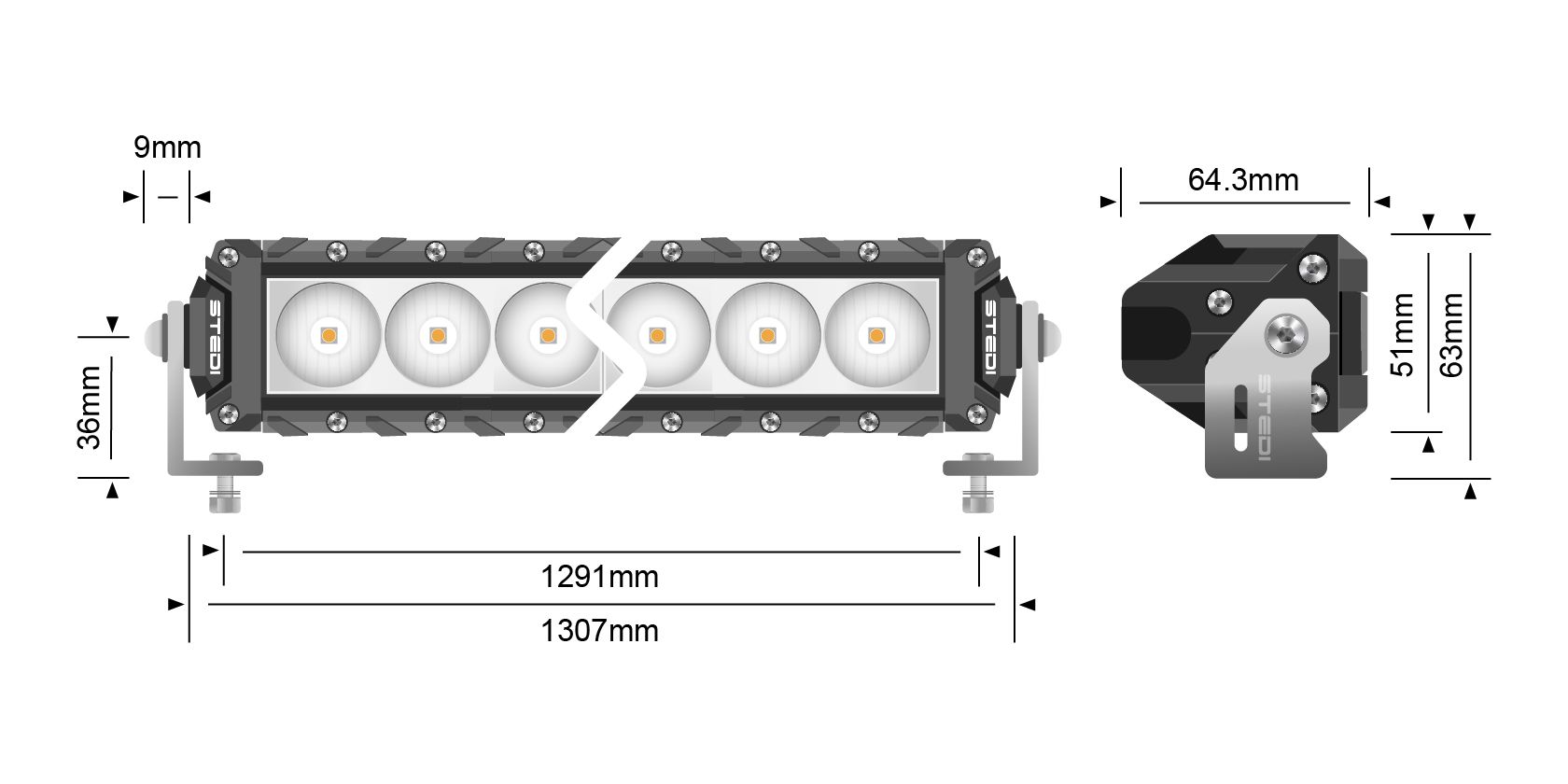

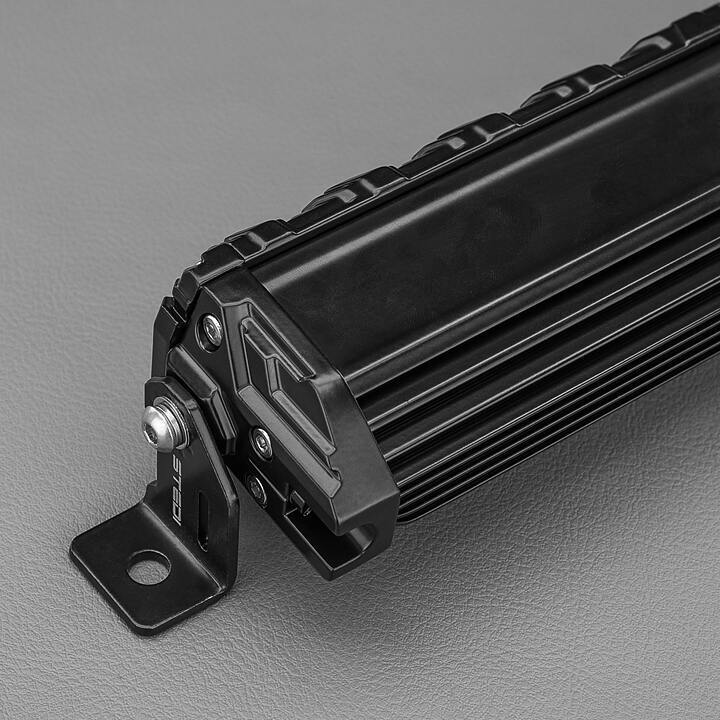

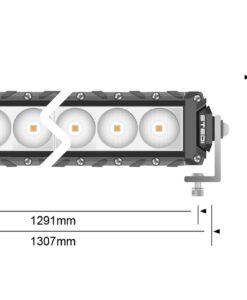

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

Includes our Easy Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems.

5 YEAR WARRANTY.

Technical Specifications:

LED: 50 x Osram Oslon White
Lumen: 10.250Lm
Peak Intensity (Candela): 608,000cd
Operating Voltage: 10-30V DC
IP Rating: IP68
Current Draw: 11.2A @ 13.6v
Colour Temperature (CCT): 5700 Kelvin
Housing Material: Aluminium Extrusion & Cast
Lens: GE Lexan

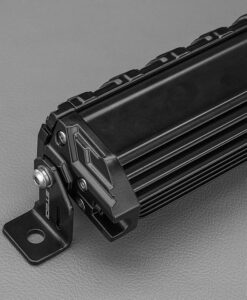

Mounting Bracket: Powder Coated 3mm Stainess Steel
Bolts and FIttings: 3 Series Stainless Steel
Beam Type: Flood Spot Combo
Life Span: 50,000 Hours
Weight: 4.250
Operating Environment : -40 – +50° Celsius

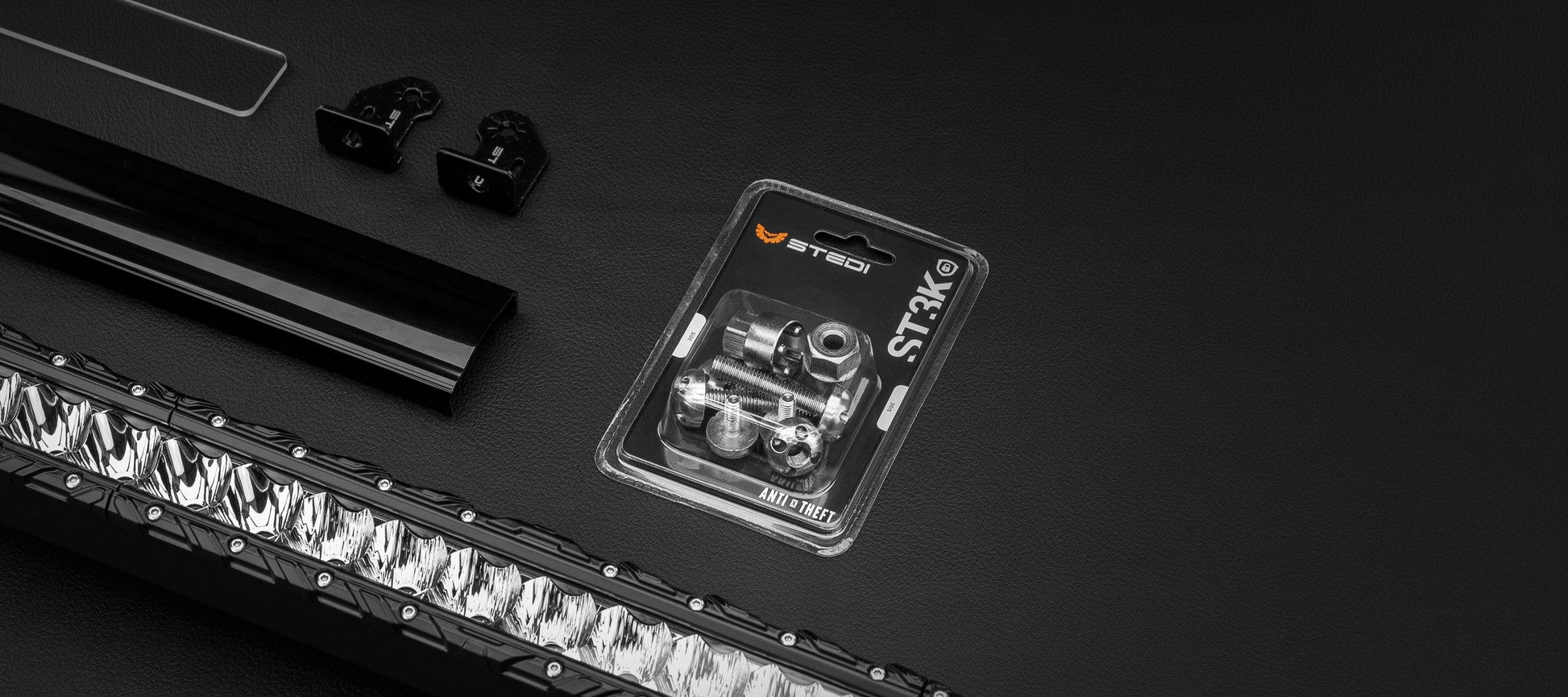

What’s Included:

ST3K LED LIGHT BAR

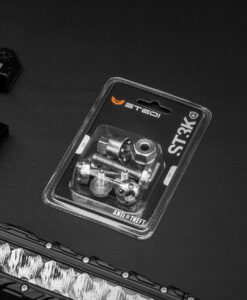

Stainless Fasteners
Stainless Steel Side Mounting Brackets
12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
H4 and HB3 adapters included
Wiring Instructions
