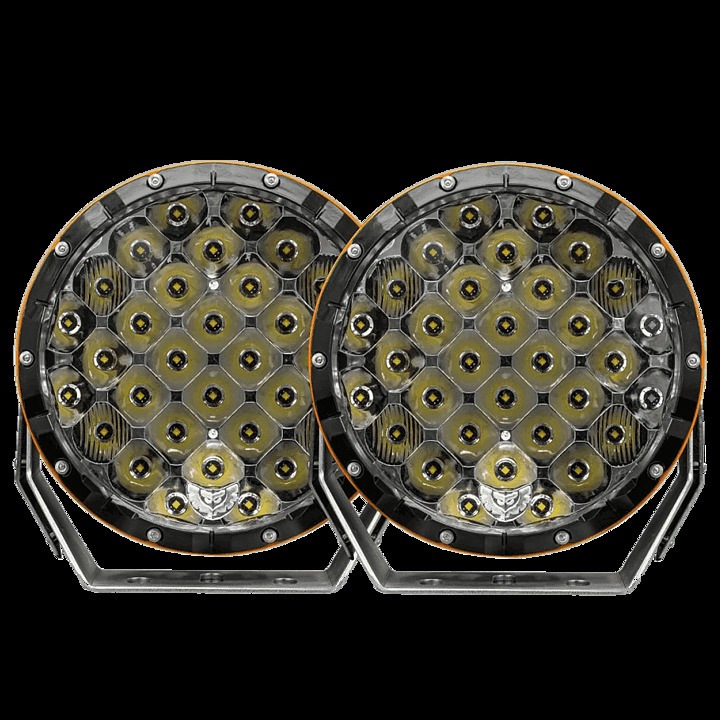

STEDI – Type-X Sport 7″ LED Driving Light 2-Pack

HIGH PERFORMANCE – ACCESSIBLE PRICE. We welcome the all-new Type-X Sport – Our most affordable driving light yet. Our very existence as a brand is to offer high-performance, high-quality driving lights at accessible prices. Compare build quality, performance and list of inclusion with other offerings on the market and you will conclude that our Type-X Sport is peerless. (Registered Design Number 201914860 & Registered Trademark).

LEGENDARY TYPE-X DNA. Three years since the inception of original Type-X, we’ve taken an already proven platform and completely redesigned it from the ground up. All-new reflector geometry, all-new LEDs and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.

STEDI DESIGN LANGUAGE. Some people call it the little things, for us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel plays nice equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.

The Nitty Gritty:

THE NERDY DETAILS
4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
100% Polyester UV and abrasion resistant powder coat
IP68 | Dust & Particle tight + Water-proof up to 3 meters
Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
Environmentally Sealed Deutsch® DTP-2 connector
EMI & RFI Suppression circuitry – We guarantee it.
Each TYPE-X Sport 7″ comprises 32 of OSRAM’s® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties.
Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

Technical Specifications:

LED: 32 x Osram Oslon SSL
RAW LUMENS: 16,640 (Pair)
TESTED LUMENS: 12,820 (Pair)
AMP DRAW : 6.4A @ 13.2v (each)
POWER DRAW: 85W (each)
CANDELA: 819,200cd
BEAM PATTERN: 4 x Spread 28 x Spot Beam
INGRESS PROTECTION: IP68 | Submersible up to 3m
COLOUR TEMP (CCT): 5700K
VOLTAGE COMPATIBILITY: 12v & 24v
LUMEN MAINTENANCE: 50,000 LM-80
WEIGHT: 2.250kg (each)
PHOTOMETRIC DATA
10 m: 8,129 Lx
50 m: 327 Lx
200 m: 20 Lx
300 m: 9 Lx
400 m: 5 Lx
895 m: 1Lx

What’s Included:

2 x STEDI 7″ TYPE-X Sport
2 x STEDI Black Out Covers
1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
3 Series Stainless Steel Nuts and Bolts
Rubber Shock Dampener
Wiring Instructions
