Vision-X – Horizon Extreme Ledbar
€492,68 – €813,69 incl. BTW
Vision-X – Horizon Extreme Ledbar
The Horizon Series is unique with a 60 point 360° locking trunnion bracket for precision adjustment on flat vehicles. The Horizon Series features the same specifications as the Low Pro Prime Xtreme in 9, 12 and 18 LED models with the added adjustment of the precision trunnion mount.
5 WATT XTREME LIGHTING
The Horizon uses 5 Watt LED for the combination of the most distance and most intense light output.
PRIME DRIVE TECHNOLOGY
With Prime Drive, Electronic Thermal Management maintains a safe operating temperature for the light without sacrificing output.

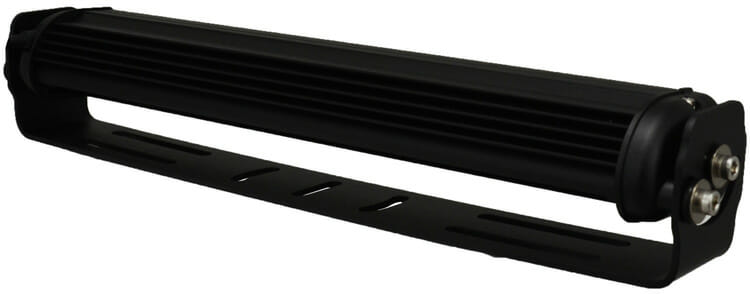

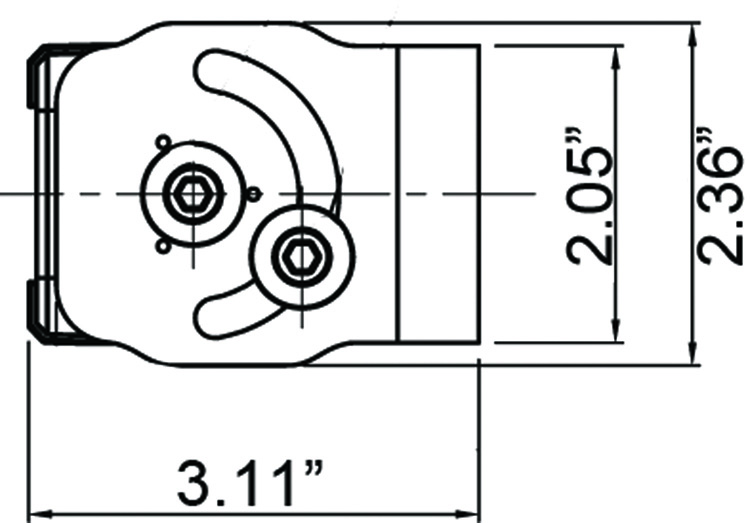

PRECISION TRUNNION MOUNT
60 point locking trunnion mount allows for precision adjustment for flat mounting, allowing optimal control for transport applications.
EXTRUDED ALUMINUM
Extruded 6061 Aluminium is used to achieve an ingress Protection rating of IP-68, creating a light bar with unmatched durability.
- Housing Material: Aluminium
- Light Colour Temp: 6000 Kelvin
- EMC/EMI Approval: CISPR25-Class 3
- Voltage: 9-32V DC
- Amperage: 1.46A@24V DC – 2.9A@12V DC
- Vibration Rating: 21.2 Grms
- Lens Material: Polycarbonate
Beam:
10°: Narrow
40°: Wide
60°: Extra Wide
SPECIFICATIONS
| ITEM # | PART # | BEAM | LENGTH | # OF LEDs | RAW LUMENS | EFFECTIVE LUMENS | WEIGHT | INPUT VOLTS | WATTS | AMP DRAW |

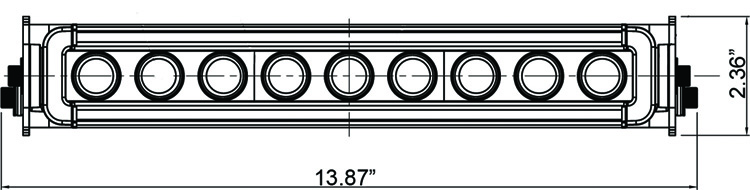

| CTL-HPX910 | 9111469 | 10° | 13.87″ | 9 | 4,752 lm | 3,330 lm | 4.19 lb | 9-32V | 45 | 3.7A |
| CTL-HPX940 | 9119830 | 40° | 13.87″ | 9 | 4,752 lm | 3,330 lm | 4.19 lb | 9-32V | 45 | 3.7A |
| CTL-HPX960 | 9119420 | 60° | 13.87″ | 9 | 4,752 lm | 3,330 lm | 4.19 lb | 9-32V | 45 | 3.7A |

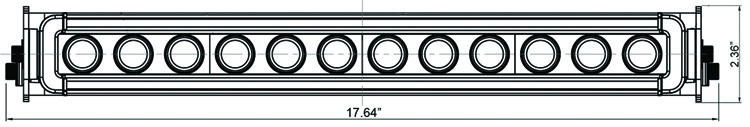

| CTL-HPX1210 | 9111551 | 10° | 17.64″ | 12 | 6,336 lm | 4,440 lm | 5.95 lb | 9-32V | 60 | 5.0A |
| CTL-HPX1240 | 9119656 | 40° | 17.64″ | 12 | 6,336 lm | 4,440 lm | 5.95 lb | 9-32V | 60 | 5.0A |
| CTL-HPX1260 | 9160603 | 60° | 17.64″ | 12 | 6,336 lm | 4,440 lm | 5.95 lb | 9-32V | 60 | 5.0A |
| CTL-HPX1810 | 9111643 | 10° | 25.20″ | 18 | 9,504 lm | 6,660 lm | 6.17 lb | 9-32V | 90 | 7.5A |
| CTL-HPX1840 | 9119748 | 40° | 25.20″ | 18 | 9,504 lm | 6,660 lm | 6.17 lb | 9-32V | 90 | 7.5A |
| CTL-HPX1860 | 9147642 | 60° | 25.20″ | 18 | 9,504 lm | 6,660 lm | 6.17 lb | 9-32V | 90 | 7.5A |
| Aantal LED's | 9, 12, 18 |
|---|---|
| Beam | 10, 40, 60 |
