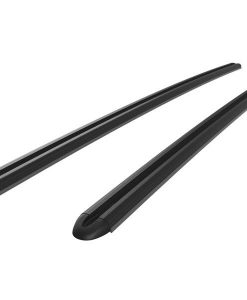

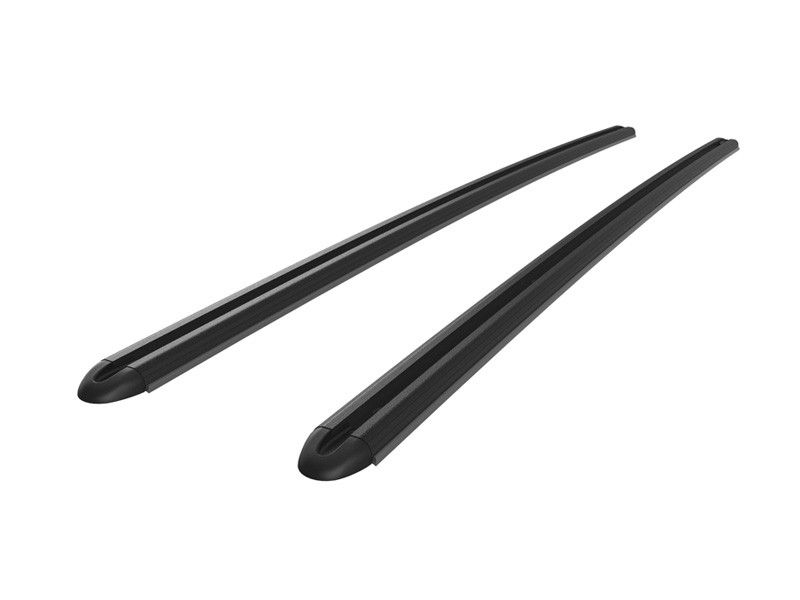

FRONT RUNNER – CANOPY LOAD BAR KIT / 1165MM (W)

FRONT RUNNER – CANOPY LOAD BAR KIT / 1165MM (W)

A set of Load Bars with Track Mounted Feet used to transport gear on the roof of your vehicle when there’s no need for a full Front Runner Roof Rack. This low profile, smaller footprint solution includes 4 40mm Feet, 2 1165mm Load Bars, 2 1150mm Canopy Tracks, 1 10mm Roof Load Bar Wind Deflector and fitting instructions – all the components necessary to mount the Front Runner Load Bars to the vehicle.

Info:

• You may not have the need for a full roof rack and find that you can get by using a set of Front Runner Load Bars.
• These Load Bars are mounted to the vehicle’s roof via a set of supplied Tracks and Track Mounted Feet.
• Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.
• Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.
• The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
• The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.
• Made from stainless steel and a durable, weather resistant black powder-coated aluminum.
• Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

Specs:

Consisting of:

• 2 x FASS012 – Foot Set / 40mm-50mm – by Front Runner
• 1 x LBSK013 – Load Bar Pair 1165mm(W) – by Front Runner
• 1 x TRCA003 – Canopy Tracks / 1150mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 7kg (14lbs)
• The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
• If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8″) to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.
• If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8″) to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 245mm (10″)
• Length 1290mm (51″)
• Height 115mm (5″)

Shipping Weight:

• Weight 7.6kg (16.8lbs)
