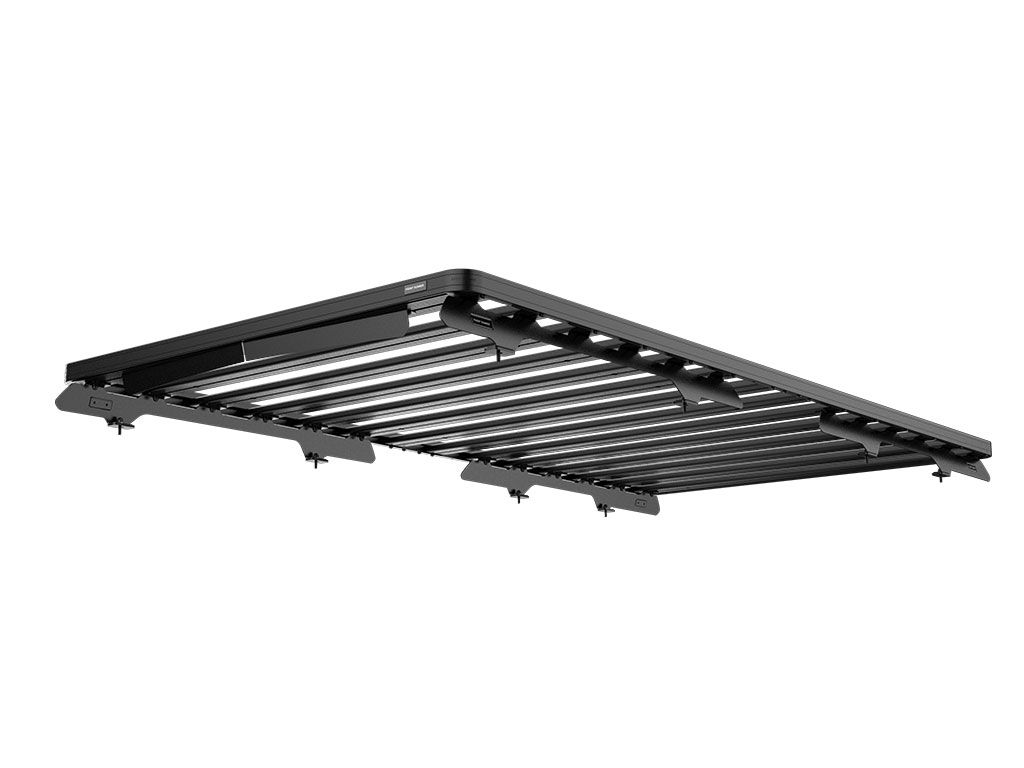

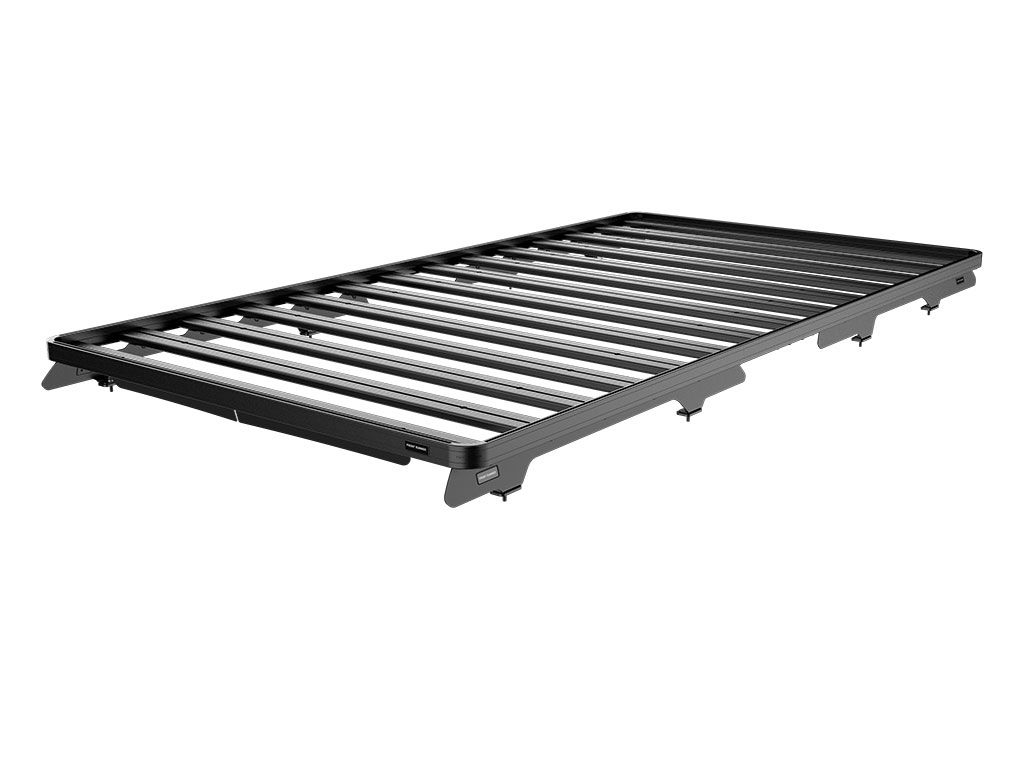

FRONT RUNNER – FORD TRANSIT 4TH GEN (2013-CURRENT) SLIMLINE II ROOF RACK KIT

FRONT RUNNER – FORD TRANSIT 4TH GEN (2013-CURRENT) SLIMLINE II ROOF RACK KIT

Info:

This 2772mm/109.1″ long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 4 Foot Rails to mount the Slimline II Tray to your Ford Transit 4th Gen (USA 148 SPEC) (Euro L3H2 & L3H3 Spec). Easily installs using the existing factory mounting points. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: Note: Suitable for Ford Transit 4th Gen with standard low roof (USA 148 SPEC) (Euro L3H2 & L3H3 Spec).

Specs:

Consisting of:

• 1 x FAFT001 – Ford Transit 4th Gen (2013-Current) Foot Rails – by Front Runner
• 1 x RRSTM14 – Slimline II Tray – 1475mm(W) X 2772mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 43kg (95lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 500mm (20″)
• Length 1610mm (63″)
• Height 300mm (12″)

Shipping Weight:

• Weight 50.3kg (110.6lbs)
