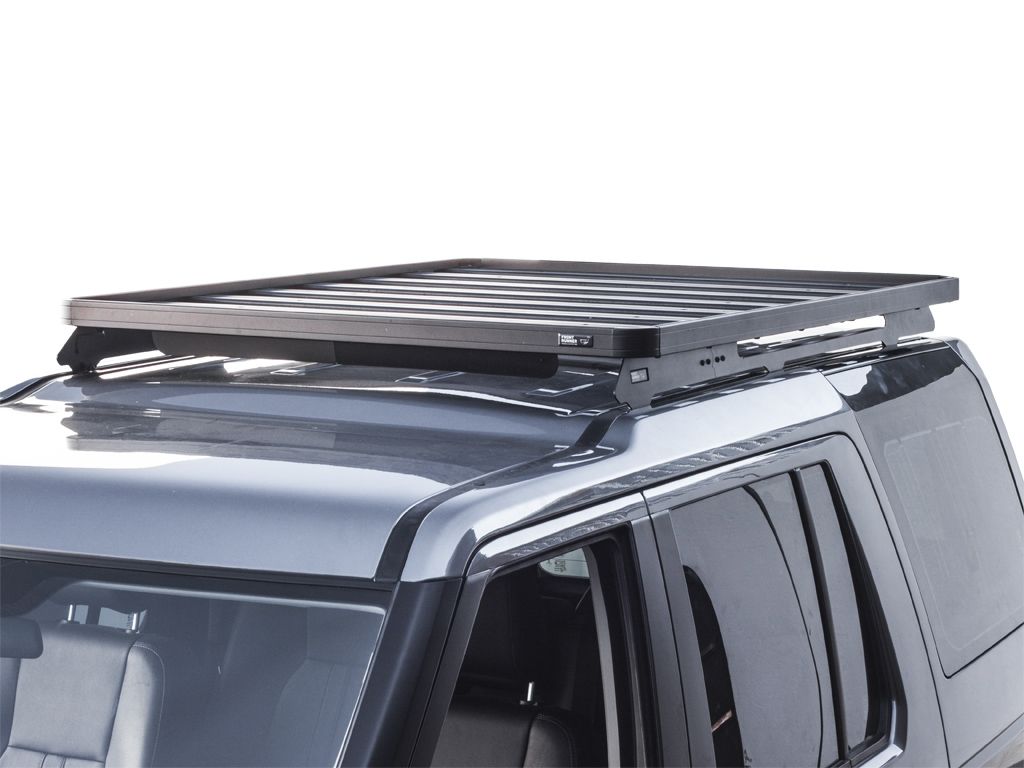

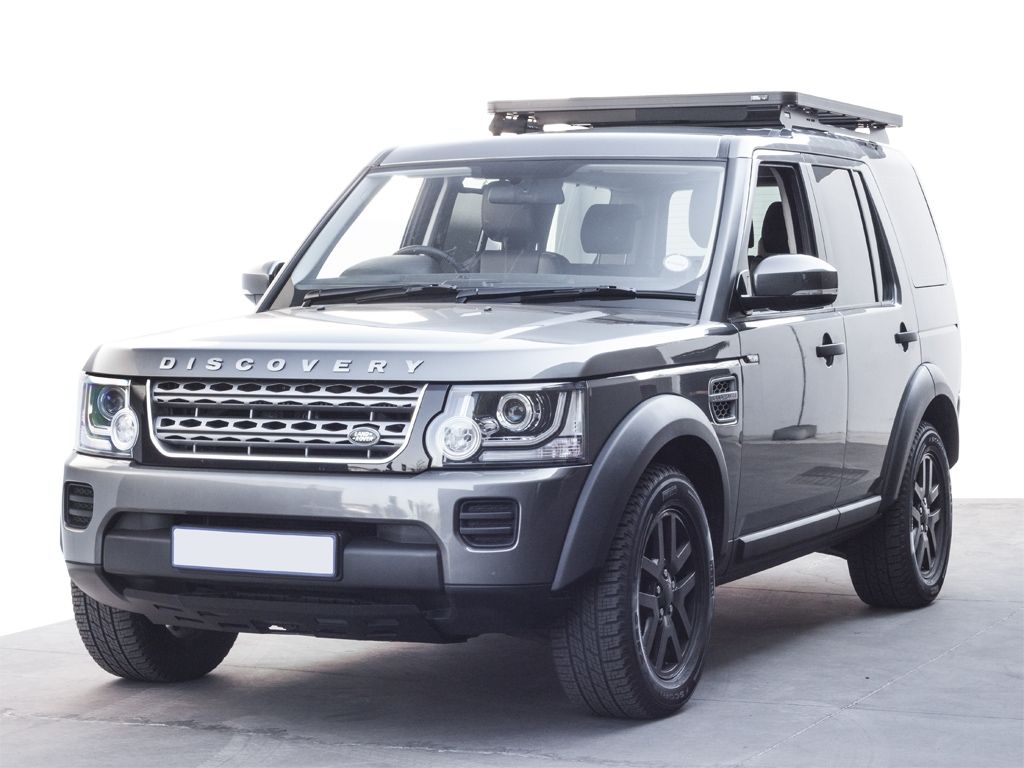

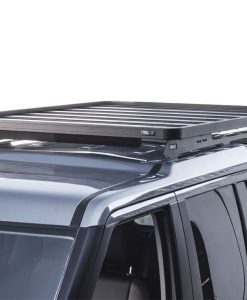

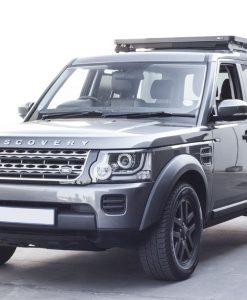

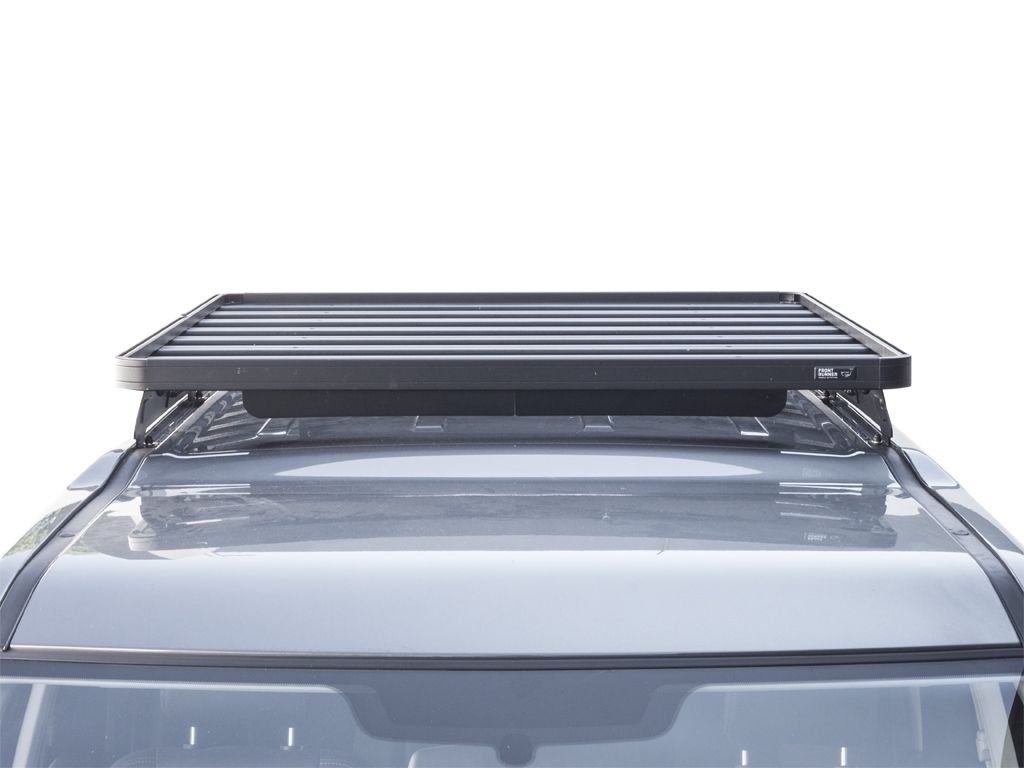

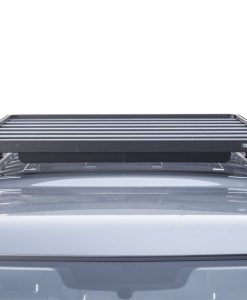

FRONT RUNNER – LAND ROVER DISCOVERY LR3/LR4 SLIMLINE II 3/4 ROOF RACK KIT

Info:

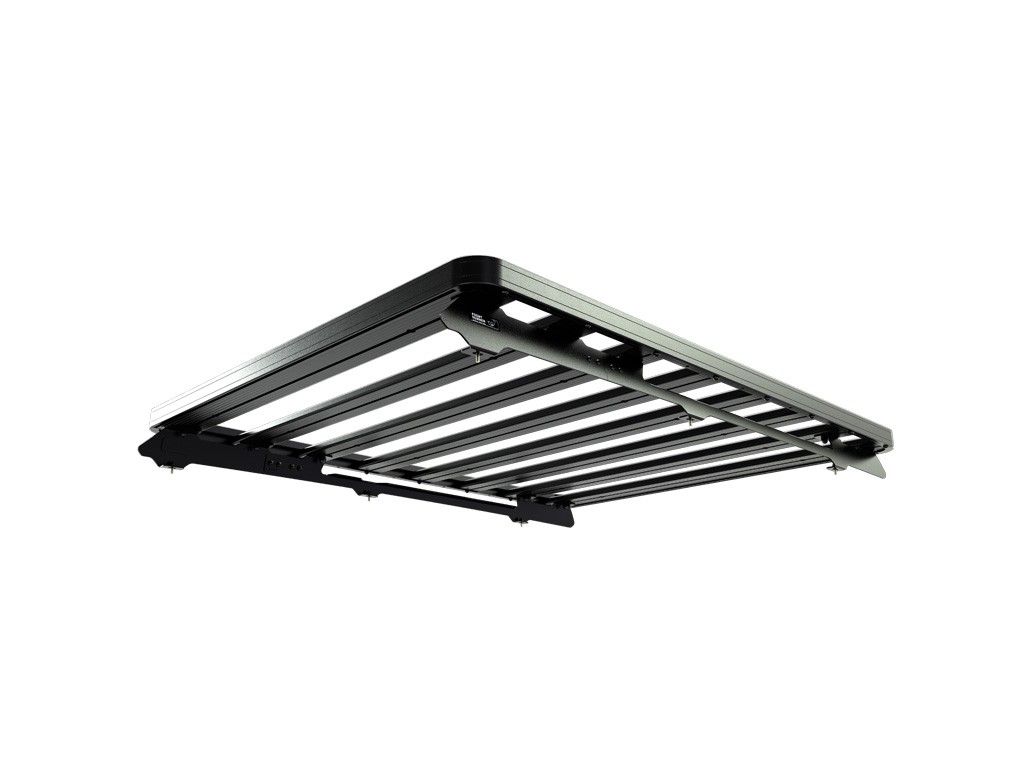

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

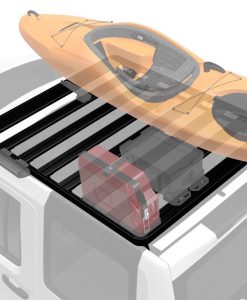

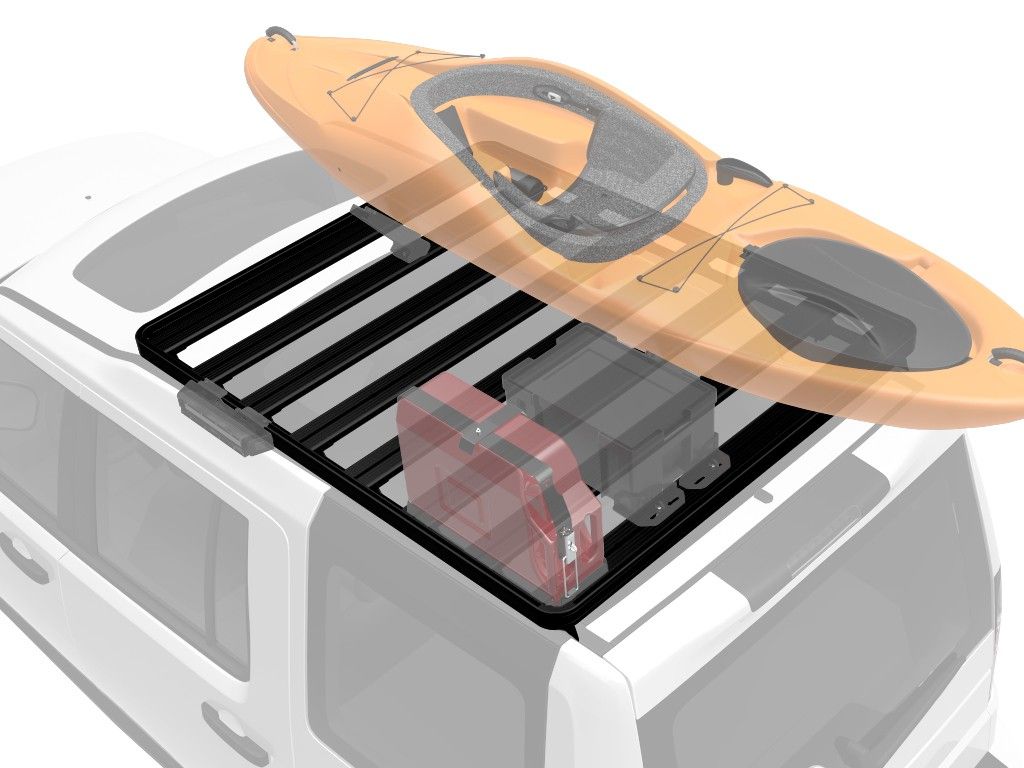

These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).

If your vehicle has a DAB antenna, the table can be inserted from either the right hand side or the left hand side of the roof rack to steer clear of the DAB antenna. If your vehicle does not have a DAB antenna, you may also orientate the table to mount from the rear of the roof rack.

**Please note. This Rack kit is not compatible with the Land Rover factory OEM Ladder. Consider purchasing the Front Runner Ladder for Land Rover Disco 3,4 / LR3, LR4 instead. (Part #LALD004).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specs:

Consisting of:

• 1 x FALD004 – Land Rover Discovery LR3 & LR4 1/2 Rack Foot Rails – by Front Runner

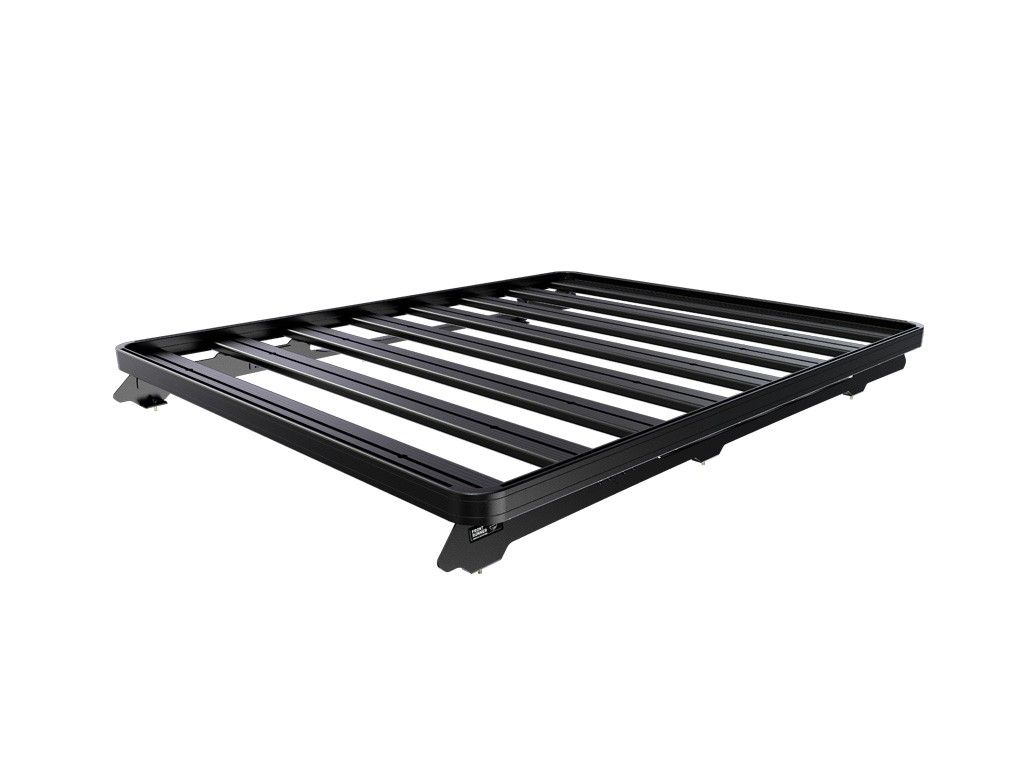

• 1 x RRSTD08 – Slimline II Tray – 1255mm(W) X 1560mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 28kg (62lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18″)
• Length 1615mm (64″)
• Height 140mm (6″)

Shipping Weight:

• Weight 32.7kg (72.0lbs)
