FRONT RUNNER – PICK-UP TRUCK SLIMLINE II LOAD BED RACK KIT / 1255(W) X 1964(L)

FRONT RUNNER – PICK-UP TRUCK SLIMLINE II LOAD BED RACK KIT / 1255(W) X 1964(L)

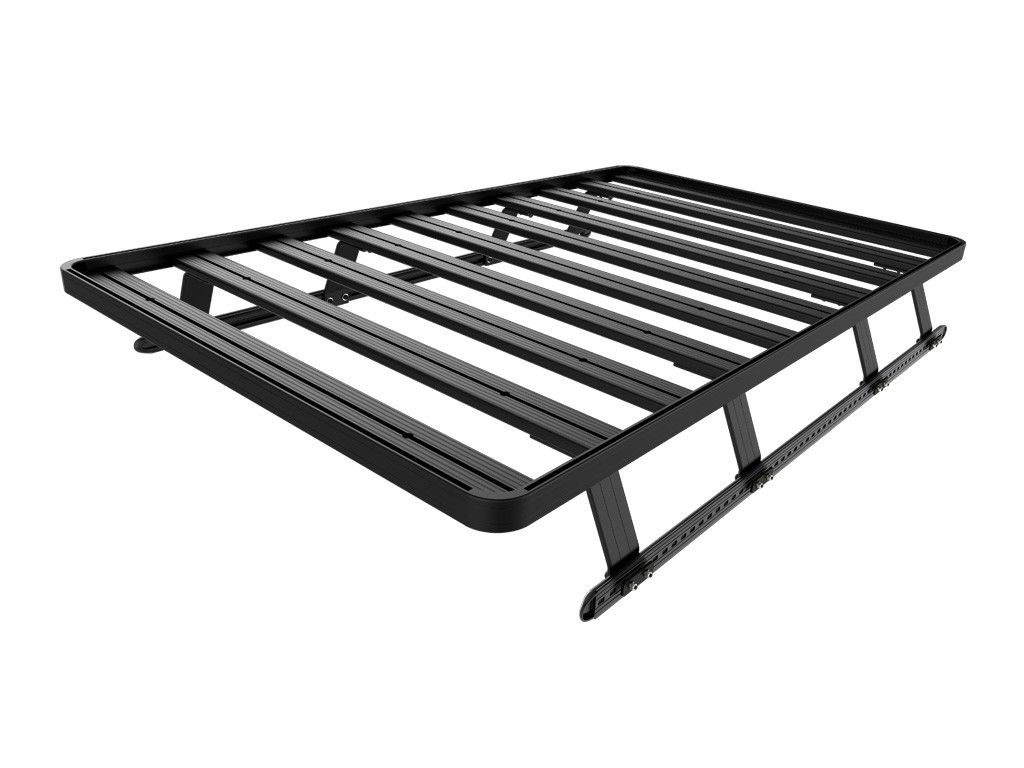

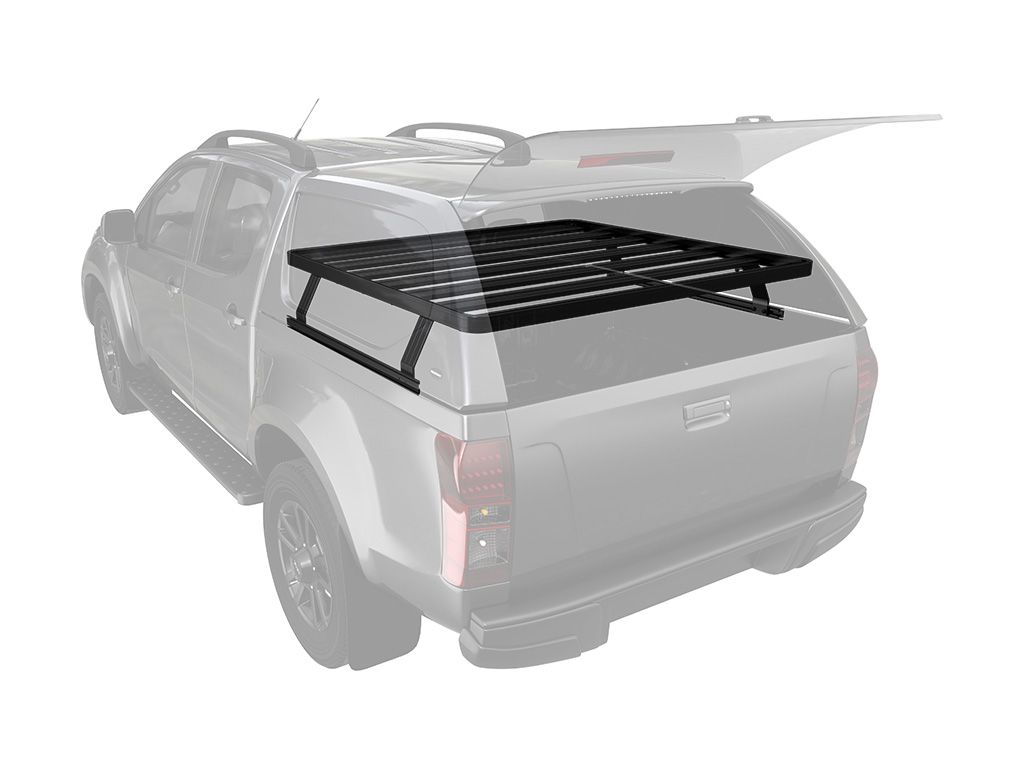

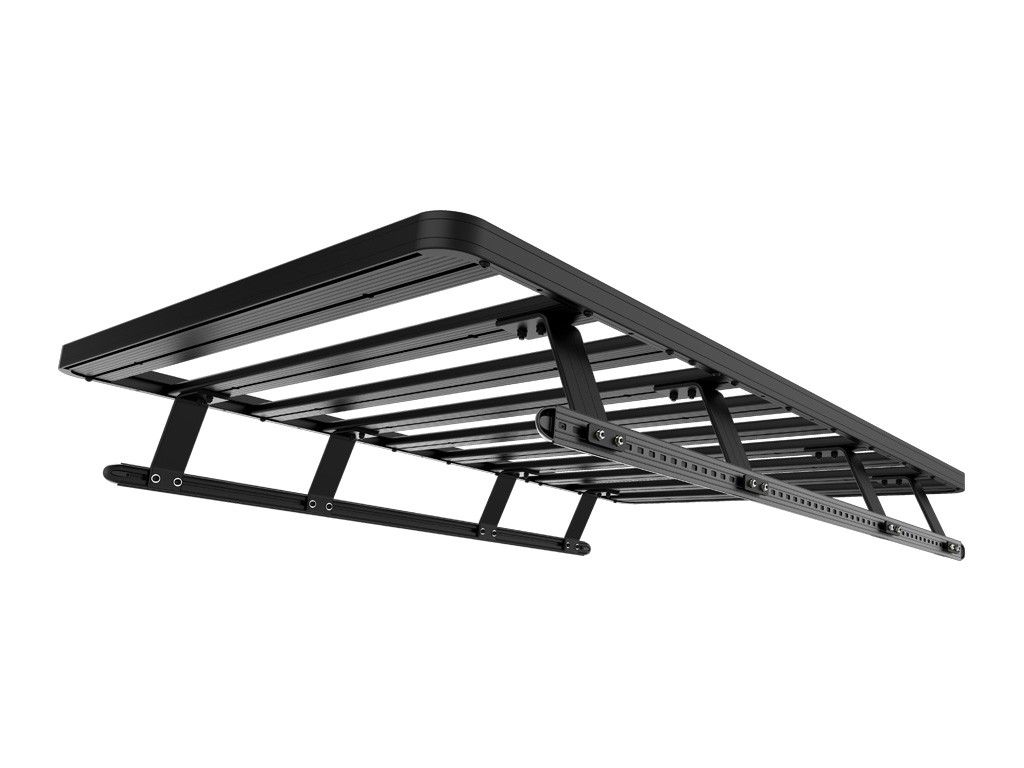

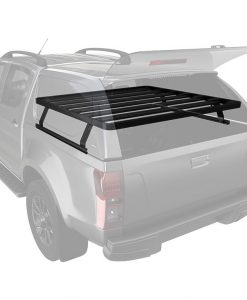

This kit creates a full size rack that sits above your pick-up truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1255mm/49.4″ (W) x 1964mm/77.3″ (L)), 2 Tracks, and 8 Pick-Up Truck Bed Universal Legs that fit into the Tracks. Drilling may be required for installation.

Info:

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

This rack fits a load bed width of 1321mm – 1404mm (52-55″) and length of 2033mm – 2438mm (80-96″).

Specs:

Consisting of:

• 4 x LASS026 – Universal Load Bed Leg 188mm (Pair) – by Front Runner
• 1 x RRSTD10 – Slimline II Tray – 1255mm(W) X 1964mm(L) – by Front Runner
• 1 x TRBU004 – Pick-Up Load Bed Tracks / 1600mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 34kg (74lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18″)
• Length 1615mm (64″)
• Height 140mm (6″)

Shipping Weight:

• Weight 39.0kg (85.8lbs)
