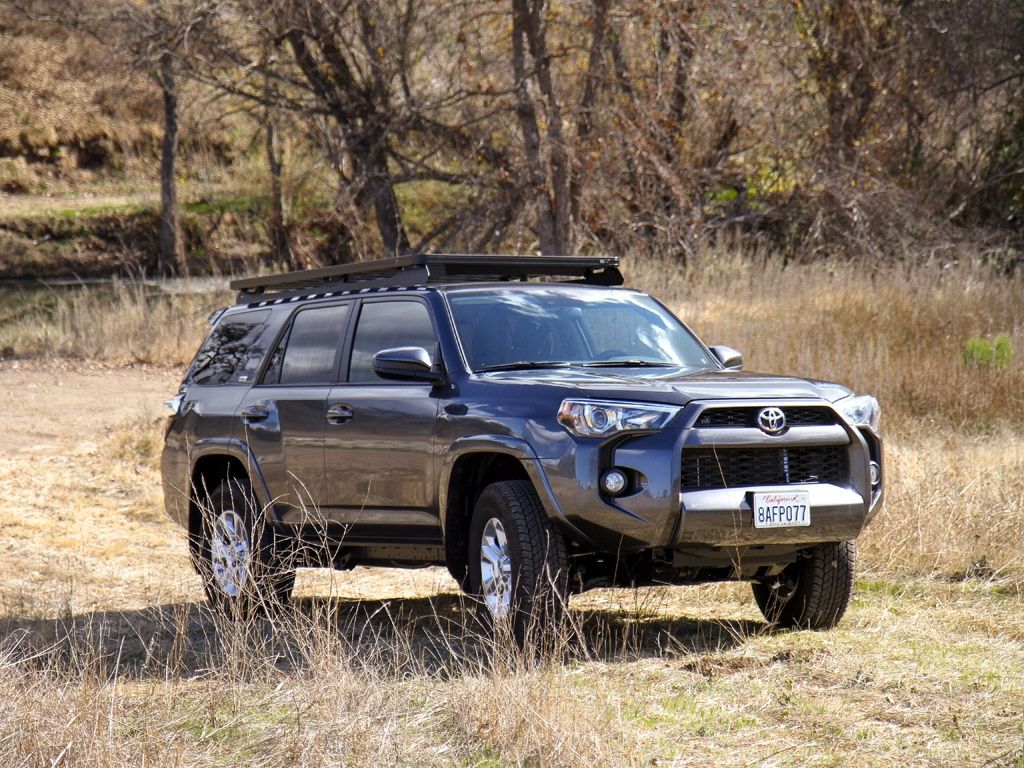

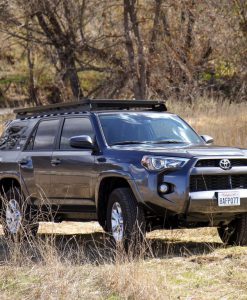

FRONT RUNNER – TOYOTA 4RUNNER (5TH GEN) SLIMLINE II ROOF RACK KIT

FRONT RUNNER – TOYOTA 4RUNNER (5TH GEN) SLIMLINE II ROOF RACK KIT

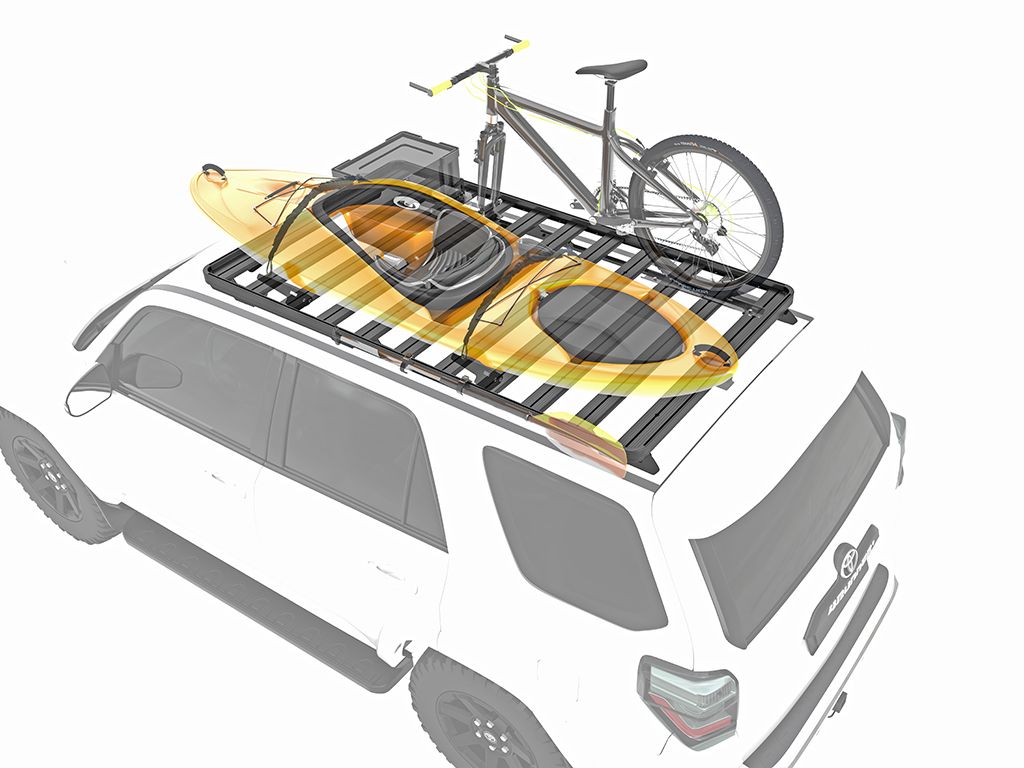

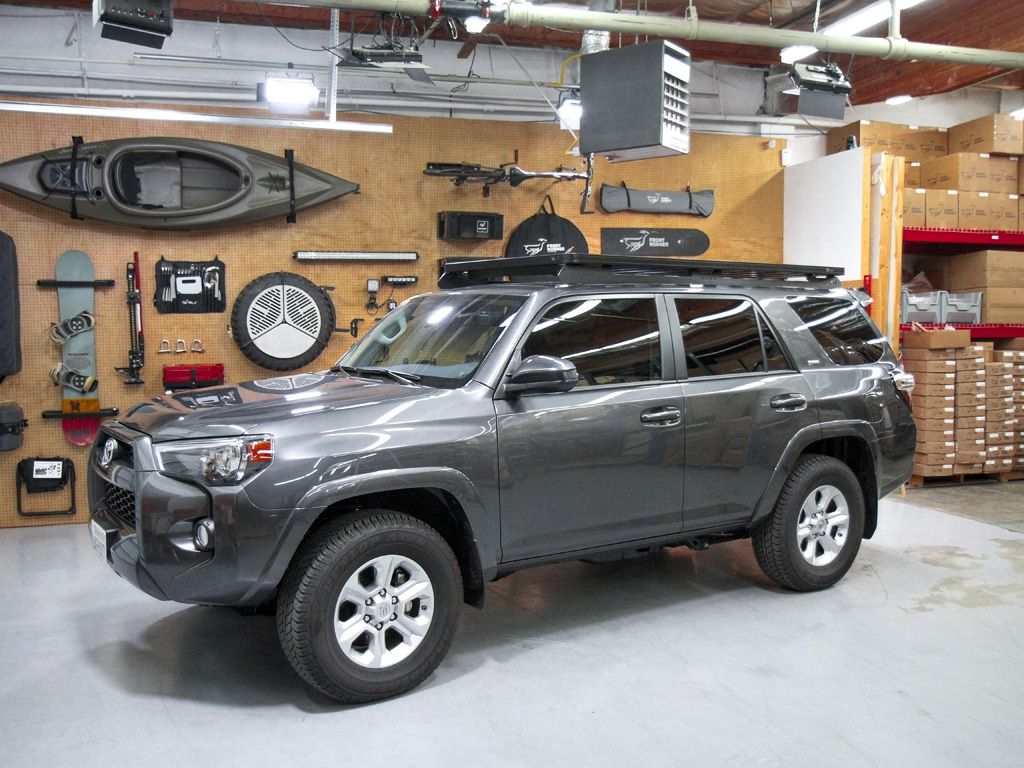

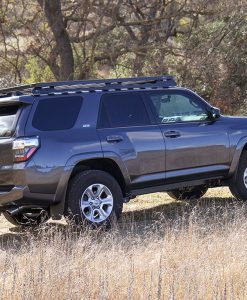

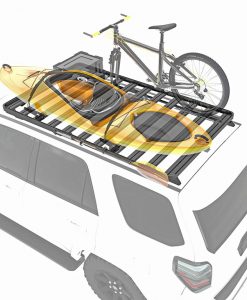

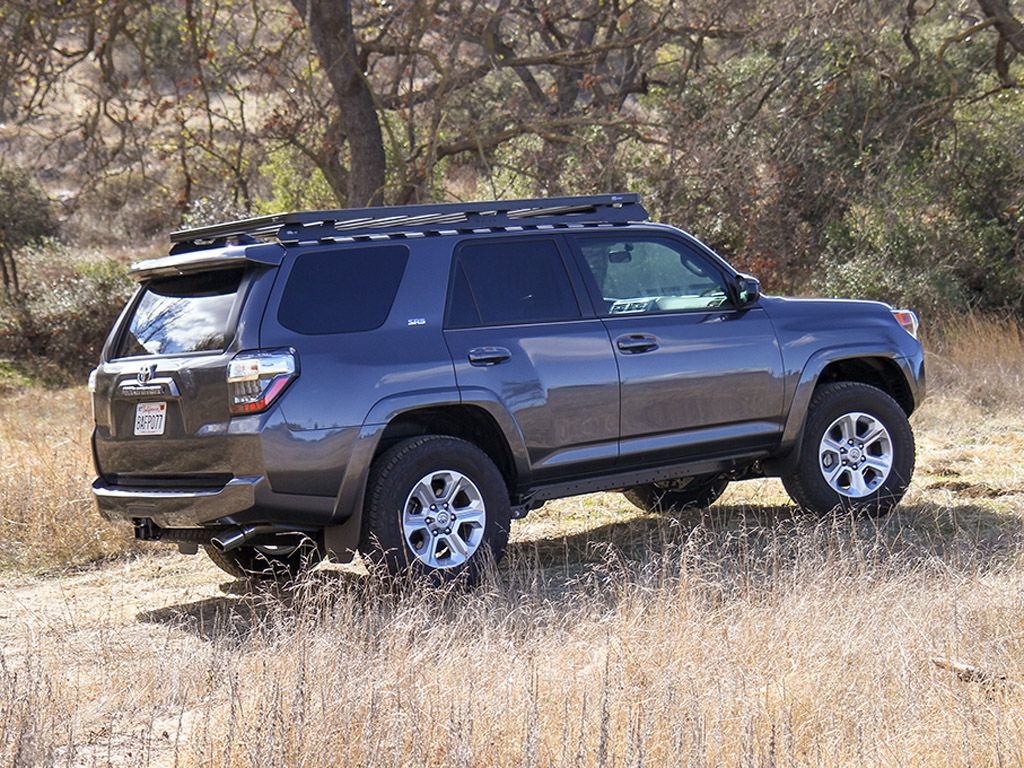

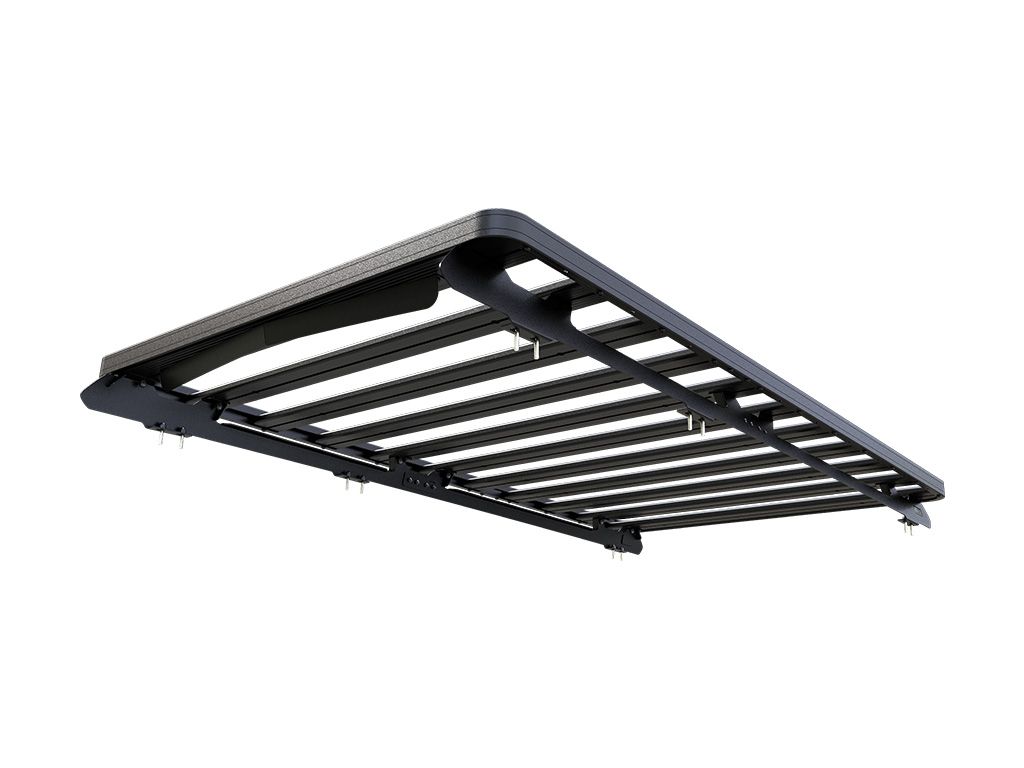

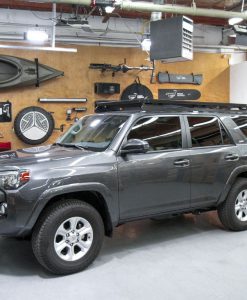

This 2166mm/85.3” long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and a set of Foot Rails to mount the Slimline II Tray to the 5th Gen 4Runner. It easily installed using the 8 existing factory mounting points. Drilling is required to secure the front Foot Rails.

Info:

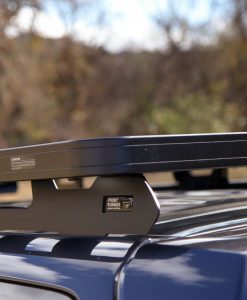

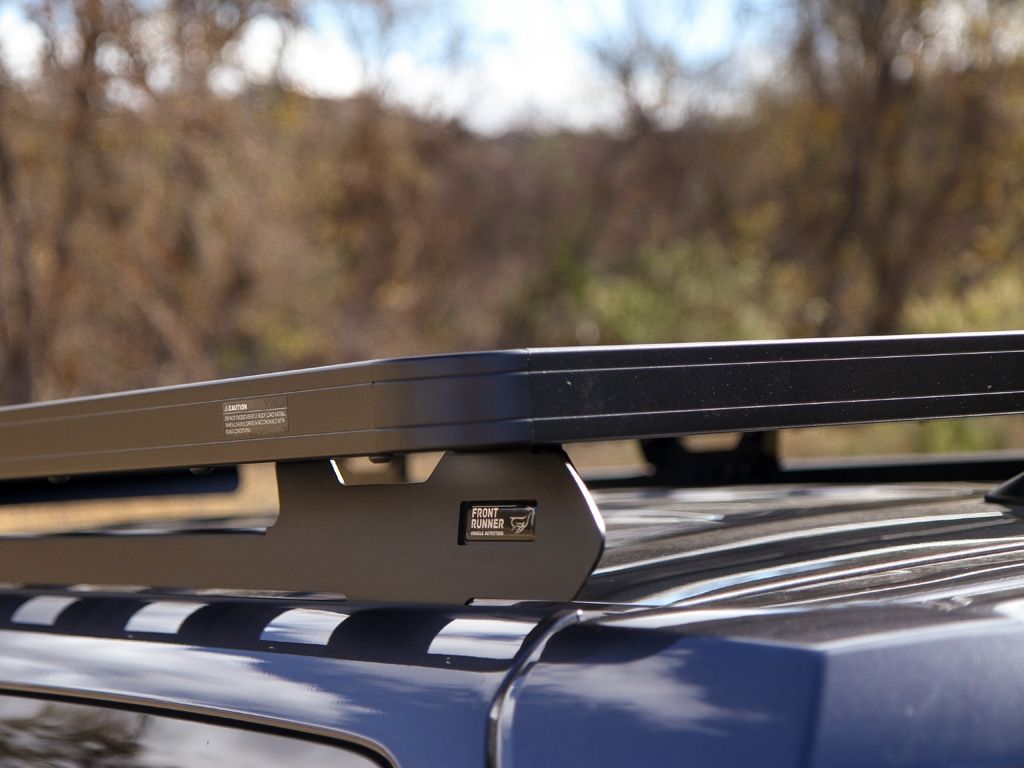

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack, such as Front Runner tables.

These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller prep and 1 larger camp size table).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specs:

Consisting of:

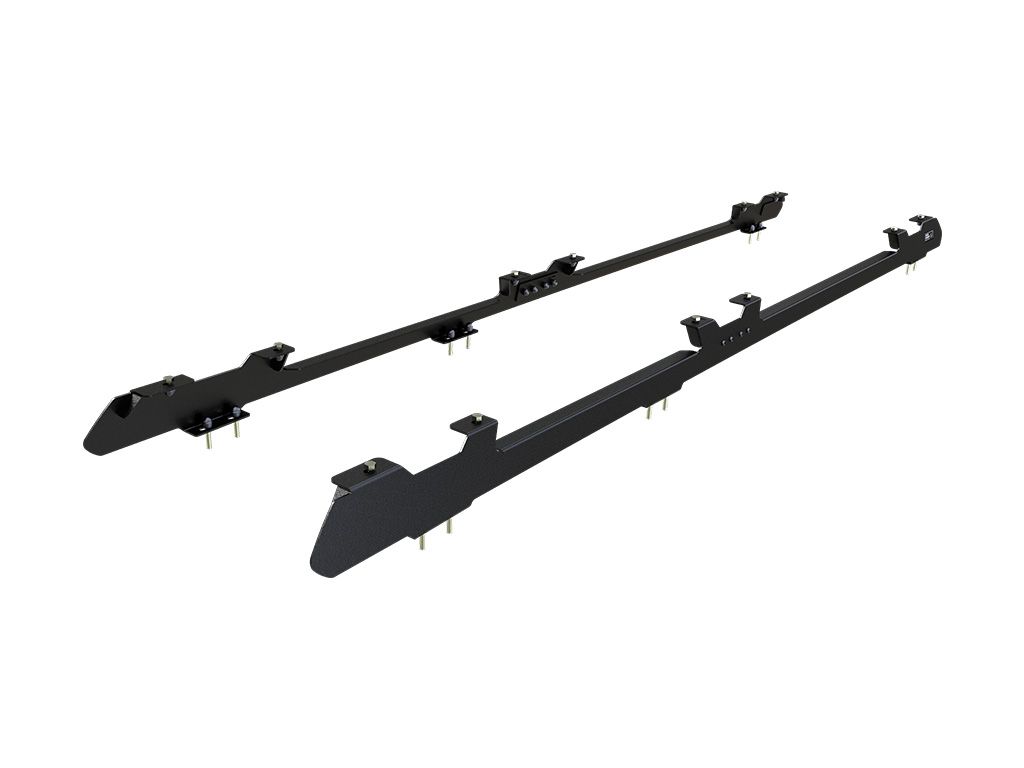

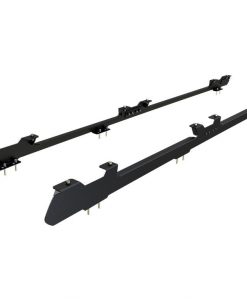

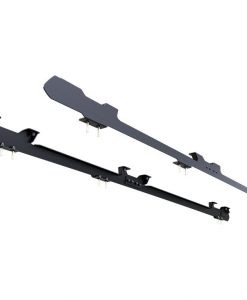

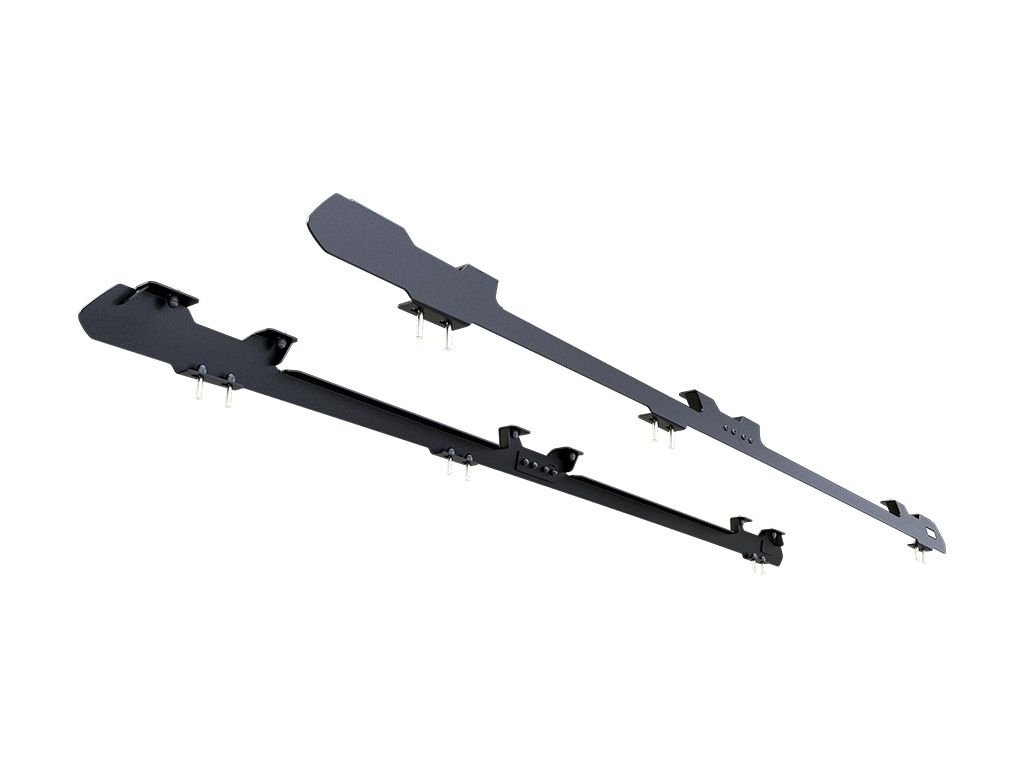

• 1 x FATF006 – Toyota 4runner (2009-Current) Full Rack Foot Rails – by Front Runner

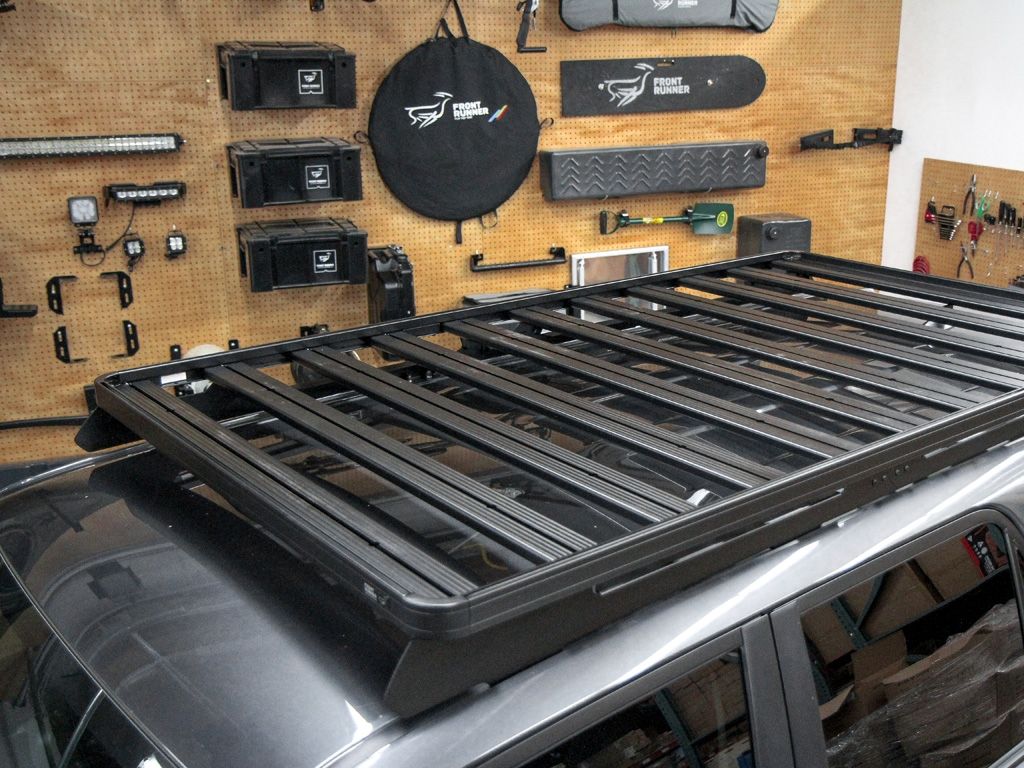

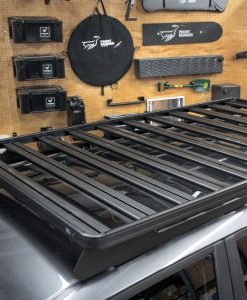

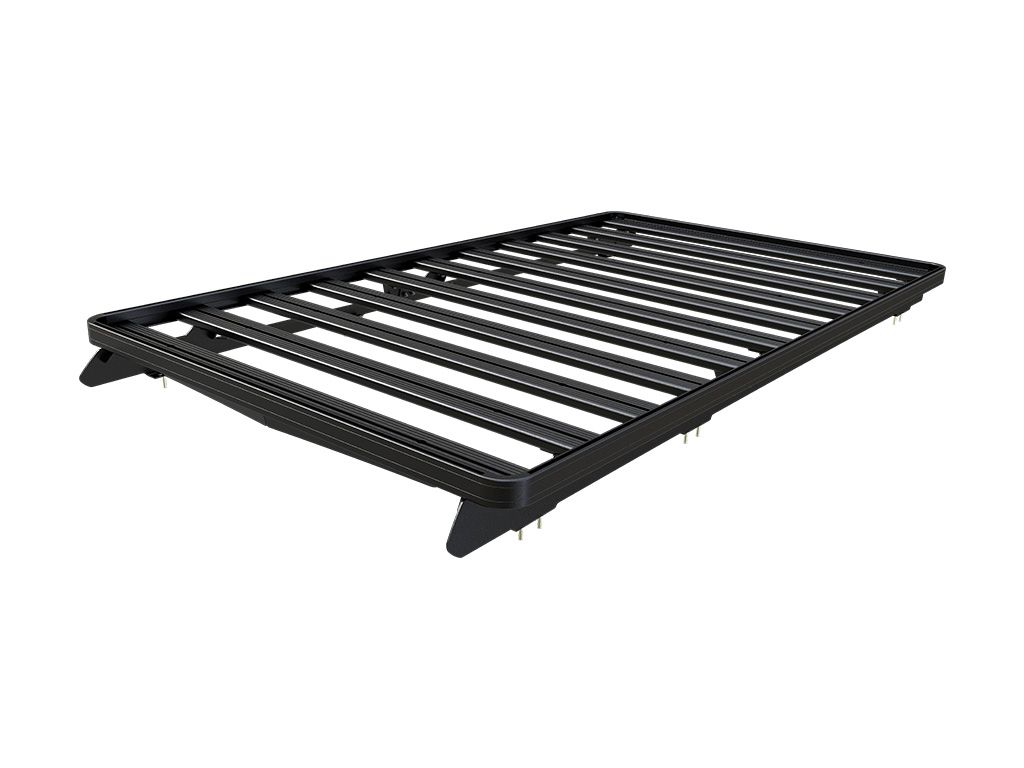

• 1 x RRSTD11 – Slimline II Tray – 1255mm(W) X 2166mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 37kg (80lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 450mm (18″)
• Length 1615mm (64″)
• Height 140mm (6″)

Shipping Weight:

• Weight 42.5kg (93.5lbs)
