FRONT RUNNER – TOYOTA HILUX REVO DC (2016-CURRENT) SLIMLINE II ROOF RACK KIT

FRONT RUNNER – TOYOTA HILUX REVO DC (2016-CURRENT) SLIMLINE II ROOF RACK KIT

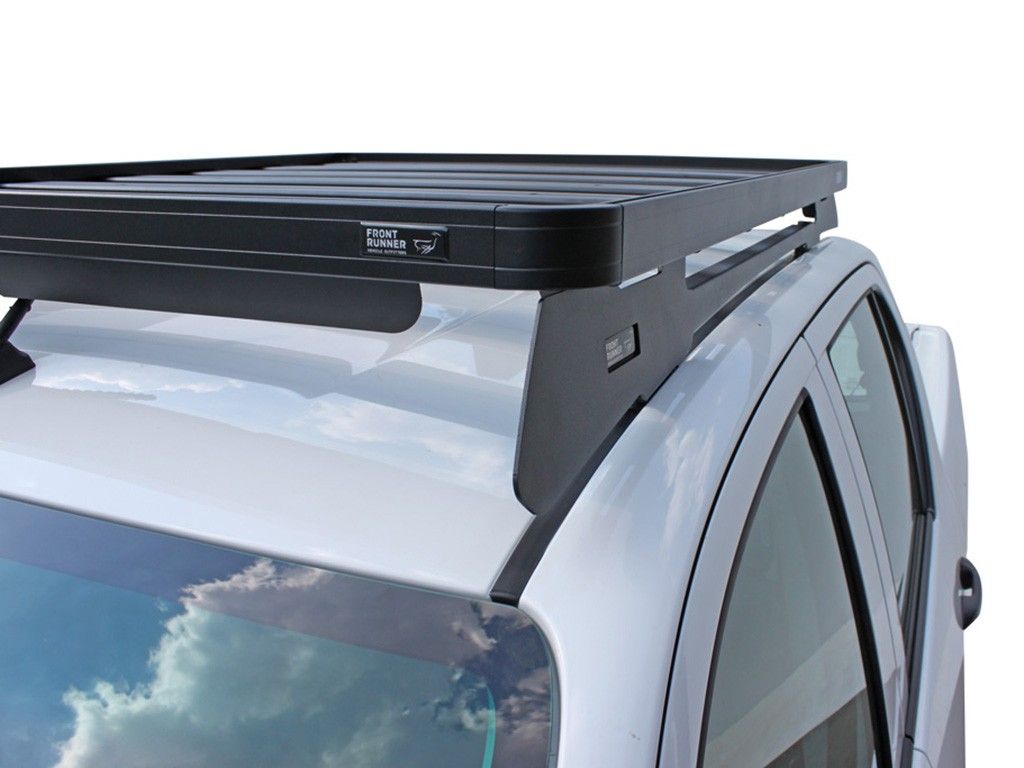

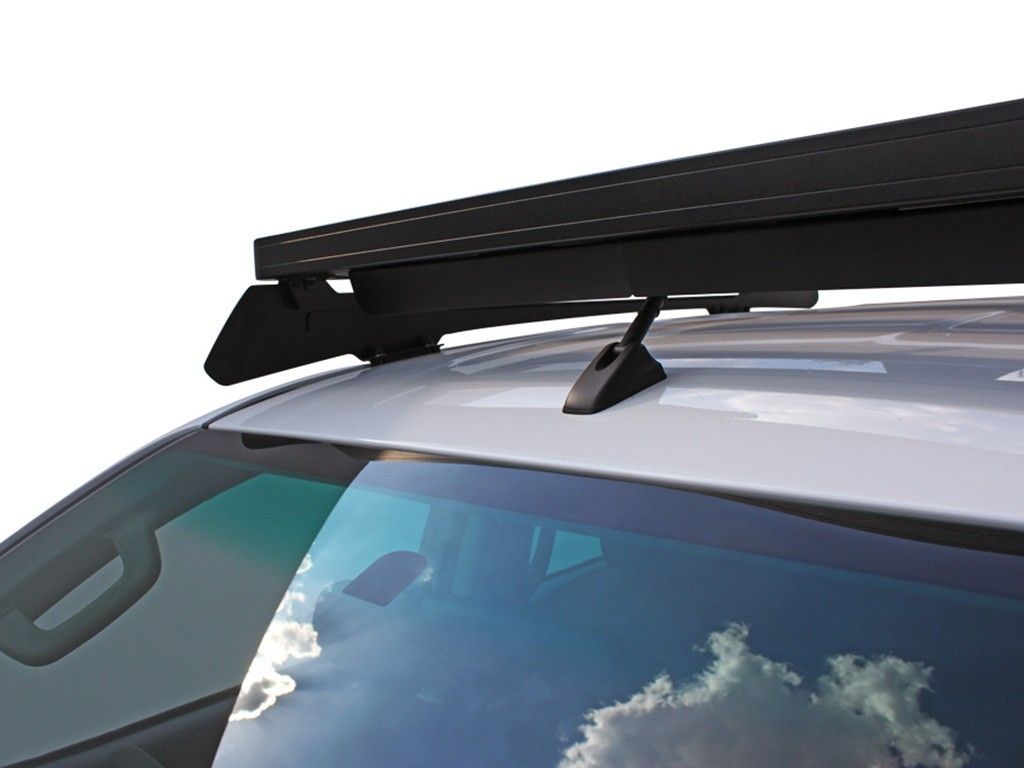

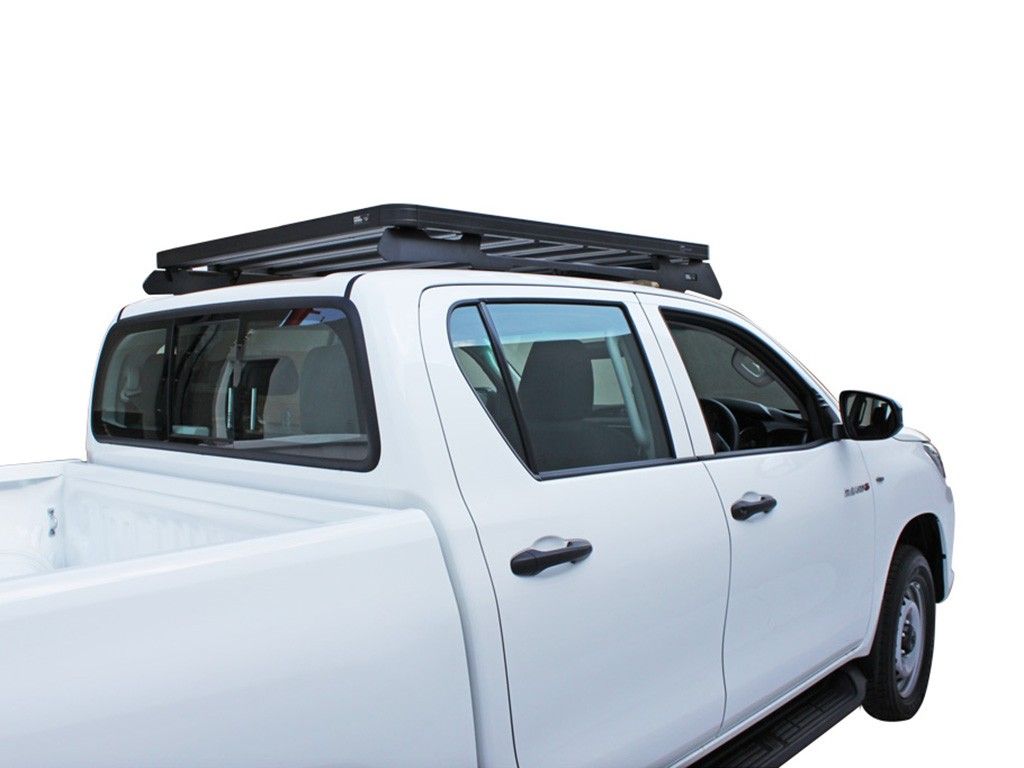

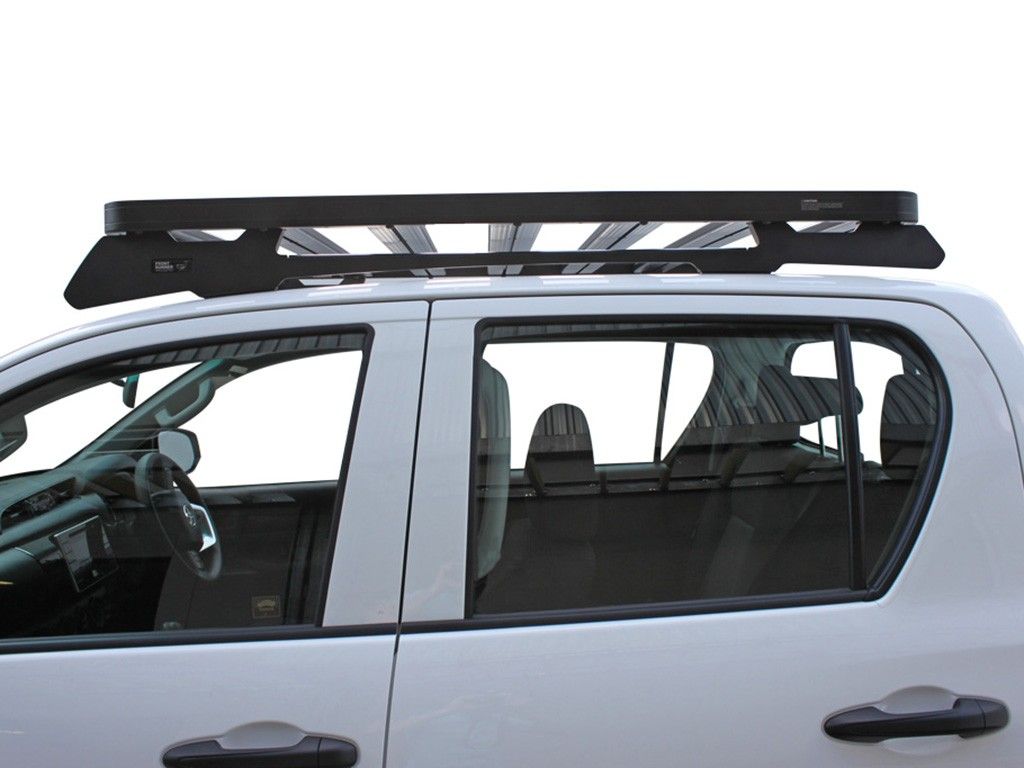

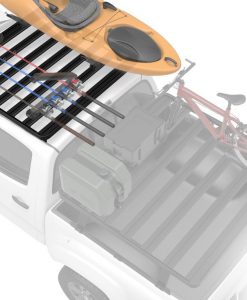

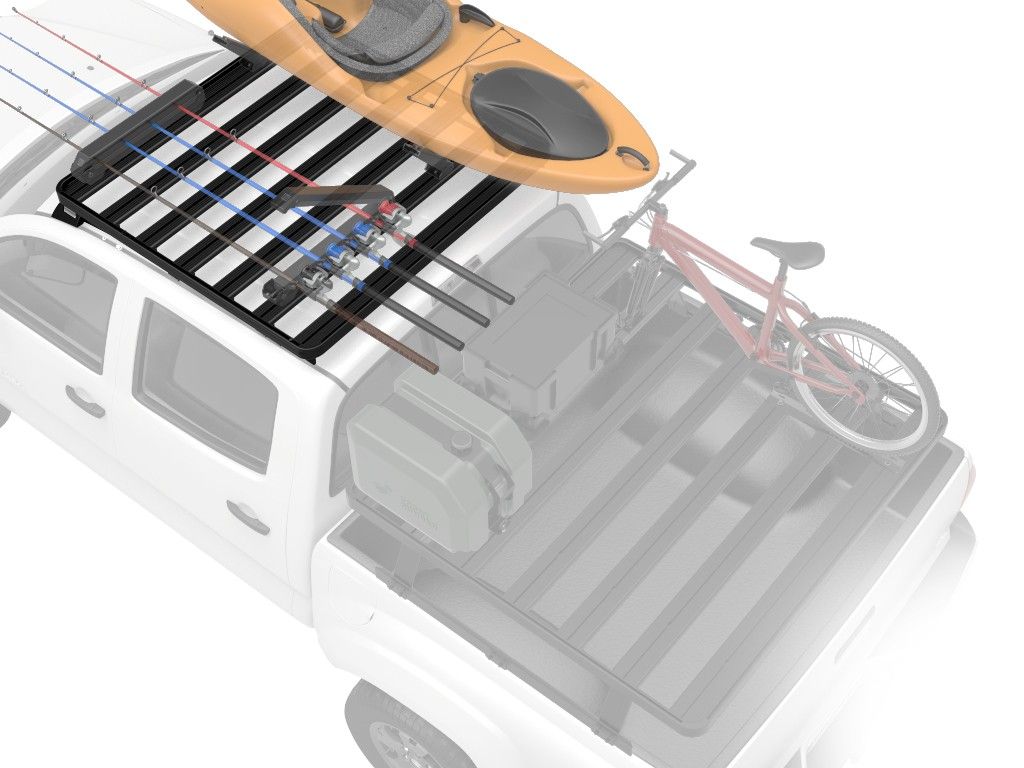

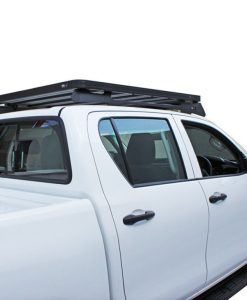

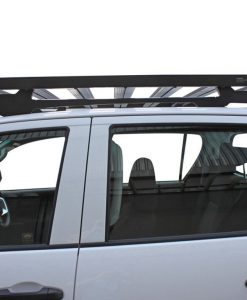

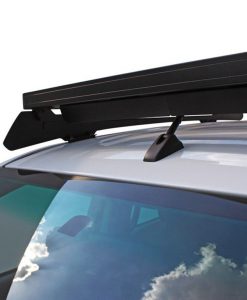

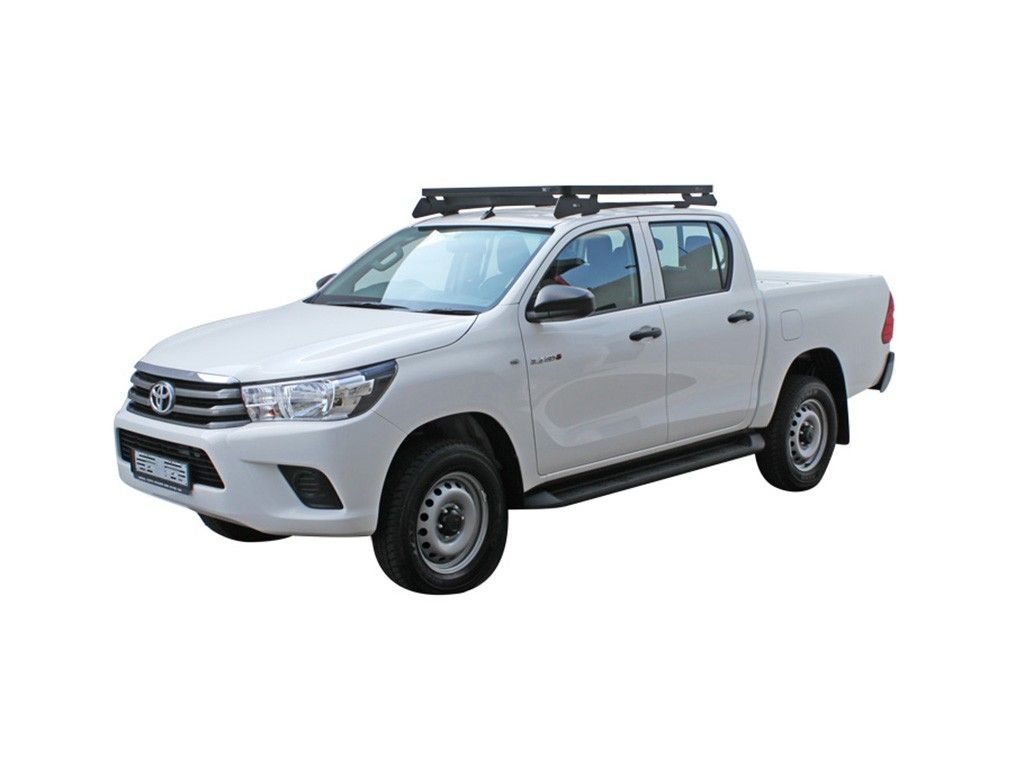

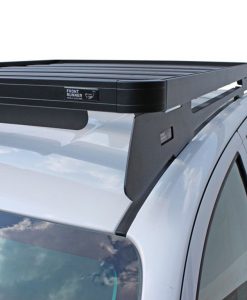

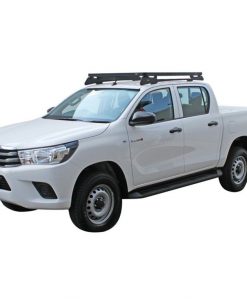

This 1358mm/53.5″ long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Toyota Hilux Revo Double Cab. Drilling into the vehicles roof is required to insert mounting hardware, a template is provided for hole placement.

Info:

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Specs:

Consisting of:

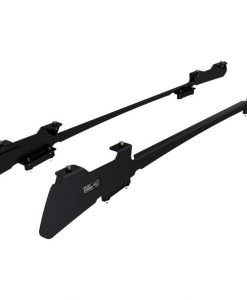

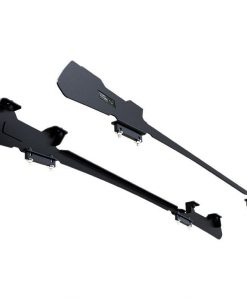

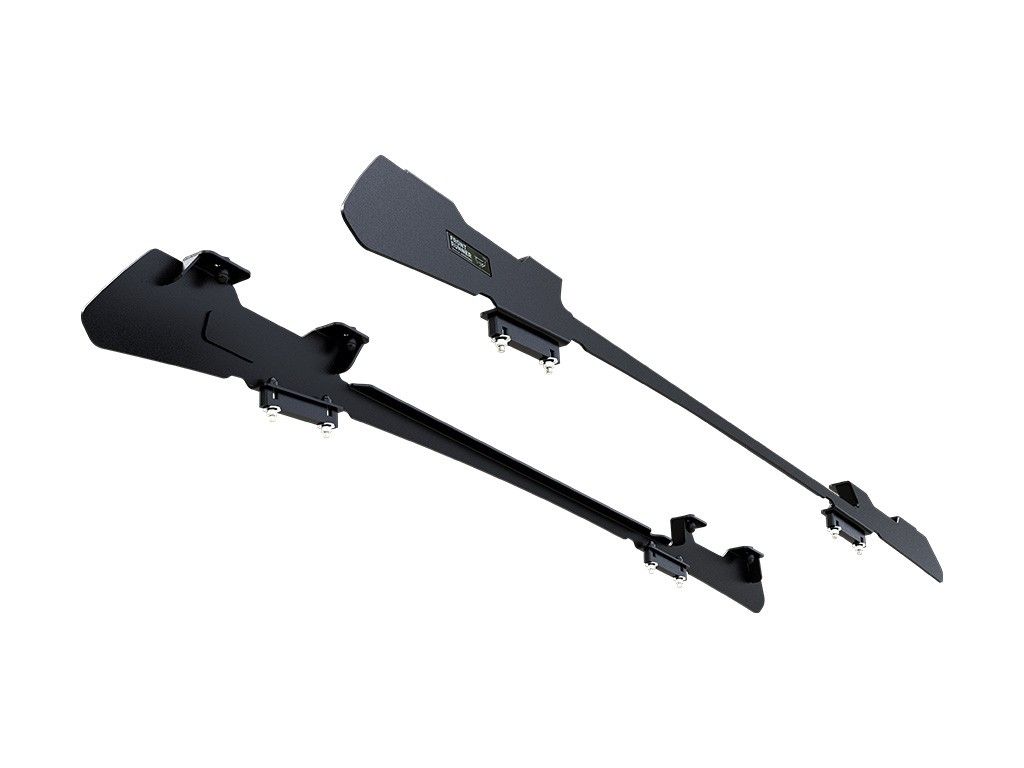

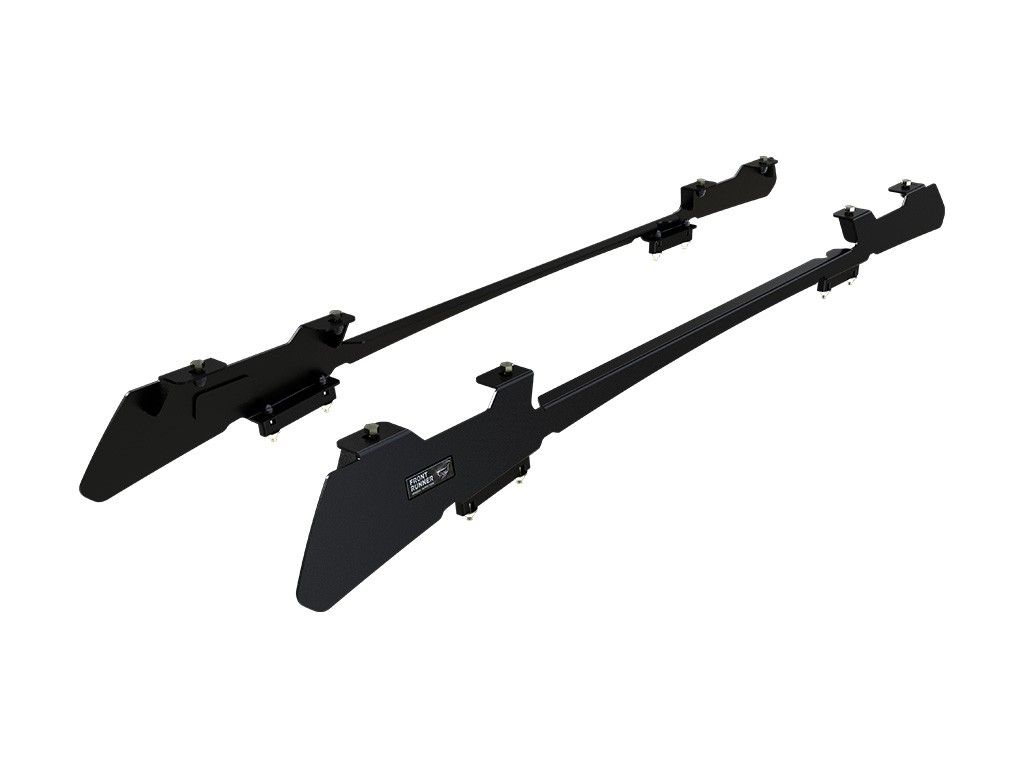

• 1 x FATH002 – Toyota Hilux Revo DC (2016-Current) Foot Rails – by Front Runner

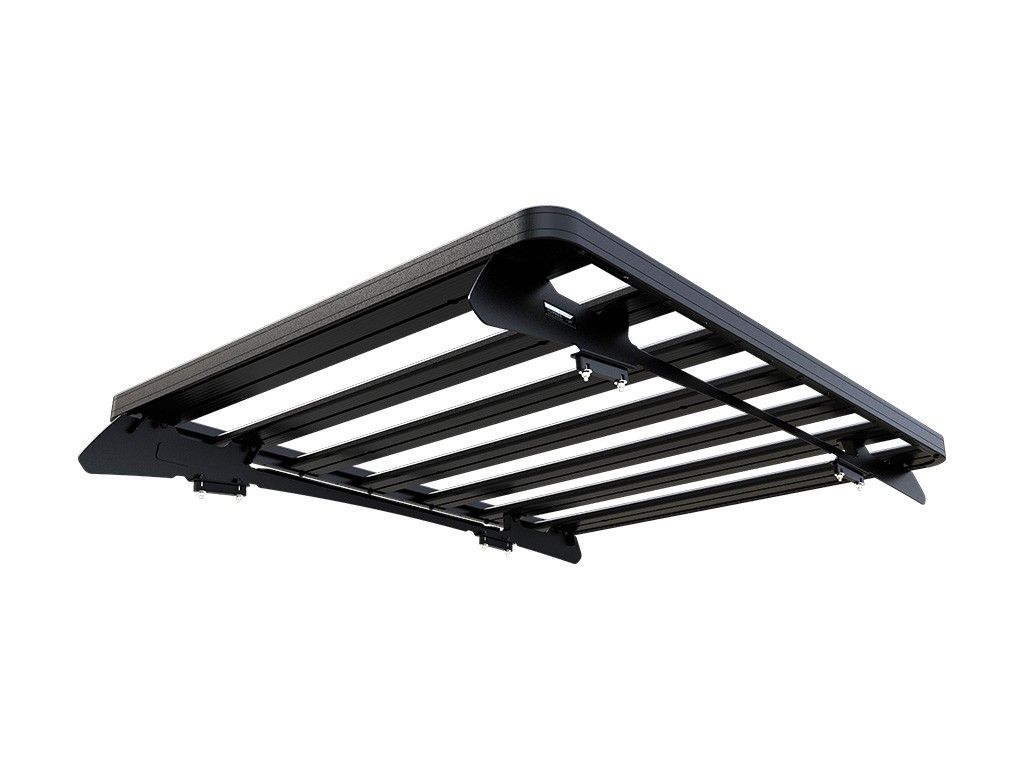

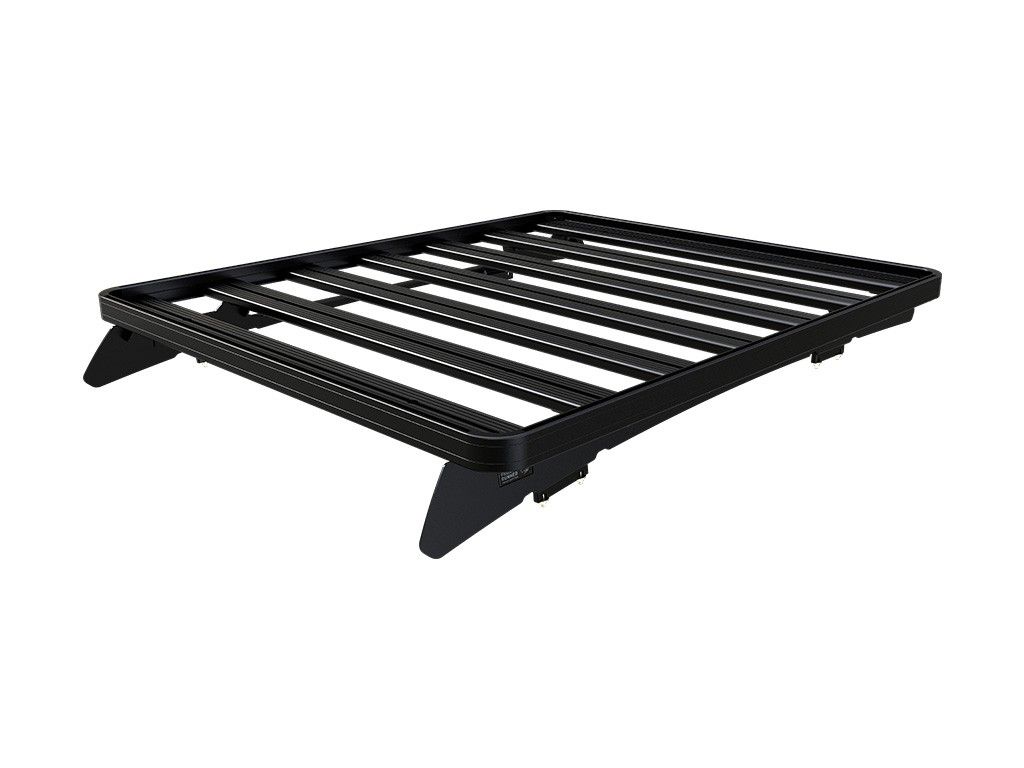

• 1 x RRSTA07 – Slimline II Tray – 1165mm(W) X 1358mm(L) – by Front Runner

Material used:

• Black epoxy powder-coated T6 aluminium
• 3CR12 Stainless Steel
• Approximate Installed Weight 25kg (56lbs)
• The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
• To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
• If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
• If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

• Width 620mm (24″)
• Length 1640mm (65″)
• Height 160mm (6″)

Shipping Weight:

• Weight 29.4kg (64.7lbs)
