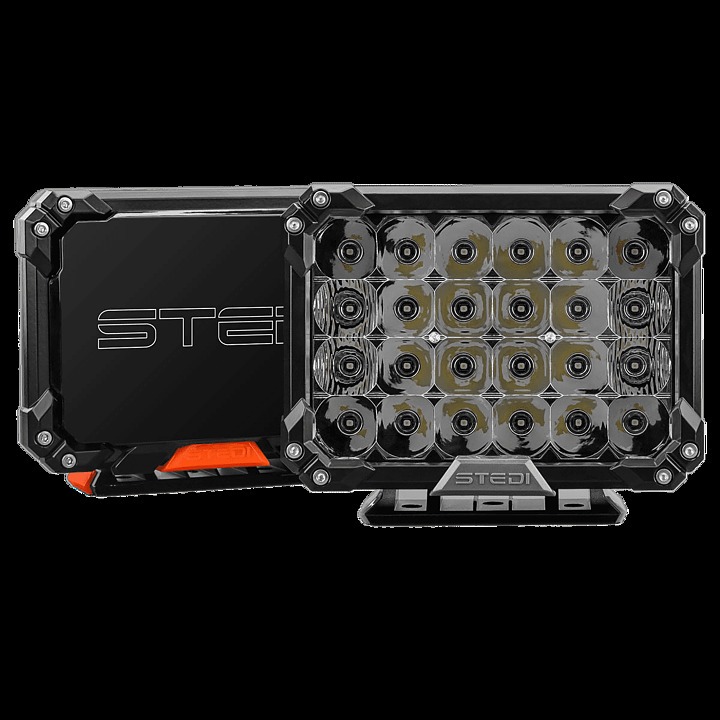

STEDI – Quad Pro LED Driving Light 2-Pack

COMPACT DESIGN | MEGA PERFORMANCE. Up until this moment in time, the compact LED driving light space has been grossly neglected. The only compact offerings available seem to chronically suffer from compact performance. Adding insult to injury most look like they were penned by a guy back in the 1970s who had an extensive background in drawing construction bricks. Enter the all-new QUAD PRO.

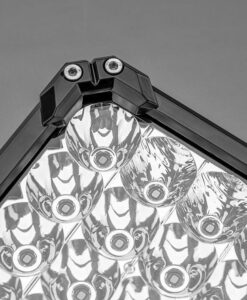

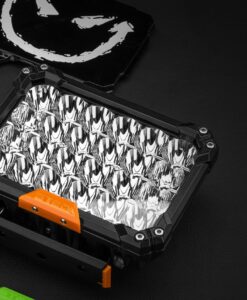

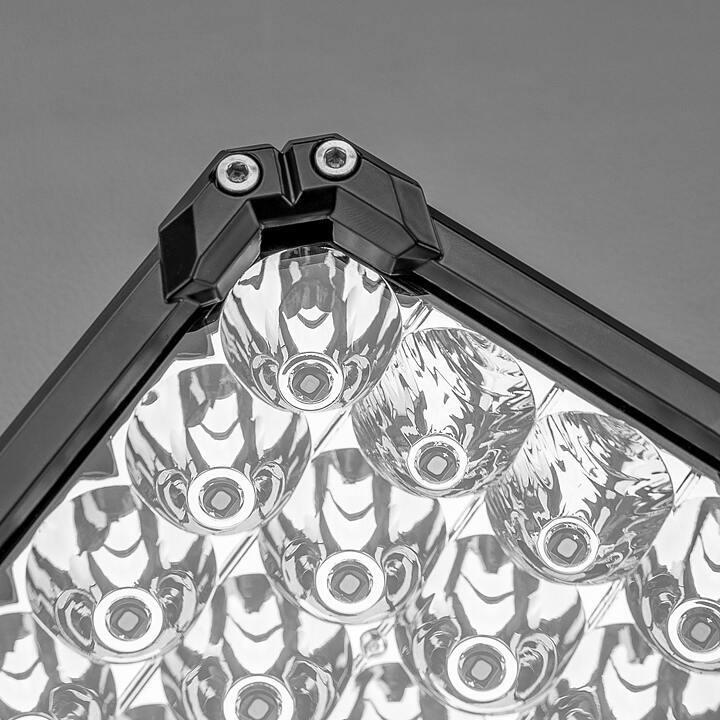

A LEGENDARY BLOODLINE. Any product within the STEDI offering that wears the “PRO” nameplate represents the very best in its class – You only have to look at our iconic TYPE-X & ST3303 PRO, which are both the ultimate nod to the PRO standard. The all-new QUAD PRO utilizes the same legendary TYPE-X PRO DNA. Yes! The same reflector, same LED, all buttoned up into compact yet explosive performance package.

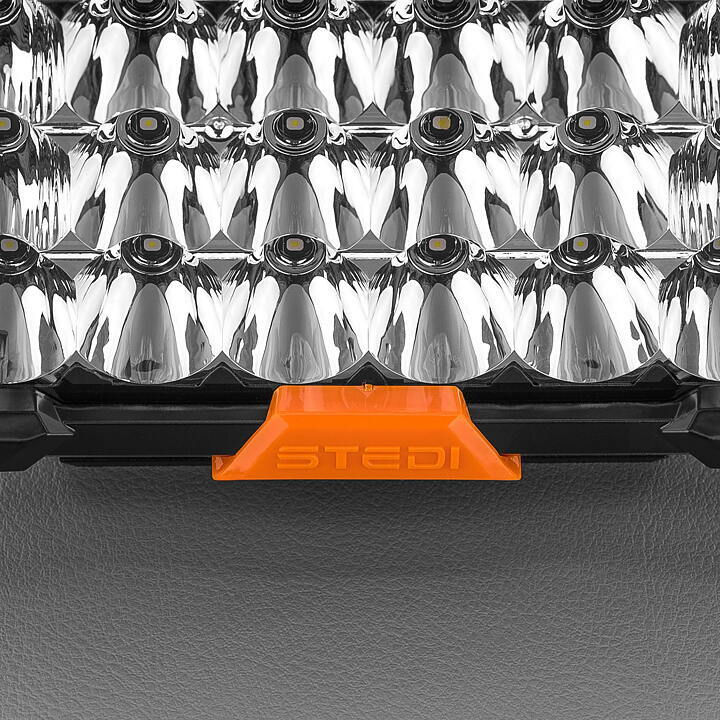

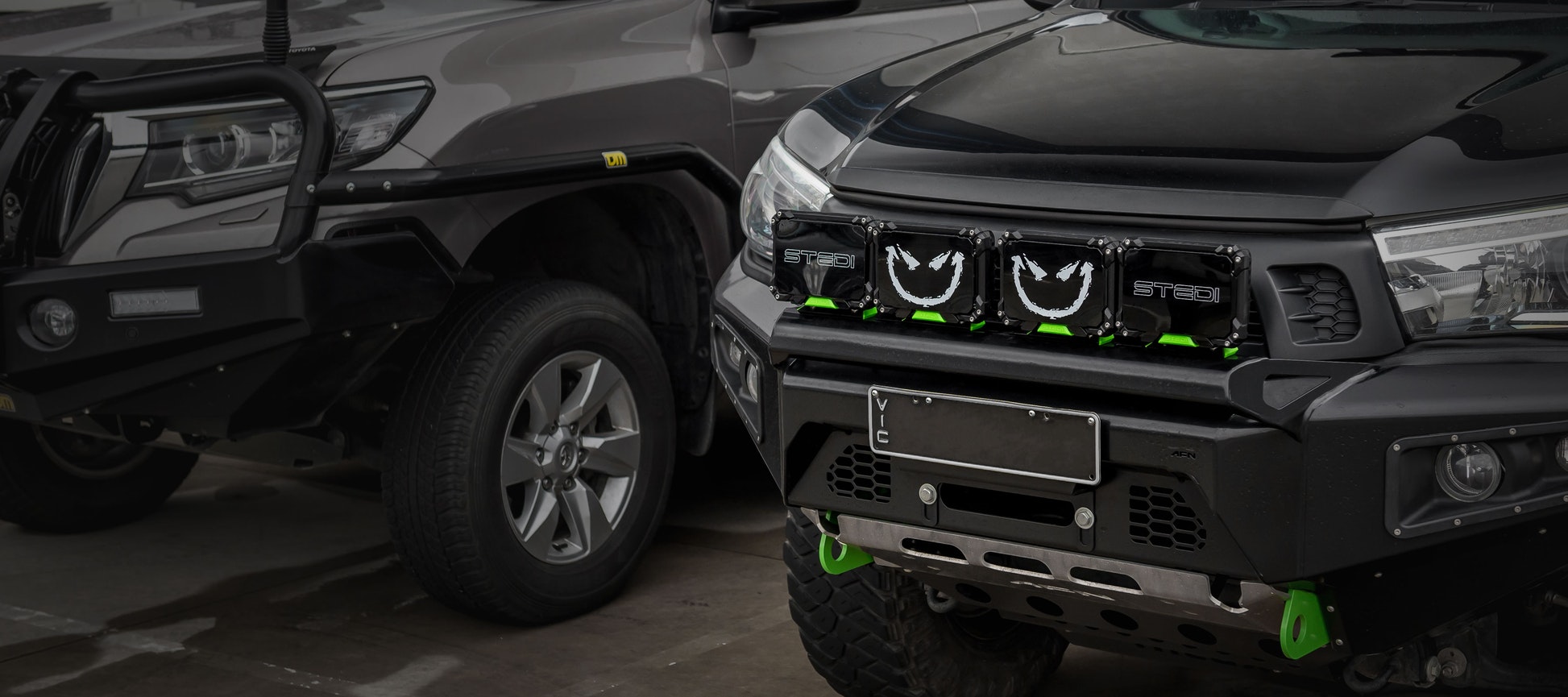

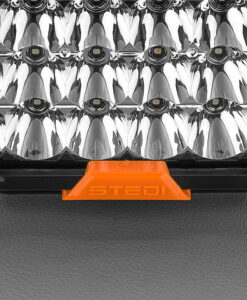

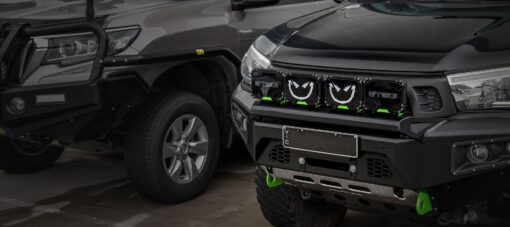

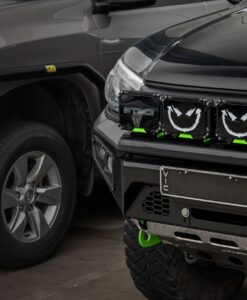

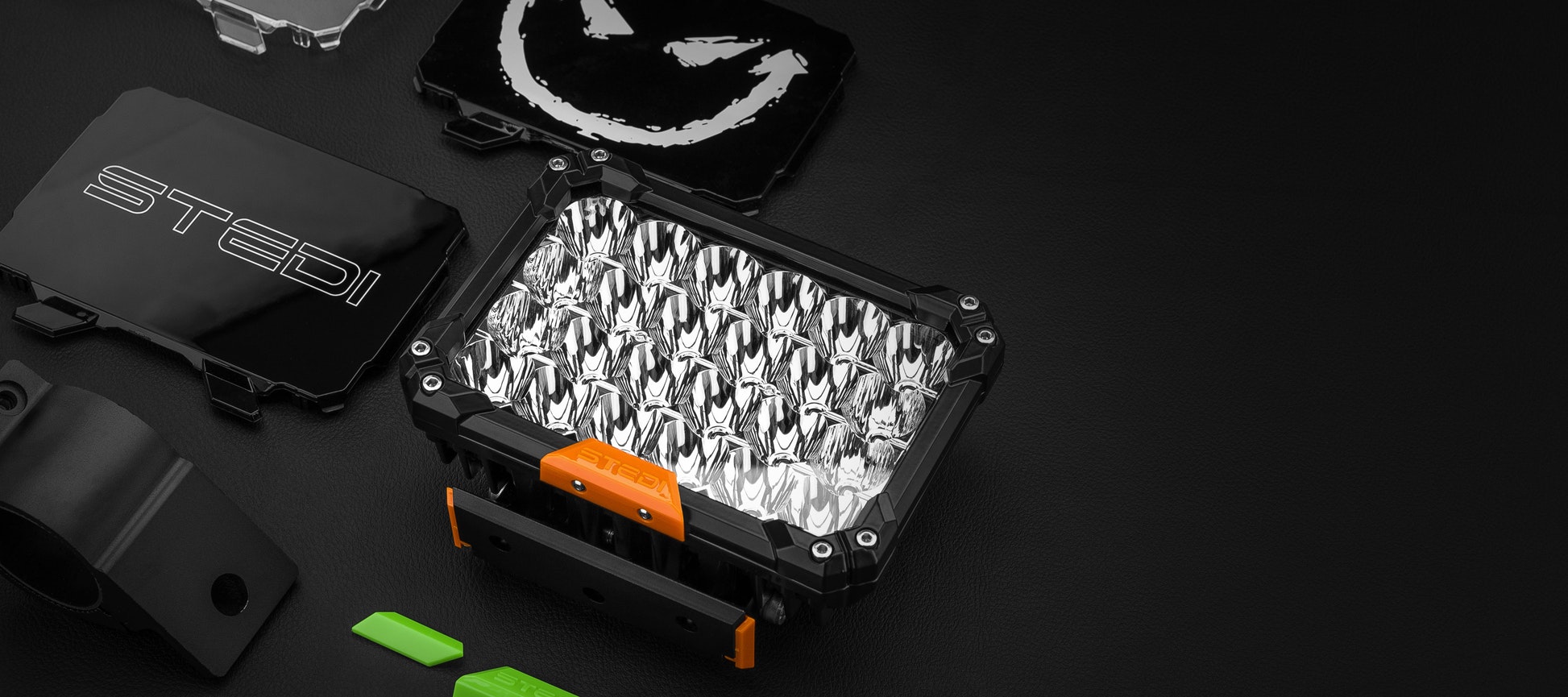

CUSTOMISABLE LIKE NO OTHER. Included in the kit is a pair of STEDI blackout cover, plus orange and grey colour customisation caps. The iconic STEDI Smiley covers are available to purchase separately, as are optional blue, green, red, and yellow colour caps.

The Nitty Gritty:

Included is our legendary Easy-Fit plug and play high beam wiring harness
IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.

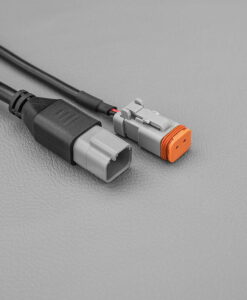

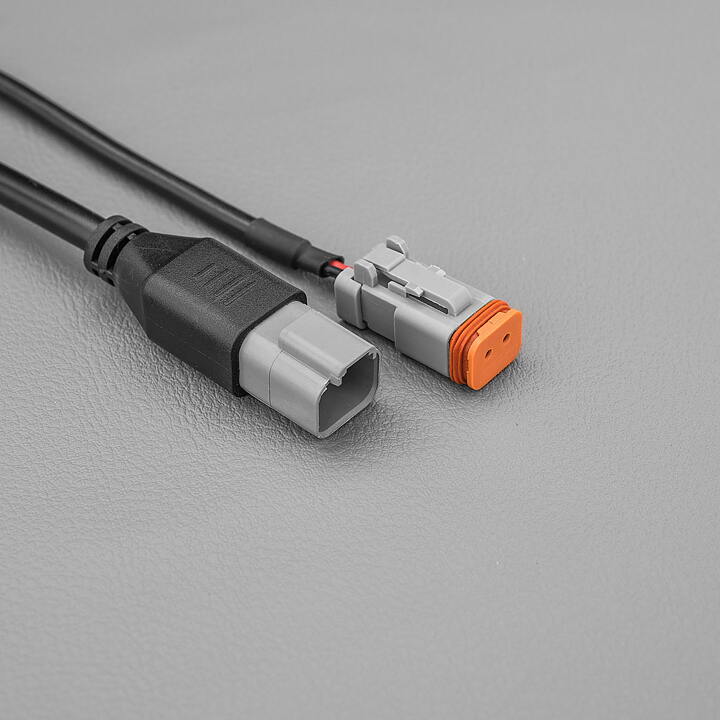

Environmentally sealed Deutsch DT-2 connectors
RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.

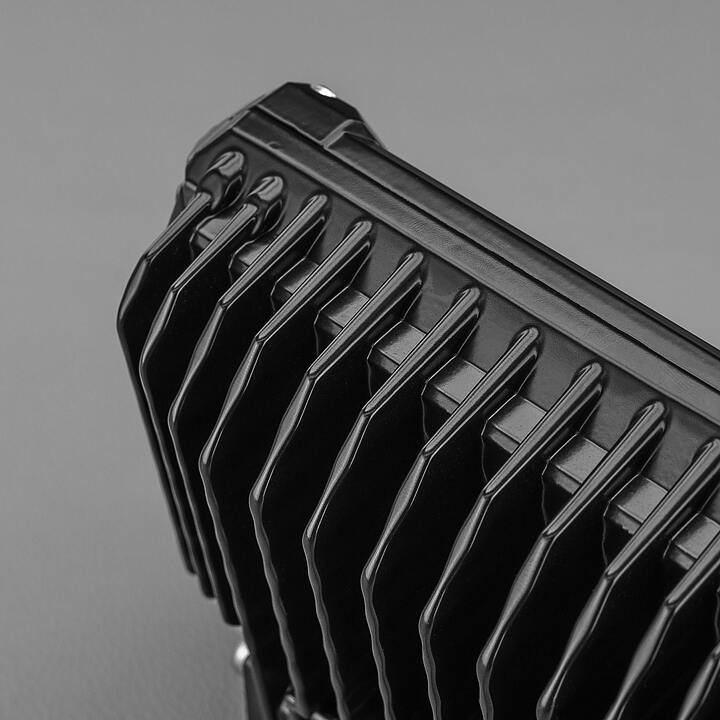

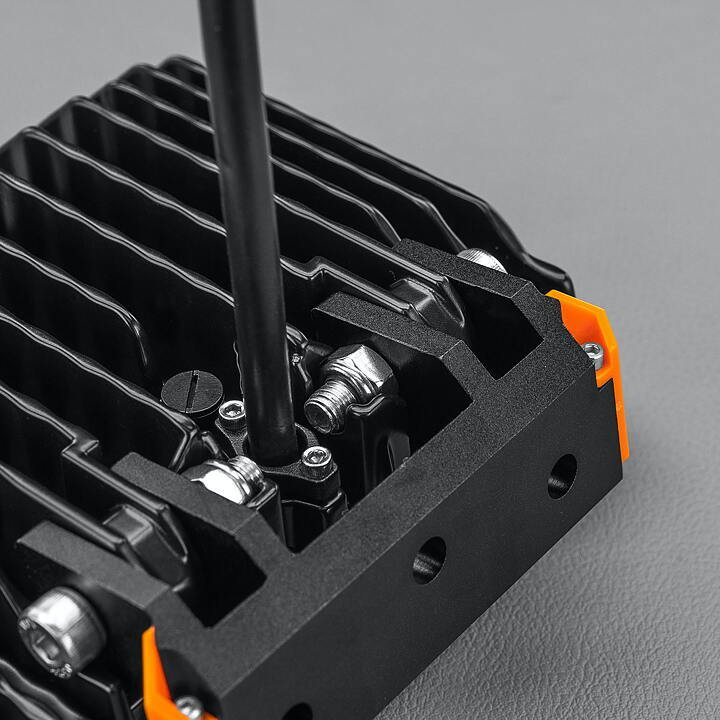

High-Pressure Die-Cast Bracket

Price quoted is for a pair & includes our legendary Plug & Play Smart Wiring harness.

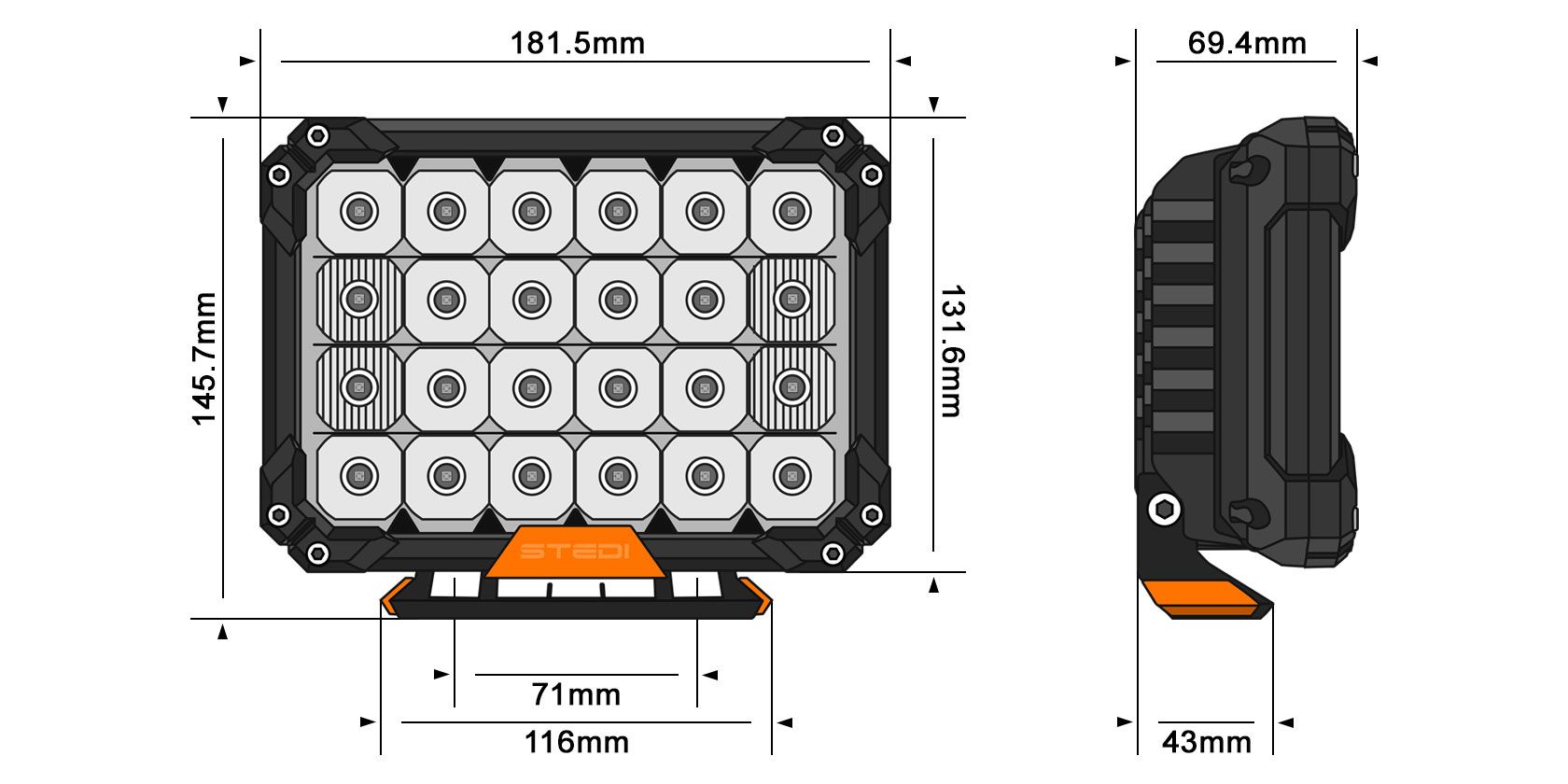

Technical Specifications:

LED: 24 x Oslon High-Flux LED
RAW LUMENS: 17,040 (Pair)
TESTED LUMENS: 11,360 (Pair)
AMP DRAW : 7.4A @ 13.2v (each)
POWER DRAW: 97W (each)
CANDELA: 693,889cd
BEAM PATTERN: 4 x Spread 20 x Pencil Beam
INGRESS PROTECTION: IP68 | Submersible up to 3m
COLOUR TEMP (CCT) : 5700K
VOLTAGE COMPATIBILITY : 12v & 24v
LUMEN MAINTENANCE : 50,000 LM-80
WEIGHT: (each)

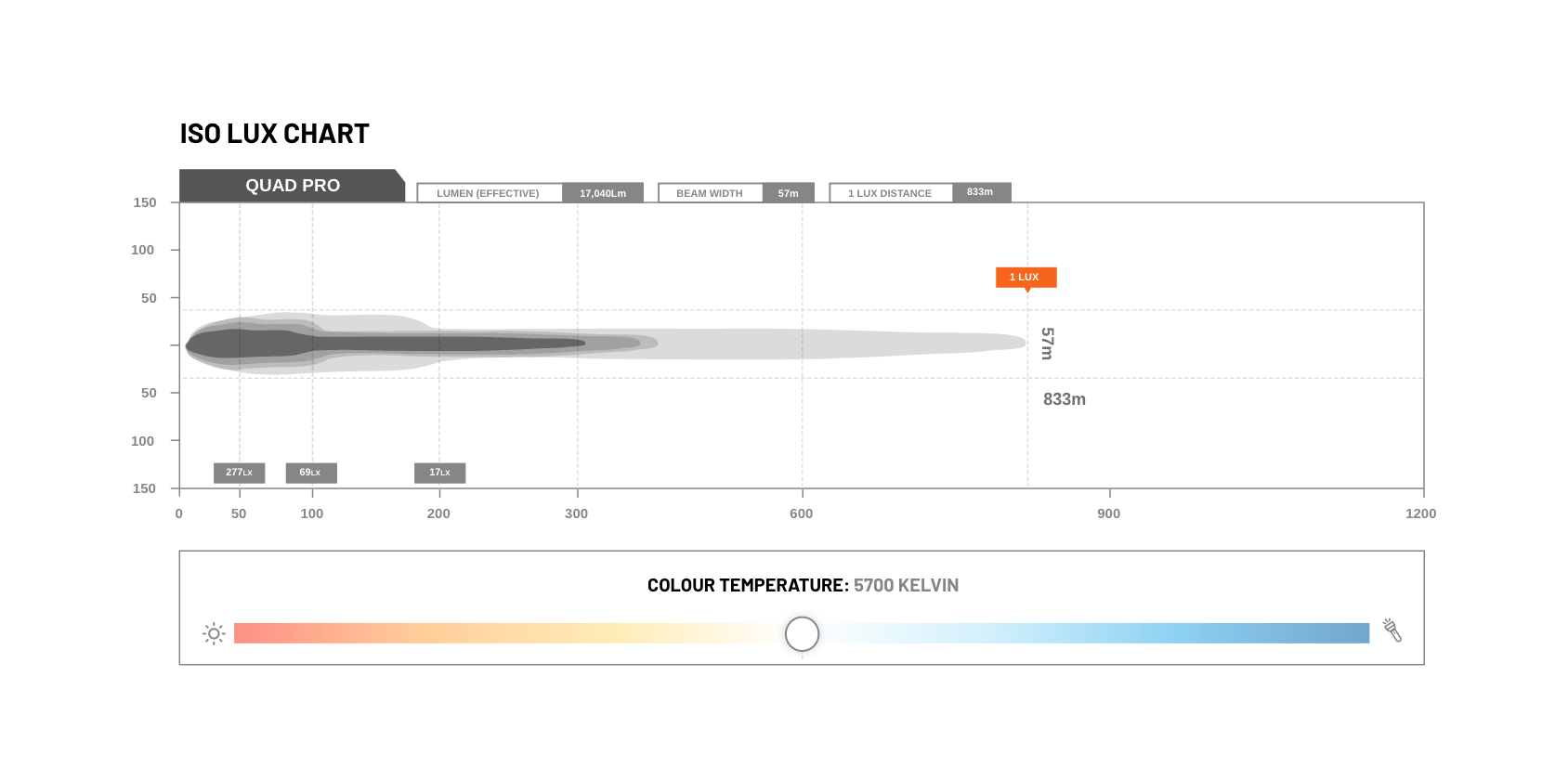

PHOTOMETRIC DATA
10 m: 6,938 Lx
50 m : 277 Lx
200 m: 17 Lx
300 m: 7.7 Lx
400 m: 4 Lx
500 m: 2.7 Lx
833 m: 1 Lx

What’s Included:

2 x QUAD Pro LED Spot Lights
2 x STENCIL Black Out Covers
1 x Set Orange Colour Caps (fitted)
1 x Set Grey Colour Caps
Easy Fit High Beam Wiring Harness
H4 & HB3 adapters to High Beam
Installation Manual
Stainless fitting hardware
