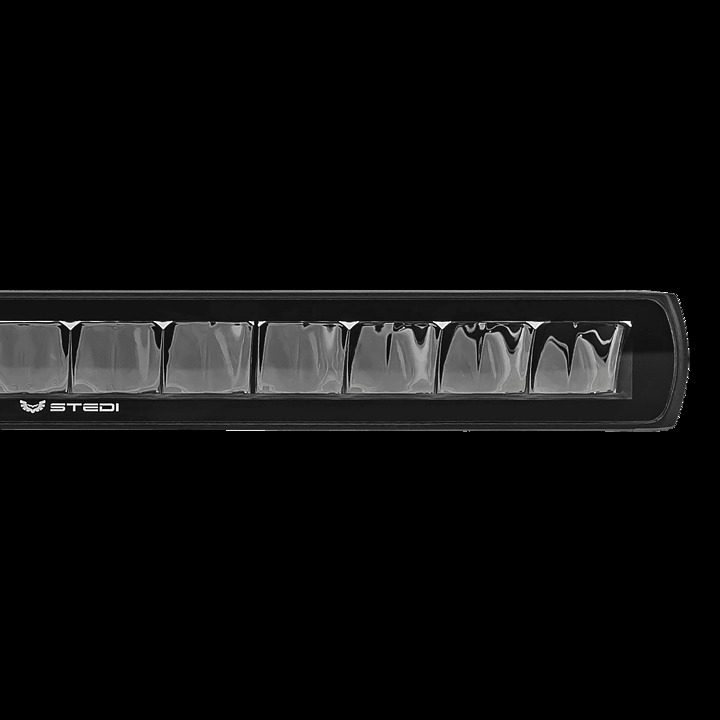

STEDI – ST1K 13.5″ E-Mark LED Light Bar

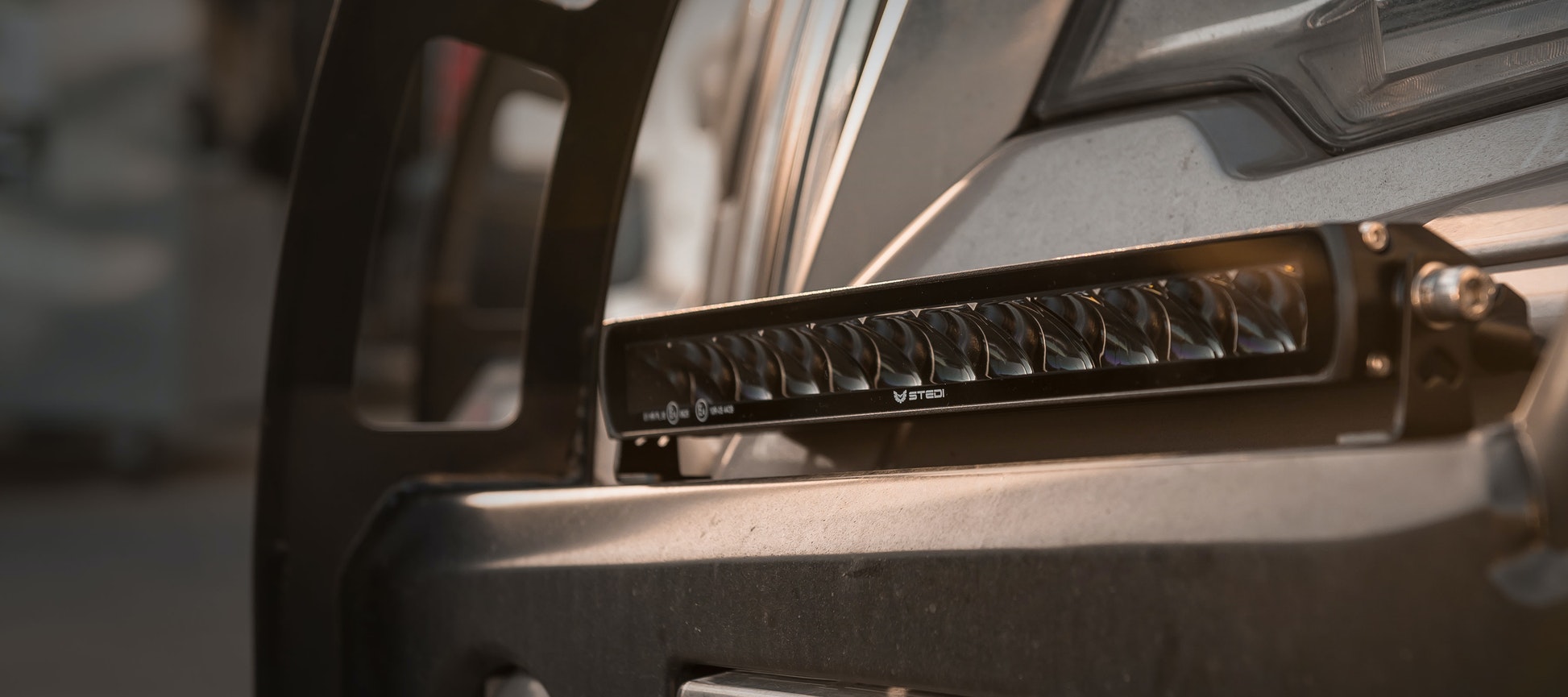

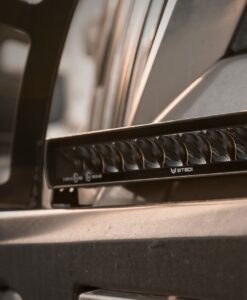

CERTIFIED E-MARK COMPLIANT. Our new ST1K series is ECE approved making it road-legal in Europe. Featuring our innovative hooded reflector design with rear-facing LEDs enables unique beam control – not possible with more conventional optics. The 12 LED variant is ideal to mount as shoulder lights on the bull bar wings.

HIGH-END DESIGN MEETS HIGH PERFORMANCE. The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs. The beam pattern makes it an ideal companion to the vehicles main beam, filling in the road shoulders and adding beam distance over and above your vehicles the main beam, ensuring you arrive at your destination in total comfort.

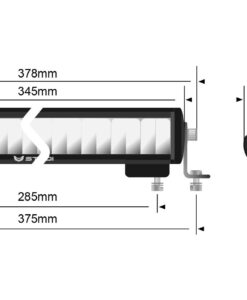

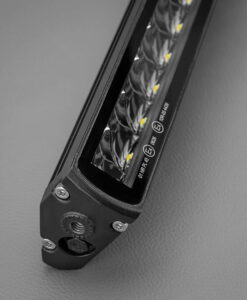

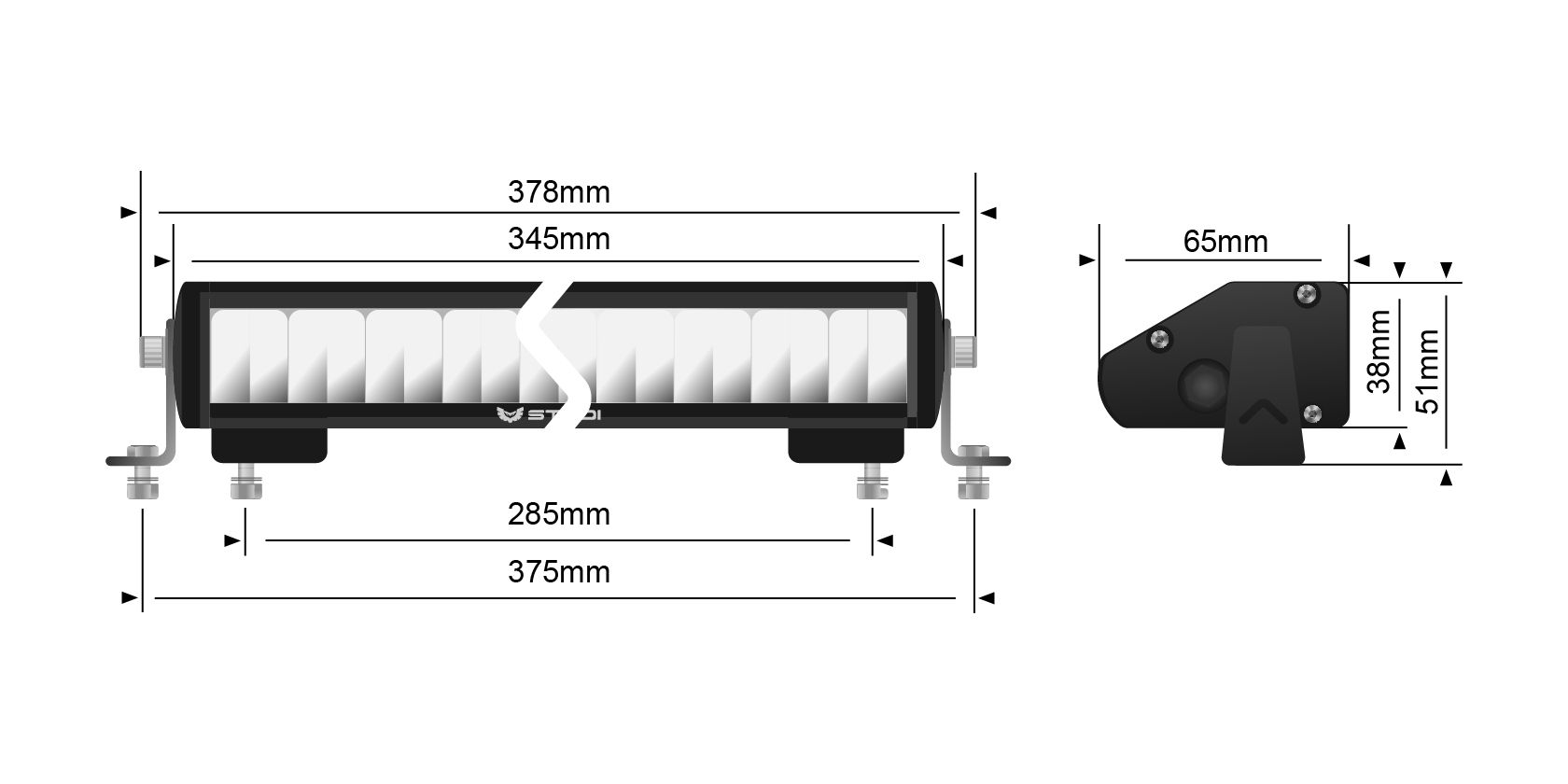

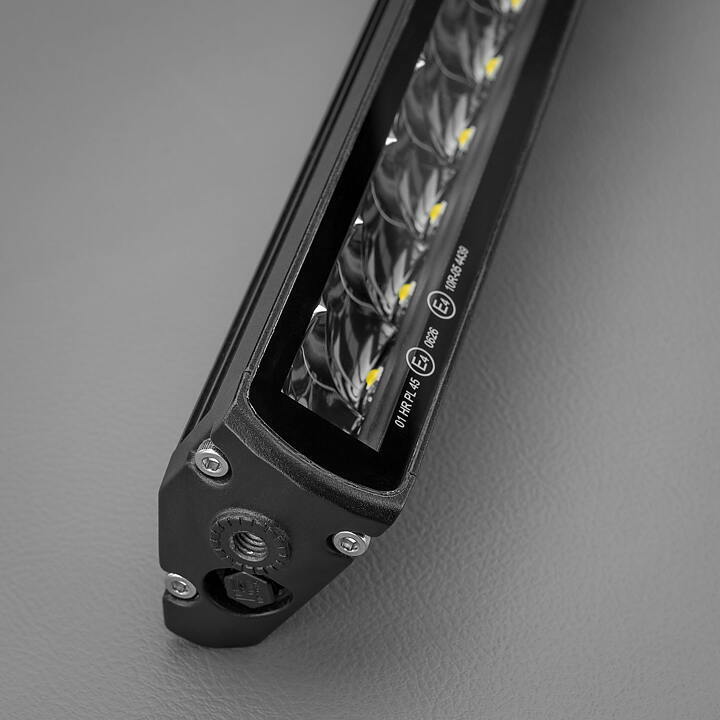

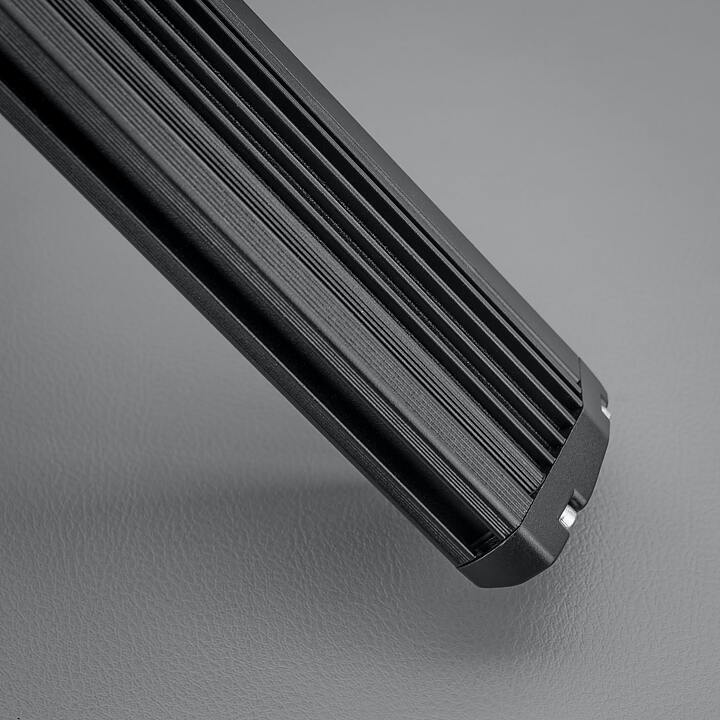

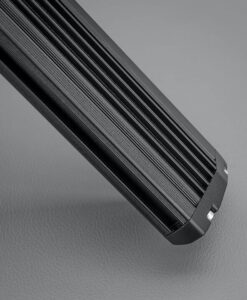

DISCOVER NEW HORIZONS. Urban adventure or journey into the wilderness – The ST1K will get you there in total comfort. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge to edge bonded lens adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.

The Nitty Gritty:

12 x 5W OSRAM LEDs
RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
IP68 – Submersible to 3m

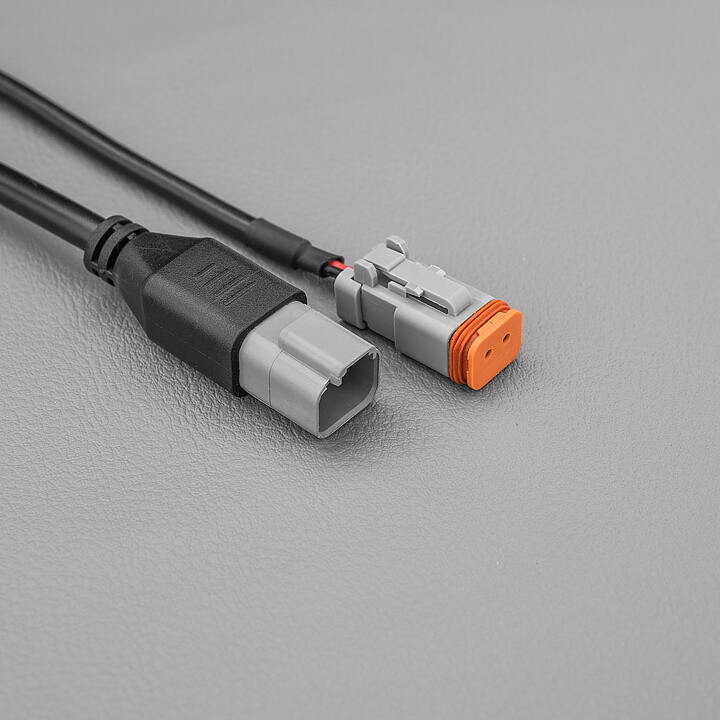

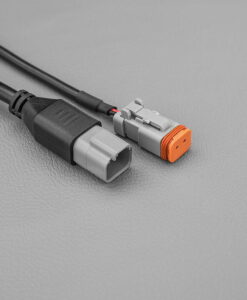

Environmentally sealed Deutsch DT-2 connectors

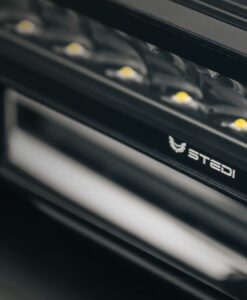

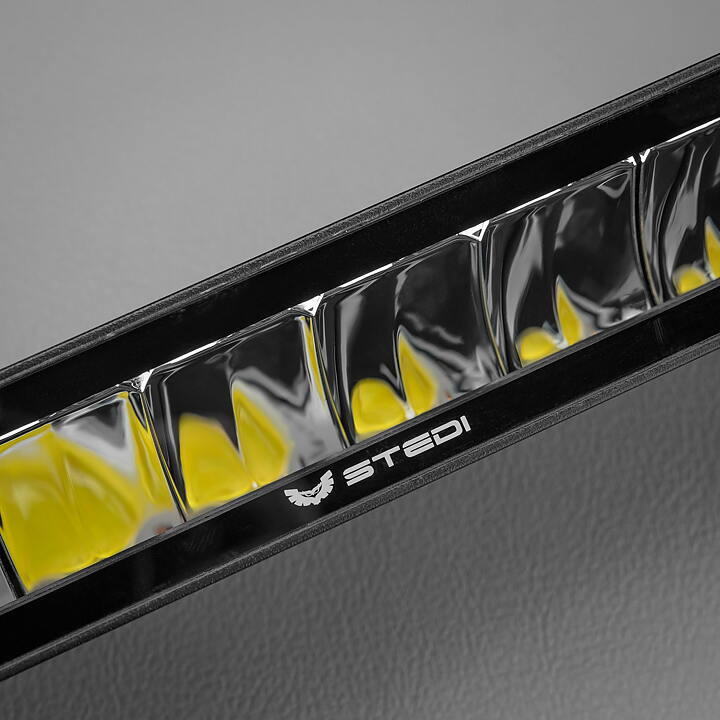

Innovative hooded optics
Driving Beam E mark compliant beam.

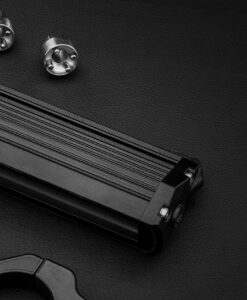

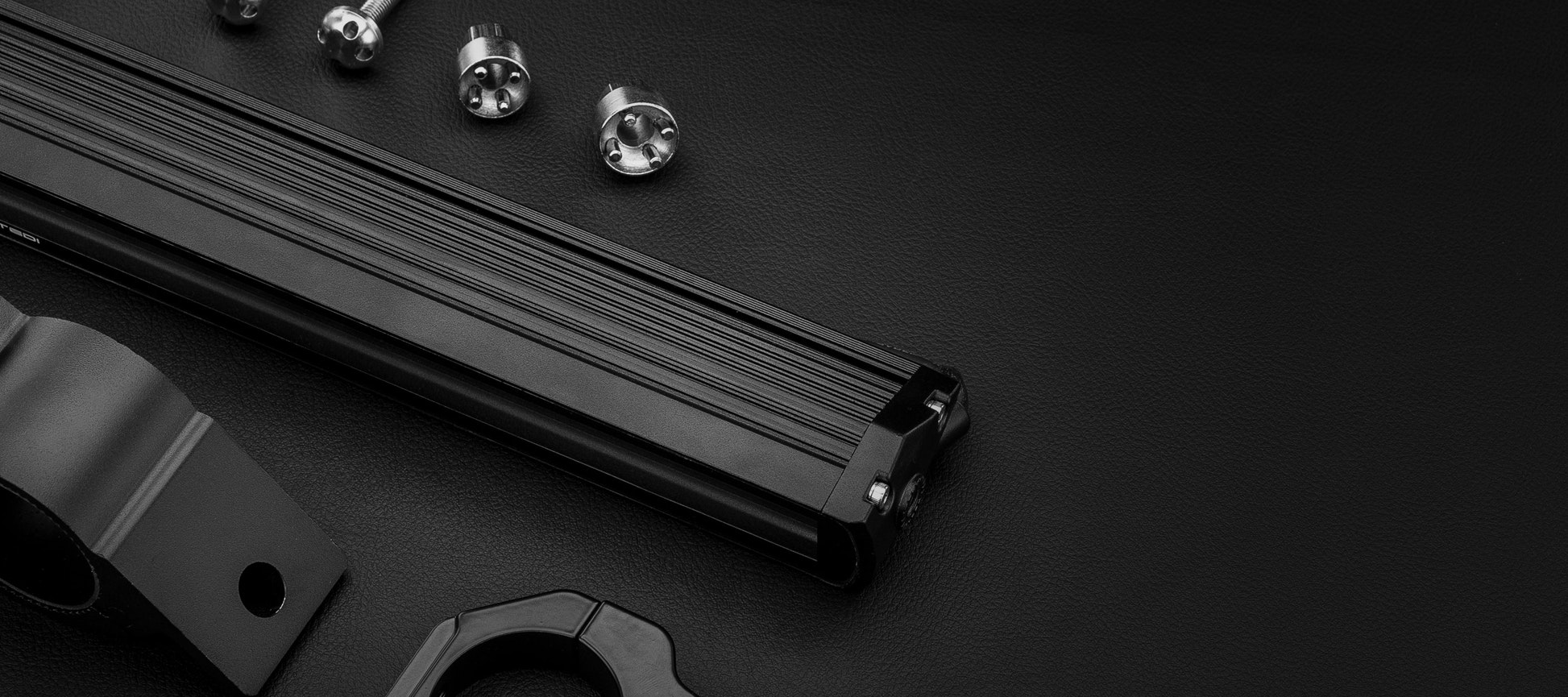

Heavy Duty Adjustable Bottom Mounts & Side bracket included.
Reverse Polarity Protected Circuit (RPPC)
Electronic Thermal Management
Built-in Voltage Surge Protection

Technical Specifications:

LED Manufacturer: OSRAM
LED COUNT: 12
VOLTAGE: 9V & 32V
CURRENT DRAW (AMPERES): 4.0a @13.6v
LENS MATERIAL: OPTICAL GRADE, HARD COATED LEXAN

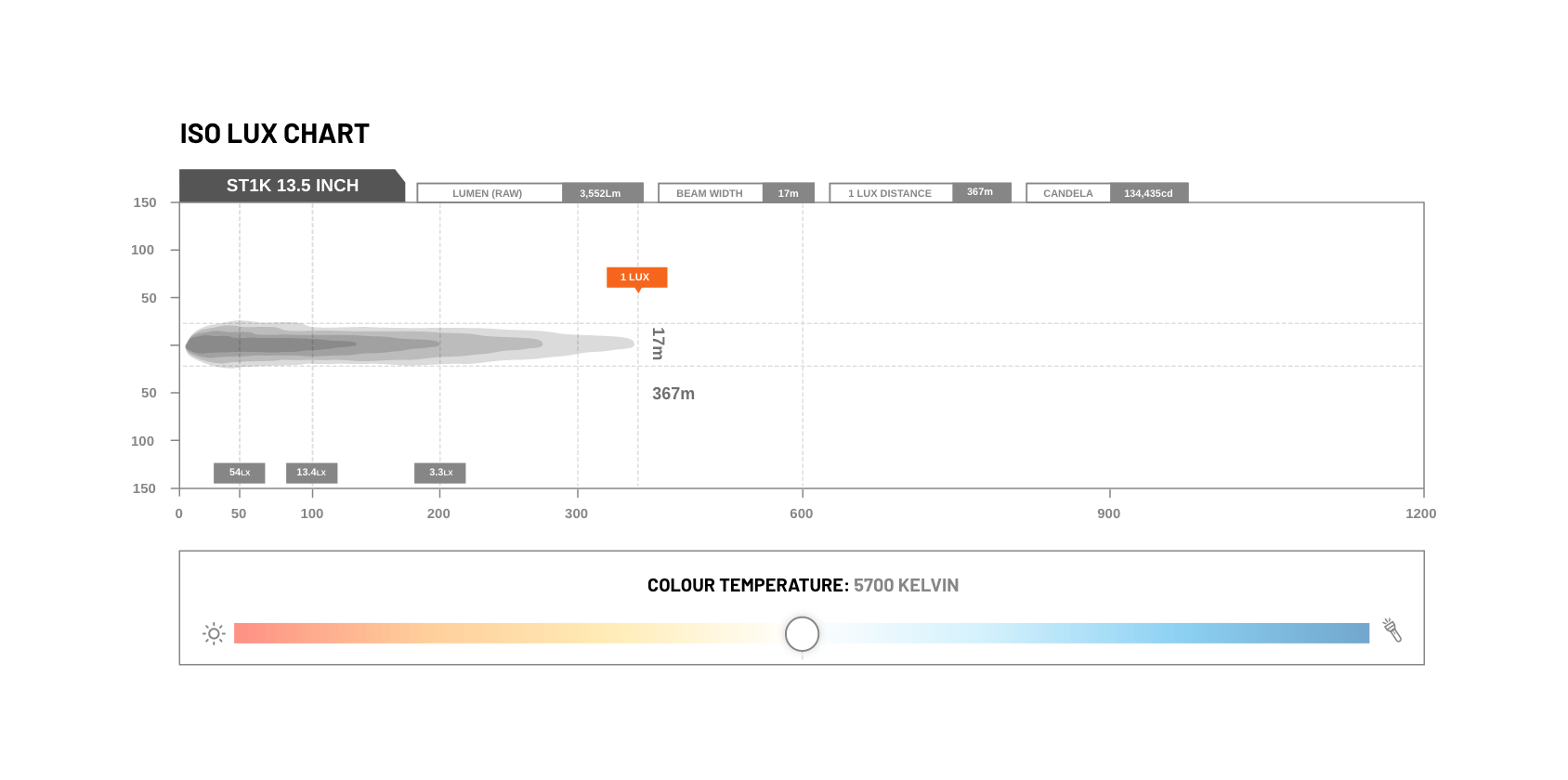

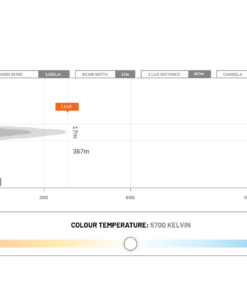

RAW LUMENS: 3,552Lm
PEAK INTENSITY (CANDELA): 134,435cd
HOUSING MATERIAL: A360.0 Cast face plate, extruded Aluminum heat sink
LIFESPAN: 50,000
FLOOD BEAM: 50°
SPOT BEAM: 9°
INGRESS PROTECTION: IP68
OPERATING TEMP: -40C ~ +150C
WEIGHT: 0.845kg

What’s Included:

ST1K 13.5 Inch LED Light Bar
Installation Manual
