Bushranger – Revo Winch MKII / 12V / 10.000lbs
€990,99 – €1.156,16

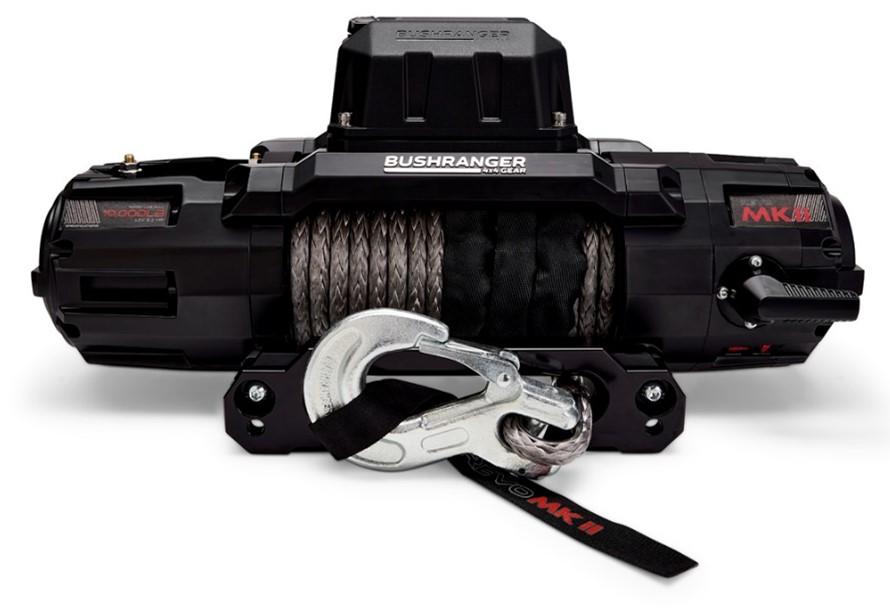

Bushranger – Revo Winch MKII / 12V / 10.000lbs
Engineered in Australia to meet the demands of serious off-road enthusiasts who require dependable performance. The REVO MKII defines a new era characterised by unmatched reliability, effortless fitment and operation, enhanced safety, and unparalleled longevity.
Features:
ENGINEERED & PROVEN IN AUSTRALIA
The highest quality components and rigorous test methods ensure reliability and longevity even within the harshest environments.

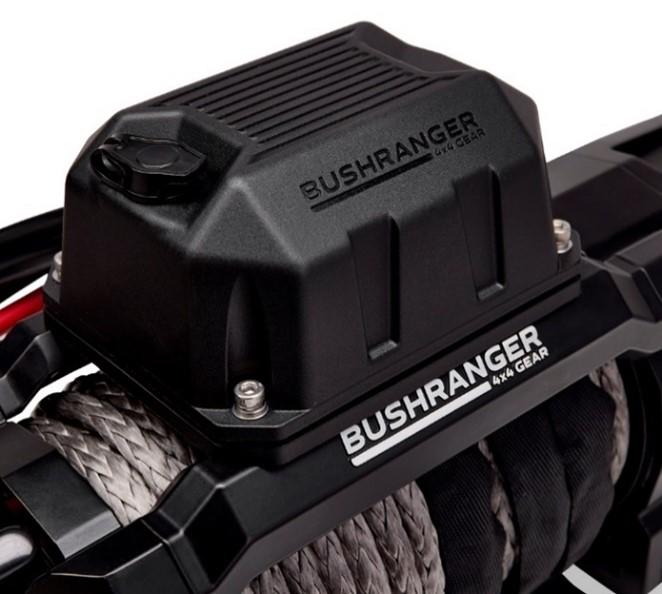

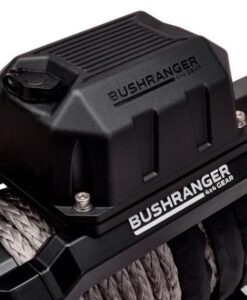

COMPACT MULTI-FIT CONTROL BOX
The compact lightweight control box provides easier installation in confined areas, reduces interference, and incorporates numerous threaded insert locations for immediate fitting in most bull bars.
ALBRIGHT CONTACTOR
The Albright DC Contactor stands out in the market with its top-of-the-line quality. Sealed with an IP67 rating, it manages the winch motor function with unmatched durability and longevity, ensuring reliable operation time after time.

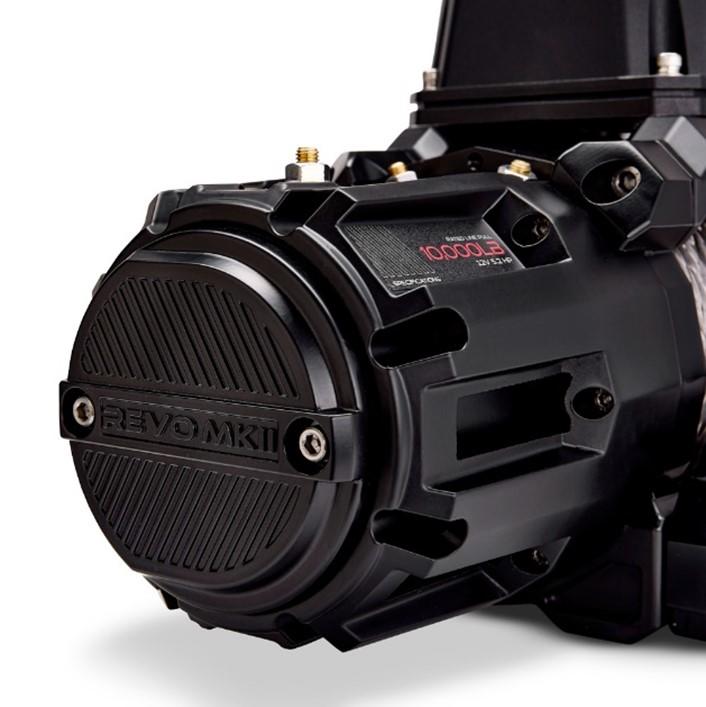

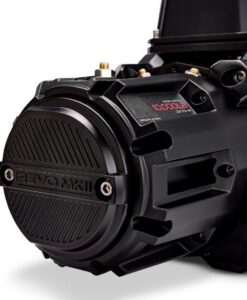

PREMIUM MOTOR DESIGN
The 12V, 5.2HP (10,000LB) series wound motor is constructed using high grade materials to reduce current draw and increase line speeds, providing a prolonged motor lifespan under full load conditions.
ZERO DRAG BRAKING SYSTEM
The gearbox-mounted brake provides
100% load holding and the capacity for fast powered unspooling, under no load, without any damage to the winch.
4 STAGE GEARBOX
Features hardened steel gearing for improved load distribution, maximum strength and durability. Externally adjustable in 16 clocking positions for perfect clutch handle orientation in any vehicle.
ROBUST CONSTRUCTION
Uncompromised strength and rigidity is at the core of the tough aluminium alloy body, finished with a durable satin black powder coat.

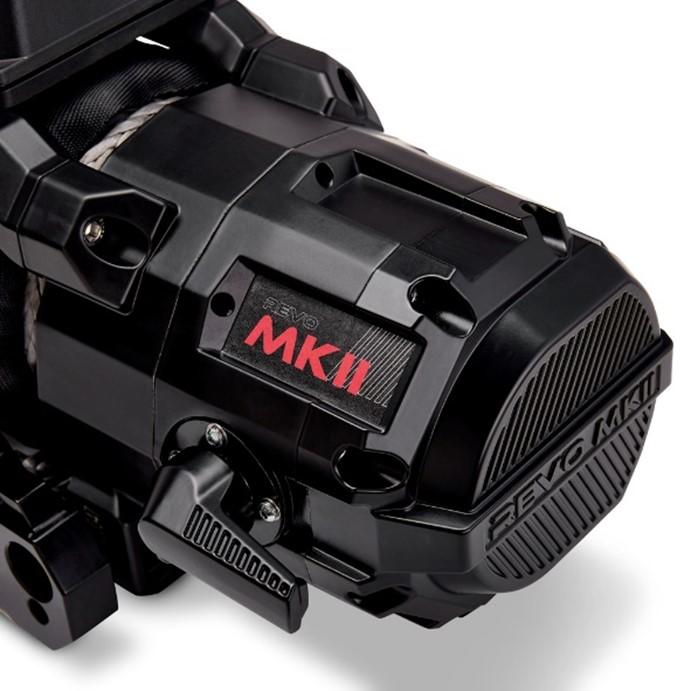

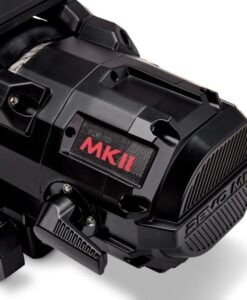

EFFORTLESS CLUTCH OPERATION
The astute no-lift clutch handle reduces fitment interference and presents simple operation even within those hard-to-reach locations. Factory positioned for 90% of bull bar fitments.
POWER ISOLATION SWITCH
The highest level of safety comes standard with the inclusion of a 500amp winch isolation switch, providing complete separation of winch from vehicle battery when the winch is not in use.
WATER & DUSTPROOF
The completely sealed motor & gearbox is rated to IP68 standard for maximum water, dust and debris protection.

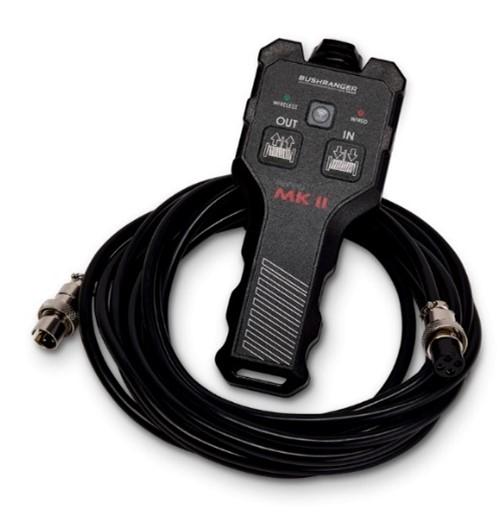

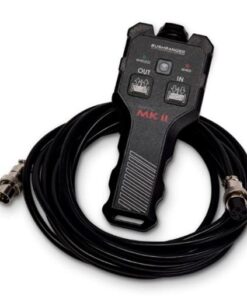

DUAL CONNECTION REMOTE (SYNTHETIC ONLY)
The compact wireless enabled hand controller contains a lacquered PCB allowing function within a 30m wireless range or by the direct connection 5m lead. (Wire winches include wired remote only).
Specs:
| Synthetic rope | Steel wire | |
| MODEL | RWM100S | RWM100W |
| DIMENSIONS | 582mm(L) x 194mm (W) x 185mm (H) | 582mm(L) x 194mm (W) x 185mm (H) |
| WEIGHT (FITTED) | 32.7kg | 44.2kg |
| RATED LINE PULL (1ST LAYER) | 10,000lbs (4,536kg) | 10,000lbs (4,536kg) |
| MOTOR | 3.9kW (5.2 HP) | 3.9kW (5.2 HP) |
| REMOTE CONTROL | Dual Connection Remote Wireless – 30m range / Wired – 5m Lead |
Wired – 5m Lead |
| ELECTRICAL CONTACTOR | Albright DC88P Contactor | Albright DC88P Contactor |
| GEARBOX | 2 Stage Planetary & 2 Stage Spur gear | 3 Stage Planetary & 2 Stage Spur gear |
| BRAKE | Gearbox mounted 100% load holding proportional friction brake | Gearbox mounted 100% load holding proportional friction brake |
| CLUTCH | Rotating Ring Gear, 90° Turn handle (no lift) | Rotating Ring Gear, 90° Turn handle (no lift) |
| ROPE | Grey 10mm diameter x 28m Synthetic Rope with Protective Sleeve |
9.2mm Diameter x 28m Wire Rope |
| FAIRLEAD | Two Position, Aircraft Grade Aluminium Hawse fairlead |

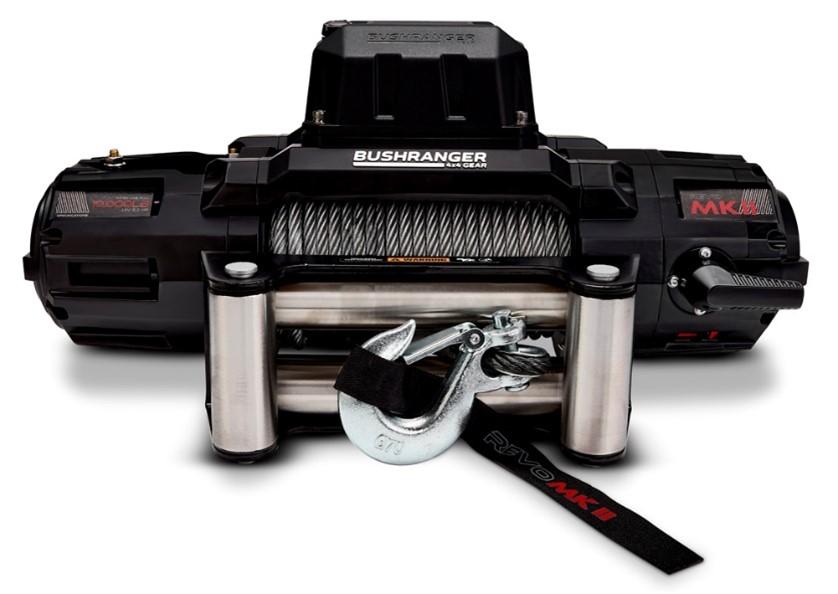

Stainless Steel 304 Roller Fairlead |
| FINISH | Electrophorus Pretreated Black Satin Powder Coated Finish | Electrophorus Pretreated Black Satin Powder Coated Finish |
| WATERPROOF RATINGS | IP68 Winch Motor and Gearbox | IP68 Winch Motor and Gearbox |
| WARRANTY | Limited Lifetime Warranty (7 Year Warranty on Electrical Components) | Limited Lifetime Warranty (7 Year Warranty on Electrical Components) |
| CERTIFICATIONS | CE | CE |
Tech specs:
| Synthetic | Steel wire | |
| Net Weight(Kg) | 33 | 44 |
| Width(cm) | 19.4 | 19.4 |
| Height(cm) | 18.5 | 18.5 |
| Length(cm) | 58.2 | 58.2 |
| Fitting Time (min) | 85 | 85 |
| Packaging length [cm] | 63 | 63 |
| Packaging width [cm] | 25.5 | 24.5 |
| Packaging height [cm] | 36 | 35 |
| Gross Weight [kg] | 35.4 | 46.9 |
| DC voltage [V] | 12 | 12 |
| Max. Load [kg] | 4536 | 4536 |
| Rated Power [kW] | 3.9 | 3.9 |
| Rated current [A] | 380 | 380 |
| Gear Ratio | 171:01:00 | 171:01:00 |
| Product Feature | Wireless / Rechargeable winch remote | |
| Product Feature | Plug in winch remote | Plug in winch remote |
| Cable Length [m] | 5 | 5 |
| Overheating protection | no | no |
| Surface | Powder coated | Powder coated |
| Colour | black | black |
| Distance of mounting bores 1 [mm] | 254 | 254 |
| Distance of mounting bores 2 [mm] | 114 | 114 |
| Protection Type (IP Code) | IP68 | IP68 |
| Specification | Winch rope | Winch cable |
| Cable Length [m] | 28 | 28 |
| Cable Diameter [mm] | 10 | 9.2 |
| Material | Synthetic | Steel Wire |
| Supplementary Article / Supplementary Info | with sleeve | |
| Drum diameter [mm] | 6.35 | 6.35 |
| Specification | Electrical cable | Electrical cable |
| Cable Length [m] | 1.70 | 1.70 |
| Specification | Fairlead | Fairlead |
| Product Feature | Hawse Fairlead – Aluminium | Roller Fairlead – Steel |
| Brake System | Proportional fric | Proportional fric |
| Capacity at 12V | 10,000 lb | 10,000 lb |
| Cable ID | Synthetic Rope | Steel Cable |
Document:
| Gewicht | N/B |
|---|---|
| Afmetingen | N/B |
| Kabelsoort | Synthetisch touw, Staalkabel |
