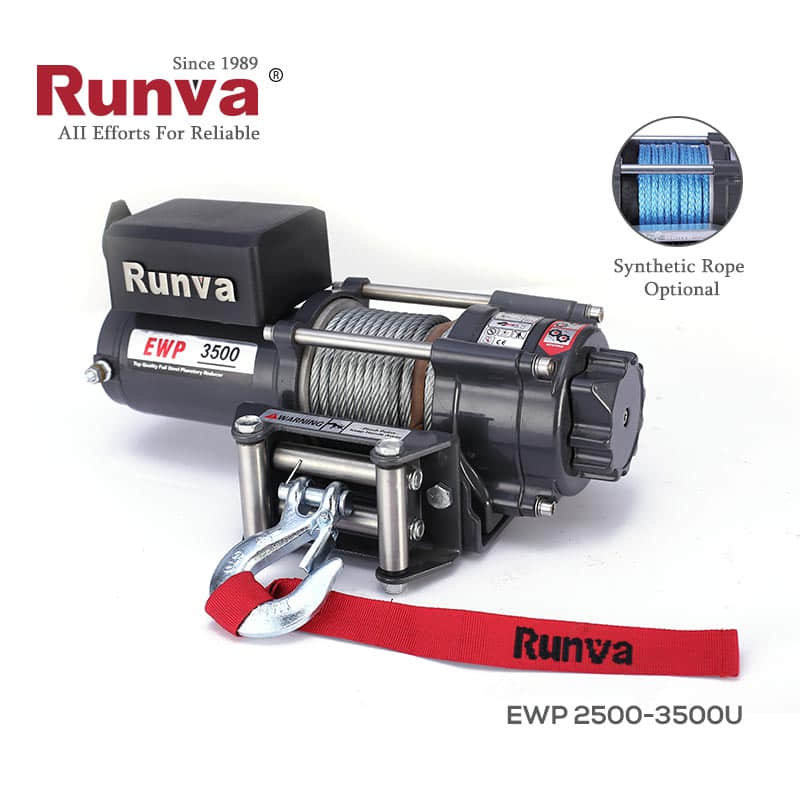

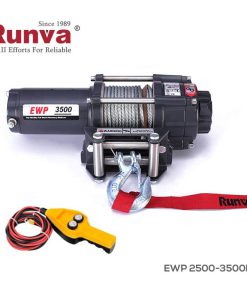

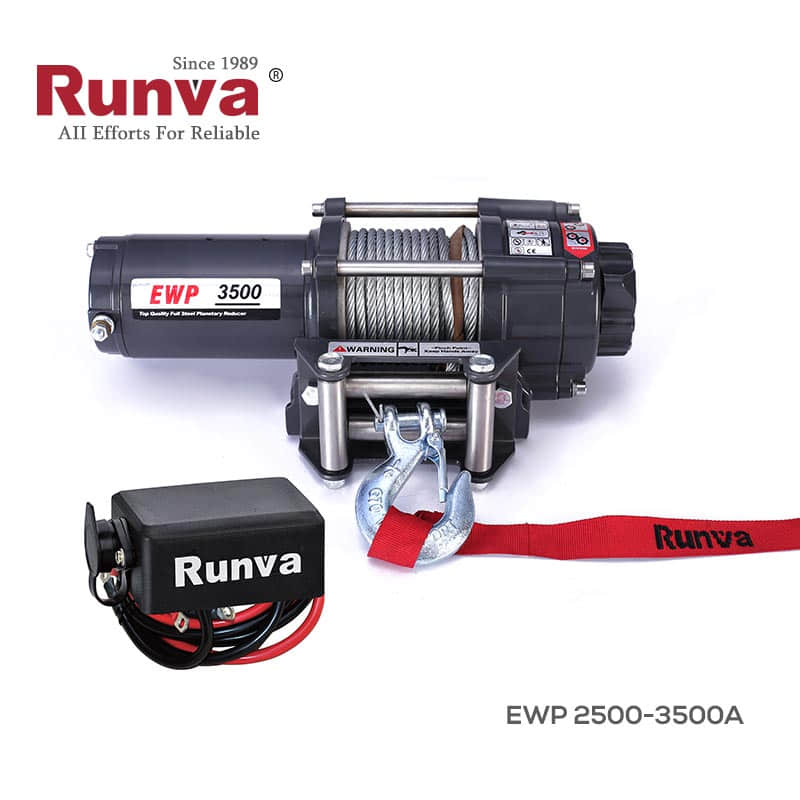

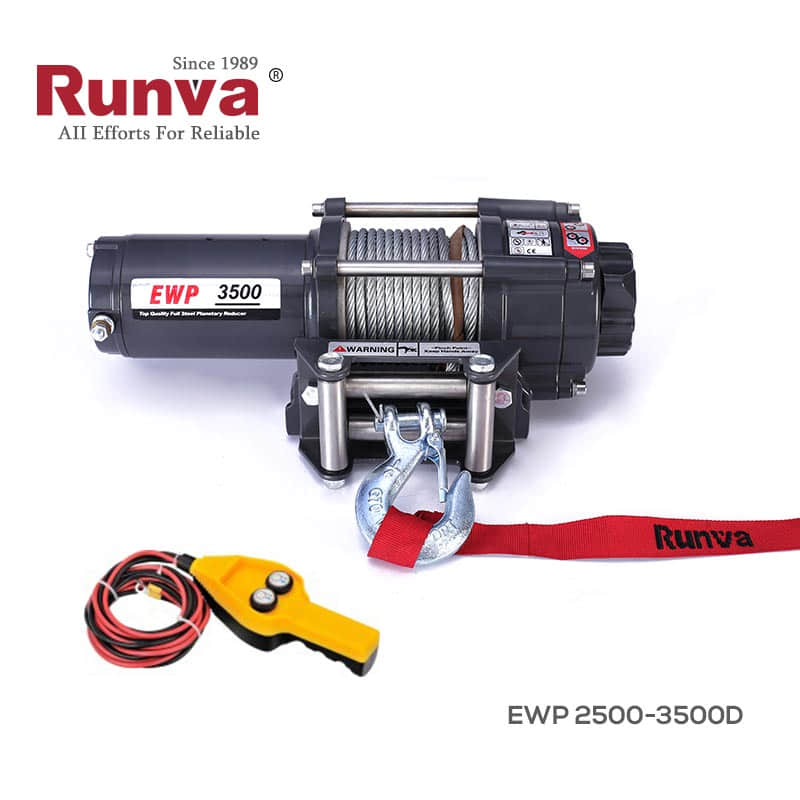

Runva Winch – EWP2500A 12V
Features:
- Full steel gear reducer
- Runva patent cam cluth
- Self-lock braking action
- High current switch control directly
- Wireless remote control available
Specifications:
| Rated line pull | 2500 lbs (1134 kg) | ||
| Motor: permanent magnet | 12V:Input: 1.9 kW / 2.6hp; Output: 0.8 kW / 1.1hp 24V:Input: 2.4 kW / 3.2hp; Output: 0.9 kW / 1.2hp |
||
| Gear reduction ratio | 170:1 | ||
| Cable (Dia.× L) | Ø3/16″×45.9′ (Ø 4.8mm×14.0m) | ||
| Drum size (Dia.× L) | Ø1.46″×3.15″ (Ø 37mm×80 mm) | ||
| Mounting bolt pattern | 3.13″ (79.5 mm) 2-M8 | ||
| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Line Pull lbs.(kg) | Line Speed ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs. (kg) | Total rope on the drum ft (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 2500(1134) | 6.9(2.1) | |
| 0 | 14.1(4.3) | 10.5(3.2) | 20 | 16 | 2 | 2033(922) | 15.1(4.6) |
| 500(227) | 9.8(3.0) | 10.2(3.1) | 55 | 35 | 3 | 1713(777) | 24.3(7.4) |
| 1500(680) | 7.5(2.3) | 9.2(2.8) | 95 | 65 | 4 | 1480(671) | 34.1(10.4) |
| 2500(1134) | 4.3(1.3) | 8.2(2.5) | 160 | 100 | 5 | 1303(591) | 45.9(14.0) |
| Item | EWP2500A | ||

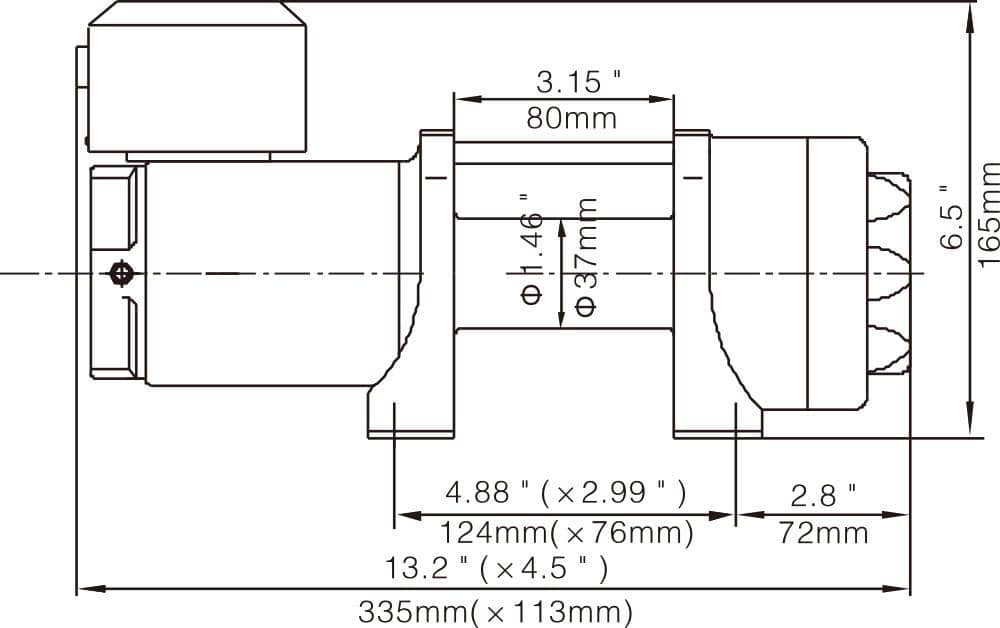

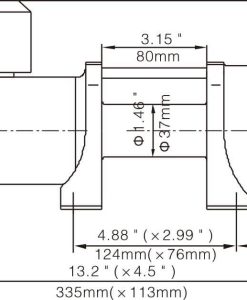

| Overall dimensions | 12.7″×4.5″×4.4″ | ||
| (L×W×H) | 323mm ×113mm ×112 mm | ||
| Net weight (Ibs/kg) | 20.5lbs / 9.3kg |
