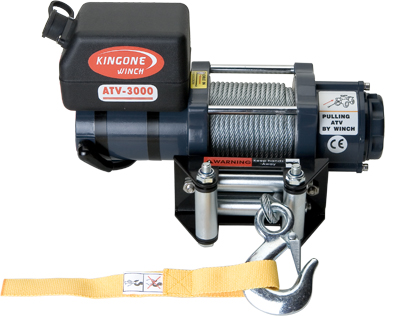

KingOne Winch – ATV-3000C Steel Cable
€339,00 – €359,00 incl. BTW
KingOne Winch – ATV-3000C Steel Cable
- Permanent magnet motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,flat brake.
- Rotating ring gear clutch have the freespooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
Specification
| Line pull: | 1,363kgs/3,000lbs |
| Motor: | 12V/1.0HP 24V/0.8HP |
| Gear Train: | Three stage |
| Gear Ratio: | 166:01 |
| Freespooling Clutch: | Rotating ring gear |
| Wire Rope Size: | Φ3/16″×50′(Φ4.8mm×15m) |
| Wire Rope Type: | Aircraft A7×19 |
| Drum Size: | Φ2.2″×3.4″(Φ55mm×87.5mm) |
Line pull
| Layer of Wire Rope | Max Line Pull |
| 1 | 3,000lbs/1,363kgs |
| 2 | 2,590lbs/1,170kgs |
| 3 | 2,270lbs/1,030kgs |
| 4 | 2,030lbs/920kgs |
| 5 | 1,830lbs/830kgs |
LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
| No Load | 24FPM/7.3MPM | 25 | 13 |
| 500lbs/230kgs | 19FPM/6MPM | 50 | 27 |
| 1,000lbs/450kgs | 15FPM/4.6MPM | 85 | 45 |
| 1,500lbs/680kgs | 13.5FPM/4.2MPM | 105 | 53 |
| 2,000lbs/900kgs | 11.4FPM/3.5MPM | 118 | 60 |
| 2,500lbs/1,140kgs | 10.2FPM/3.1MPM | 160 | 90 |
| 3,000lbs/1,363kgs | 8.2FPM/2.5MPM | 188 | 110 |
Standard accessoiries
| Controller | TA-0508 |

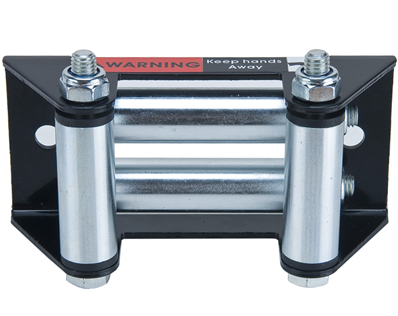

| 4 Way Roller Fairlead | TA-0901 |
| Small Controller | TA-0507 |
| Handsaver Strap | |
| Base Frame | TA-0303 |
| Mounting Hardware | |
| Control Unit | TA-0509 |
| Wire Rope With Hook |
Package
| Winch weight : | 11.67kgs/25.7lbs |
| Gross Weight : | 13.76kgs/30.3lbs |
| Box Dimension : | 360×209×257 mm(14.1″×8.2″×10.1″) |
TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.
| Gewicht | 13,63 kg |
|---|---|
| Afmetingen | 39 × 20,9 × 23,5 cm |
| Voltage | 12V, 24V |
