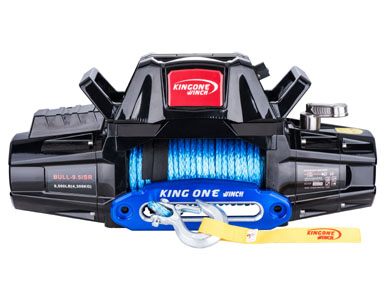

KingOne Winch – BULL-9.5i Synthetic Rope
€1.109,00 – €1.149,00 incl. BTW
KingOne Winch – BULL-9.5i Synthetic Rope
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
Specification
| Line pull: | 4,309kgs/9,500lbs |
| Motor: | 12V/24V series wound |
| Gear Train: | Three stage |
| Gear Ratio: | 156:1 |
| Brake: | 100% full load double cone braking |
| Synthetic Rope: | Φ11/32″×90′(Φ9.0mm×27m) |

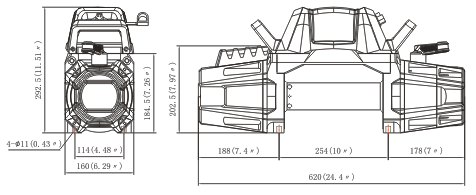

| Dimensions: | 24.4″L×6.29″Dx11.51″H(620mmL×160mmDx292.5mmH) |
Line pull
| Layer of Wire Rope | Max Line Pull |
| 1 | 9,500lbs/4,309kgs |
| 2 | 7,800lbs/3,500kgs |
| 3 | 6,550lbs/2,977kgs |
| 4 | 5,700lbs/2,578kgs |
LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
| No Load | 64FPM/19.5MPM | 60 | 40 |
| 2,000lbs/907kgs | 15.4FPM/4.7MPM | 150 | 116 |
| 6,000ibs/2.722kgs | 11.2FPM/3.4MPM | 246 | 220 |
| 9,500ibs/4,309kgs | 8.2FPM/2.5MPM | 370 | 300 |
Standard accessoiries
| Controller | TA-0906 |
| Synthetic Rope With Hook | |
| Hawse Fairlead | TA-0978 |
| Control Unit | TA-0902 |
| Mounting Hardware | |
| Handsaver Strap |
Package
| Winch weight : | 36.2kgs/79.8lbs |
| Gross Weight : | 37.5kgs/82.7lbs |
| Box Dimension : | 655×193×445 mm(25.8″×7.6″×17.5″) |
TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.
| Gewicht | 37,5 kg |
|---|---|
| Afmetingen | 65,5 × 19,3 × 44,5 cm |
| Voltage | 12V, 24V |
