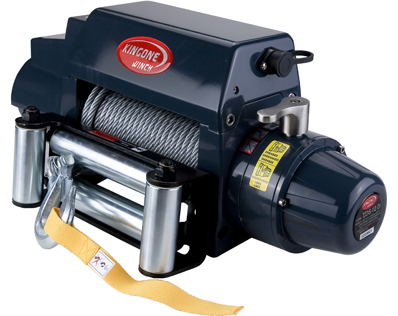

KingOne Winch – TDS-12.0i Steel Cable
- Heavy duty series wound motor delivers superior torque output and faster line speed.
- 3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
- Automatic,double cone brake.
- Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
- Installation ,operation and maintenance with ease.
Specification
| Line pull: | 5,442kgs/12,000lbs |
| Motor: | 12V/6.0HP 24V/3.6HP |
| Gear Train: | Three stage |
| Gear Ratio: | 254:1 |
| Freespooling Clutch: | Rotating ring gear |
| Wire Rope Size: | Φ3/8″×90′(Φ9.5mm×27.4m)  |
| Drum Size: | Φ2.5″×9″(Φ63.5mm×229mm) |
Line pull
| Layer of Wire Rope | Max Line Pull |
| 1 | 12,000lbs/5,442kgs |
| 2 | 9,789lbs/4,445kgs |
| 3 | 8,273lbs/3,760kgs |
| 4 | 7,199lbs/3,255kgs |
LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
| No Load | 29.3FPM/9MPM | 60 | 40 |
| 2,000lbs/907kgs | 13FPM/4MPM | 116 | 87 |
| 4,000lbs/1,814kgs | 9.8FPM/3MPM | 141 | 110 |
| 6,000lbs/2,722kgs | 7.9FPM/2.4MPM | 178 | 129 |
| 8,000lbs/3,650kgs | 6.9FPM/2.1MPM | 224 | 165 |
| 9,500lbs/4,309kgs | 6.2FPM/1.9MPM | 238 | 185 |
| 11,000lbs/5,000kgs | 4.9FPM/1.5MPM | 270 | 214 |
| 12,000lbs/5,442kgs | 4.5FPM/1.4MPM | 285 | 217 |
Standard accessoiries
| Controller | TA-0906 | |
| Wire Rope With Hook | ||
| 4 Way Roller Fairlead | TA-0903 | |
| Control Unit | TA-0902/12V | TA-0902/24V |
| Mounting Hardware | ||
| Handsaver Strap |
Package
| Winch weight : | 44kgs/96.8lbs |
| Gross Weight : | 46kgs/101.2lbs |
| Box Dimension : | 647×198×410 mm(25.5″×7.8″×16.1″) |
TIP: Gebruik bij het lieren altijd een lierdeken en sla de haak vanaf de onderzijde in het trekoog in. Bij breuk klapt de kabel dan naar de grond.
