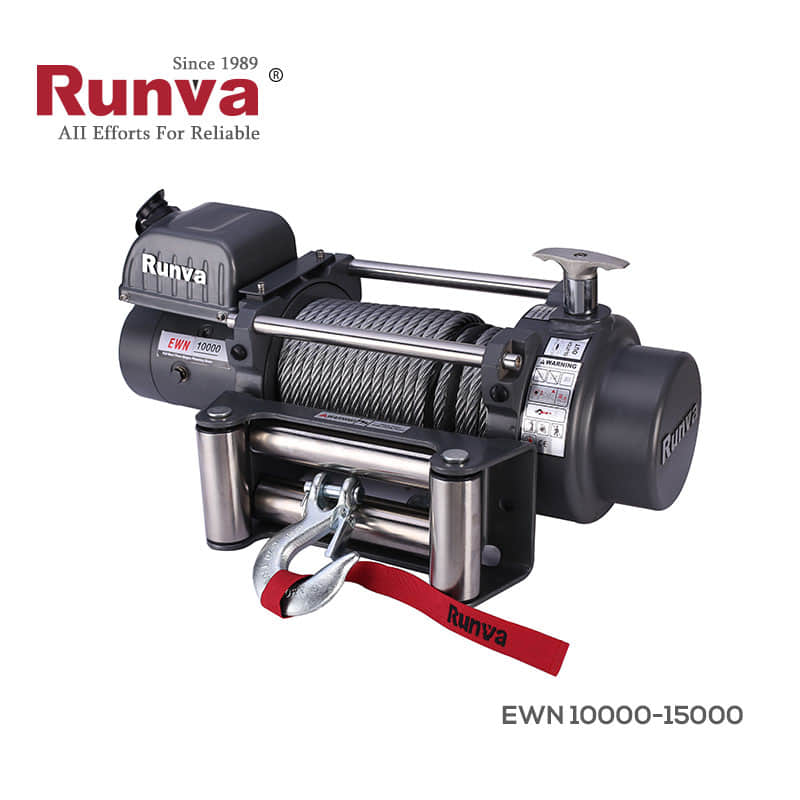

Runva Winch – EWN15000 serie
€1.019,00
Runva Winch – EWN15000 serie
Features:
- Free spooling clutch
- Automatic screw cone braking action
- Series wound motor
- Runva patent three stage planetary gear reducer
- Sepcially designed shape for convenience of installation and good looking
- Remote control through control box and switch
- Wireless remote control available
- DC 12v or DC 24v Power drive optional
Specifications:
| Rated line pull | 15000 lbs (6804 kg) | |
| Motor: series wound | 12V:Input: 4.2kW / 5.5hp;Output: 2.8 kW /3.8hp 24V:Input: 5.5 kW / 7.5hp;Output: 3.5 kW /4.7hp |
|
| Gear reduction ratio | 450:1 | |
| Cable (Dia.× L) | Ø7/16 “×83.7 ‘ (Ø11mm×25.5m) | |
| Drum size (Dia.× L) | Ø3.5 “×8.5” (Ø89mm×217mm) | |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 | |
| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Line Pull Ibs.(kg) | Line Speed ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs. (kg) | Total rope on the drum ft (m) | ||
| 12DC | 24DC | 12DC | 24DC | 1 | 15000（6804） | 19.7（6.0） | |
| 0 | 13.1（4.6） | 16.1（4.9） | 90 | 48 | 2 | 12000（5443） | 42.7（13.0） |
| 8000（3629） | 5.6（1.7） | 7.2（2.2） | 285 | 140 | 3 | 10100（4581） | 68.9（21.0） |
| 12000（5443） | 4.5（1.37） | 5.9（1.8） | 340 | 191 | 4 | 8720（3955） | 83.7（25.5） |
| 15000（6804） | 3.9（1.2） | 5.6（1.7） | 410 | 235 | |||

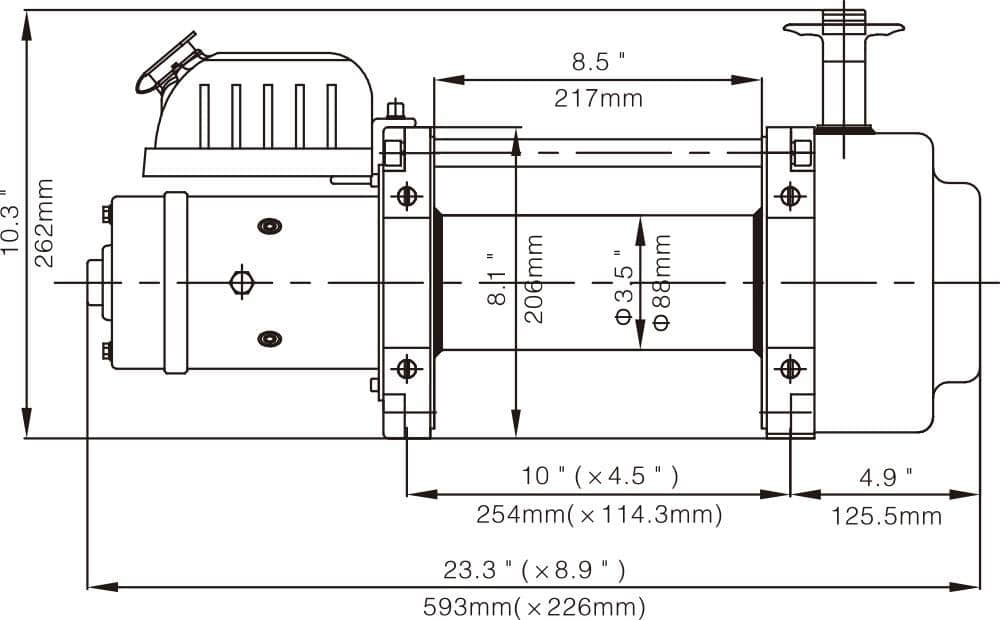

| Item | EWN15000 |
| Overall dimensions | 23.3″×8.9″×10.3″ |
| (L×W×H) | 593mm ×226mm ×262mm |
| Net weight (Ibs/kg) | 162.9lbs / 73.8kg |
| Gewicht | 73,8 kg |
|---|---|
| Afmetingen | 59,3 × 22,6 × 26,2 cm |
| Voltage | 12V, 24V |
