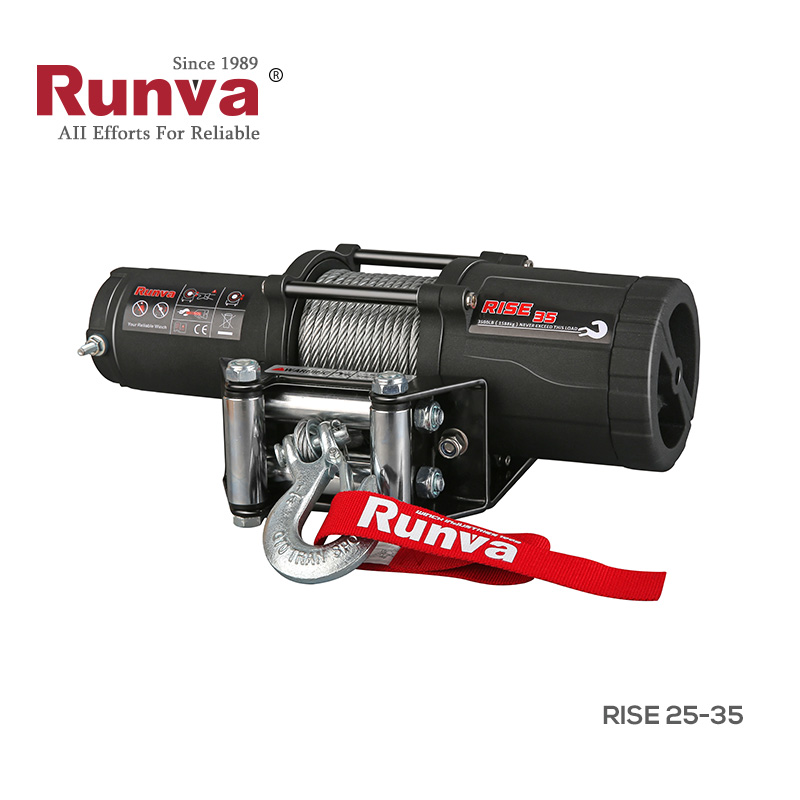

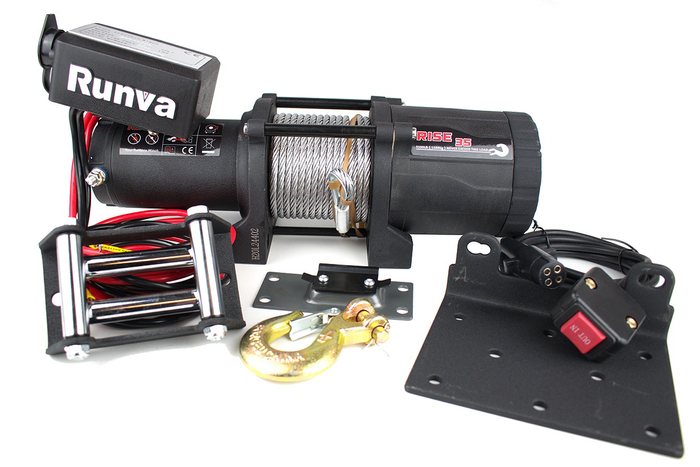

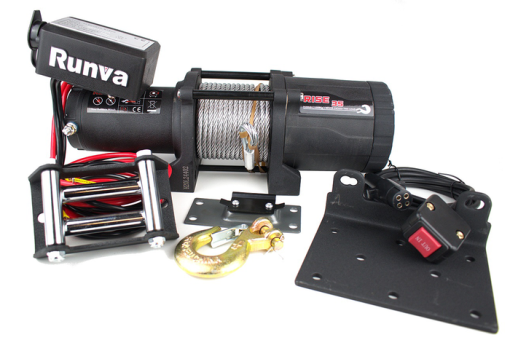

Runva Winch – RISE35 12V
Prijsklasse: €195,00 tot €219,00
Runva Winch – RISE35 12V
Features:
- Smooth & reliable 3-stage planetary gear train
- Robust performance with powerful motor
- All-new easy-to-operate clutch design
- Full IP67 waterproof design
Specifications:

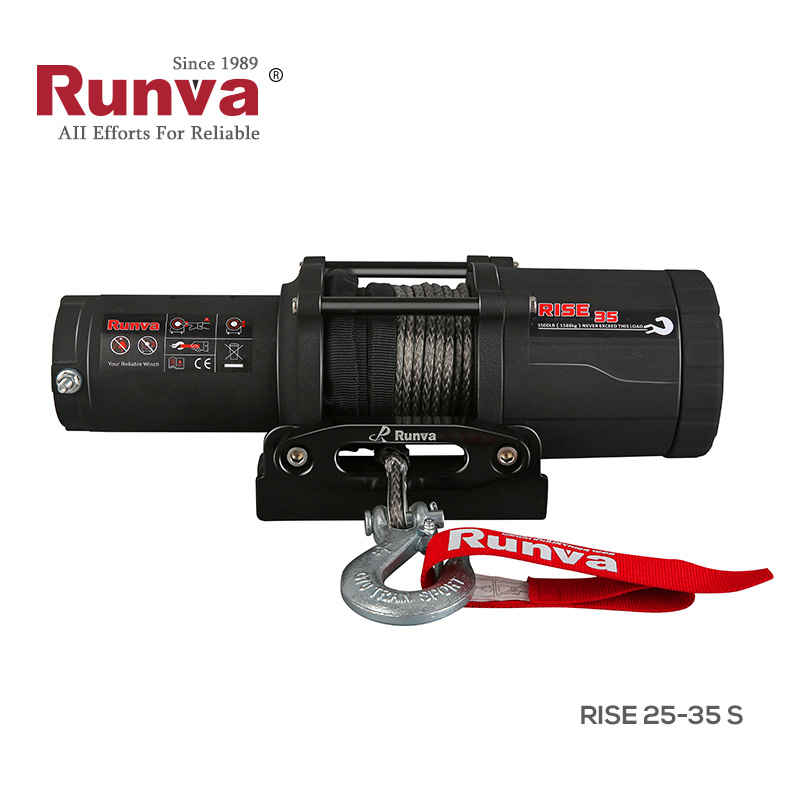

| MODEL | RISE35 12V | RISE35-S 12V |
| Pulling force | 3500 lbs (1588 kg) | 3500 lbs (1588 kg) |
| Motor | 12V; Input:2.4kW/3.2hp; Output:1.0kW/1,3hp |
12V; Input:2.4kW/3.2hp; Output:1.0kW/1,3hp |
| Ratio | 166:1 | 166:1 |
| Rope Diameter | Ø5,4 | Ø5,4 |
| Rope Length | 13,4m | 13,4m |

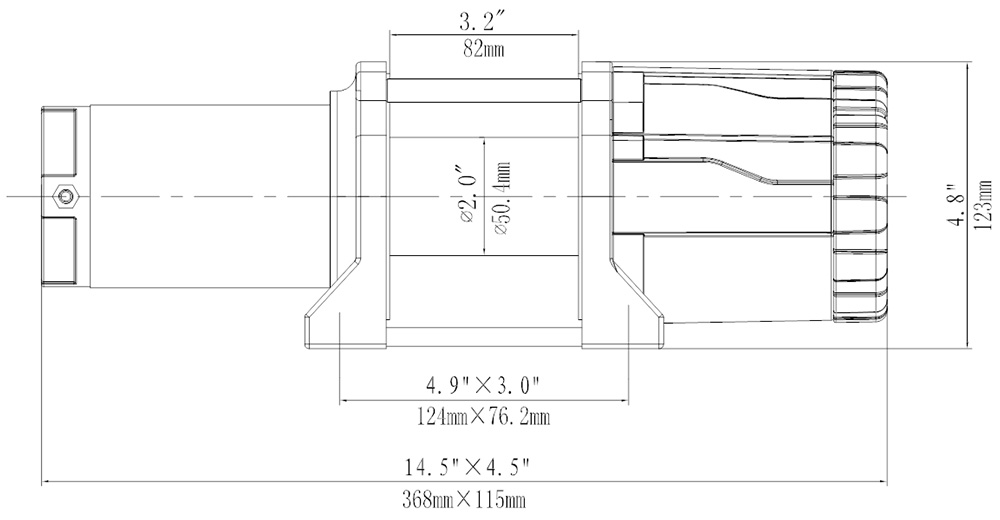

| Dimensions (LxWxH) |
368x115x123 mm | 368x115x123 mm |
| Weight | 12,3kg | 12,3kg |
| Pull , Speed, Amperes, Volts(First layer) | ||
| Line Pull (kgs) | Line Speed (m/min) | Current (A) |
| 0 | 5.2 | 28 |
| 454 | 3.0 | 80 |
| 1135 | 2.2 | 150 |
| 1588 | 1.8 | 170 |
| Line Pull And Rope Capacity In Layer | ||
| Lay of wire rope | Rated line pull (kgs) | Total rope on the drum (m) |
| 1 | 1588 | 2.6 |
| 2 | 1331 | 5.7 |
| 3 | 1145 | 9.1 |
| 4 | 1005 | 13.4 |
| Gewicht | 12,3 kg |
|---|---|
| Afmetingen | 36,8 × 11,5 × 12,3 cm |
| Uitvoering | Staal, Synthetisch |
