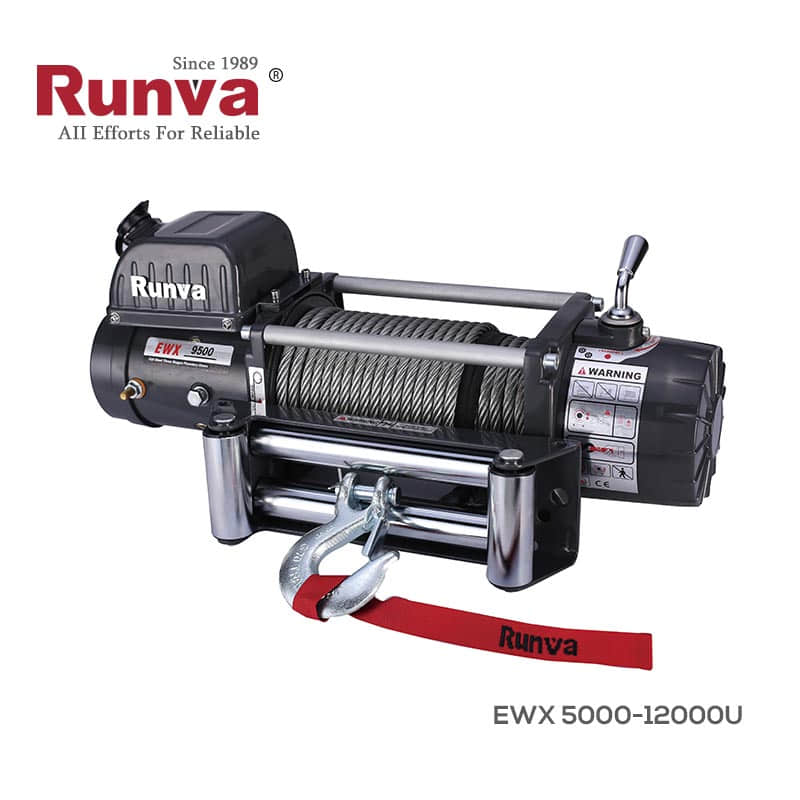

Runva Winch – EWX9500 serie
Features:
- Full steel gear
- Runva patent three stage planetary gear reducer
- Sliding geared ring cluth
- Automatic screw cone braking action
- Remote control through control box and switch
- Wireless remote control available
Specifications:
| Rated line pull | 9500 lbs (4309 kg) | ||
| Motor: series wound | 12V:Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp | ||
| Gear reduction ratio | 230:1 | ||
| Cable (Dia.× L) | Ø3/8″×85 ‘ (Ø9.2mm×26m) | ||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | ||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | ||
| Line Speed Amperes Volts First Layer | Line Pull and Rope Capacity in Layer Line Pull | ||||||
| Line Pull Ibs.(kg) | Line Speed ft/min (m/min) | Current A | Layer of cable | Rated line pull lbs. (kg) | Total rope on the drum ft (m) | ||
| 12DC | 12DC | 1 | 9500(4309) | 17.4(5.3) | |||
| 0 | 19.7 (6.0) | 80 | 2 | 7706(3495) | 39.4(12.0) | ||
| 3000(1361) | 12.5 (3.8) | 170 | 3 | 6482(2940) | 65.0(19.8) | ||
| 6000(2722) | 9.8（3.0） | 260 | 4 | 5593(2537) | 85.3(26.0) | ||
| 9500(4309) | 6.2（1.9） | 380 | |||||

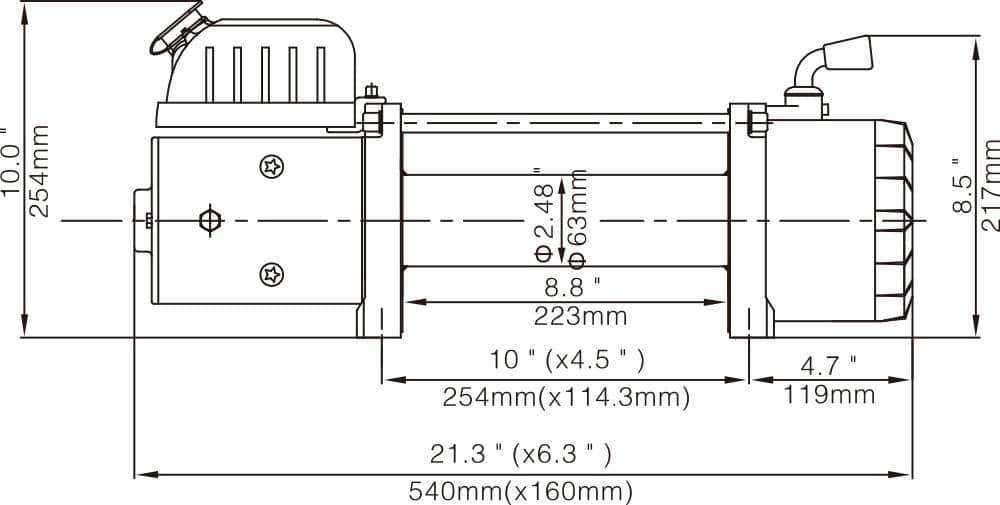

| Item | EWX9500 | ||
| Overall dimensions | 21.3″×6.3″×10.0″ | ||
| (L×W×H) | 540 mm ×160mm ×254mm | ||
| Net weight (Ibs/kg) | 80.7lbs / 36.6kg |
