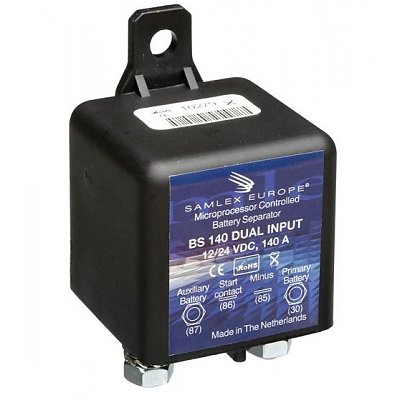

DG – Scheidingsrelais 140A 12/24V

DG – Scheidingsrelais 140A 12/24V

SPECIFICATIONS
• Microprocessor controlled
• Provides priority for charging only the starter battery first
• Prevents excessive discharging of the starter battery
• Automatic detection for 12 or 24 Vdc system
• Easy to install – does not require changing
• the existing circuit of the alternator
• Bidirectional
• No voltage drop
• 2 years warranty

APPLICATIONS
• Battery Separators are designed for use with 2 sets of batteries.
• It is recommended that these products be used with inverters
• When an auxillary battery is in use

• Ideal for:
• Marine
• RV / Automotive

TECHNICAL SPECIFICATIONS
Model BS 140 Dual
Continuous current 140 A
Peak current 420 A (250msec)
Connect voltage 13.2 or 26.4 VDC
Disconnect voltage 12.8 or 25.6 VDC
Standby current <5mA (12V)
<5mA (24V)
Start contact Yes
Micro switch for remote status indication No
Voltage stability ±2%
Weight 0,11 Kgs
Dimentions (HXWXD)mm 46X46X80
